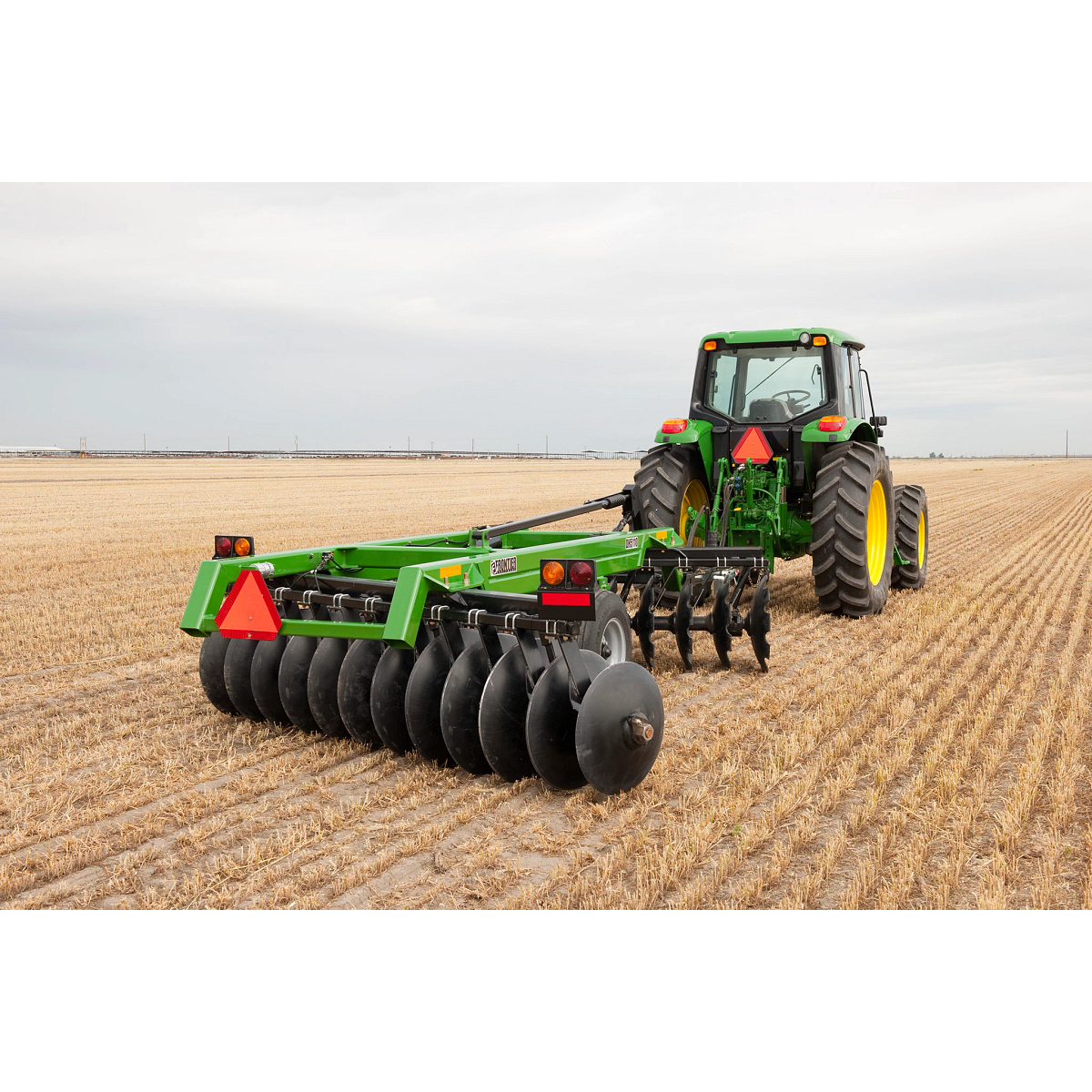

Field view of DH5110 Disk Harrow on 7230 Tractor

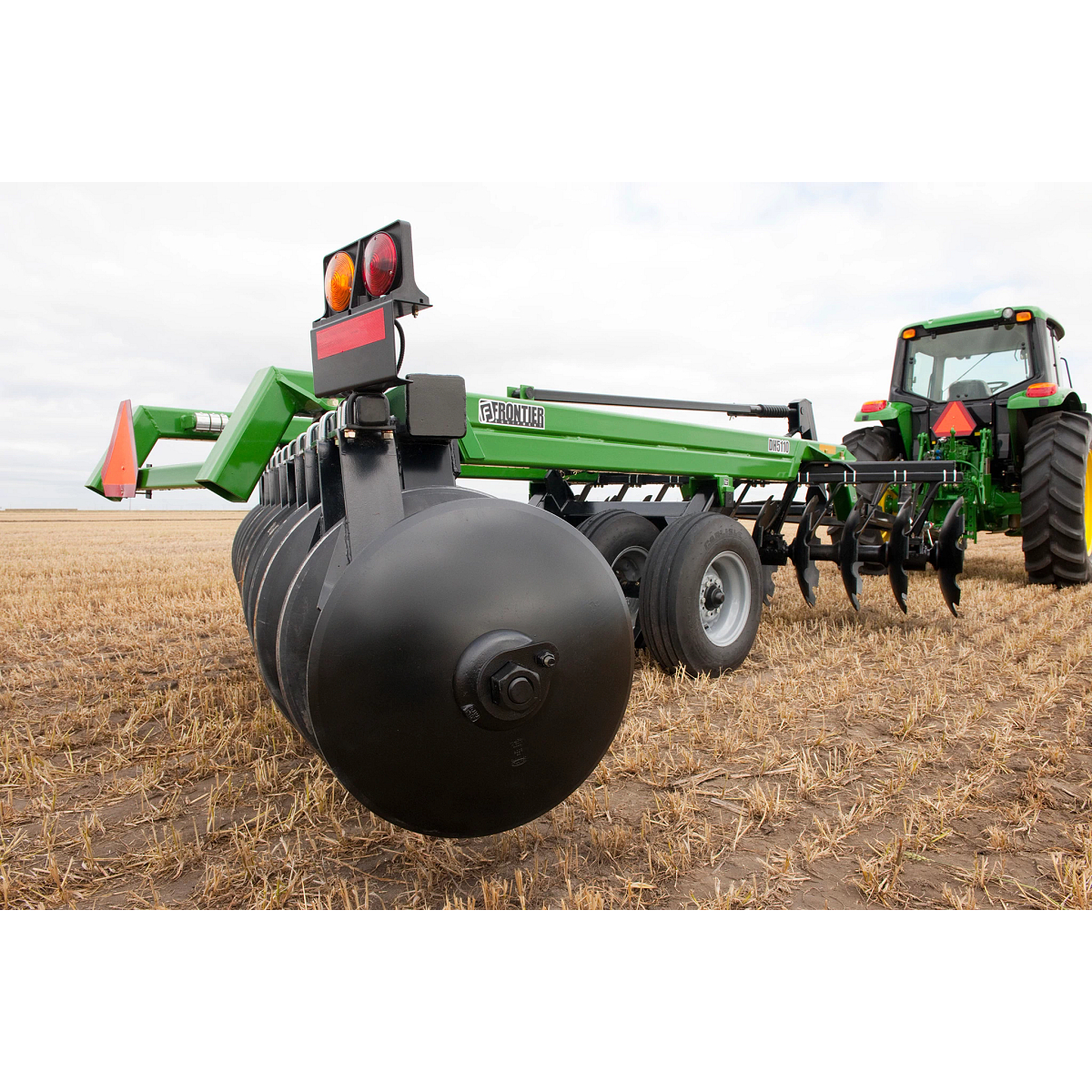

Close up view of DH5110 Disk Harrow on 7230 Tractor in field

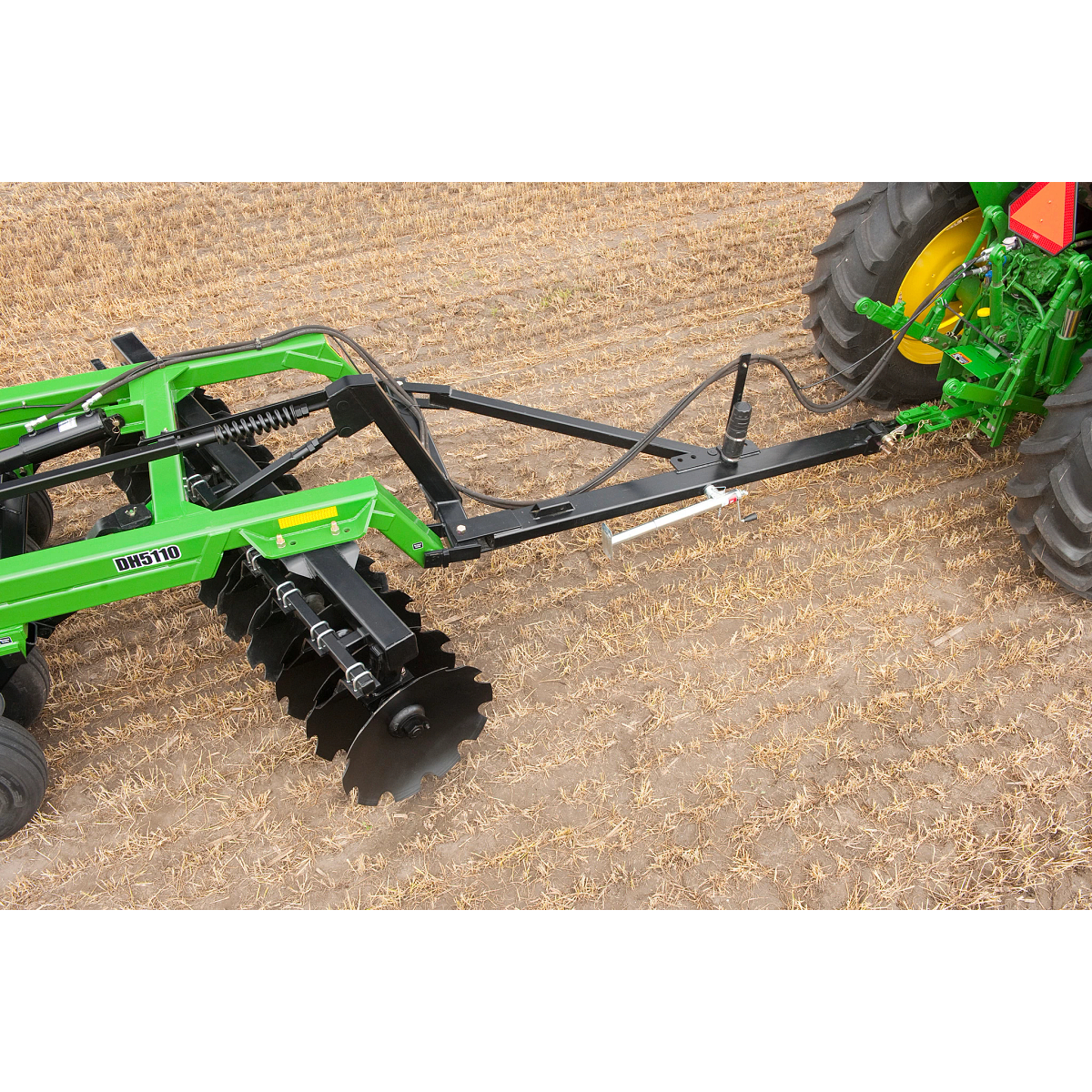

Top field view of DH5110 Disk Harrow on 7230 Tractor
No items found.
new
John Deere
DH5114
Compact Tractors Attachments

John Deere DH5114

Starting at

Key Features

  • Adjustable Disk Blade Scrapers Increase Productivity
  • Notched or Smooth Disk Blades Available in Two Sizes
  • Durable Clevis Hitch
  • Oil Bath Tapered Roller Bearings Minimize Maintenance
Request a Quote
Order Now
Apply for financing
Apply for financing
Print Page
Loan Calculator
Product Brochure
Features
Specifications
Adjustable disk blade scrapers increase productivity

Adjustable disk blade scrapers keep disk blades clean and performing in wet and sticky soils for increased productivity.

Close up view of DH5110 Disk Harrow in field
Disk blades (notched or smooth) available in two sizes

Disk blades are available in 26-in. or 28-in. (66-cm or 71-cm) diameters. Disk blades are available in smooth blades, notched blades, or a combination of front notched blades and rear smooth blades to meet a variety of needs.

Disk Blades (Notched or Smooth) Available in Two Sizes
Clevis hitch is durable for those tough working conditions

The clevis hitch has a durable design and is designed for ease of use, long life, and tough working conditions.

Clevis Hitch is Durable for Those Tough Working Conditions
Question text goes here

Answer text goes here

Transport
Transport - Width

15 ft

Transport - Width

4.6 m

Ground Clearance With Base Blades

8 in.

Ground Clearance With Base Blades

20.3 cm

Wheel Hub Bearings

Dual Tapered Roller Bearings

Working Adjustments
Approximate Working Width

14 ft

Approximate Working Width

4.3 m

Maximum Penetration

0.75 ft

Maximum Penetration

0.229 m

Dimensions
Weight Per Disk

248 lb.

Weight Per Disk

112.5 kg

Weight
Net

7700 lb.

Net

3492.7 kg

Weight Per Disk Blade

248 lb.

Weight Per Disk Blade

112.5 kg

Tractor Requirements
Recommended PTO HP Range

165-188 hp

Recommended PTO HP Range

123-140 kW

Recommended Drawbar HP Range

140-160 hp

Recommended Drawbar HP Range

104.4-119.3 kW

Frame
Type

Single Offset Rigid

Duty

General Purpose

Tube Size

5x5x0.375 in., 12.7x12.7x0.95 cm

Main Frame Tube

5x5x0.375 in., 12.7x12.7x0.95 cm

Hitch
Front Hitch Type

Spade

Disks
Spacing

10.5 in.

Spacing

26.7 cm

Quantity

33

Notched (Front) Notched (Rear)

Standard

Smooth (Front) Smooth (Rear)

Optional

Notched (Front) Smooth (Rear)

Optional

Blade Concavity

Standard high, Optional low

Available blade sizes
Blade Option One

26x0.312 in.

Blade Option One

660x7.9 mm

Blade Option Two

28x0.312 in.

Blade Option Two

711x7.9 mm

Disk Gangs
Front Angle

2 Positions degree (angle)

Rear Angle

2 Positions degree (angle)

Axle Size

1.625, 2.125 in.

Axle Size

4.1, 5.4 cm

Axle Material

Round heat treated alloy steel threaded on both ends

Bearing Type

Oil Bath Tapered Roller

Bearing Wear Plates

Standard

Bearing Standards

Welded, Reinforced

Scrapers

Adjustable

Lighting and Safety
Markings

SMV

Safety Tow Chain

Yes

Lights

Yes

Tires
Type

Implement- Quantity of 4

Size

9.5L x 15 8 ply

Wheel Hub Type

6 Bolt

Setup Time
Labor Hours

2-3 for two people

Warranty
Time Period

1 year
