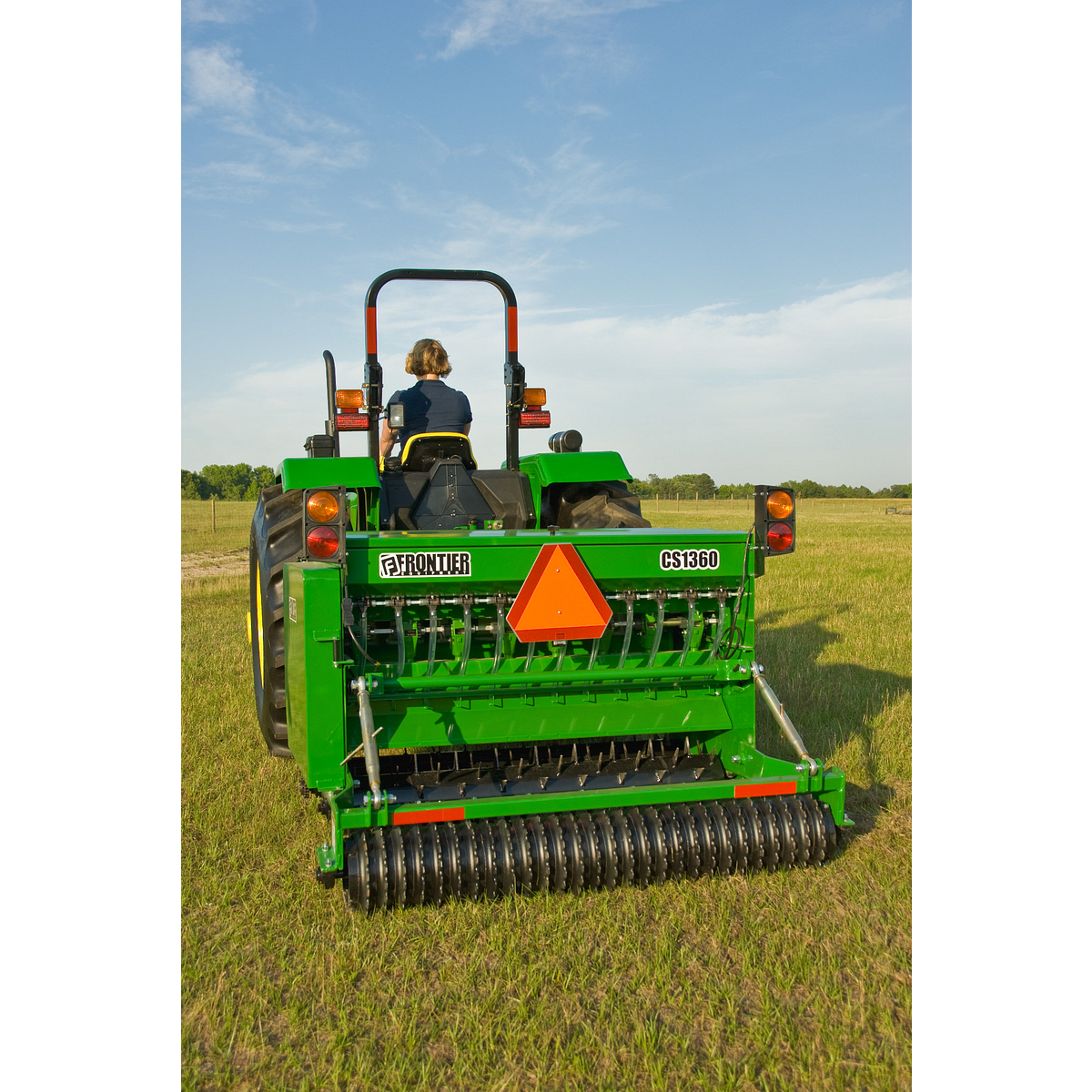

The CS Series Seeders feature ground-driven spiked rollers allowing accurate ground speed control by turning the rear roller 40% faster. This enables precise seeding in both new and existing grass or pasture beds.

CS Series seeders offer multiple seedbox configurations, including standard large-grain, native grass, small-seed legume, and fertilizer boxes, supporting diverse seeding needs and even enabling soil aeration and dethatching by disengaging boxes.

The rear cultipacker compresses and levels the seedbed, ensuring optimal seed-to-soil contact. With options of corrugated reinforced nylon and cast iron, and a torque arm for constant pressure, it enhances seedbed preparation.

Answer text goes here
Working Width | 60 in. |
Working Width | 152 cm |
Overall Width | 73 in. |
Overall Width | 185 cm |
Unit Length | 67 in. |
Unit Length | 170 cm |
Unit Height | 48 in. |
Unit Height | 122 cm |
Base Machine Weight | 1355 lb. |
Base Machine Weight | 614.6 kg |
Small Seed Box Weight | 65 lb. |
Small Seed Box Weight | 29.5 kg |
Stainless Steel Fertilizer Box Weight | 147 lb. |
Stainless Steel Fertilizer Box Weight | 66.7 kg |
Native Grass Box Weight | 207 lb. |
Native Grass Box Weight | 93.9 kg |
Second Large Seed Box Weight | 147 lb. |
Second Large Seed Box Weight | 66.7 kg |
Cast Iron Wheels Weight | 180 lb. |
Cast Iron Wheels Weight | 81.6 kg |
Minimum Power | 30 hp |
Minimum Power | 26 kW |
3-Point Type Hitch | Category 1, Category 2 |
iMatch™ Compatible | Yes |
Quik-Coupler | Category 2 |
Large Seed Box Capacity | 3.5 bu |
Large Seed Box Capacity | 0.123 m³ |
Fertilizer Box Capacity | 3.5 bu |
Fertilizer Box Capacity | 0.123 m³ |
Native Grass Seed Box Capacity | 3.5 bu |
Native Grass Seed Box Capacity | 0.123 m³ |
Legume, Small Seed Box Capacity | 1.5 bu |
Legume, Small Seed Box Capacity | 0.529 m³ |
Front Spike Outside Diameter | 15.75 in. |
Front Spike Outside Diameter | 40 cm |
Front Spike (Quantity) | 72 |
Rear Spike Outside Diameter | 15.75 in. |
Rear Spike Outside Diameter | 40 cm |
Rear Spike (Quantity) | 114 |
Nylon Rear Cultipacker | Standard |
Cast Iron Rear Cultipacker | Optional |
Spike Material | AR-500 Steel |
Spike Roller Drive Ratio | 15:22 |
Seed Box Drive Ratio | 15:28 |
Setup Time Labor Hour | 1 hr |
Warranty Time Period | 1 year |
