John Deere
BL1130
Compact Tractors Attachments

John Deere BL1130

Starting at

High Air Velocity and Airflow

The blower features an impressive air velocity of up to 141 mph (227 km/h) and a significant airflow of 6061 cfm, which ensures efficient clearing of debris across landscapes, making it ideal for high-demand tasks.

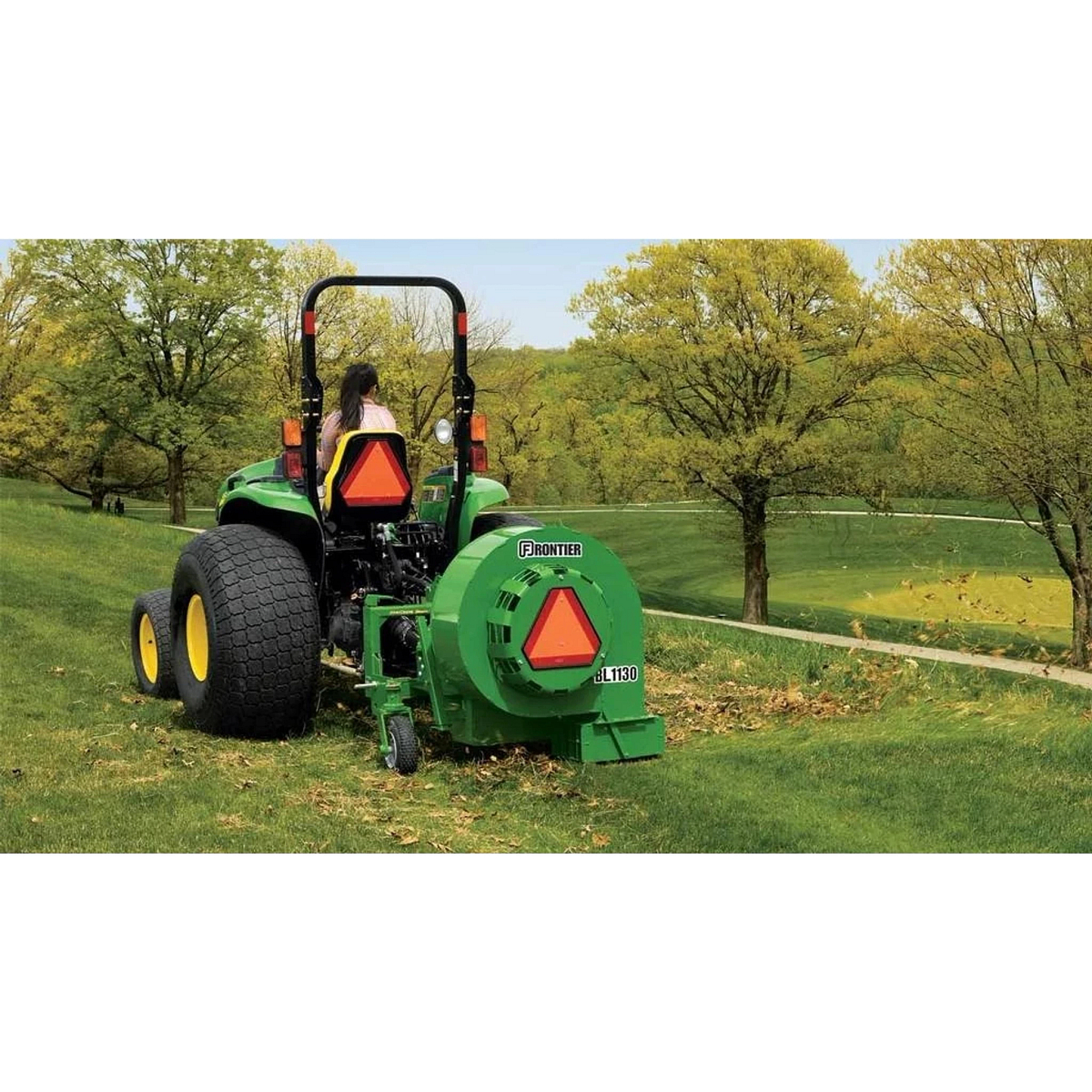

A green tractor operating on grass pulling a rear‑mounted blower attachment that is dispersing leaves with rolling hills, mature trees, and a golf course in the background
Adjustable Discharge Outlet

With a convenient lever, the discharge outlet is easily adjustable on the debris blower, allowing the operator to direct debris efficiently to either the left or right side, offering enhanced control in various environments.

Zoom-in of a BL1130 debris blower's green adjustable discharge outlet
Wide Range of Tractor Compatibility

The blower is compatible with various tractor series, accommodating both Category 1 and Category 2 hitches. This flexibility allows it to be used with a wide range of John Deere tractors, enhancing its usability across different platforms.

Question text goes here

Answer text goes here

Dimensions
Machine Length

47.123 in.

Machine Length

120 cm

Machine Width

50 in.

Machine Width

127 cm

Machine Height

48.75 in.

Machine Height

124 cm

Weight
Operating Weight

689 lb.

Operating Weight

1516 kg

Shipping Weight

850 lb.

Shipping Weight

1870 kg

Tractor Compatibility
PTO, Power (Minimum)

25 hp

PTO, Power (Minimum)

18.6 kW

PTO, Rpm

540 rpm

Hitch Category

Category 1 and Category 2

Driveline
Driveline Size

Series 40

Fan
Fan Diameter

29.5 in.

Fan Diameter

75 cm

Fan Width

10 in.

Fan Width

25 cm

Fan Number Of Blades

12

Fan Speed

1455 rpm

Fan Airflow

6061 cfm

Fan Airflow

172 cm²

Fan Air Velocity

228 km/h, 141 mph; 378 m/min, 12,400 fpm

Discharge/Outlet
Outlet Size

270x168 mm, 10.625x6.625 in; Squared: 72,900 mm, 70 in

Outlet Height Off Ground

2.875 in.

Outlet Height Off Ground

73 mm

Outlet Location

Right and Left

Outlet Adjustable

Yes

Gauge Wheels
Gauge Wheels Standard Or Optional

Standard

Gauge Wheels Material, Solid Or Pneumatic

Semi Pneumatic

Gauge Wheels Location, Front, Rear

3 Front and 1 Rear, swivel

Gauge Wheels Quantity

3

Gauge Wheels Size

12x3 in.

Gauge Wheels Size

305x76.2 mm

Construction
Housing Thickness

0.13 in.

Housing Thickness

3.4 mm

Housing Thickness

10 gauge

Shipping
Shipping Configuration

Wood crate

Units Per Crate

1

Setup Time
Setup Time Labor Hours

0.5 hr

Warranty
Warranty Time Period, Machine

1 year
