John Deere
BB5272
Compact Tractors Attachments

John Deere BB5272

Starting at

Solid Moldboard Provides Extra Durability

A solid moldboard helps in rough conditions, giving the cutting edge extra power to slice through hard, compacted ground.

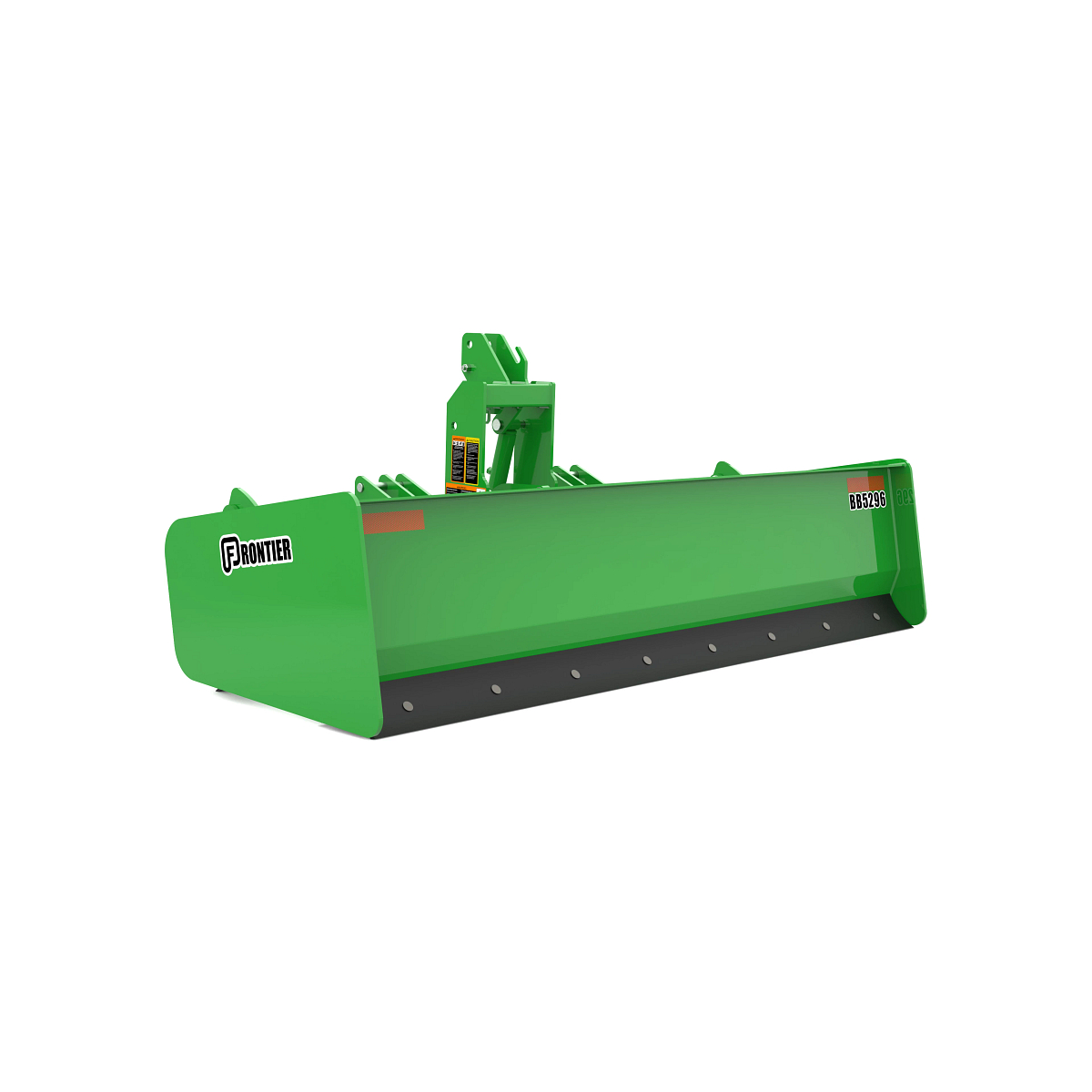

Front right view of a BB52 series box blade resting on gravel
Replaceable and Reversible Blade for Longevity

Rear replaceable steel cutting edge ensures precise leveling and a fine finish. The rear blade is reversible for longer life.

BB5072 Box Blade on utility tractor on gravel
Quick-Hitch System Attaches Easily

iMatch™ quick-hitch compatibility provides quick, efficient hookup. The iMatch Category 1 quick-attach hitch system is an innovative device that converts a 3-point hitch to fixed hooks and makes attaching implements an easy connection.

BB5048 Box Blade on Utility tractor on gravel road
Question text goes here

Answer text goes here

Dimensions
Working Width

72 in.

Working Width

182.88 cm

Unit Height

39 in.

Unit Height

99.1 cm

Unit Depth

32 in.

Unit Depth

81.28 cm

Endplate Thickness

0.5 in.

Endplate Thickness

1.27 cm

Moldboard Thickness

0.25 in.

Moldboard Thickness

0.64 cm

Weight
Operating Weight

885 lb.

Operating Weight

401.4 kg

Shipping Weight

910 lb.

Shipping Weight

412.76 kg

Tractor Compatibility
PTO Power

120 hp

PTO Power

86.48 kW

Hitch
Hitch Compatibility

Category 1 & 2

iMatch™ Compatible (Category 1)

Yes

Box
Box Capacity

28.42 cu ft

Box Capacity

0.8 m³

Box Design

High Back Box

Cutting Edge
Cutting Edge Reversible

Yes

Cutting Edge Quantity

Two

Cutting Edge Size

0.375 x 6 in.

Cutting Edge Size

0.95 x 15.24 cm

Scarifier Shank and Beam
Shank Type

Three position with holes

Point Type

Replaceable, heat treated

Point Quantity

Six

Scarifier Tube

5 x 5 x 0.25 in.

Scarifier Tube

12.7 x 12.7 x 0.64 cm

Tailgate
Tailgate Type

Fixed

Mast
Mast Type

Welded

Paint
Paint Color

JD Green

Shipping
Shipping Configuration

One per

Setup Time
Set-Up Time Labor Hours

0.5 hr

Warranty
Warranty Time Period

One year
