John Deere
BB5060L
Compact Tractors Attachments

John Deere BB5060L

Starting at

Cutting Edge Is Strategically Positioned for a Fine Finish

The BB50L Series Box Blade cutting edge ensures precise leveling and a fine finish. The reversible blade provides twice the wear life.

Close-up of agricultural implement showing adjustable mounting brackets with locking pins and clips beneath a black wear strip.
iMatch™ Quick-Hitch Compatible for Quick, Efficient Hookup

The iMatch™ Category 1 quick-attach hitch system is an innovative device that converts a 3-point hitch to fixed hooks and makes attaching implements an easy connection.

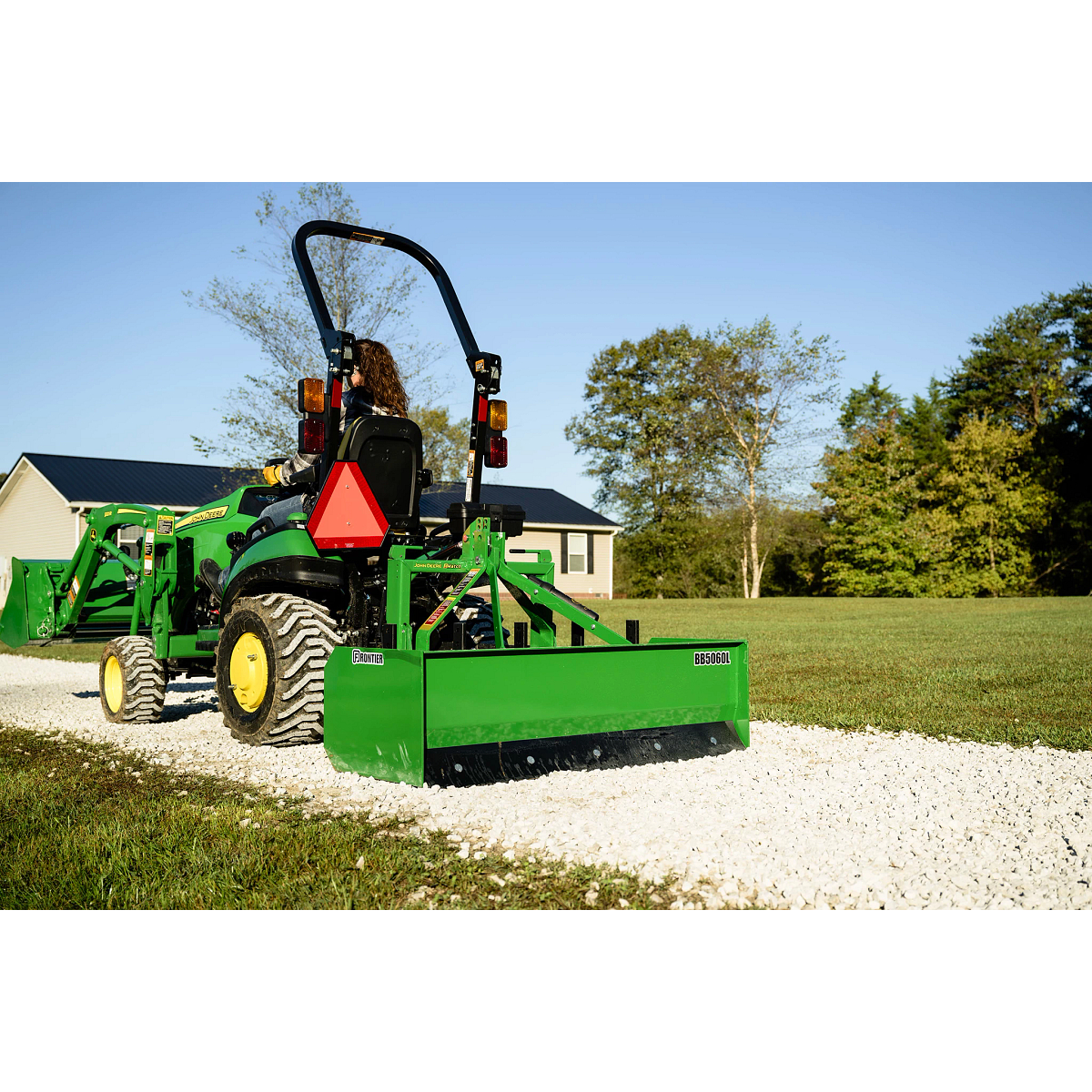

iMatch™ Quick Hitch on rear of tractor with box blade attached
Adjustable and Replaceable Ripper Shanks

Heavy-duty ripper shanks with multiple adjustment holes provide versatility for various ground conditions. They can be easily adjusted for different penetration levels, making them ideal for chipping or deep digging.

Studio view of BB5060L Box Blade
Question text goes here

Answer text goes here

Dimensions
Working Width

62 in.

Working Width

157.5 cm

Unit Height

33 in.

Unit Height

83.8 cm

Unit Depth

31 in.

Unit Depth

78.7 cm

Endplate Thickness

0.313 in.

Endplate Thickness

0.8 cm

Moldboard Thickness

0.188 in.

Moldboard Thickness

0.48 cm

Weight
Operating Weight

392 lb.

Operating Weight

177.8 kg

Shipping Weight

861 lb.

Shipping Weight

391 kg

Tractor Compatibility
PTO Power

26 hp

PTO Power

19 kW

Hitch
Hitch Compatibility

Category 1

iMatch™ Compatible (Category 1)

Yes

Box
Box Capacity

13.31 cu ft

Box Capacity

0.38 m³

Box Design

Box

Cutting Edge
Cutting Edge Reversible

Yes

Cutting Edge Quantity

2

Cutting Edge Size

0.375 x 6 in.

Cutting Edge Size

0.95 x 15.24 cm

Scarifier Shank and Beam
Shank Type

Four position with holes

Point Type

Hardened, crimped

Point Quantity

5

Tubular Scarifier Beam Size

4 x 4 x 0.25 in.

Tubular Scarifier Beam Size

10.16 x 10.16 x 0.64 cm

Tailgate
Tailgate Type

Fixed

Mast
Mast Type

Bolt on

Paint
Paint Color

John Deere green

Shipping
Shipping Configuration

Two per crate

Setup Time
Set-Up Time Labor Hours

0.25 hr

Warranty
Warranty Time Period

One year
