Attaching the AV50 Series Root Grapple to a John Deere loader is easy with quick-change attaching systems. Just line up the loader's connecting points to the attachment frame and lock it in place.

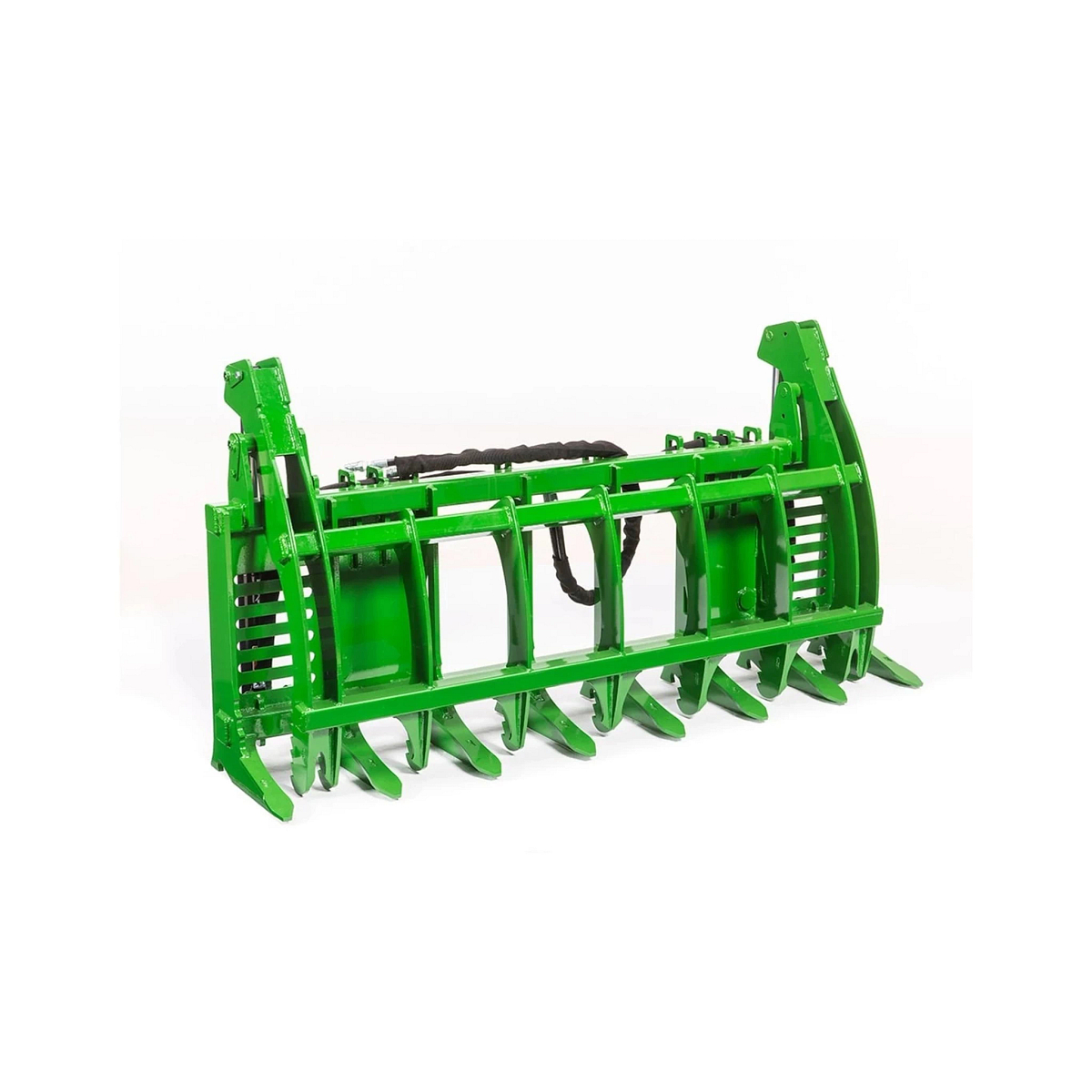

The AV50 Series Hydraulic Root Grapple is a lightweight, full-width tool designed for versatile tasks like leveling, root removal, and tree handling, offering strong clamping and improved balance without sacrificing lift capacity.

The base frame and welded feet provide the AV50 Series with a stable surface so the grapple can be easily stored in the upright position while not being used. In addition to providing stability for improved storage, the heal of the boot will aid in ripping out roots.

Answer text goes here
Overall Base Width | 84.4 in. |
Overall Base Width | 214.4 cm |
Top Clamp Width | 76 in. |
Top Clamp Width | 193 cm |
Depth (Closed) | 19.5 in. |
Depth (Closed) | 49.5 cm |
Height (Closed) | 37 in. |
Height (Closed) | 94 cm |
Height (Open) | 46.5 in. |
Height (Open) | 118.1 cm |
Grapple Opening | 44 in. |
Grapple Opening | 111.8 cm |
Weight | 670 lb. |
Weight | 303.9 kg |
Shipping Weight | 1408 lb. |
Shipping Weight | 638.7 kg |
Bottom Frame Steel Thickness | 0.5 in. |
Bottom Frame Steel Thickness | 1.3 cm |
Tractor HP Min./Max. | 50-140 hp |
Tractor HP Min./Max. | 37.3-104.4 kW |
Compatibility | 500, 600 Series (Global Carrier) |
Upper Tines - Quantity | 8 |
Lower Tines - Quantity | 9 |
Grapple Tine Spacing | 10.5 in. |
Grapple Tine Spacing | 26.3 cm |
Bottom Tine Working Length | 12 in. |
Bottom Tine Working Length | 30.5 cm |
Grapple Clamping Force | 5645 lb-ft |
Grapple Clamping Force | 25.1 N |
Maximum Clamping Diameter | 43.4 in. |
Maximum Clamping Diameter | 110.2 cm |
Minimum Clamping Diameter | 1.5 in. |
Minimum Clamping Diameter | 3.8 cm |
Type | 2″ bore x 12″ stroke x 1-1/4″ rod |
Quantity | 2 cylinders |
Max Hydraulic Pressure | 3000 psi |
Max Hydraulic Pressure | 207 bar |
Maximum | 5645 lb-ft |
Maximum | 25.1 N |
Time Period | 1 Year Warranty |
