new
John Deere
AV56G
Compact Tractors Attachments

John Deere AV56G

Starting at

Quick and Easy Connection to Loader

Attaching the AV50 Series Root Grapple to a John Deere loader is easy with quick-change attaching systems. Just line up the loader's connecting points to the attachment frame and lock it in place.

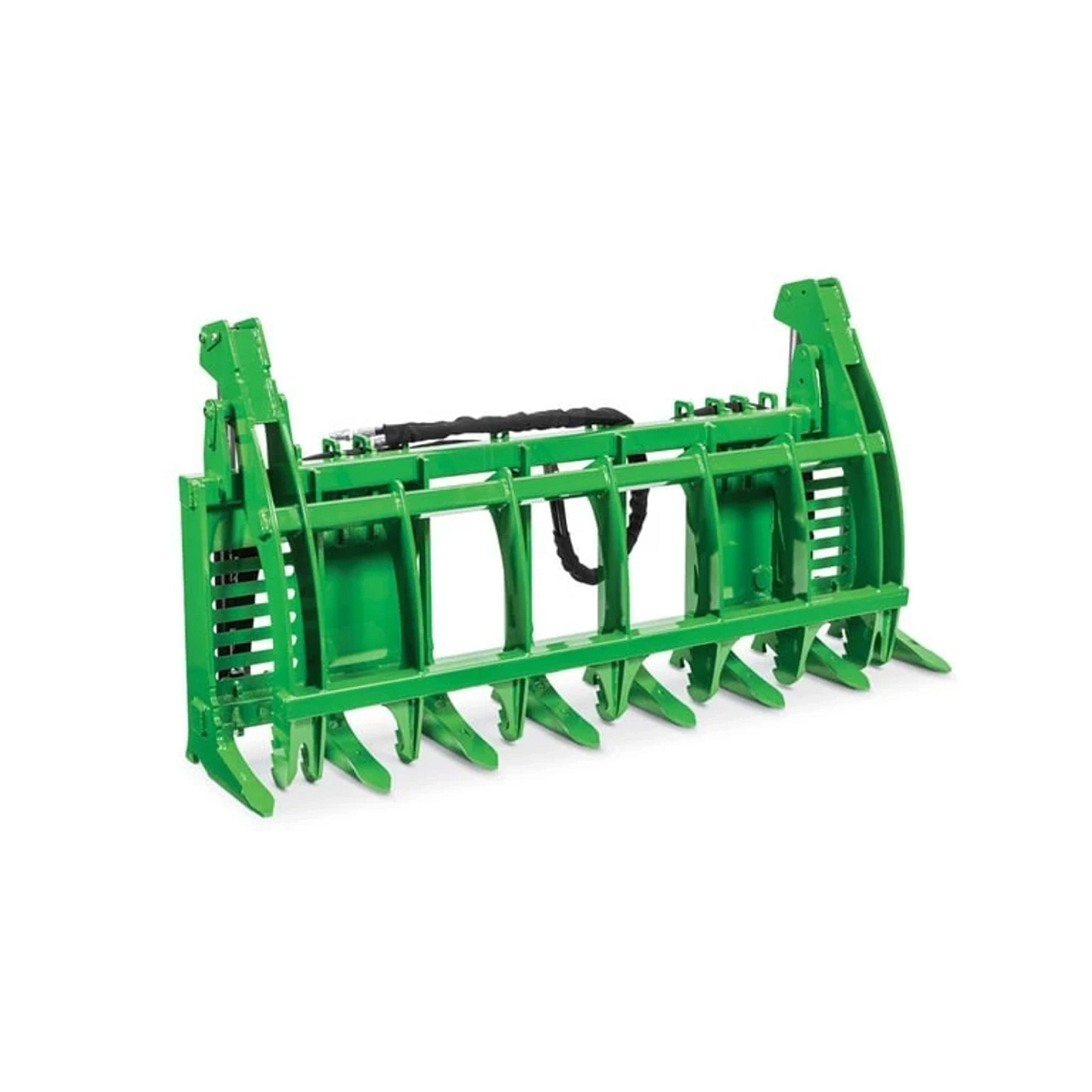

Rear left studio view of a green AV56G Series Root Grapple
Heavy-Duty Design to Tackle Tough Jobs

The AV50 Series Hydraulic Root Grapple is a lightweight, full-width tool designed for versatile tasks like leveling, root removal, and tree handling, offering strong clamping and improved balance without sacrificing lift capacity.

Field view of AV50 Root Grapple on 5E Tractor with log in the air
Stability for Easy Compact Storage

The base frame and welded feet provide the AV50 Series with a stable surface so the grapple can be easily stored in the upright position while not being used. In addition to providing stability for improved storage, the heal of the boot will aid in ripping out roots.

Studio view of a AV50 Series Grapple
Question text goes here

Answer text goes here

Dimensions
Overall Base Width

72.4 in.

Overall Base Width

183.9 cm

Top Clamp Width

64 in.

Top Clamp Width

162.6 cm

Depth (Closed)

19.5 in.

Depth (Closed)

49.5 cm

Height (Closed)

37 in.

Height (Closed)

94 cm

Height (Open)

46.5 in.

Height (Open)

118.1 cm

Grapple Opening

44 in.

Grapple Opening

111.8 cm

Weight

570 lb.

Weight

258.5 kg

Shipping Weight

1183 lb.

Shipping Weight

536.6 kg

Bottom Frame Steel Thickness

0.5 in.

Bottom Frame Steel Thickness

1.3 cm

Tractor Requirements
Tractor HP Min./Max.

50-140 hp

Tractor HP Min./Max.

37.3-104.4 kW

Loader Interface
Compatibility

500, 600 Series (Global Carrier)

Grapple Tines
Upper Tines - Quantity

7

Lower Tines - Quantity

8

Grapple Tine Spacing

10.5 in.

Grapple Tine Spacing

26.3 cm

Bottom Tine Working Length

12 in.

Bottom Tine Working Length

30.5 cm

Capacity
Grapple Clamping Force

5645 lb-ft

Grapple Clamping Force

25.1 N

Maximum Clamping Diameter

43.4 in.

Maximum Clamping Diameter

110.2 cm

Minimum Clamping Diameter

1.5 in.

Minimum Clamping Diameter

3.8 cm

Hydraulic Cylinders
Type

2″ bore x 12″ stroke x 1-1/4″ rod

Quantity

2 cylinders

Max Hydraulic Pressure

3000 psi

Max Hydraulic Pressure

207 bar

Grapple Clamping Force
Maximum

5645 lb-ft

Maximum

25.1 N

Warranty
Time Period

1 Year Warranty
