Attaching the AV50 Series Root Grapple to a John Deere loader is easy with quick-change attaching systems. Just line up the loader's connecting points to the attachment frame and lock it in place.

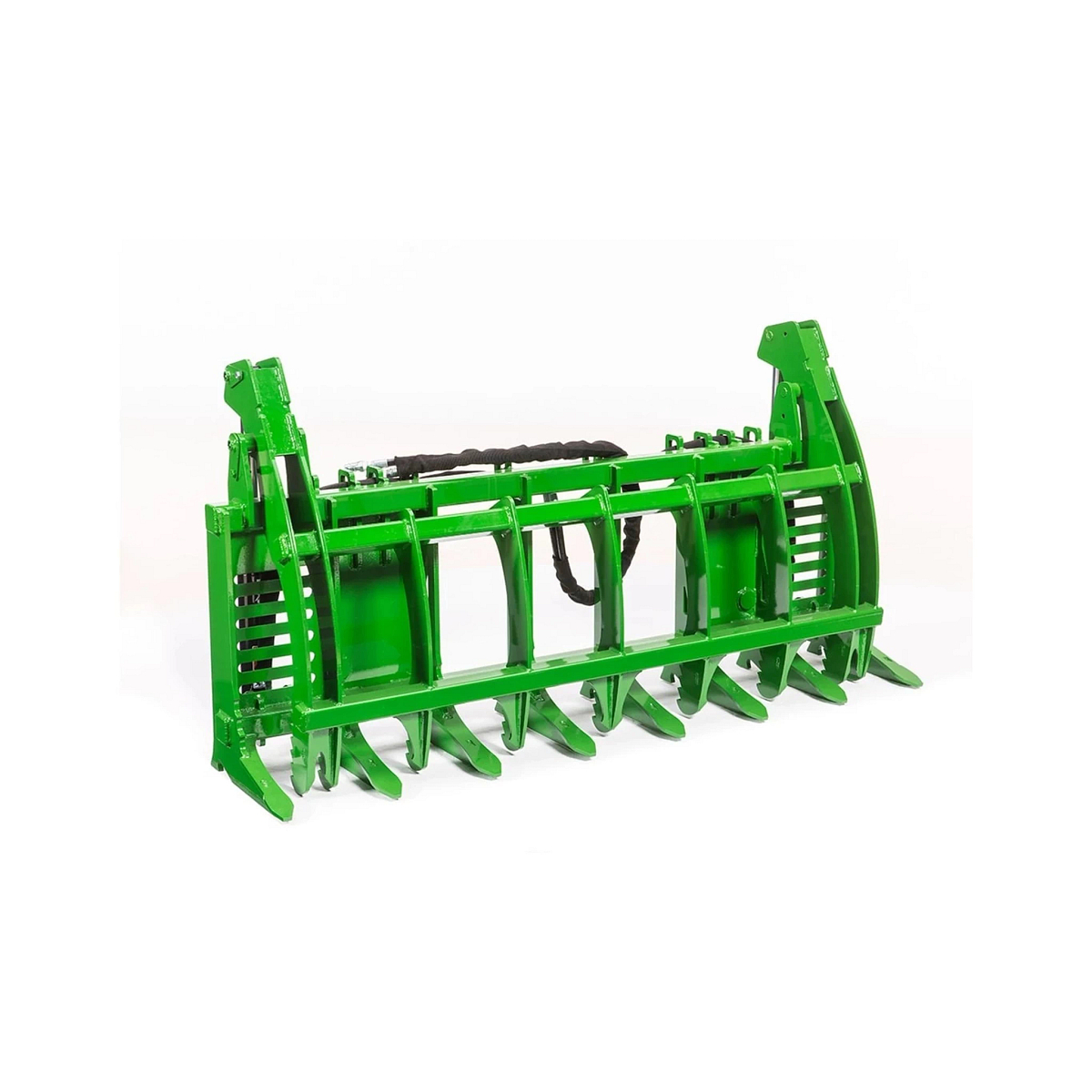

The AV50 Series Hydraulic Root Grapple is a lightweight, full-width tool designed for versatile tasks like leveling, root removal, and tree handling, offering strong clamping and improved balance without sacrificing lift capacity.

The base frame and welded feet provide the AV50 Series with a stable surface so the grapple can be easily stored in the upright position while not being used. In addition to providing stability for improved storage, the heal of the boot will aid in ripping out roots.

Answer text goes here
Overall Base Width | 64.25 in. |
Overall Base Width | 163.2 cm |
Top Clamp Width | 58 in. |
Top Clamp Width | 147.3 cm |
Depth (Closed) | 19.5 in. |
Depth (Closed) | 49.5 cm |
Height (Closed) | 37 in. |
Height (Closed) | 94 cm |
Height (Open) | 46.5 in. |
Height (Open) | 118.1 cm |
Grapple Opening | 44 in. |
Grapple Opening | 111.8 cm |
Weight | 480 lb. |
Weight | 217.7 kg |
Shipping Weight | 1018 lb. |
Shipping Weight | 461.8 kg |
Bottom Frame Steel Thickness | 0.5 in. |
Bottom Frame Steel Thickness | 1.3 cm |
Tractor HP Min./Max. | 24-65 hp |
Tractor HP Min./Max. | 17.9-48.5 kW |
Compatibility | 300, 400 Series (JD carrier) |
Upper Tines - Quantity | 6 |
Lower Tines - Quantity | 7 |
Grapple Tine Spacing | 10.5 in. |
Grapple Tine Spacing | 26.3 cm |
Bottom Tine Working Length | 12 in. |
Bottom Tine Working Length | 30.5 cm |
Grapple Clamping Force | 4751 lb-ft |
Grapple Clamping Force | 21.1 N |
Type | 2-in. bore x 12-in. stroke x 1-1/4-in. rod |
Quantity | 2 cylinders |
Max Hydraulic Pressure | 3000 psi |
Max Hydraulic Pressure | 21.1 bar |
Time Period | 1-year warranty |
