new
John Deere
AS11E-10
Compact Tractors Attachments

John Deere AS11E-10

Starting at

Stay Safe With a Spring-Loaded Steel Trip Edge

The AS11E Snow Push features a spring-loaded, steel trip edge that ensures safety by protecting the cutting edge from collisions with immovable objects.

Close-up of a snow push frame showing two vertical tension springs mounted on brackets above a metal bar, positioned over snow-covered ground
Back Drag Attachment

This snow push includes a field-installed back drag kit, allowing operators to efficiently move snow from hard-to-reach areas that other blades can't access.

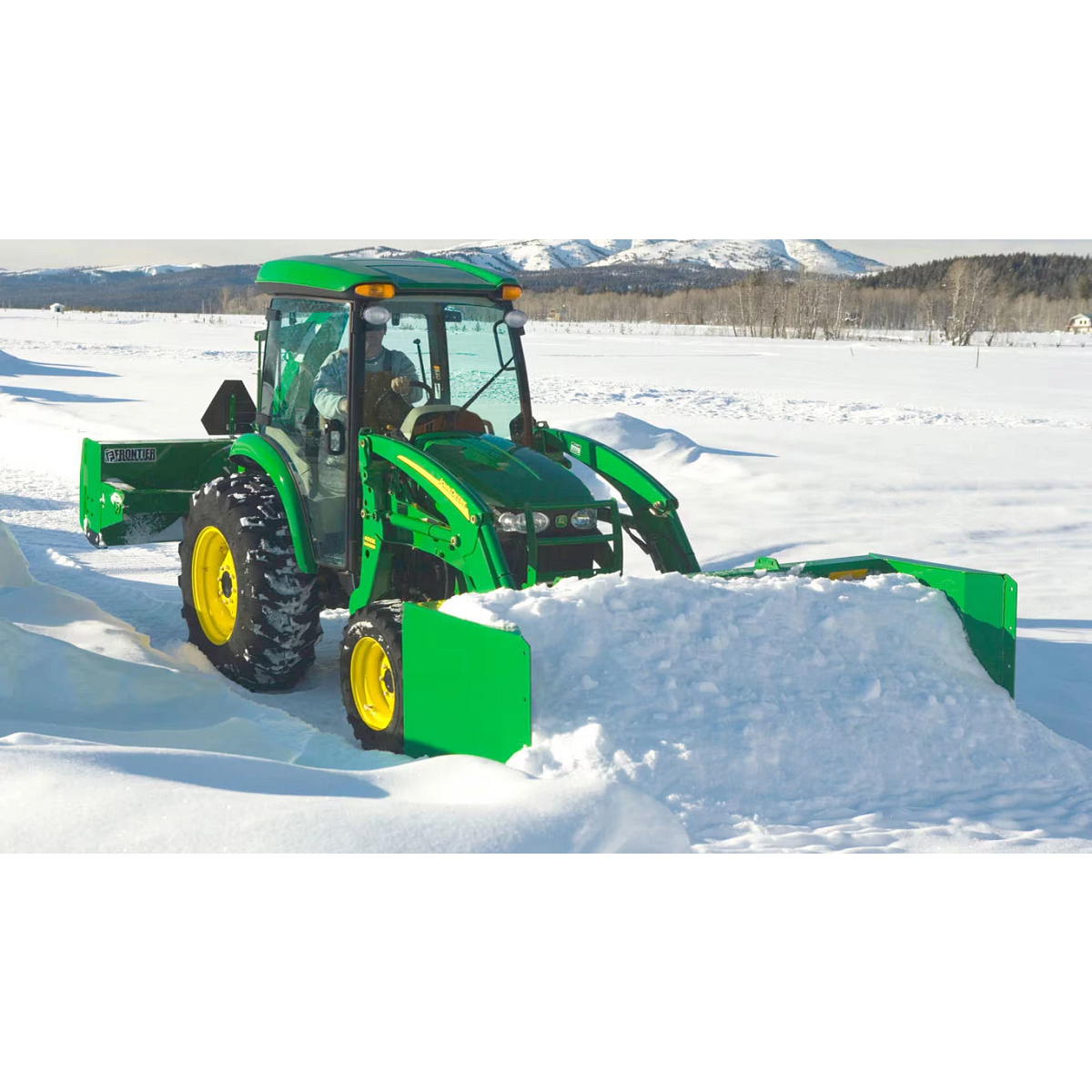

Tractor equipped with a front-mounted snow pusher clearing snow from a road.
Field-Installed Rubber Edge Kit

The replacement rubber edge kits come in different lengths, and are for the back drag attachment on AS11E Snow Pushes. The rubber edges are for fresh and dry snow pushing, removing the piles of snow a steel blade leaves behind. Because they are reversible, they have a longer wear life.

Side studio view of field-installed rubber edge kit on the AS11E Snow Push
Question text goes here

Answer text goes here

Dimensions
Width

119.875 in.

Width

304.5 cm

Height

39.8 in.

Height

101.1 cm

Depth

41.5 in.

Depth

105.4 cm

Cutting Width

119 in.

Cutting Width

303.5 cm

Attachment Carrier
Current Series Attachment Carrier Style

300, 400, 500

Weight
Equipment

980 lb.

Equipment

444.5 kg

Shipping

1030 lb.

Shipping

467.2 kg

Cutting Edge
Steel, Spring Reset

Yes

Moldboard
Moldboard Thickness

0.135 in.

Moldboard Thickness

3.4 mm

Moldboard Thickness

10 gauge

Height

38.1 in.

Height

96.8 cm

Skid Shoes
Type

Welded

Setup Time
Labor Hours

0.25 hr

Warranty
Time Period

1 year
