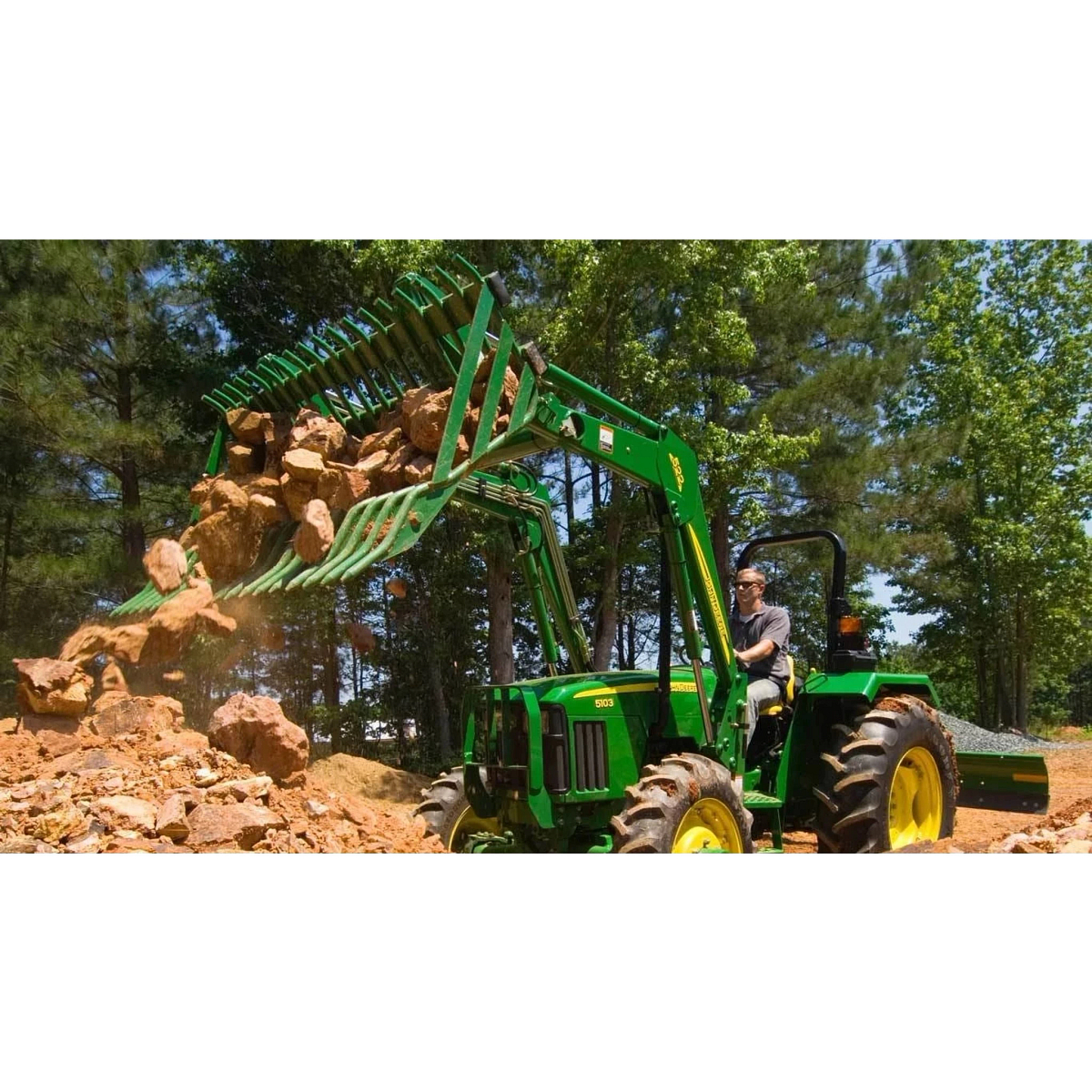

Frontier AR10 Rock Bucket attachment on a tractor dumping boulders
No items found.
new
John Deere
AR10G-75
Compact Tractors Attachments

John Deere AR10G

Starting at

Quick and Easy Attaching System

The AR10G Rock Bucket features a quick-change and global attaching system that fits current 300 to 700 Series Loader attachment carriers. This system makes it easy to attach by simply lining up the loader's connecting points and locking it in place.

Close-up of a metal loader frame with a rectangular side plate, mounting brackets, and visible bolt points, shown against a plain white background
Robust Design and Compatibility

Designed with sturdy tine tips interlaced for increased strength, this rock bucket is ideal for sorting materials and clearing debris. It is fully compatible with global-style loaders and comes with optional grapples to suit specific needs.

Front right studio view of a green rock bucket
Hydraulic Grapple Conversion

The bucket supports a hydraulic grapple conversion kit that enhances its functionality. This optional kit allows the bucket to efficiently grasp materials and operate with reinforced ribs, providing excellent strength for handling various tasks.

Front‑mounted green grapple bucket attachment with curved upper tines and a slotted lower bucket, shown against a white background
Question text goes here

Answer text goes here

Dimensions
Width

74.4 in.

Width

189 cm

Height

21.7 in.

Height

55.1 cm

Depth

48 in.

Depth

121.9 cm

Cutting Width

75 in.

Cutting Width

190.5 cm

Attachment Carrier
Current Series Style

Global

Tine
Spacing

2, 3 in.

Spacing

5.1, 7.6 cm

Diameter

1.125 in.

Diameter

2.9 cm

Length

39 in.

Length

99.1 cm

Weight
2-in. Tine Spacing Operating

739 lb.

2-in. Tine Spacing Operating

335.2 kg

2-in. Tine Spacing Shipping

814 lb.

2-in. Tine Spacing Shipping

369.2 kg

3-in. Tine Spacing Operating

619 lb.

3-in. Tine Spacing Operating

280.8 kg

3-in. Tine Spacing Shipping

694 lb.

3-in. Tine Spacing Shipping

314.8 kg

Optional Rock Bucket Grapple
Available

Yes

Grapple Opening

60 in.

Grapple Opening

152.4 cm

Clamp Force - Open

2400 lb-ft

Clamp Force - Open

10675.7 N

Clamp Force - Closed

2060 lb-ft

Clamp Force - Closed

9163.3 N

Setup Time
Labor Hours

0.25 hr

Warranty
Time Period

1 year
