John Deere
AP13G
Compact Tractors Attachments

John Deere AP13G

Starting at

Handle Heavy Loads

Designed to accommodate heavy loads, this pallet fork supports up to 5,500 lb. (2495 kg). Its robust capacity ensures efficient material handling with compatibility across a range of loader models.

A man operating a tractor with a pallet fork transporting a large square water tank in front of a red barn
Steel frame is strong for tough jobs

The AP12 and AP13 Series Pallet Forks are built with welded components and high-tensile, heavy-gauge steel for years of dependable service.

Front right view of a 5075E tractor transporting logs in a grassy field with attached 520M loader and AP12G pallet fork
Floating-Tine Pallet Forks

Floating-tine pallet forks on the AP13 Series allow the tines to float while picking up and removing pallets on uneven terrain. Tines can be made rigid at any position along the shaft by tightening the set screws.

Note: Image represents one model in Frontier pallet fork line.

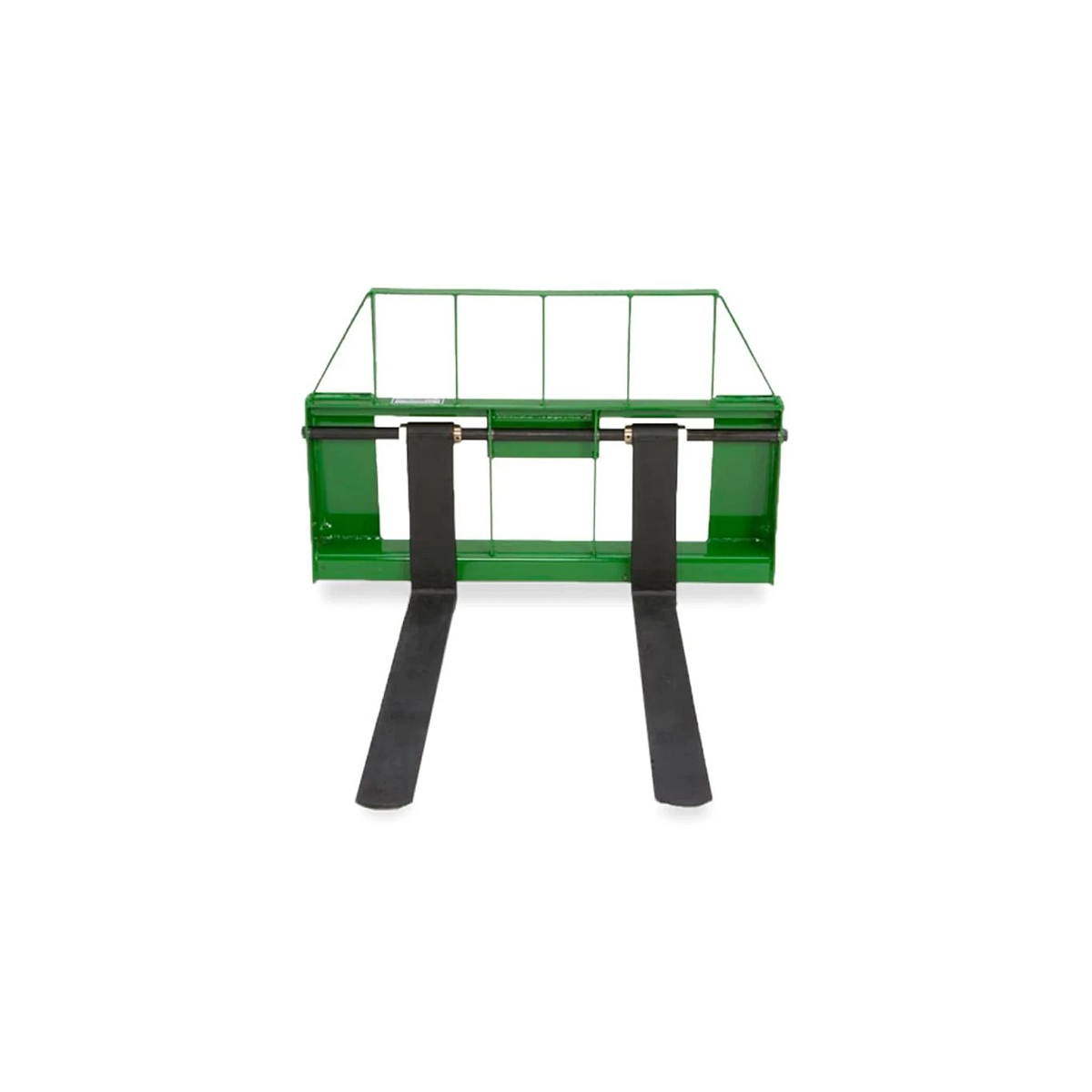

Front right studio view of floating tines on the AP13 Series Pallet Fork
Question text goes here

Answer text goes here

Dimensions
Overall Height

32 in.

Overall Height

81.3 cm

Overall Width

49 in.

Overall Width

124.5 cm

Overall Length

52 in.

Overall Length

132.1 cm

Attachment Carrier
Current Series Style

Global

Weight
Operational

440 / 460 lb.

Operational

199.6 / 208.7 kg

Shipping

480 / 500 lb.

Shipping

217.7 / 226.8 kg

Fork Tines
Fork Tines Type

Floating

Capacity

5500 lb.

Capacity

2494.8 kg

Section

1.6x5.1 in.

Section

40x130 mm

Fork Tine Length

42 in.

Fork Tine Length

106.7 cm

Setup Time
Labor Hours

0.5

Warranty
Time Period

1 year
