new
John Deere
AP10F
Compact Tractors Attachments

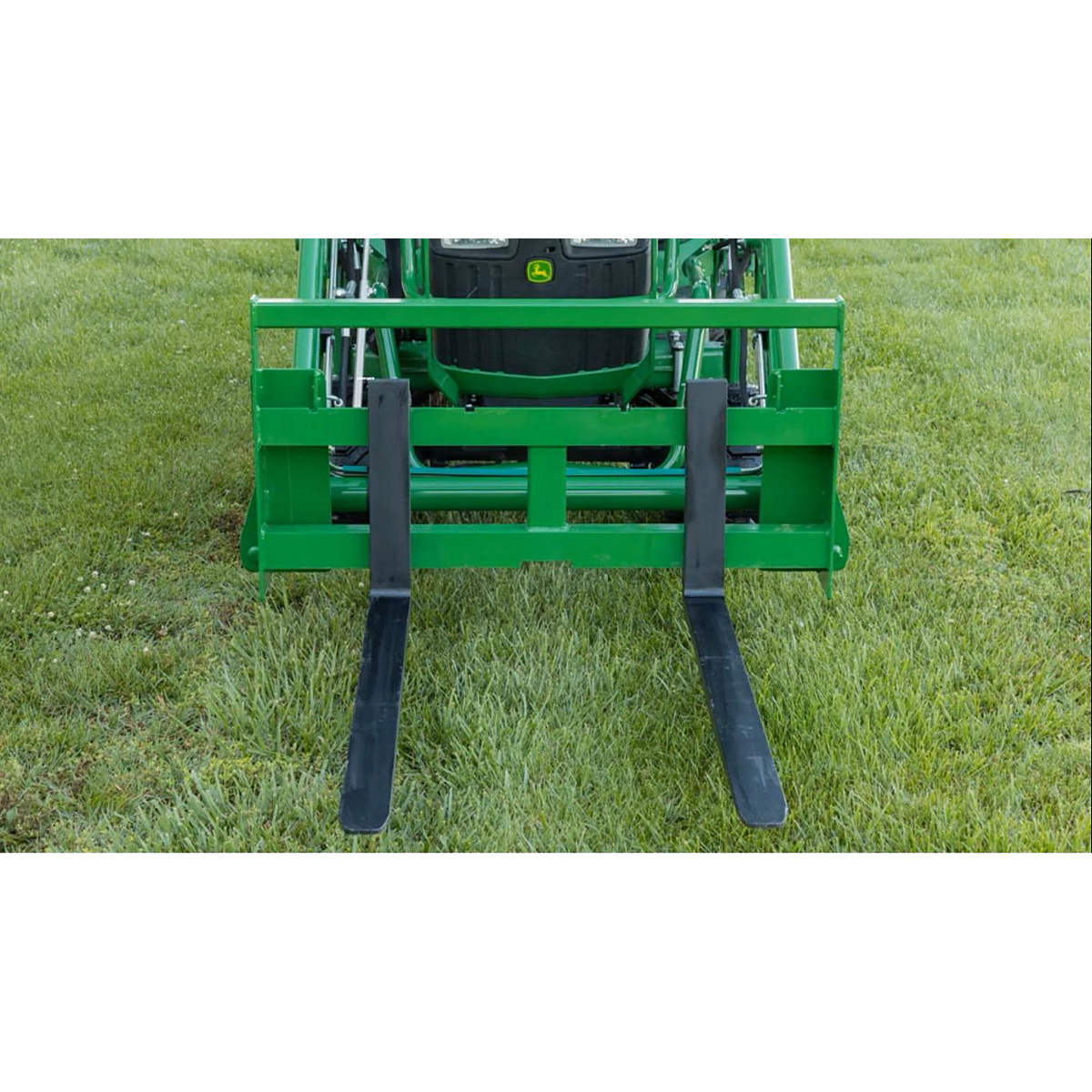

John Deere AP10F

Starting at

Multiple Tine Lengths

The AP10F offers versatility with two tine length options, 36 and 42 in. (91.4 and 106.7 cm), allowing producers to select the most suitable length for their specific tasks. This flexibility accommodates various operational needs.

Front left view of a 1025R Sub-Compact Tractor on grass with attached AP11F Pallet Fork
Fast and Easy Attachment

The Quick-Change capability of the pallet fork allows for fast and easy attachment. It enables the operator to line up the loader’s connecting point to the attachment frame, pick it up, and lock it into place, ensuring an efficient workflow.

Pallet fork attachment in the field
Adjustable Tine Positioning

The forks can easily be adjusted to three different positions to accommodate different pallet sizes. This adaptability helps in efficiently managing various types of loads, increasing the operational efficiency and uptime of the equipment.

Adjustable Tine Positioning Provides Increased Uptime
Question text goes here

Answer text goes here

Dimensions
Overall Height

24.5 in.

Overall Height

62.2 cm

Overall Width

49.24 in.

Overall Width

125.1 cm

Overall Length

45 in.

Overall Length

114.3 cm

Attachment Carrier
Current Series Style

100

Weight
Operational

170 / 198 lb.

Operational

77.1 / 89.8 kg

Shipping

214 / 242 lb.

Shipping

97.1 / 109.8 kg

Fork Tines
Fork Tines Type

Fixed

Capacity

1250 lb.

Capacity

567 kg

Section

1.0x3.0 in.

Section

25.4x76.6 mm

Fork Tine Length

36 in.

Fork Tine Length

91.4 cm

Setup Time
Labor Hours

0.25

Warranty
Time Period

1 year

Additional Information
Date Collected

2017-08-01
