John Deere
AF11G-84
Compact Tractors Attachments

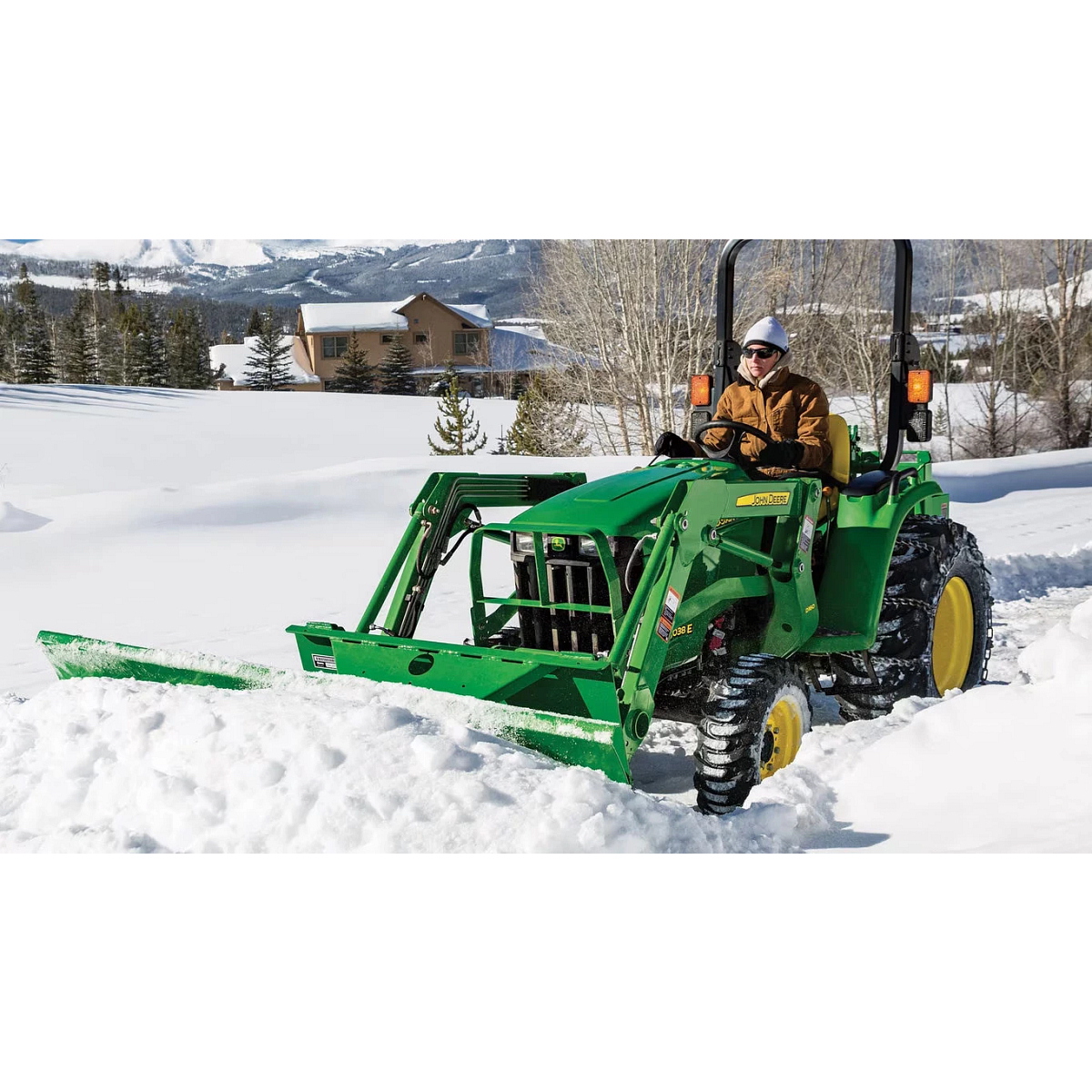

John Deere AF11G-84

Starting at

Heavy-Duty Frame for Long, Dependable Implement Life

The loader-mounted front blade is made of heavy-duty steel to resist bending and provide longer wear capability on the Frontier™ AF11 and AF12 Series Front Blades.

Green hydraulic-powered front blade with a curved blade, mounting brackets, and two hydraulic hoses extending from the frame
Hydraulic angle adjustment for hard-to-reach places

The hydraulically controlled angle can be adjusted 30 degrees to each side to overcome the toughest spots. This feature saves time and creates professional-grade results. A loader third-function hydraulic line is required.

Rear right studio view of AF Series Front Blade highlighting the hydraulic connections
Twice the durability and work life with reversible cutting edges

The heat-treated steel cutting edge on the Frontier™ AF11 and AF12 Series Front Blades are reversible for twice the durability and work life.

Close-up of a green curved metal blade featuring a black reinforced cutting edge secured with bolts
Question text goes here

Answer text goes here

Dimensions
Width

84 in.

Width

213.4 cm

Height

32 in.

Height

81.3 cm

Depth

48 in.

Depth

121.9 cm

Cutting Width

84 in.

Cutting Width

213.4 cm

Height, Overall

32 in.

Height, Overall

81.3 cm

Weight, Shipping

760 lb.

Weight, Shipping

344.7 kg

Weight, Operating

710 lb.

Weight, Operating

322.1 kg

Attachment Carrier
Current Series Style

Global

Weight
Operational Weight

710 lb.

Operational Weight

322.1 kg

Shipping Weight

760 lb.

Shipping Weight

344.7 kg

Moldboard
Moldboard Thickness

0.13 in.

Moldboard Thickness

3.4 mm

Moldboard Thickness

10 gauge

Moldboard Height

31.8 in.

Moldboard Height

80.8 mm

Angle/Pivot
Angle/Pivot Standard Adjustment

Hydraulic

Angle/Pivot Degrees (Each Side)

30

Hydraulic Cylinders
Hydraulic Cylinder Type

Two double-acting

Skid Shoes
Skid Shoes Standard

Yes

Setup Time
Setup Time Labor Hours

0.5 hr

Warranty
Warranty Time Period

One year
