John Deere
AB14G
Compact Tractors Attachments

John Deere AB14G

Starting at

Replaceable tines for extended implement life

The AB14 Series tines are made out of hardened steel and are replaceable. Note: Picture is representative of the AB14 Series and features may vary by model.

A tractor using a bale spear to lift hay bales on a gravel drive
Quick, Easy Attachment

The Frontier™ AB14 Series is equipped with quick-attach attaching systems. These systems save time and allow easy attachment for the operator. Note: Picture is representative of the AB14 Series and features may vary by model.

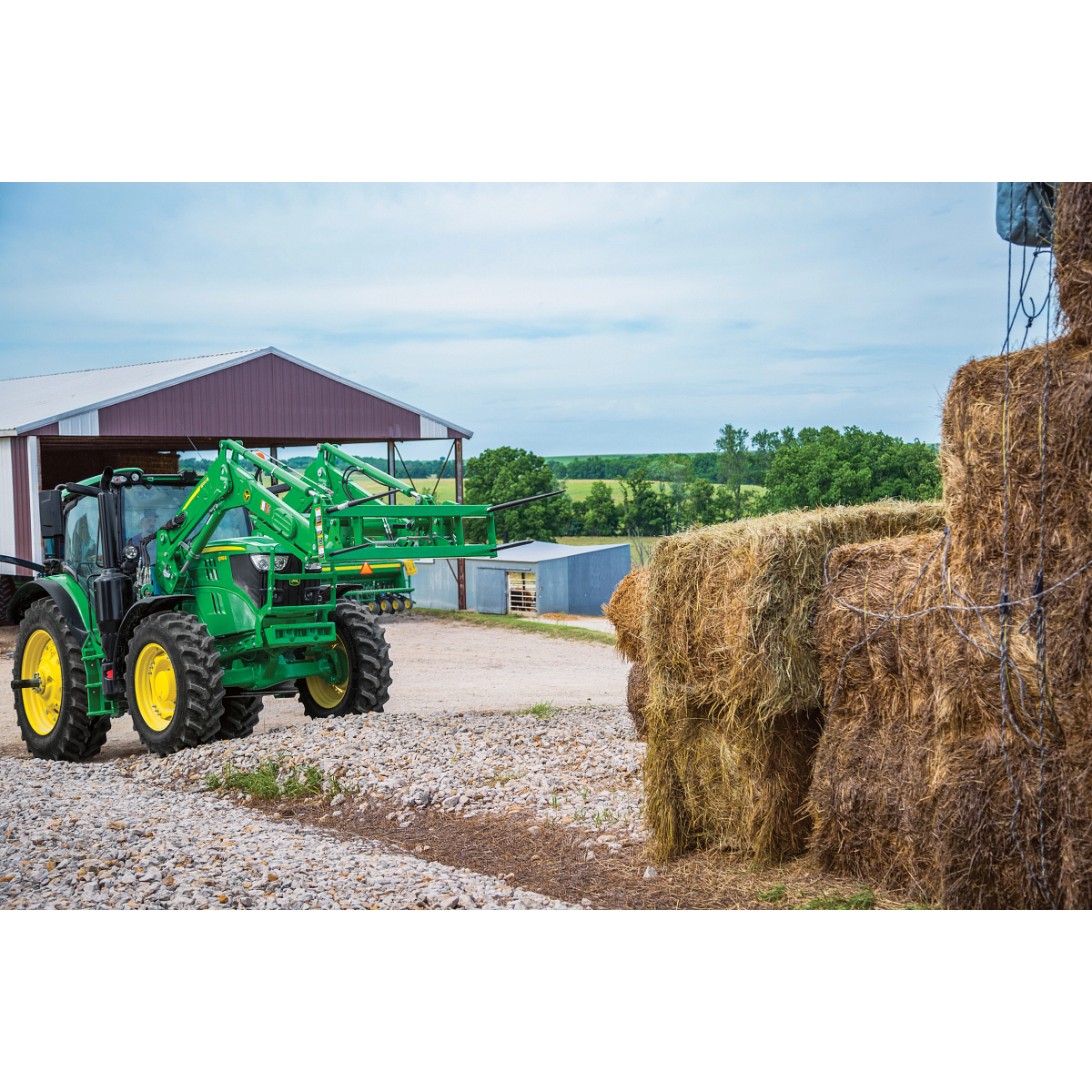

6R Tractor with H360 and AB14G
Rugged, Tubular Frame Enhances Durability and Efficiency

The frame on an AB14 Series Bale Spear is constructed of a square, tubular design, making it extremely strong and durable. Note: Picture is representative of the AB14 Series and features may vary by model.

Tractor loading bales in field
Question text goes here

Answer text goes here

Dimensions
Overall Height

17 in.

Overall Height

43.2 cm

Overall Width

25 in.

Overall Width

63.5 cm

Overall Length

70 in.

Overall Length

177.8 cm

Attachment Carrier
Current Series Style

Global Series Carrier

Weight
Operational Weight

390 lb.

Operational Weight

176.9 kg

Shipping Weight

465 lb.

Shipping Weight

210.9 kg

Spears
Primary Spears Location

Top

Primary Spears Quantity

2

Primary Spears Size

2x49 in.

Primary Spears Size

5.1x124.5 cm

Stabilizing Spears Location

Bottom

Stabilizing Spears Quantity

2

Stabilizing Spears Size

1.25x25 in.

Stabilizing Spears Size

3.2x63.5 cm

Bale
Round Bale Quantity

2

Round Bale Size

Large round

Round Bale Maximum Weight

4000 lb.

Round Bale Maximum Weight

1814.4 kg

Square Bale Quantity

1

Square Bale Size

Large square

Square Bale Weight

2500 lb.

Square Bale Weight

1134 kg

Setup Time
Set-up Time Labor Hours

0.25 hr

Warranty
Warranty Time Period

1 year
