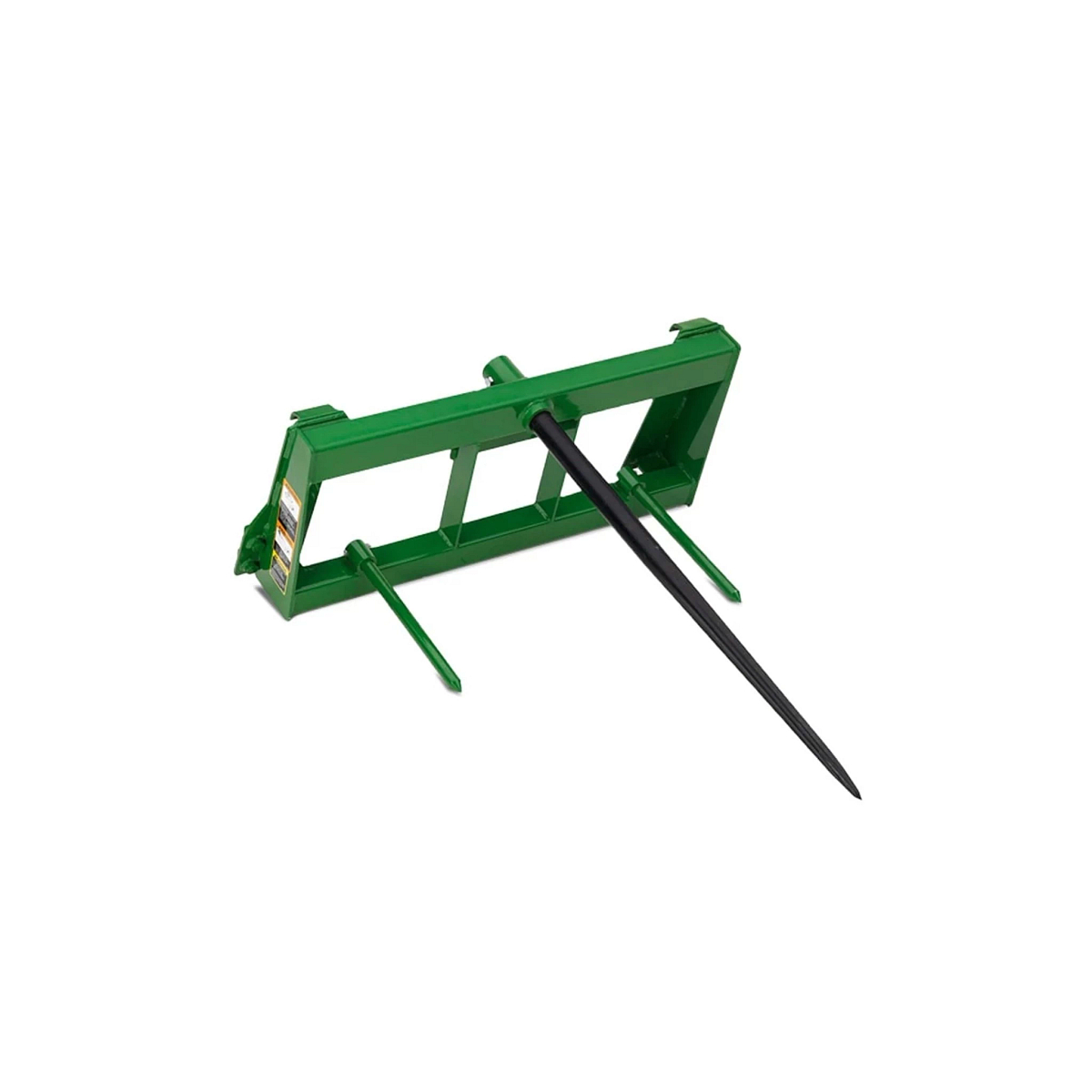

AB13 Bale spear front right angle
No items found.
new
John Deere
AB13E
Compact Tractors Attachments

John Deere AB13E

Starting at

Key Features

  • Quick and Easy Attachment
  • Rugged Tubular Frame Design
  • Replaceable Tines for Extended Implement Life
  • Can handle round bales up to 2500 lbs
Request a Quote
Order Now
Apply for financing
Apply for financing
Print Page
Loan Calculator
Product Brochure
Features
Specifications
Made of Hardened Steel

The AB11 and AB13 Series Bale Spear tines are made out of hardened steel and replaceable.

Rear side studio view of steel tine on AB Series Bale Spear
Easy, Quick-Change Attachment

The AB11 and AB13 Series Bale Spears are equipped with a quick-attach attaching system. These systems save time and allow easy attachment for the operator.

A tractor using a front loader to lift a large round hay bale from a field and place it onto a flatbed trailer, with trees in the background.
Rugged, Tubular Frame

The frame on the AB11 and AB13 Series Bale Spears is constructed of a square, tubular design, making it extremely strong and durable.

Rear left studio view of AB Series Bale Spear frame structure
Question text goes here

Answer text goes here

Dimensions
Overall Height

20 in.

Overall Height

50.8 cm

Overall Width

49 in.

Overall Width

124.5 cm

Overall Length

56 in.

Overall Length

142.2 cm

Attachment Carrier
Current Series Style

300, 400, and 500 Series Carriers

Weight
Operational Weight

165 lb.

Operational Weight

74.8 kg

Shipping Weight

205 lb.

Shipping Weight

93 kg

Spears
Primary Spears Location

Top

Primary Spears Quantity

1

Primary Spears Size

2.25x53 in.

Primary Spears Size

5.7x134.6 cm

Stabilizing Spears Location

Bottom

Stabilizing Spears Quantity

2

Stabilizing Spears Size

1.25x20 in.

Stabilizing Spears Size

3.2x50.8 cm

Bale
Round Bale Quantity

1

Round Bale Size

Large round

Round Bale Maximum Weight

2500 lb.

Round Bale Maximum Weight

1134 kg

Setup Time
Set-up Time Labor Hours

0.25 hr

Warranty
Warranty Time Period

1 year
