John Deere
AB12E
Compact Tractors Attachments

John Deere AB12E

Starting at

Replaceable tines for extended implement life

The AB12 Series tines are made out of hardened steel and are replaceable. Picture is representative of the AB12 Series and features may vary by model.

Replaceable Tines for Extended Implement Life

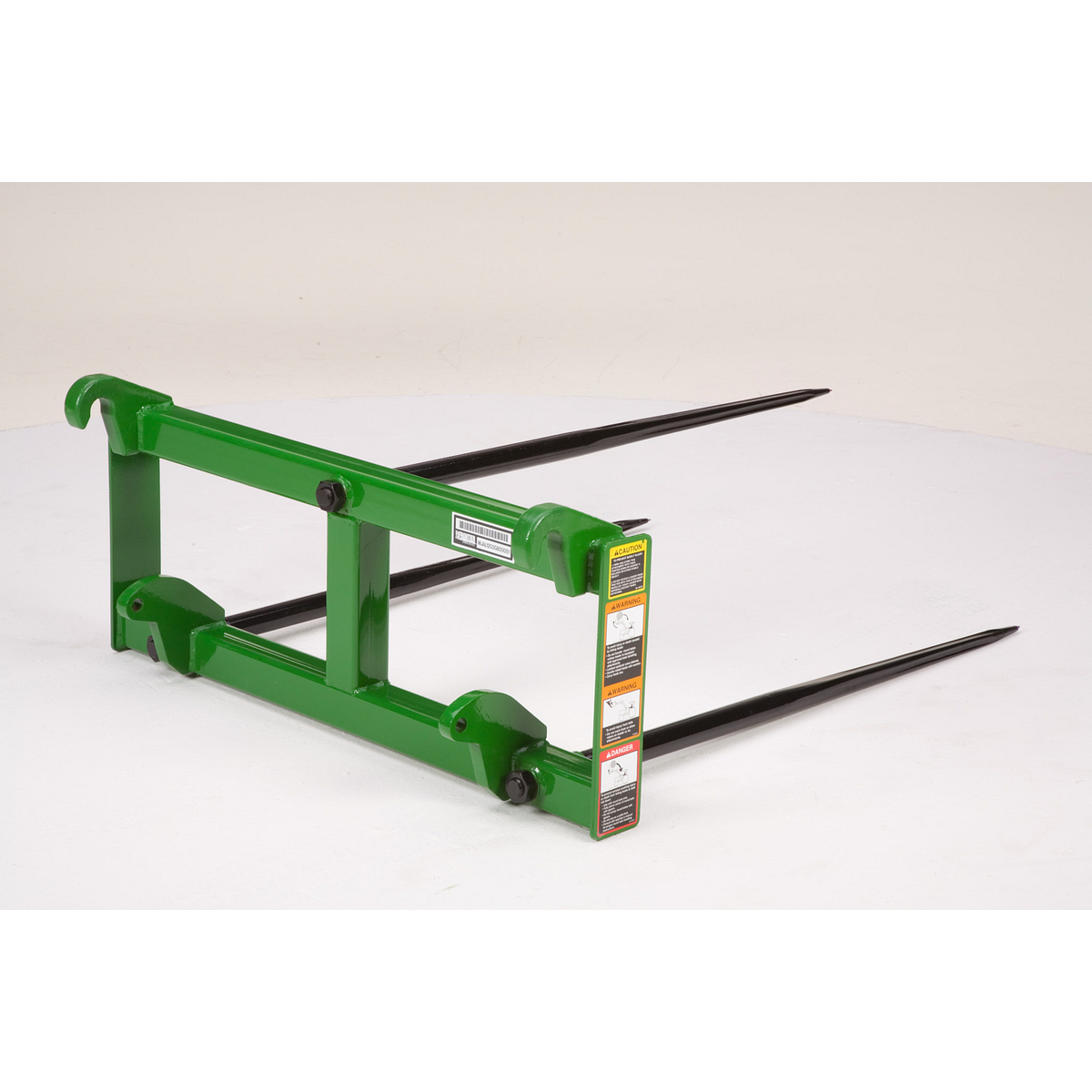

Quick, Easy Attachment

The Frontier™ AB12 Series is equipped with quick-attach attaching systems. These systems save time and allow easy attachment for the operator. Picture is representative of the AB12 Series and features may vary by model.

Pallet fork attachment showing the mounting hooks from a front angle with safety labels visible on the frame

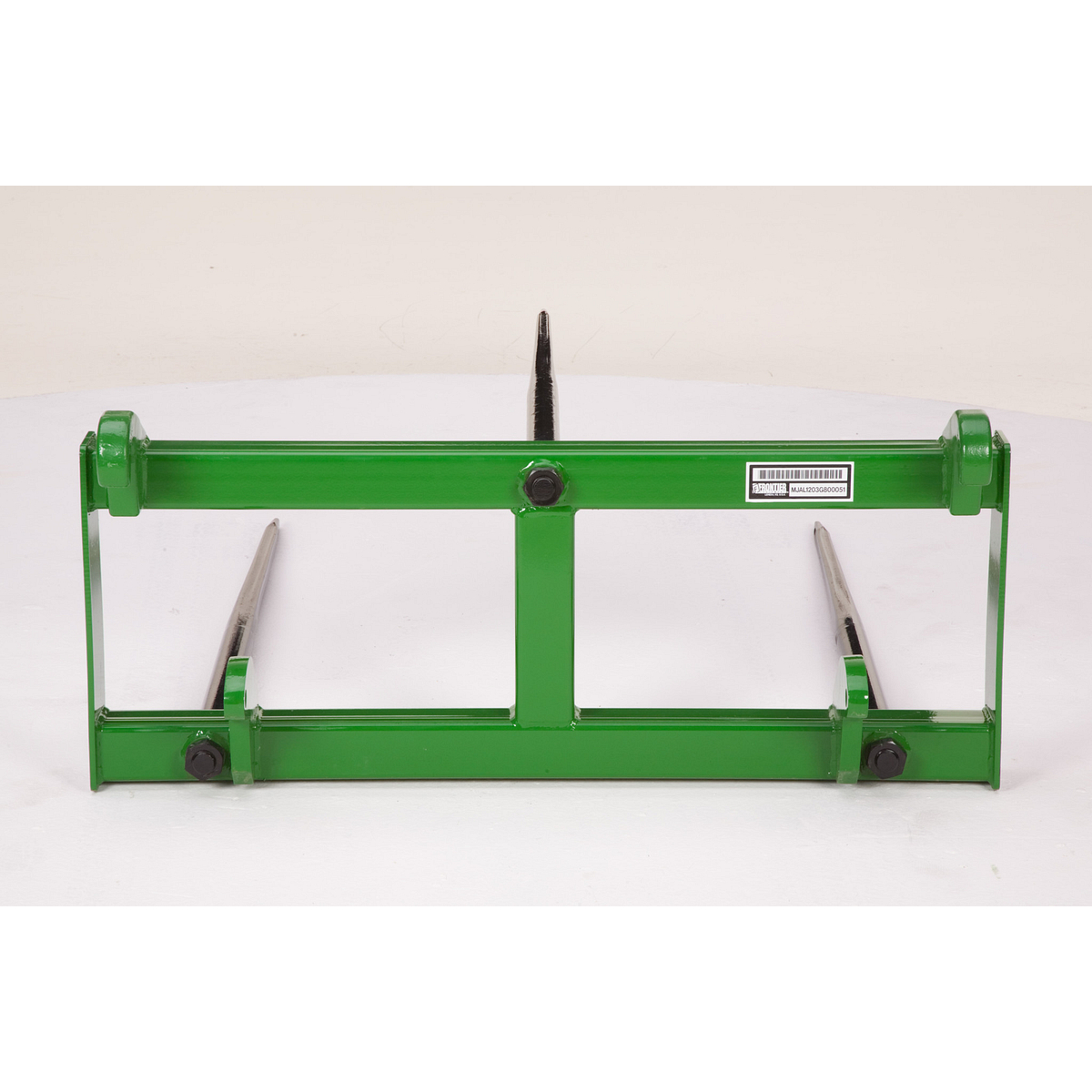

Rugged, tubular frame enhances durability and efficiency

The frame on an AB12 Series Bale Spear is constructed of a square, tubular design, making it extremely strong and durable. Picture is representative of the AB12 Series and features may vary by model.

A green pallet‑fork frame with two long steel tines extending forward, displayed against a plain background.
Question text goes here

Answer text goes here

Dimensions
Overall Height

21 in.

Overall Height

53.3 cm

Overall Width

50 in.

Overall Width

127 cm

Overall Length

52 in.

Overall Length

132.1 cm

Attachment Carrier
Current Series Style

300CX, 400, and 500 Series Carriers

Weight
Operational Weight

155 lb.

Operational Weight

70.3 kg

Shipping Weight

195 lb.

Shipping Weight

88.5 kg

Spears
Primary Spears Location

Top (1); Bottom (2)

Primary Spears Quantity

3

Primary Spears Size

2x49 in.

Primary Spears Size

5.1x124.5 cm

Bale
Round Bale Quantity

1

Round Bale Size

Large round

Round Bale Maximum Weight

2500 lb.

Round Bale Maximum Weight

1134 kg

Square Bale Quantity

1

Square Bale Size

Large square

Square Bale Weight

2500 lb.

Square Bale Weight

1134 kg

Setup Time
Set-up Time Labor Hours

0.25 hr

Warranty
Warranty Time Period

1 year
