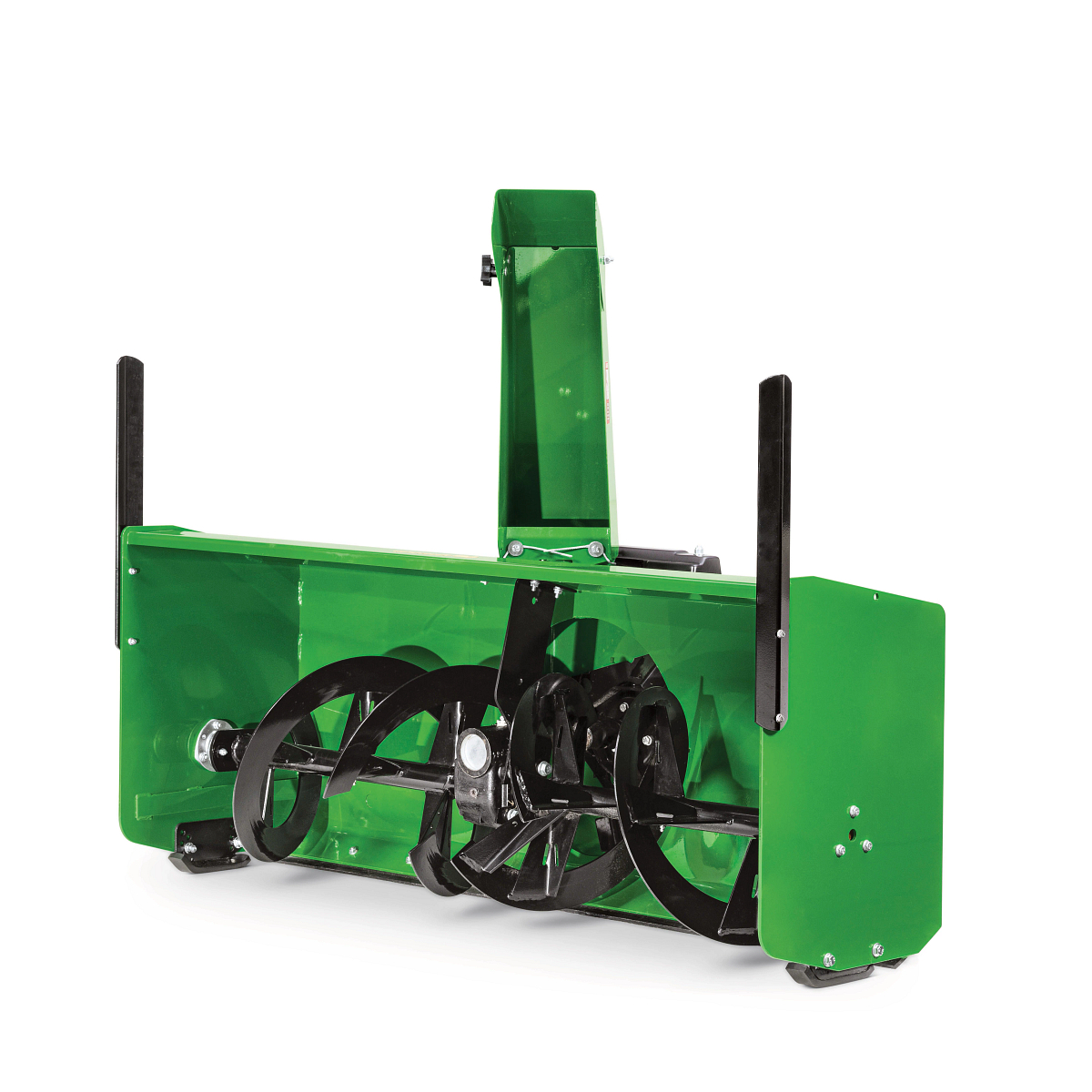

A green snow blower attachment with a wide front intake housing, dual rotating metal augers, a tall discharge chute, and a smooth exterior housing
No items found.
new
John Deere
60 IN. HEAVY DUTY SNOWBLOWER
Compact Tractors Attachments

John Deere 60-inch

Starting at

Effective Two-Stage Design

The two-stage design effectively handles deep snowfall by using a low-speed auger to gather snow and move it to a high-speed impeller, which then blows it out of the chute. This design enhances snow processing, offering a 23-in. (58.4-cm) housing height and a 16-in. (40.6-cm) diameter auger.

A green snow blower attachment with a wide front intake housing, dual rotating metal augers, a tall discharge chute, and a smooth exterior housing
Robust Front 3-Point Hitch

The robust front 3-point hitch allows quick attachment of implements, boasting added strength and longer life. Its consistent levelness throughout lift travel improves maneuverability and snow placement, while allowing rapid equipment changes with minimal effort.

Snow blower portion of A-frame quick attach system installed on 60-inch Heavy-Duty Snow Blower
Heavy-Duty Drive is Easy to Attach

Featuring a telescoping universal joint drive shaft, the heavy-duty drive is easy to attach. The durable cast-iron helical gearcase maximizes engine horsepower, ensuring remarkable snow throwing capacity and distance, enhancing performance even in tough conditions.

Close-up of a 60-inch Heavy-Duty Snow Blower's heavy-duty helical gearbox
Question text goes here

Answer text goes here

Dimensions
Overall Width

61.5 in.

Overall Width

1562 mm

Clearing Width

59 in.

Clearing Width

1500 mm

Height Of Opening

23 in.

Height Of Opening

584 mm

Housing Thickness

0.075 in.

Housing Thickness

1.9 mm

Side Panel Thickness

0.25 in.

Side Panel Thickness

6.35 mm

Height To Top Of Chute Deflector

51.8 in.

Height To Top Of Chute Deflector

1315 mm

Housing Depth

17 in.

Housing Depth

432 mm

Auger
Auger Diameter

16 in.

Auger Diameter

406 mm

Auger Speed

189-199 rpm

Auger Drive Gearbox

Cast-iron worm gearcase with 1.25-in. (32-mm) output shafts

Auger Protection

Shear bolt for each auger half, four shell-mounted extra shear bolts

Blower
Speed

898-943 rpm

Blower Fan Material

Welded steel

Blower Fan Size

3.94 x 16 in.

Blower Fan Size

100 x 406 mm

Bearing

Sealed ball bearings

Scraper Blade
Type

Reversible and replaceable

Lift System
Type

Hydraulic cylinder on front 3-point hitch

Spout
Diameter

7.25 in.

Diameter

184 mm

Rotation

200 degree (angle)

Rotation Control

Hydraulic remote control

Weight
Approximate Weight

443 lb.

Approximate Weight

201 kg

Setup Time
Attaching Time

4 min.

Removal Time

3 min.

Additional Information
Date Collected

2021-11-03
