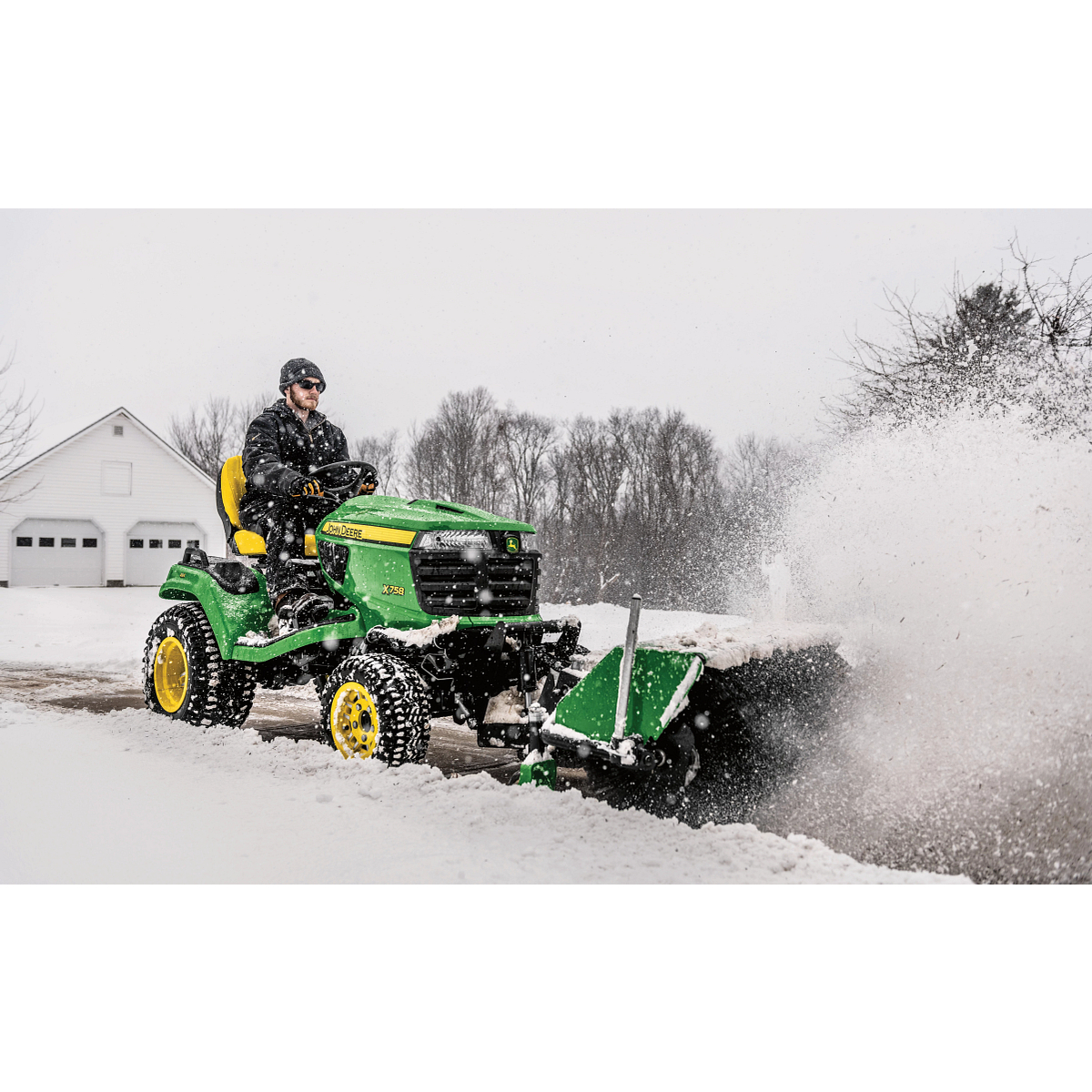

Front right view of an operator on an X758 lawn tractor blowing snow from a driveway with front-attached 52-in. rotary broom
No items found.
new
John Deere
52 IN. BROOMS
Compact Tractors Attachments

John Deere 52-in. Quick-Hitch Rotary Broom

Starting at

Polypropylene wafers

Equipped with 22 convoluted polypropylene wafers, this broom ensures efficient sweeping. The flicking action of the bristles guarantees optimal debris collection, and even wear is achieved by replacing all wafers at once.

Green Heavy Duty Rotary Broom 60 Inch on a white background
Robust Power Transfer

Equipped with a 2000-rpm front PTO kit, the broom receives efficient power transfer necessary for tackling tough materials. Its design ensures optimal performance, making it suitable for demanding cleaning landscapes.

A long metal rod with a black rectangular attachment and a small metal bracket assembly on the same end against a light background
Hydraulic Angling Capability

The heavy-duty rotary broom features a hydraulic angling cylinder kit, allowing the broom to pivot from 0 to 27 degrees left or right. This feature provides enhanced maneuverability and precision when cleaning large areas.

Side left view of the front of a 2032R compact tractor with front-attached 60-in. Heavy-Duty Rotary Broom blowing snow from pavement
Question text goes here

Answer text goes here

Specs & Compare
Select up to 4 models to compare specifications
John Deere
52 IN. BROOMS
For X700 Lawn Tractors, Select Compact Tractors
John Deere
60-in. Heavy-Duty Rotary Broom
ADD MODEL

Clearing Width

Broom Straight132 cm
Broom Straight52 in.
Broom Angled122 cm
Broom Angled48 in.

Brush

Diameter53.3 cm26 in.
66 cm
Width: 60 in.
152 cm
Diameter21 in.26 in.
66 cm
Width: 60 in.
152 cm
MaterialPolypropylene
Number Of Wafers2232
DriveFront power take-off (PTO)Front power take-off (PTO)
Sweeping Height13 mm
Sweeping Height5 in.
Speed220 rpm
Top Speed369 m/min
Top Speed1209 fpm

Hydraulic Angling Positions

Right And Left27 degree (angle)Front quick-hitch: Any position up to 27 degrees left or right
Front 3-point htich: Any position up to 27 degrees left or right

Unitized Structure Material

Housing14 gauge
Housing1.9 mm
Housing0.07 in.
Frame6 mm
Frame0.25 in.
Lateral FloatHitch clearance

Drive System

InputTelescoping drive shaft
Center DriveNumber 50 roller chain from offset 3:1 gearbox
Brush ShaftOil-filled metal flange bearing and thrust bearing, greaseable

Caster Wheels

Size159x83 mm
Size6.25x3.25 in.
Adjustment13 mm
Adjustment0.5 in.

Storage Stands

Storage StandsStandard equipment

Weight

Weight (Broom Only)109 kg
Weight (Broom Only)240 lb.
Shipping Weight139 kg
Shipping Weight306 lb.
