3 Series Compact Tractors

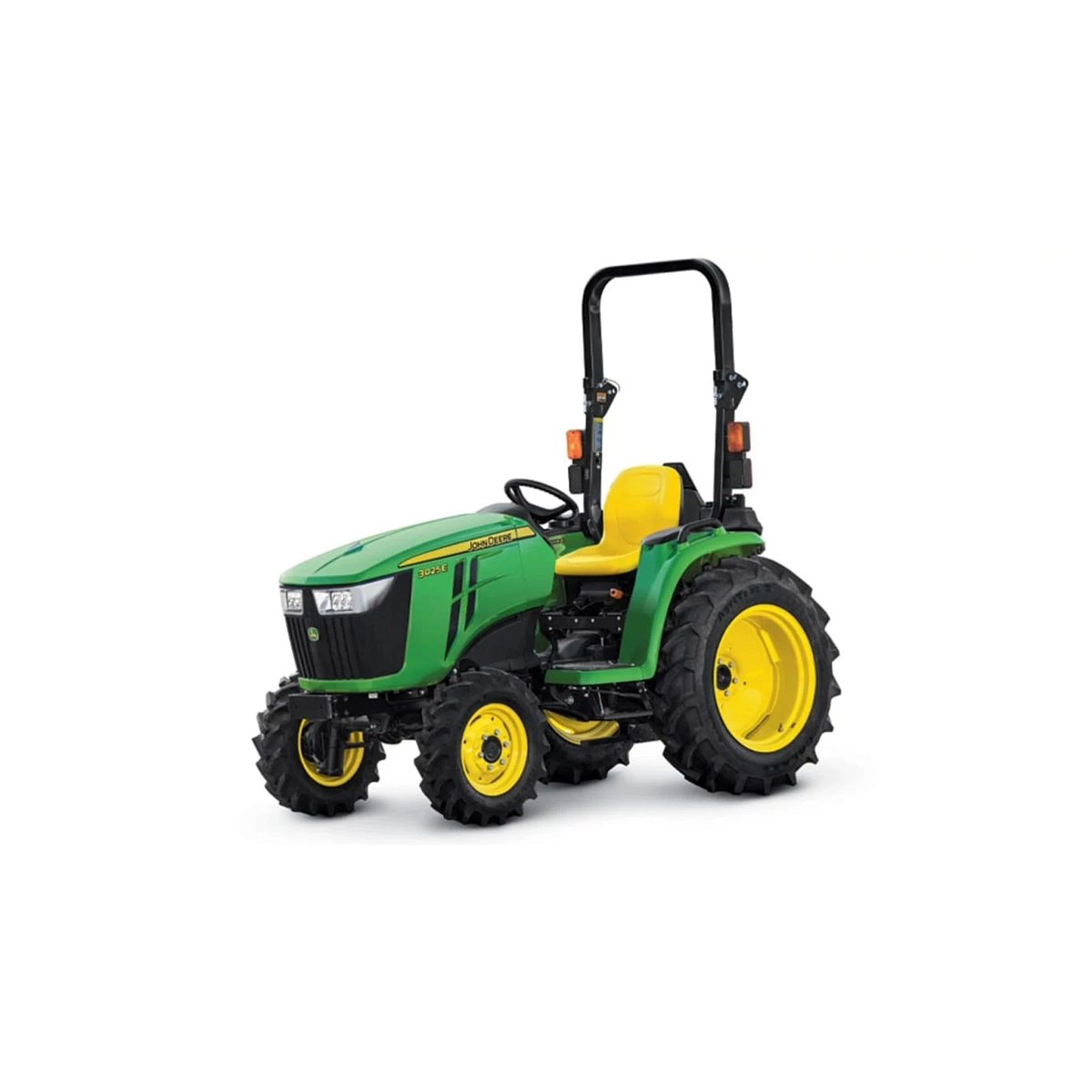

John Deere 3025E

Starting at

Key Features

4WD for Maximum Traction
Tightest Turning Radius in Horsepower Class
Hydrostatic Transmission With Twin Touch™ Pedals
Independent Rear PTO

Comfortable Operator Station

Operators will appreciate the uncluttered design of the operator station, promoting comfort with color-coded controls and a contoured seat that adjusts for an optimal fit. The flat platform ensures easy entry and exit.

Top view of a 3E tractor's operator's station with optional selective control valve (SCV) levers

Easy-to-Use Hydrostatic Transmission

The 3E Tractors feature a hydrostatic transmission (HST) for superior performance. It provides infinite ground speeds that let operators easily match their speed to the task at hand. The Twin Touch™ foot pedals make forward and reverse motion effortless, enhancing operator comfort and control.

Studio close-up of a 3E tractor's Twin Touch foot controls

More Time Working, Less Time Switching Implements

John Deere Compact Tractors are built for fast, tool-free implement changes, enabling users to switch tasks efficiently. With Quick Connect Solutions like the AutoConnect™ Deck System, Quik-Park™ Loader, iMatch™ Quick Hitch, and Quik-Knect™ PTO connector, operators can attach or detach implements in under a minute—often without leaving the seat.

John Deere compact tractor with front loader and rear rotary cutter mowing a grassy field, operator seated under ROPS, yellow wheels and green body visible, with a barn and open farmland in the background.

Specs & Compare

Select up to 4 models to compare specifications

John Deere

3025E

Compact Tractor

John Deere

1025R (Model year 2024)

John Deere

3025D (Model year 2024)

John Deere

3032E (Model year 2024)

John Deere

3033R (Model year 2024)

John Deere

3035D (Model year 2024)

John Deere

3038E (Model year 2024)

John Deere

3039R (Model year 2024)

John Deere

3043D (Model Year 2024)

John Deere

3046R (Model year 2024)

Kubota®

Kubota L2501 HST 4WD, L2501 GST 2WD & 4WD

Kubota®

Kubota L3301 HST 4WD, L3301 GST 2WD & 4WD

Kubota®

Kubota L3901 HST 4WD, L3301 GST 2WD & 4WD

New Holland

New Holland Workmaster 35

New Holland

New Holland Workmaster 40

ADD MODEL


Machine Configuration
Wheel or Track Configuration	Wheel
Drive Type	4WD	Spur gear	Spur gear	Spur gear	Spur gear	Spur gear	Spur gear	Spur gear	Spur gear	Spur gear	Bevel Gear	Bevel Gear	Bevel Gear
Engine
Engine Model	3TNV88F-EPJT2	3TNV80F-NCJT	3TNV88F-EPJPT	3TNV88C-NJT2	3TNV88C-MJTV	3TNV88C-KJPT	3TNV86CT-NJT2	3TNV86CT-MJT	3TNV86CT-KJPT	3TNV86CHT-MJTV		D1803-CR-E4	D1803-CR-E4
Engine Family	EYDXL1.64NDA, FYDXL1.64NDA, GYDXL1.64NDA			EYDXL1.64NDA FYDXL1.64NDA GYDXL1.64NDA			FYDXL1.57TDA EYDXL1.57TDA GYDXL1.57TDA
Emissions Certifications	Final Tier 4
Displacement	100 cu in.	Three cylinders: 1.267 L 77.3 cu in.	3 / 1.64 L 3 / 100.2 cu in.	3 / 1.64 L 3 / 100.2 cu in.	Three cylinders: 1.64 L 100 cu in.	3 / 1.64 L 3 / 100.2 cu in.	3 / 1.57 L 3 / 95.7 cu in.	Three cylinders: 1.57 L 95.7 cu in.	3 / 1.57 L 3 / 95.8 cu in.	Three cylinders: 1.57 L 95.7 cu in.	3 / 1.826 L 3 / 100.47 cu in.	3 / 1.826 L 3 / 111.4 cu in.	3 / 1.826 L 3 / 111.4 cu in.	3 / 1.9 L 3 / 116 cu in.	3 / 2.0 L 3 / 122 cu in.
Aspiration	Natural	Natural	Natural	Natural	Natural	Natural	Turbocharged	Turbocharged	Turbocharged	Turbocharged and intercooled	Natural	Natural	Natural
Number of Cylinders	3	Three	Three	Three	Three	Three	Three	Three	Three	Three	Three	Three	Three	Three	Three
Cylinder Liners	Cast-in-block	Cast-in-block	Cast-in-block	Cast-in-block	Cast-in-block	Cast-in-block	Cast-in-block	Cast-in-block	Cast-in-block	Cast-in-block
Rated Engine Speed	2400 rpm	3200 rpm	2400 rpm	2500 rpm	2600 rpm	2800 rpm	2500 rpm	2600 rpm	2800 rpm	2600 rpm	2200 rpm	2700 rpm	2700 rpm	2600 rpm	2600 rpm
Rated Engine Power	24 hp (SAE J1995)	SAE J1995 rated power: 17.8 kW 23.9 hp 24.2 PS at 3200 rpm	SAE J1995 rated power: 18.2 kW 24.4 hp 24.7 PS at 2400 rpm	SAE J1995 rated power: 22.9 kW 30.7 hp 31.2 PS at 2500 rpm	SAE J1995 rated power: 23.7 kW 31.8 hp 32.2 PS at 2600 rpm	SAE J1995 rated power: 25.5 kW 34.2 hp 34.7 PS at 2800 rpm	SAE J1995 rated power: 27.4 kW 36.7 hp 37.2 PS at 2500 rpm	SAE J1995 rated power: 28.5 kW 38.2 hp 38.7 PS at 2600 rpm	SAE J1995 rated power: 31 kW 41.6 hp 42.2 PS at 2800 rpm	SAE J1995 rated power: 33.3 kW 44.7 hp 45.3 PS at 2600 rpm	18.5 kW 24.8 hp	24.6 kW 33 hp		28.3 kW 38 hp
Rated Engine Power	18 kW	SAE J1995 rated power: 17.8 kW 23.9 hp 24.2 PS at 3200 rpm	SAE J1995 rated power: 18.2 kW 24.4 hp 24.7 PS at 2400 rpm	SAE J1995 rated power: 22.9 kW 30.7 hp 31.2 PS at 2500 rpm	SAE J1995 rated power: 23.7 kW 31.8 hp 32.2 PS at 2600 rpm	SAE J1995 rated power: 25.5 kW 34.2 hp 34.7 PS at 2800 rpm	SAE J1995 rated power: 27.4 kW 36.7 hp 37.2 PS at 2500 rpm	SAE J1995 rated power: 28.5 kW 38.2 hp 38.7 PS at 2600 rpm	SAE J1995 rated power: 31 kW 41.6 hp 42.2 PS at 2800 rpm	SAE J1995 rated power: 33.3 kW 44.7 hp 45.3 PS at 2600 rpm	18.5 kW 24.8 hp	24.6 kW 33 hp		28.3 kW 38 hp
Rated Engine Power	25 PS	SAE J1995 rated power: 17.8 kW 23.9 hp 24.2 PS at 3200 rpm	SAE J1995 rated power: 18.2 kW 24.4 hp 24.7 PS at 2400 rpm	SAE J1995 rated power: 22.9 kW 30.7 hp 31.2 PS at 2500 rpm	SAE J1995 rated power: 23.7 kW 31.8 hp 32.2 PS at 2600 rpm	SAE J1995 rated power: 25.5 kW 34.2 hp 34.7 PS at 2800 rpm	SAE J1995 rated power: 27.4 kW 36.7 hp 37.2 PS at 2500 rpm	SAE J1995 rated power: 28.5 kW 38.2 hp 38.7 PS at 2600 rpm	SAE J1995 rated power: 31 kW 41.6 hp 42.2 PS at 2800 rpm	SAE J1995 rated power: 33.3 kW 44.7 hp 45.3 PS at 2600 rpm	18.5 kW 24.8 hp	24.6 kW 33 hp		28.3 kW 38 hp
Compression Ratio	19.1:1	23.1:1	19.1:1	19.1:1	19.1:1	19.1:1	19.1:1	19.1:1	19.1:1	19.1:1
Lubrication	Pressurized	Pressurized	Pressurized	Pressurized	Pressurized	Pressurized	Pressurized	Pressurized	Pressurized	Pressurized	Pressurized	Pressurized	Pressurized
Cooling System Type	Water pump
Fuel Type	Diesel
Air Cleaner Type	Dual element
Transmission
Creeper	No	No	No	No		No	No		No		No	No	No
Cruise Control	Optional	Standard	No	Optional	PowrReverser transmission: Not applicable eHydro transmission: Standard	No	Optional	PowrReverser transmission: Not applicable eHydro transmission: Standard	No	Standard	Optional	Optional		Standard on HST only
Rear Power Take-Off (PTO)
PTO Category	540 rpm
Engagement Method	Independent
PTO Clutch	Wet disk
Brake (For Mid and Rear PTO)	Wet disk	Wet disc (left-hand pedal)	Wet disk	Wet disk	Multi-plate wet disk	Wet disk	Wet disk	Wet disk	Wet disk	Wet disk	Multiple wet disc	Multiple wet disc	Multiple wet disc	Multiple wet disc	Multiple wet disc
Rear Hitch
Draft Control Sensing	Position control	Position control	Position control	Position control	Position control	Position control	Position control	Position control	Position control	Position control	Position control	Position control	Position control
Hydraulics
Hydraulic System Type	Open center
Number of Rear Selective Control Valves (SCVs)	2
Rear Axle
Final Drive	Spur gear	Spur gear	Spur gear	Spur gear	Spur gear	Spur gear	Spur gear	Spur gear	Spur gear	Spur gear	Bevel Gear	Bevel Gear	Bevel Gear
Steering & Brakes
Primary Brakes	Wet disk
Tires
Front Tires Size	R1 Bar: 7-14; R3 Turf: 27x8.5-15; R4 Industrial: 25x8.5-14 / 27x8.5-15
Electrical System
Alternator Capacity	55 amp
Operator Station
Gearshift Location	Left-hand side
