Twin Touch™ foot controls let operators change speed and direction with a touch of the toe, making loader and mower work faster and easier. Benefits include infinite ground speeds, no clutching for quick reversals, strong startup torque, and reduced drivetrain shock.

Equipment Mobile helps you set up, operate, and maintain your tractors from one app. With a John Deere Smart Connector, you can see live tractor data, get DTC alerts, track maintenance, scan the PIN for manuals and parts, and manage your fleet more efficiently in one place.
Check with your John Deere dealer for coverage availability.

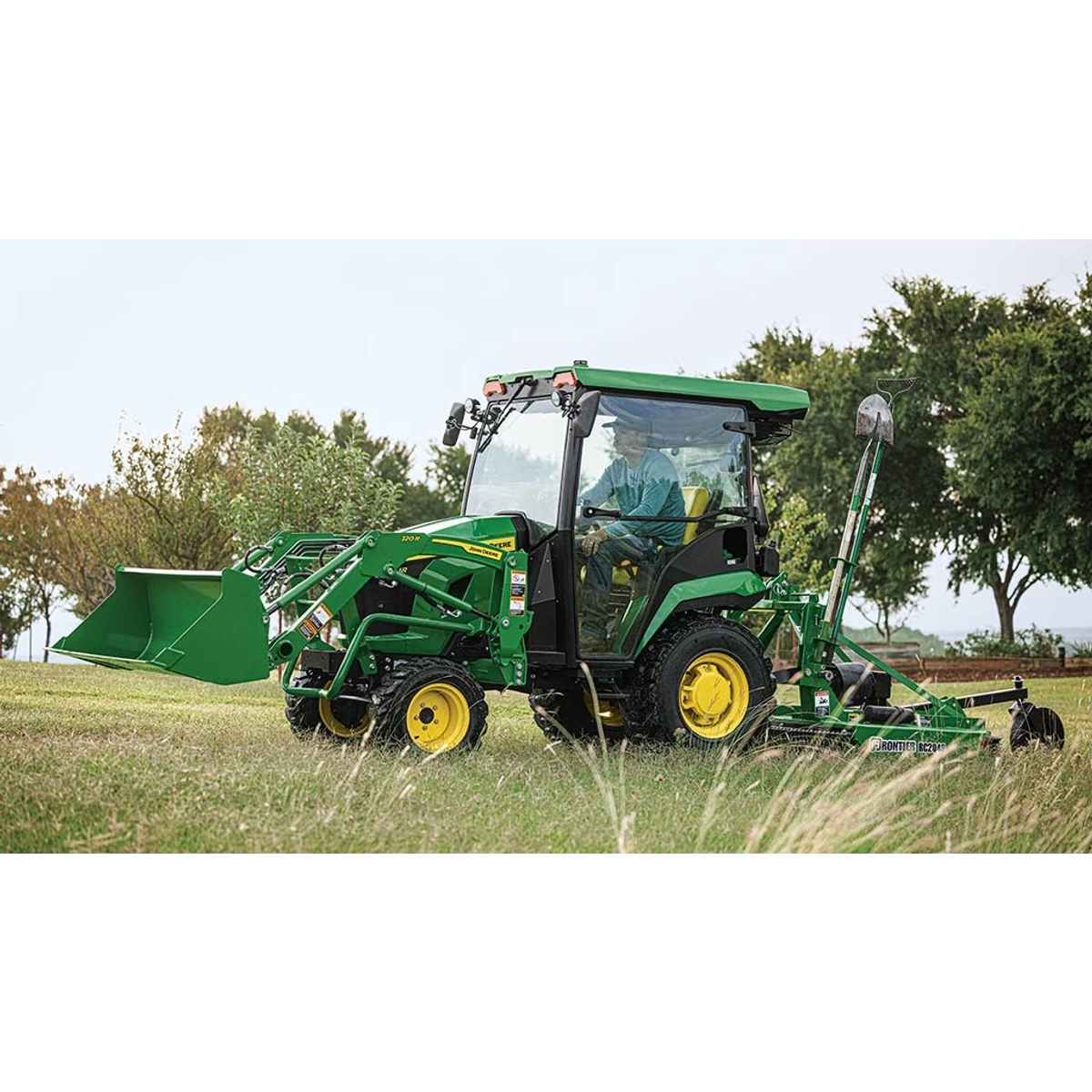

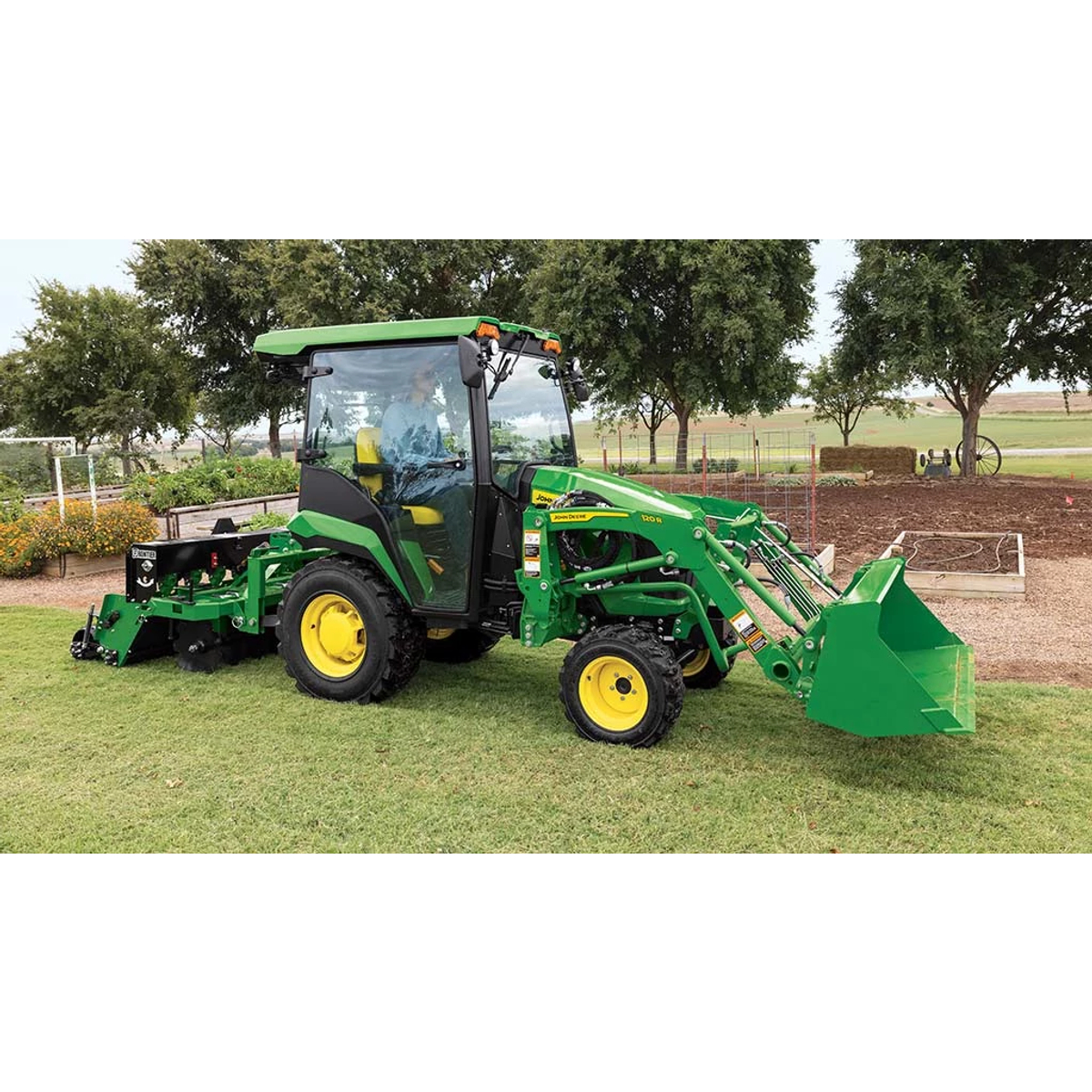

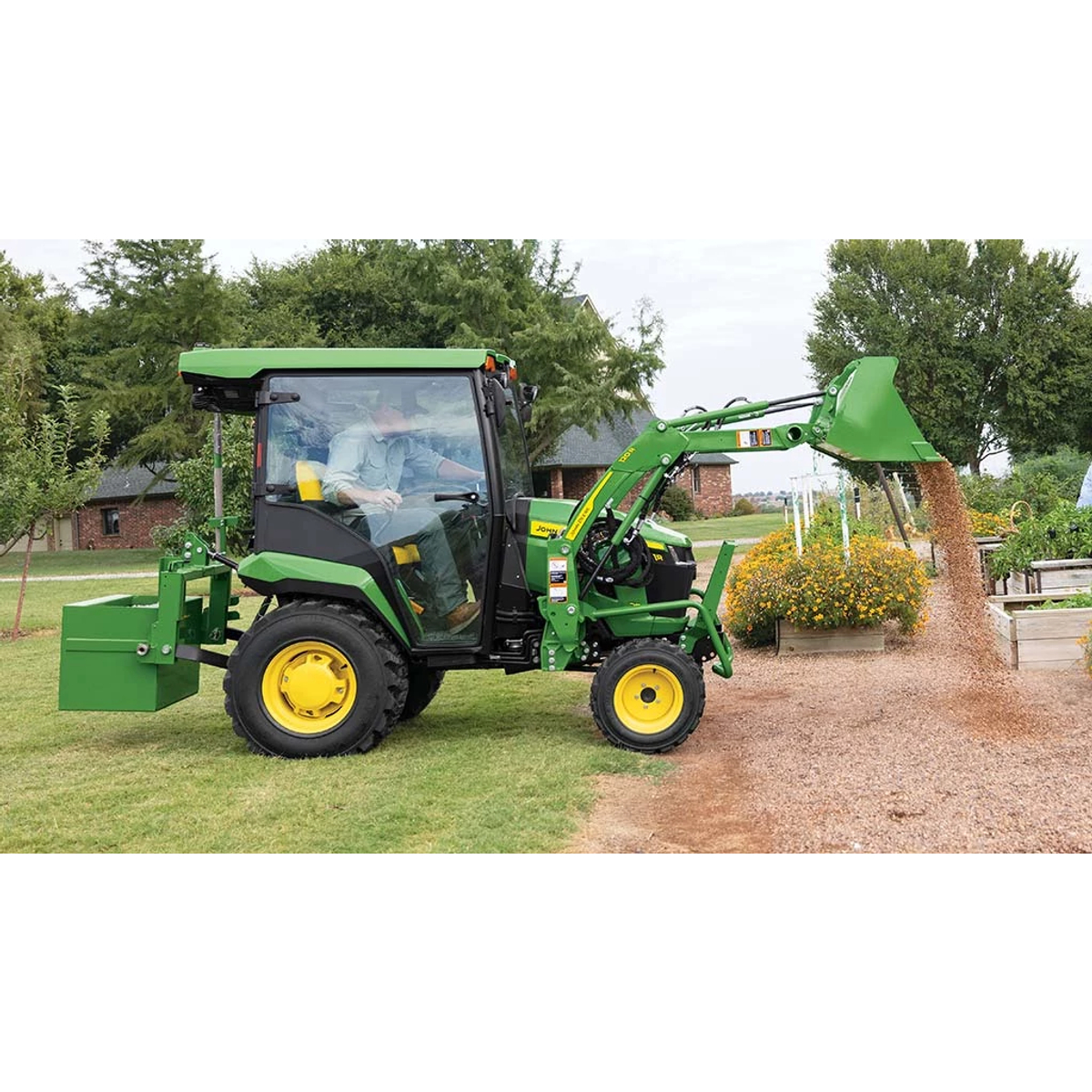

John Deere Compact Tractors are built for fast, tool-free implement changes, enabling users to switch tasks efficiently. With Quick Connect Solutions like the AutoConnect™ Deck System, Quik-Park™ Loader, iMatch™ Quick Hitch, and Quik-Knect™ PTO connector, operators can attach or detach implements in under a minute—often without leaving the seat.

Answer text goes here
Wheel or Track Configuration | Wheel |
Engine Make | Yanmar® |
Engine Model | 3TNV80F-NCJT |
Emissions Certifications | Final Tier 4 |
Displacement | 77 cu in. |
Displacement | 1.267 L |
Aspiration | Natural |
Number of Cylinders | 3 |
Rated Engine Speed | 3200 rpm |
Rated Engine Power | 23 hp |
Rated Engine Power | 17 kW |
Rated Engine Power | 23 PS |
Bore and Stroke | 3.2 x 3.3 in. |
Cooling System Type | Water pump |
Fuel Type | Diesel |
Air Cleaner Type | Dual element with mechanical restriction indicator |
Transmission Type | Hydrostatic - two range |
Clutch | Wet disc |
Cruise Control | Standard |
PTO Category | Limited Category 1 |
Engagement Method | Independent |
PTO Clutch | Wet disk |
Brake (For Mid and Rear PTO) | Wet disk |
PTO Speed | 2100 |
Front Rated PTO Power | 18 hp |
Rear Hitch Category (SAE Designation) | Limited Category 1 |
Maximum Lift Capacity at 610-mm Behind Hitch Point | 915 lb / 415 kg |
Sensing Type | Position control |
Draft Control Sensing | Position control |
Hydraulic System Type | Open center |
Pump Rated Output | Steering - 3.5 gpm; Implement - 3.9 gpm; Total - 7.4 gpm (27.9 L/min) |
Number of Rear Selective Control Valves (SCVs) | Two |
Steering Type | Power steering |
Primary Brakes | Wet disc |
Front Tires Size | R3 Turf: 23x8.50-12; R3 Radial: 220/55-R12; R4 Industrial: 23x8.50-12 |
Front Tread Spacing | 37 in. |
Rear Tires Size | R3 Turf: 12-16.5; R3 Radial: 280/70 R16; R4 Industrial: 12-16.5 |
Rear Tread Spacing | 35 in. |
Battery Voltage | 12 V |
Electrical System Voltage | 12 V |
Battery Cold Cranking Amps | 500 CCA |
Alternator Capacity | 40 amp |
ROPS Type | Foldable |
Seat Suspension | Suspension seat |
Fuel Tank Capacity | 5.4 gal. |
Wheelbase | 63 in. |
Base Machine Weight | 1872 lb. |
Front Axle Ground Clearance | 7.7 in. |
