new
John Deere
1M 25
1 Series Sub-Compact Tractors

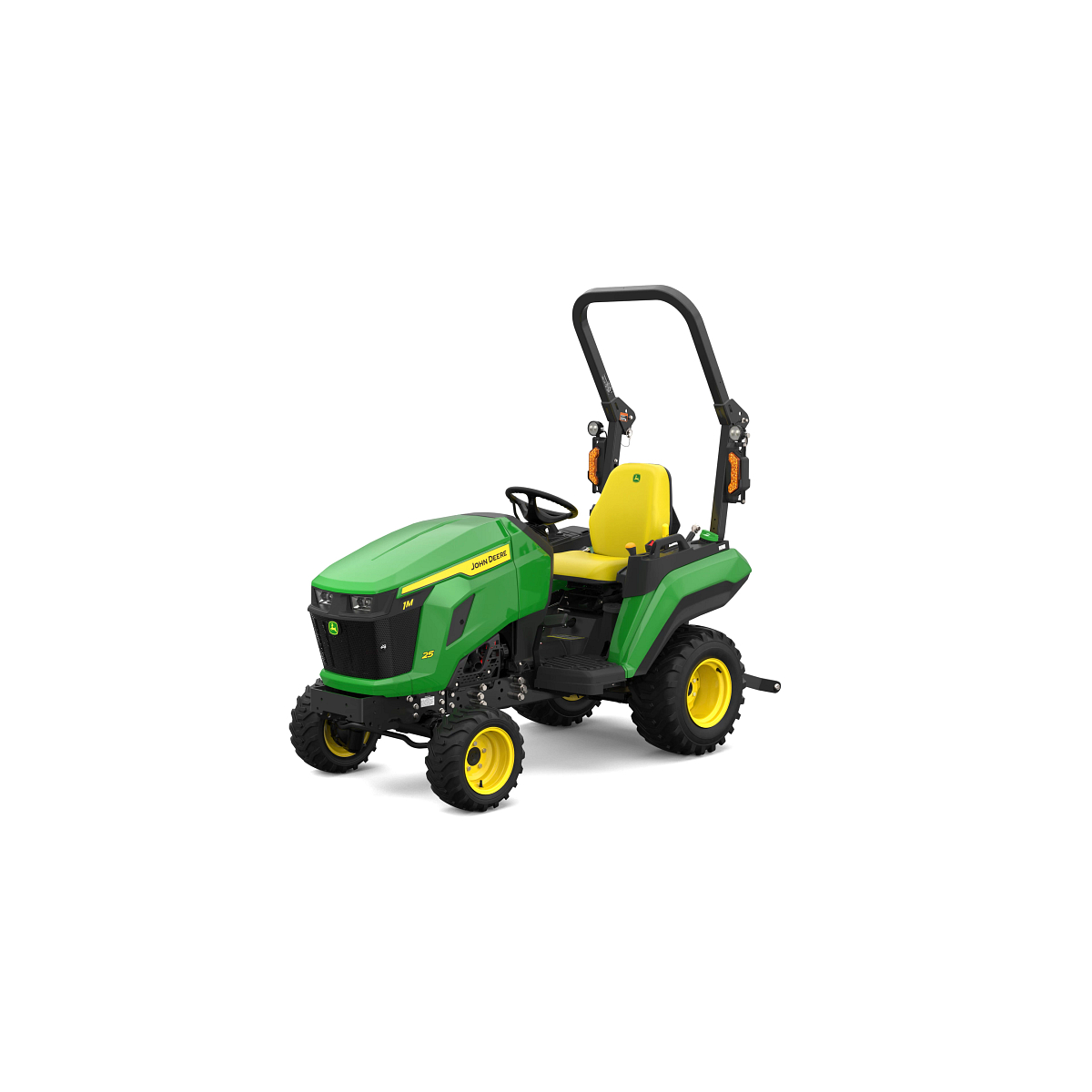

John Deere 1M 25

Starting at

Convenient Twin Touch™ Foot Controls

Twin Touch™ foot controls let operators change speed and direction with a touch of the toe, making loader and mower work faster and easier. Benefits include infinite ground speeds, no clutching for quick reversals, strong startup torque, and reduced drivetrain shock.

Studio close-up of a 1 series tractor's Twin Touch™ foot controls
Equipment Mobile and Smart Connector

Equipment Mobile helps you set up, operate, and maintain your tractors from one app. With a John Deere Smart Connector, you can see live tractor data, get DTC alerts, track maintenance, scan the PIN for manuals and parts, and manage your fleet more efficiently in one place.

Check with your John Deere dealer for coverage availability.

Black smartphone with the Live Equipment Dashboard pulled up in Equipment Mobile app
More Time Working, Less Time Switching Implements

John Deere Compact Tractors are built for fast, tool-free implement changes, enabling users to switch tasks efficiently. With Quick Connect Solutions like the AutoConnect™ Deck System, Quik-Park™ Loader, iMatch™ Quick Hitch, and Quik-Knect™ PTO connector, operators can attach or detach implements in under a minute—often without leaving the seat.

A green tractor with an enclosed cab pulls a box blade attachment along a gravel path beside a tree, with grassy fields and a flat rural landscape under a clear sky
Question text goes here

Answer text goes here

Machine Configuration
Wheel or Track Configuration

Wheel

Engine
Engine Make

Yanmar®

Engine Model

3TNV80F-NCJT

Emissions Certifications

Final Tier 4

Displacement

77 cu in.

Displacement

1.267 L

Aspiration

Natural

Number of Cylinders

3

Rated Engine Speed

3200 rpm

Rated Engine Power

24 hp
(SAE J1995)

Rated Engine Power

18 kW

Rated Engine Power

24 PS

Bore and Stroke

3.15 x 3.31 in.

Cooling System Type

Water pump

Fuel Type

Diesel

Air Cleaner Type

Dual element with mechanical restriction indicator

Transmission
Transmission Type

Hydrostatic - two range

Clutch

Wet disc

Cruise Control

Standard

Rear Power Take-Off (PTO)
PTO Category

Limited Category 1

Rated PTO Power

18 hp

Engagement Method

Independent

PTO Clutch

Wet disk

Brake (For Mid and Rear PTO)

Wet disk

Front PTO
PTO Speed

2100

Rear Hitch
Rear Hitch Category (SAE Designation)

Limited Category 1

Maximum Lift Capacity at 610-mm Behind Hitch Point

758 lb / 344 kg

Sensing Type

Position control

Draft Control Sensing

Position control

Hydraulics
Hydraulic System Type

Open center

Pump Rated Output

6.3 gpm (24 L/min)

Number of Rear Selective Control Valves (SCVs)

Three

Steering & Brakes
Steering Type

Power steering

Primary Brakes

Wet disc (left-hand pedal)

Tires
Front Tires Size

R3 Turf: 18x8.50-10; R3 Turf Radial: 18x8.50-10; R4: 18x8.5-10

Front Tread Spacing

36 in.

Rear Tires Size

R3 Turf: 26x12‑12; R4: 26x12‑12

Rear Tread Spacing

35 in.

Electrical System
Battery Voltage

12 V

Electrical System Voltage

12 V

Battery Cold Cranking Amps

500 CCA

Alternator Capacity

40 amp

Operator Station
ROPS Type

Foldable

Seat Suspension

Suspension seat

Capacities
Fuel Tank Capacity

6.3 gal.

Dimensions & Weights
Wheelbase

57.1 in.

Base Machine Weight

1556 lb.

Front Axle Ground Clearance

7.7 in.
