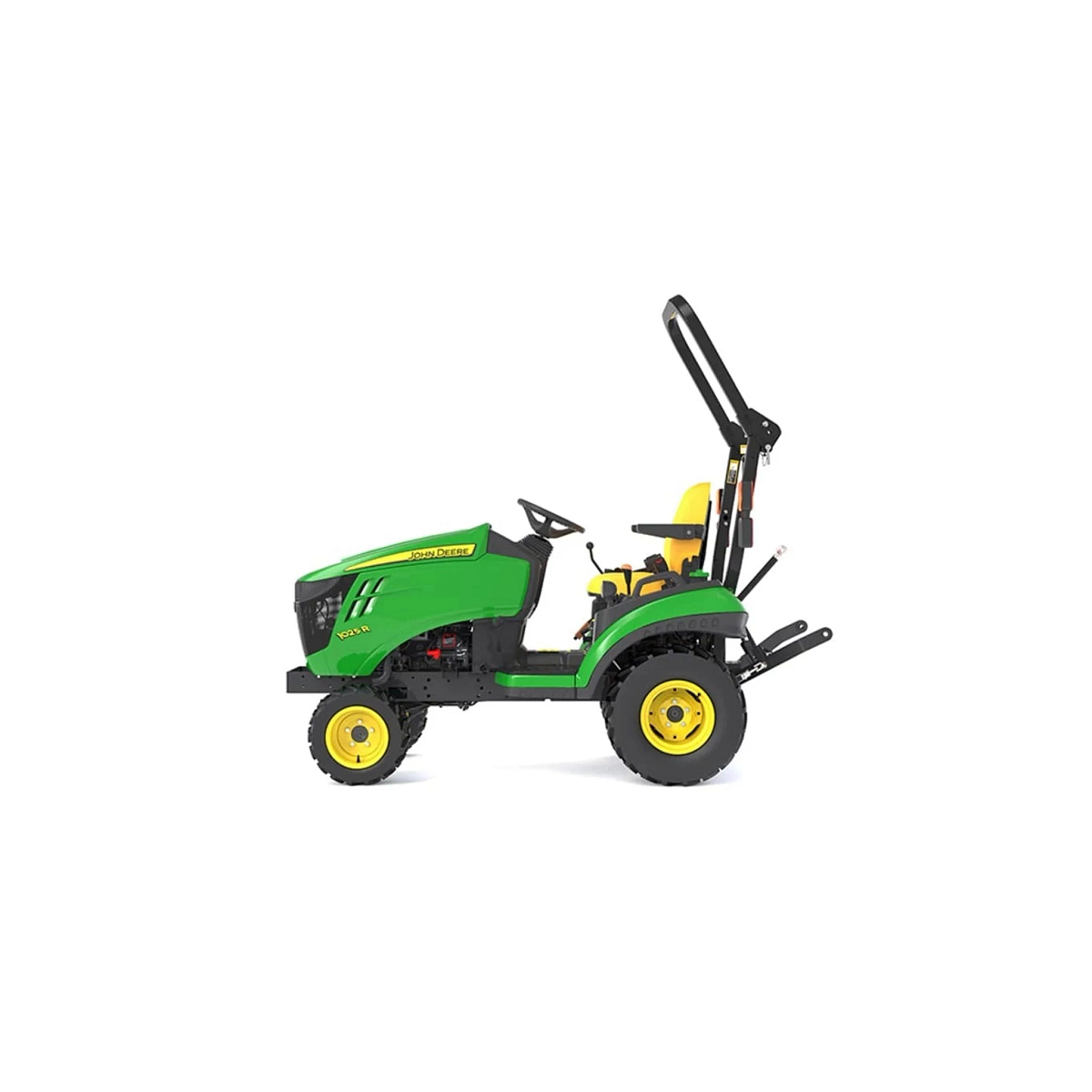

Studio image with a left view of 1025R Tractor Sub-Compact Tractors

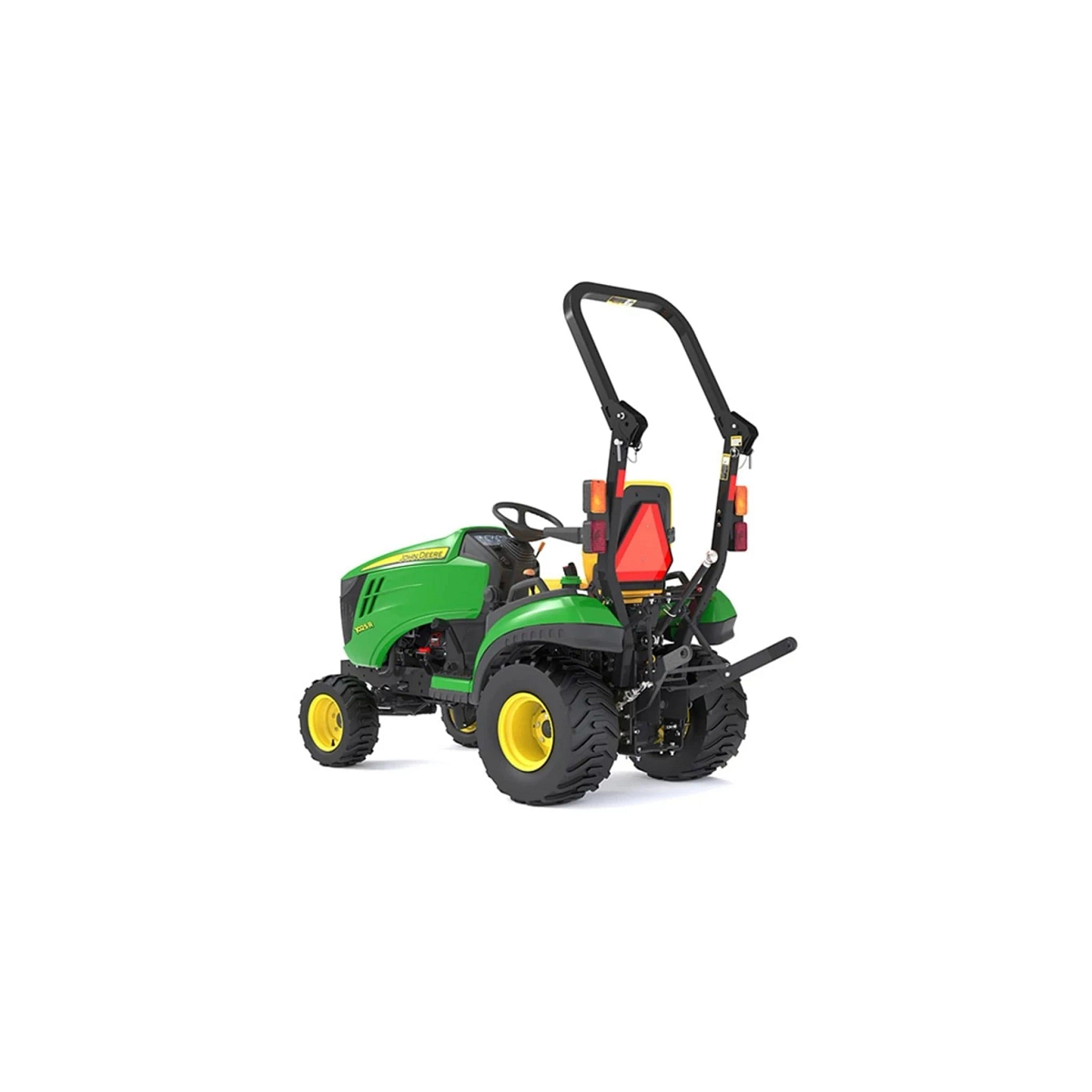

Studio image with a rear left view of 1025R Tractor Sub-Compact Tractors

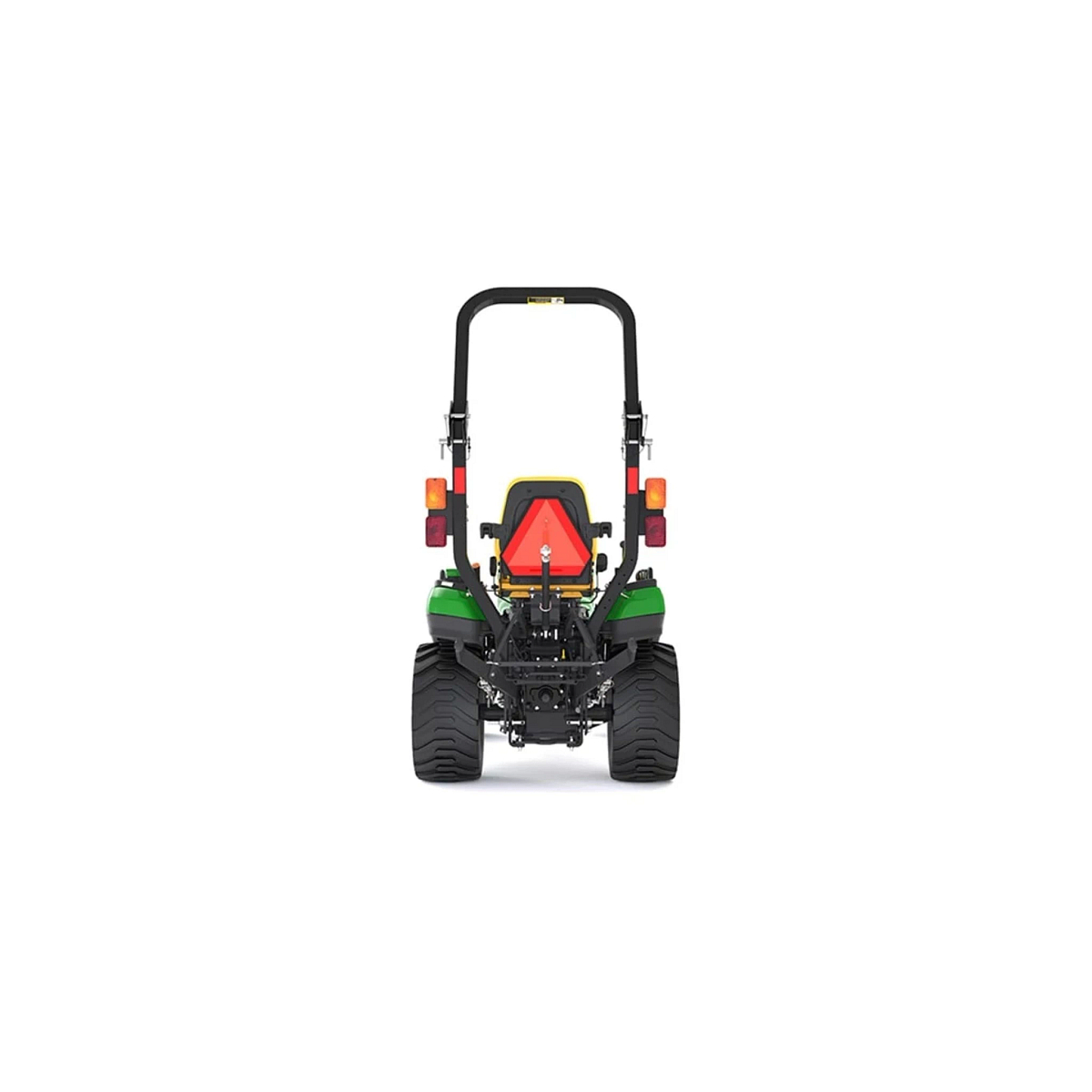

Studio image with a rear view of 1025R Tractor Sub-Compact Tractors

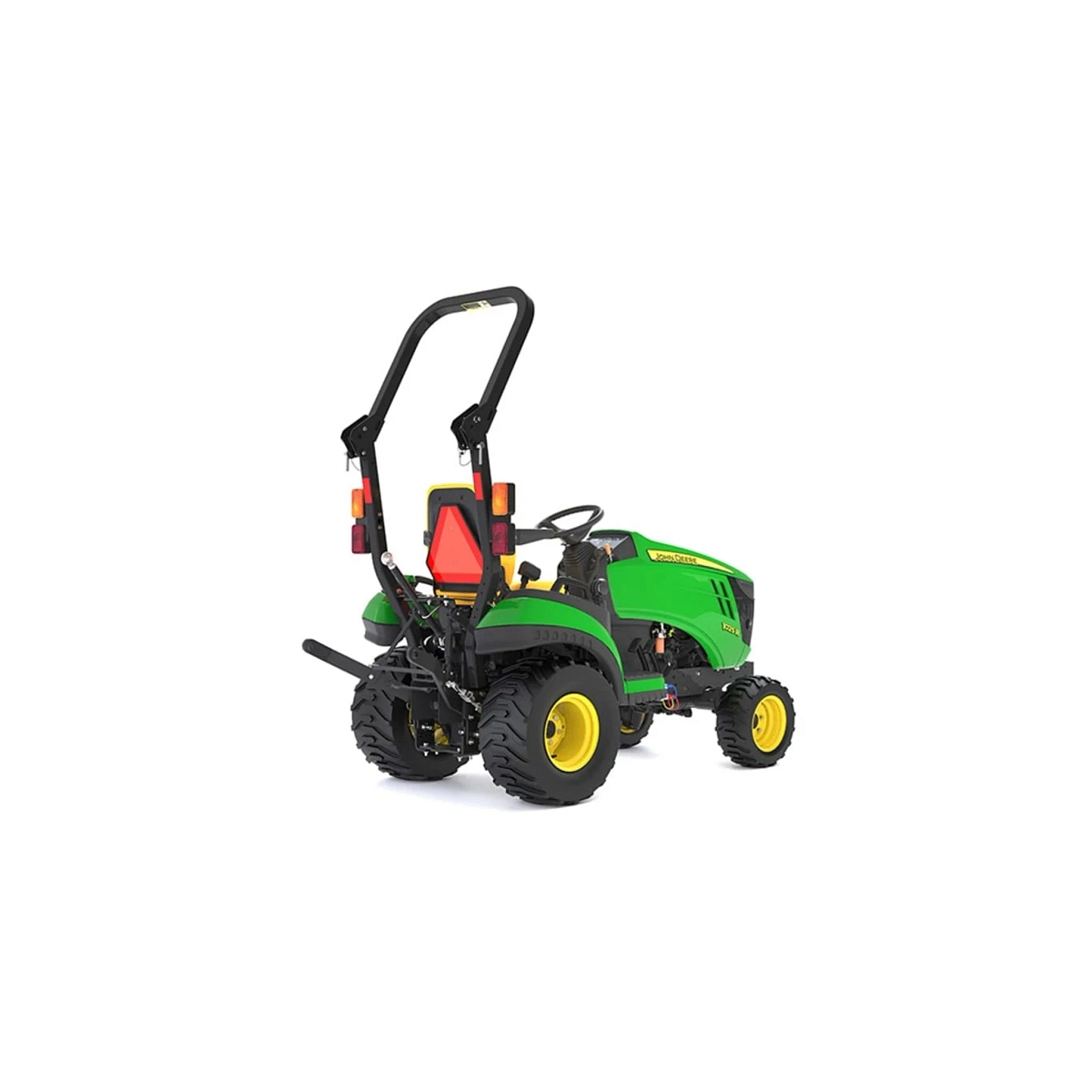

Studio image with a rear right view of 1025R Tractor Sub-Compact Tractors

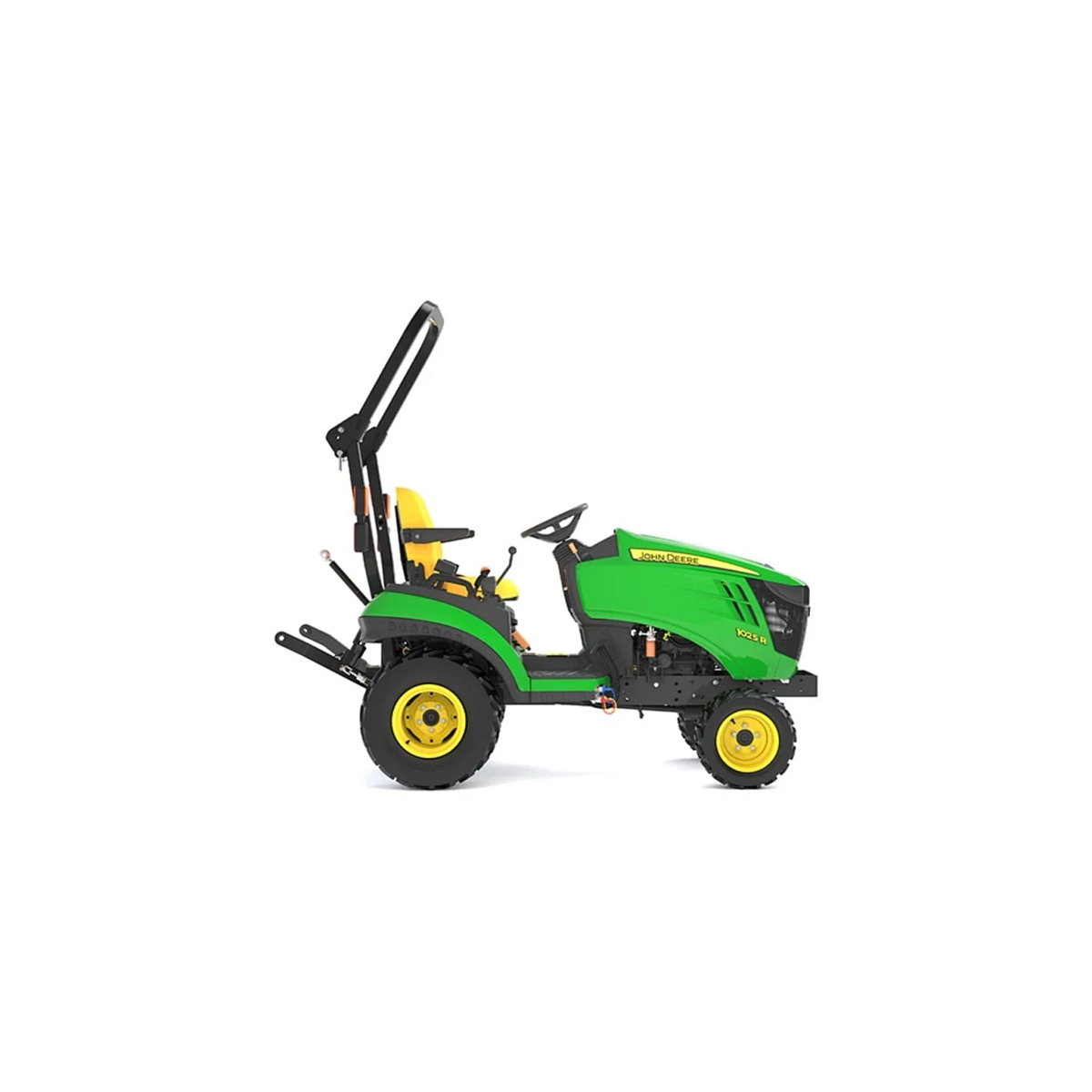

Studio image with a right view of 1025R Tractor Sub-Compact Tractors

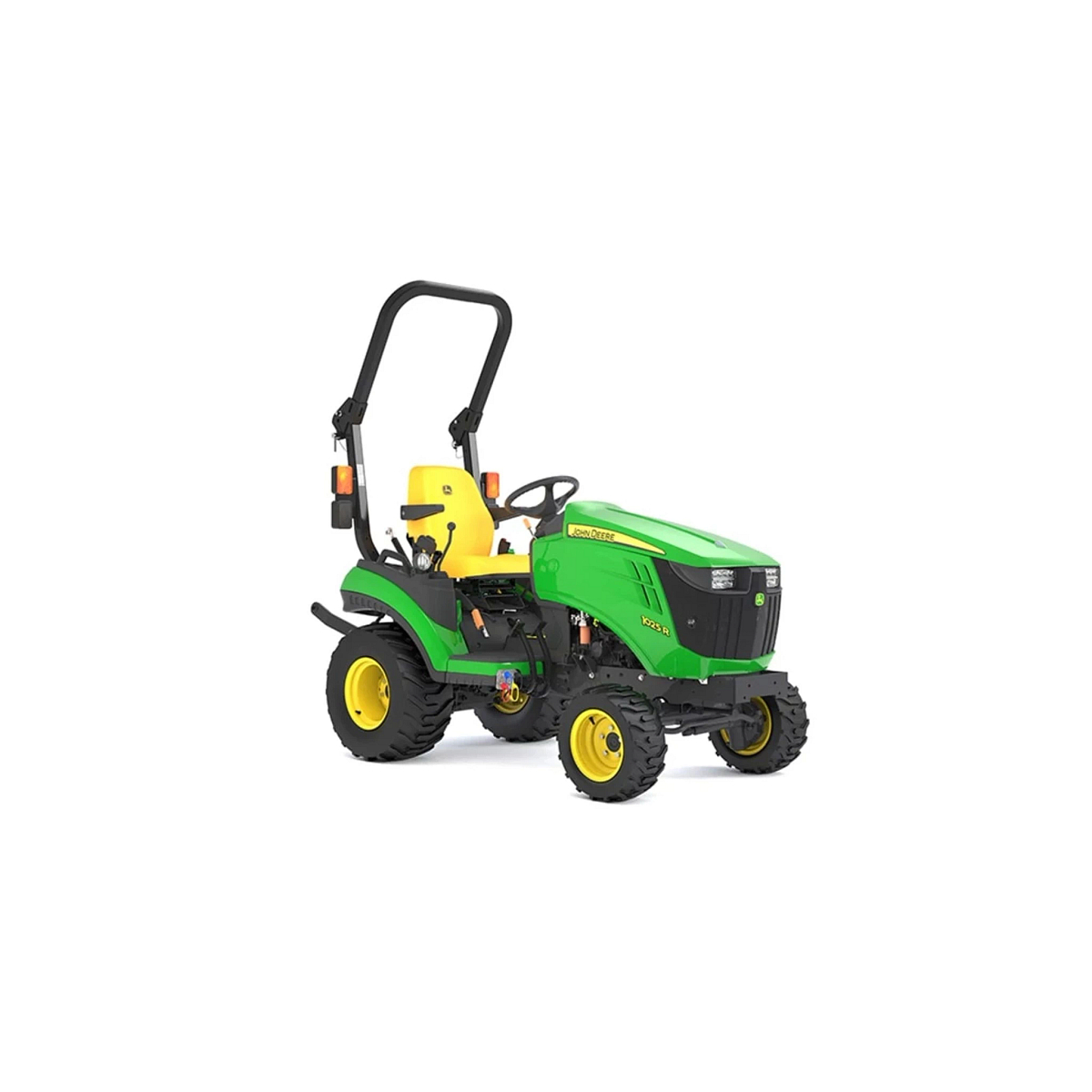

Studio image with a front right view of 1025R Tractor Sub-Compact Tractors

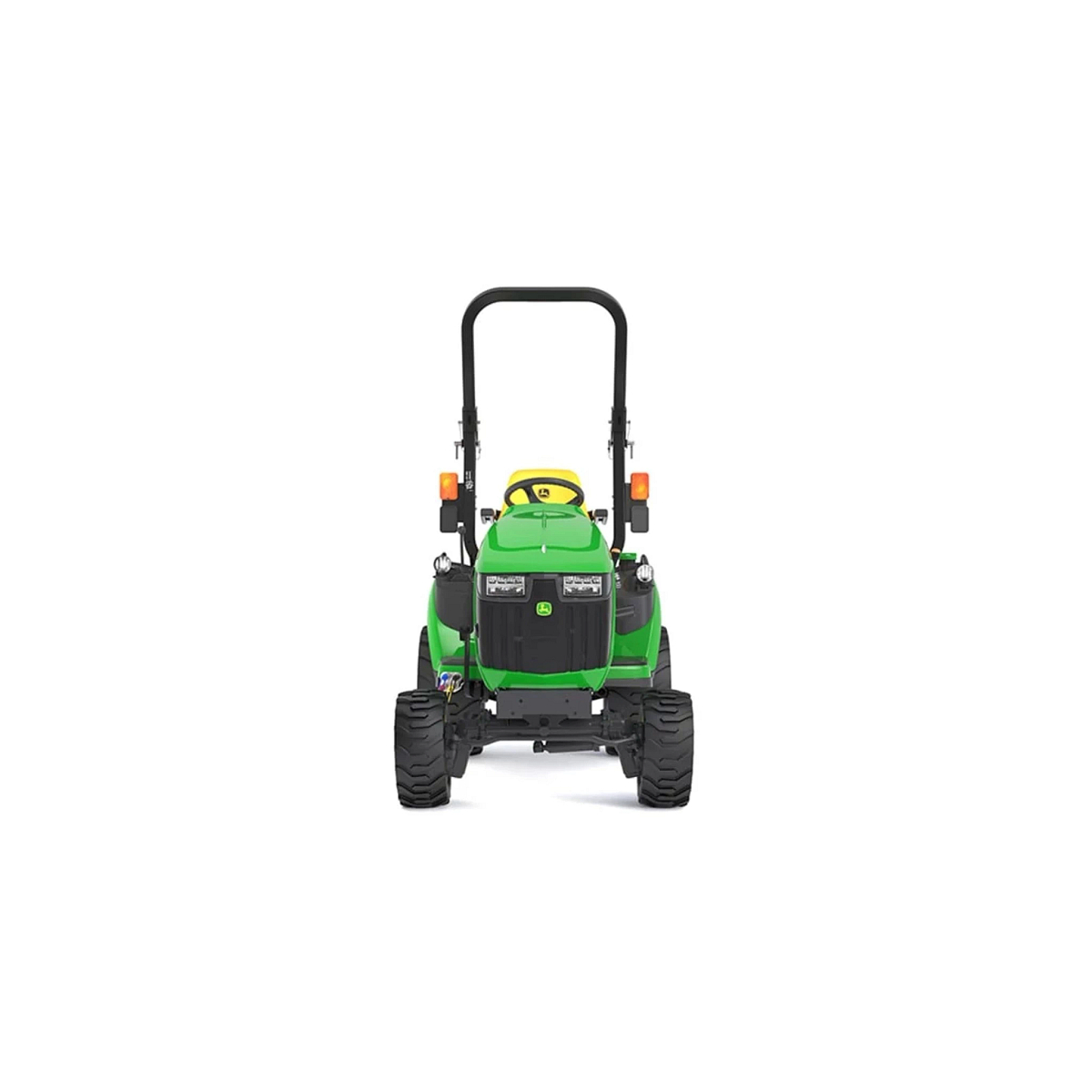

Studio image with a front view of 1025R Tractor Sub-Compact Tractors

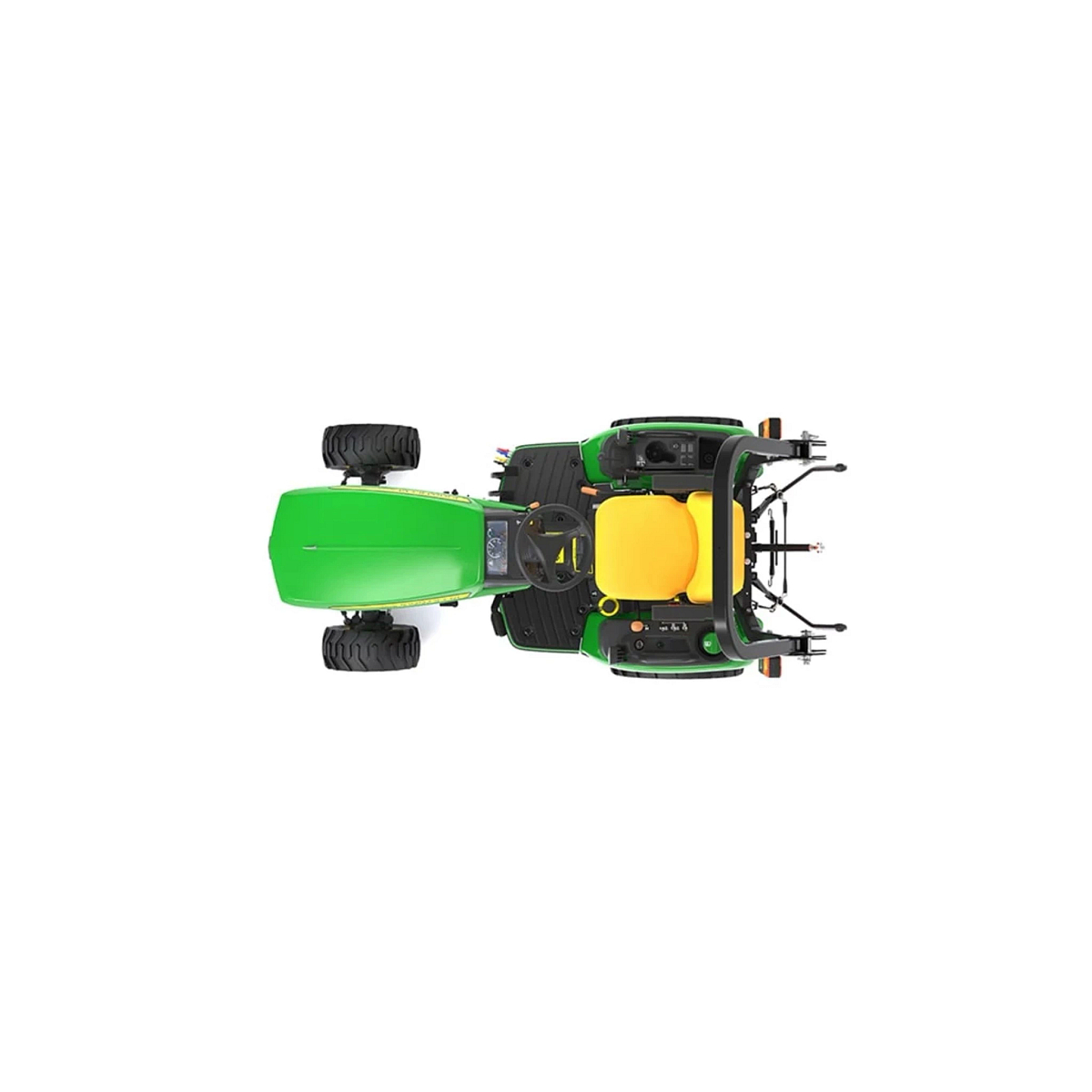

Studio image with a top view of 1025R Tractor Sub-Compact Tractors

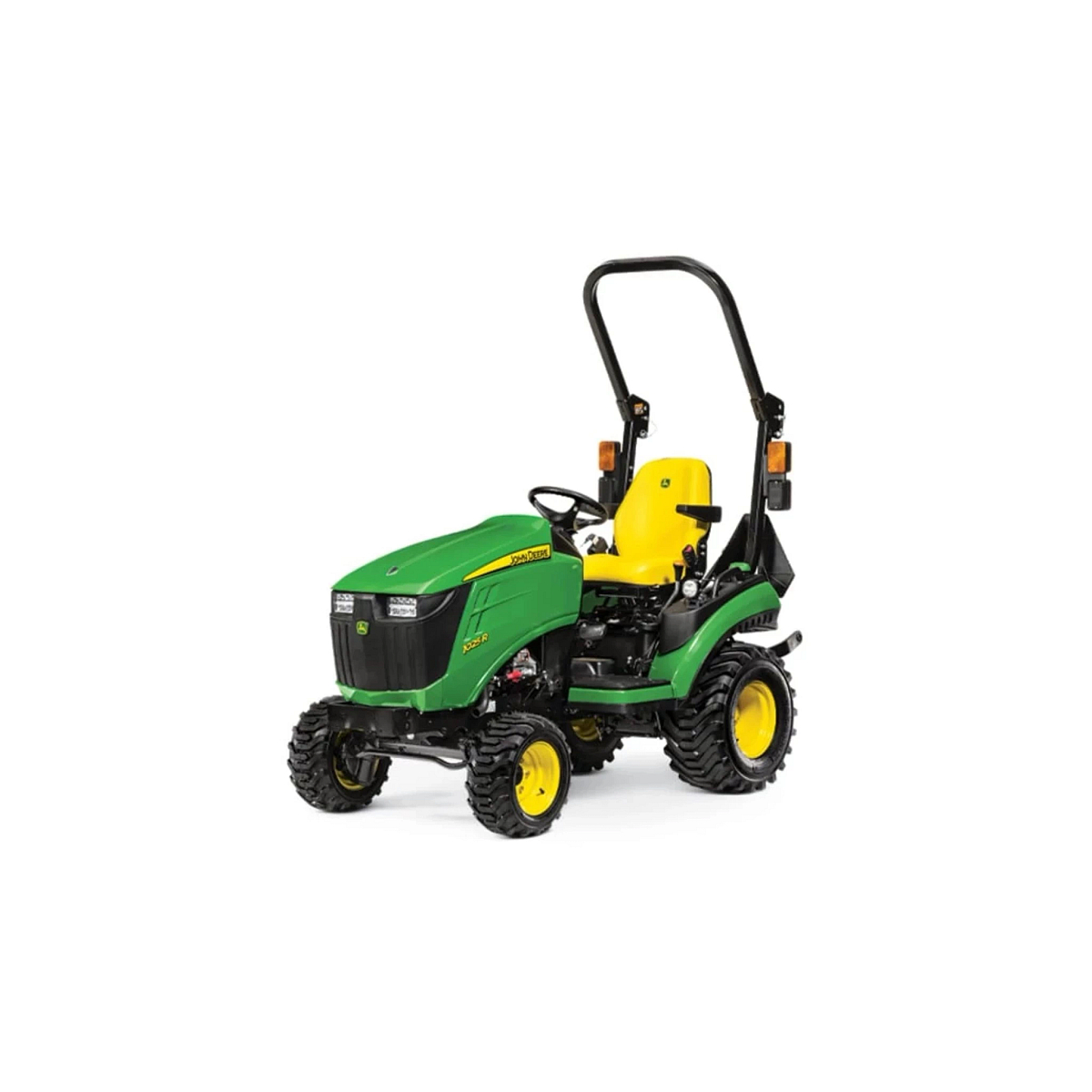

1025R Tractor Sub-Compact Tractors with a green tractor with a yellow seat and a black handle
Operator moving soil with a 1025R Tractor Sub-Compact Tractor

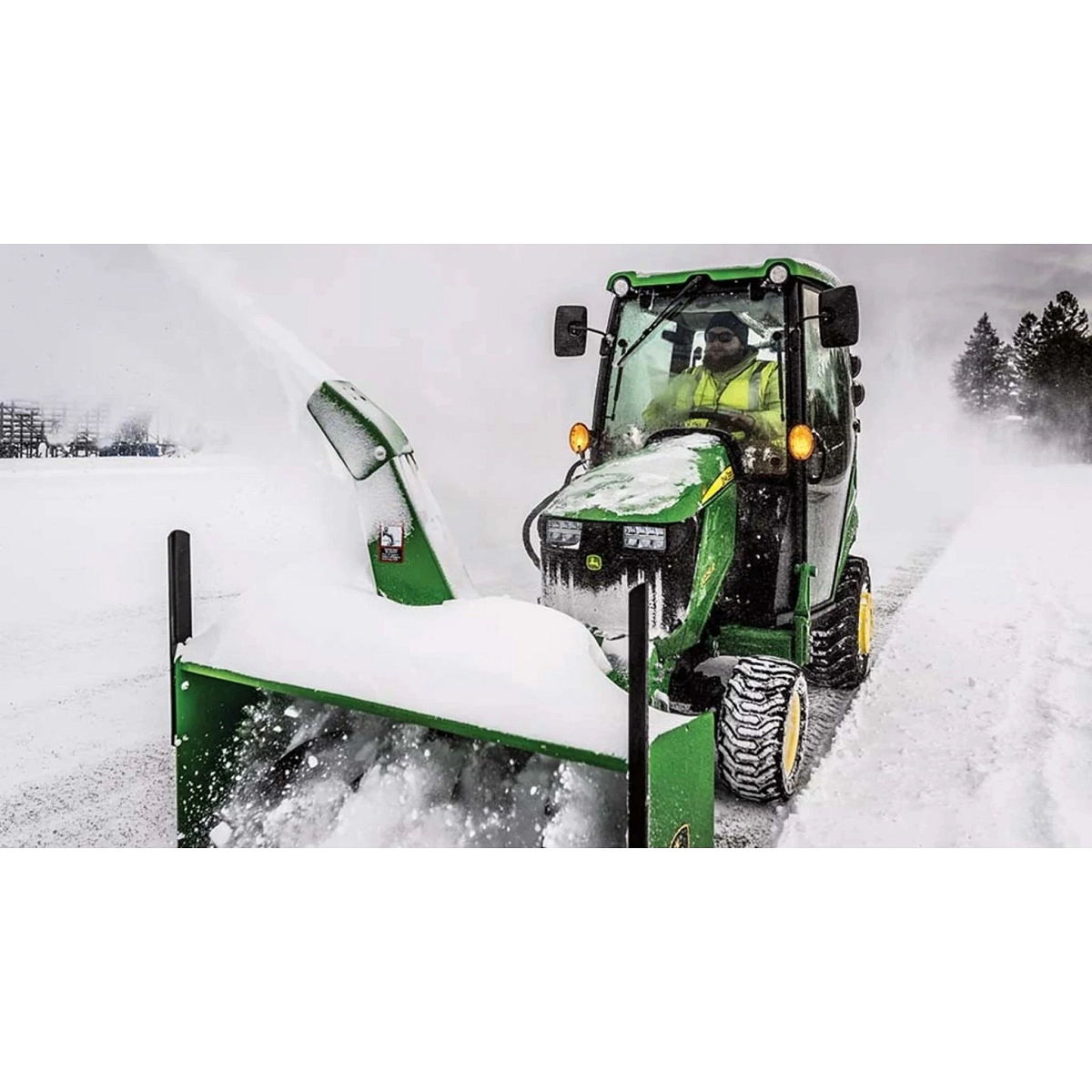

1025R Tractor Sub-Compact Tractors with a tractor with a snow blower in the snow

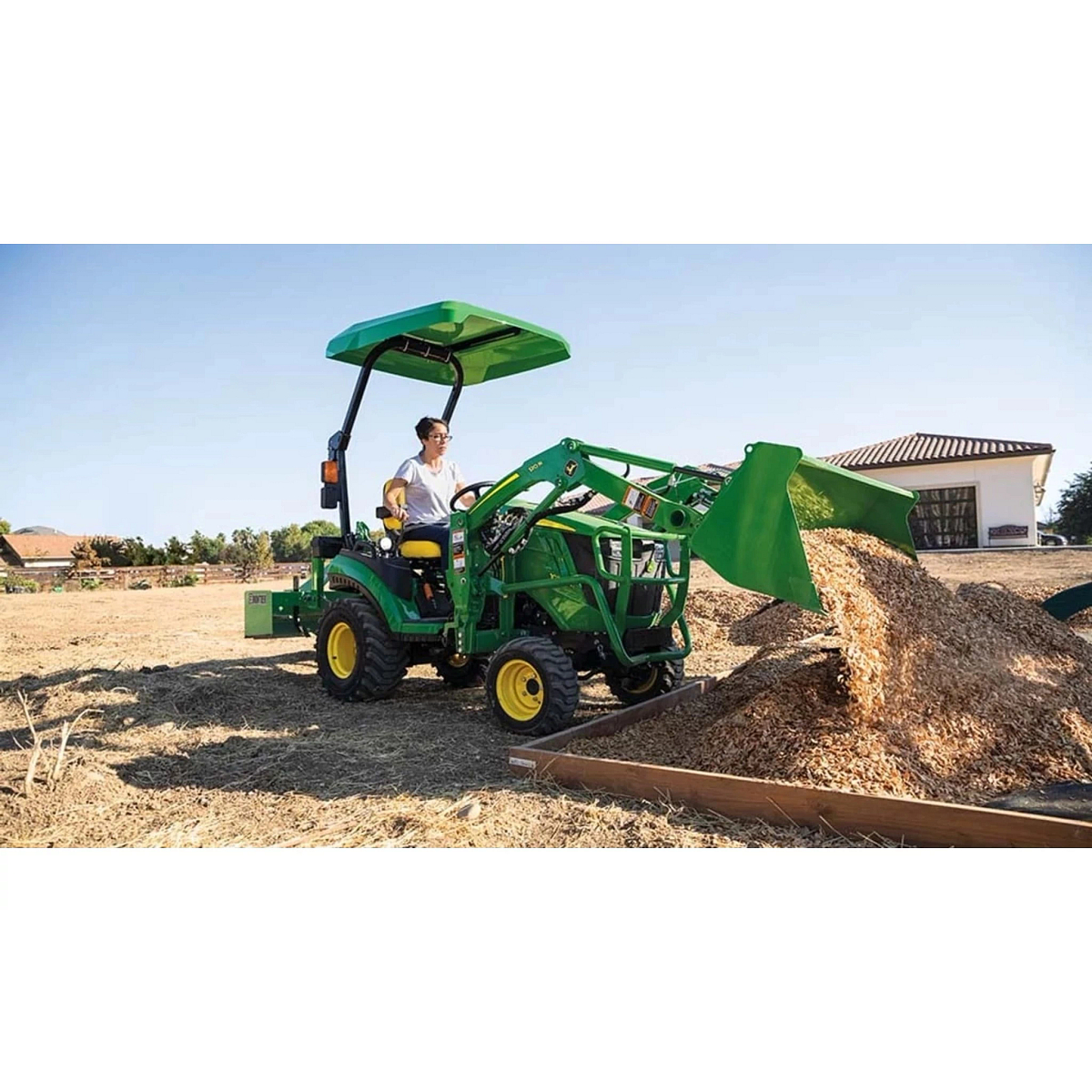

1025R Tractor Sub-Compact Tractors with a farmer driving a tractor with a loader full of hay

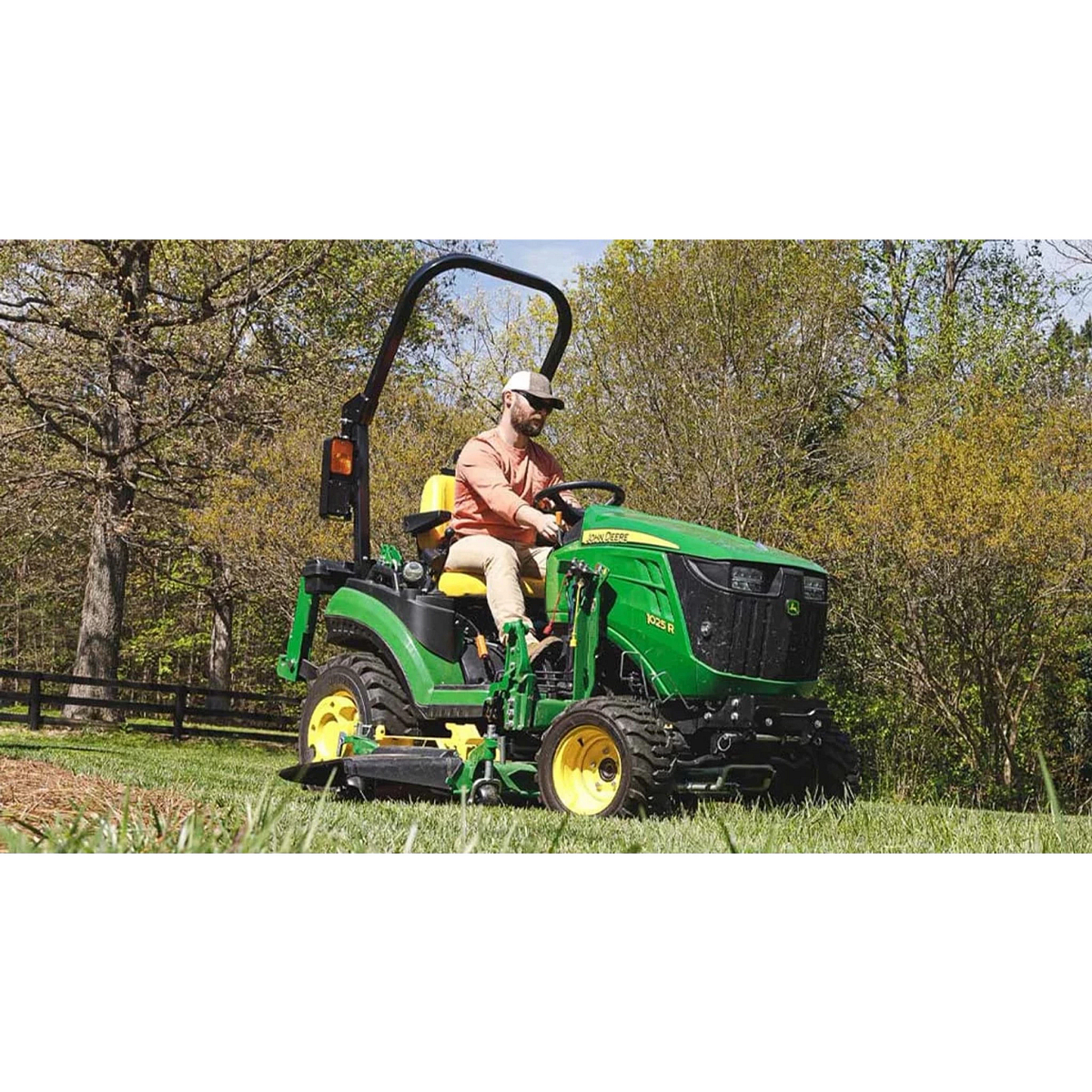

1025R Tractor Sub-Compact Tractors with a farmer riding on a green tractor in a field
No items found.
new
John Deere
1025R
1 Series Sub-Compact Tractors

John Deere 1025R

Starting at

Key Features

  • Standard LED Headlights and Fender Lights
  • Premium Operator Station With Deluxe Seat Suspension and Armrests
  • AutoConnect™ Mid-Mower Deck Installs or Removes in Less Than 5 Minutes
  • Tier 4-Compliant Diesel Engine
Request a Quote
Order Now
Apply for financing
Apply for financing
Print Page
Loan Calculator
Product Brochure
Features
Specifications
Excellent Maneuverability With 4WD and Power Steering

This tractor offers excellent maneuverability due to its standard four-wheel drive and power steering. The narrow wheelbase allows operation in tight spaces, while the power steering ensures smooth navigation around obstacles, ideal for mowing and loader work.

v1025R compact tractor with a mower attachment on a grassy hillside.
Comfortable and Convenient Open Operator's Station

The tractor features a comfortable open operator station designed for increased visibility and ease of access. With a thick rubber floor mat and an easy step-through flat platform, it reduces vibrations and noise, making it easy to operate for long periods without fatigue.

Studio close-up of the right side of a 1023E compact tractor's operator's station
More Time Working, Less Time Switching Implements

John Deere Compact Tractors are built for fast, tool-free implement changes, enabling users to switch tasks efficiently. With Quick Connect Solutions like the AutoConnect™ Deck System, Quik-Park™ Loader, iMatch™ Quick Hitch, and Quik-Knect™ PTO connector, operators can attach or detach implements in under a minute—often without leaving the seat.

John Deere 1025R sub‑compact tractor with mid‑mount mower deck parked inside a barn, shown with yellow wheels, ROPS, and operator seat, mower deck lowered on concrete floor.
Question text goes here

Answer text goes here

Specs & Compare
Select up to 4 models to compare specifications
John Deere
1025R
Sub-Compact Tractor
John Deere
1023E (Model year 2025)
John Deere
2025R (Model year 2025)
John Deere
3025E (Model year 2025)
Kioti
CK2610 HST
Kubota®
BX2680-1 Tractor
Mahindra
eMax 22 HST
Mahindra
Max 26 XLT
ADD MODEL

Machine Configuration

Wheel or Track ConfigurationWheel

Engine

Engine MakeYanmar®
Engine Model3TNV80F-NCJT3TNM74F-NCJT3TNV80F-NCJT3TNV88F-EPJT23A165LWM-UD1005
Emissions CertificationsFinal Tier 4
Displacement77 cu in.Three cylinders: 0.993 L
60.6 cu in.		Three cylinders: 1.267 L
77 cu in.		3 / 1.64 L
3 / 100.2 cu in.		Three cylinders: 1.647 L
100.5 cu in.		Three cylinders: 1.001 L
61.1 cu in.		3 / 1.007 L
3 / 61.5 cu in.		Three cylinders: 1.318 L
80.4 cu in.
Displacement1.267 LThree cylinders: 0.993 L
60.6 cu in.		Three cylinders: 1.267 L
77 cu in.		3 / 1.64 L
3 / 100.2 cu in.		Three cylinders: 1.647 L
100.5 cu in.		Three cylinders: 1.001 L
61.1 cu in.		3 / 1.007 L
3 / 61.5 cu in.		Three cylinders: 1.318 L
80.4 cu in.
AspirationNaturalNaturalNaturalNaturalNaturalNaturalNatural
Number of Cylinders3ThreeThreeThreeThreeThreeThreeThree
Cylinder LinersCast-in-blockCast-in-blockCast-in-blockCast-in-block
Rated Engine Speed3200 rpm3200 rpm3200 rpm2400 rpm2600 rpm3200 rpm3000 rpm2500 rpm
Rated Engine Power24 hp
(SAE J1995)		SAE J1995 rated power: 16 kW
21.5 hp
21.8 PS at 3200 rpm		SAE J1995 rated power: 17.8 kW
23.9 hp
24.2 PS at 3200 rpm		SAE J1995 rated power: 17.8 kW
23.9 hp
24.7 PS at 2400 rpm		18.2 kW
24.5 hp		18.5 kW
24.8 hp		16.4 kW
22 hp		At 2500 rpm: 19.3 kW
25.9 hp
Rated Engine Power18 kWSAE J1995 rated power: 16 kW
21.5 hp
21.8 PS at 3200 rpm		SAE J1995 rated power: 17.8 kW
23.9 hp
24.2 PS at 3200 rpm		SAE J1995 rated power: 17.8 kW
23.9 hp
24.7 PS at 2400 rpm		18.2 kW
24.5 hp		18.5 kW
24.8 hp		16.4 kW
22 hp		At 2500 rpm: 19.3 kW
25.9 hp
Rated Engine Power24 PSSAE J1995 rated power: 16 kW
21.5 hp
21.8 PS at 3200 rpm		SAE J1995 rated power: 17.8 kW
23.9 hp
24.2 PS at 3200 rpm		SAE J1995 rated power: 17.8 kW
23.9 hp
24.7 PS at 2400 rpm		18.2 kW
24.5 hp		18.5 kW
24.8 hp		16.4 kW
22 hp		At 2500 rpm: 19.3 kW
25.9 hp
Engine Torque at Rated Speed39.2 lb-ft47.7 Nm
35.2 lb-ft		53.1 Nm
39.1 lb-ft		72.4 Nm
53.4 lb-ft
Engine Torque at Rated Speed53 Nm47.7 Nm
35.2 lb-ft		53.1 Nm
39.1 lb-ft		72.4 Nm
53.4 lb-ft
Bore and Stroke3.15 x 3.31 in.74 x 77 mm
2.91 x 3.03 in.		80 x 84 mm
3.2 x 3.3 in.		88 x 90 mm
3.46 x 3.54 in.
Bore and Stroke80 x 84 mm74 x 77 mm
2.91 x 3.03 in.		80 x 84 mm
3.2 x 3.3 in.		88 x 90 mm
3.46 x 3.54 in.
Compression Ratio23.1:123.5:123.1:0119.1:122:01
LubricationPressurizedPressurizedPressurizedPressurized
Cooling System TypeWater pump
Fuel TypeDiesel
Air Cleaner TypeDual element with mechanical restriction indicator

Transmission

Transmission TypeHydrostatic - two range
CreeperNoNoNoNoNo
ReverserNoNoNoNoNoNoNoNo
Cruise ControlStandardNoStandardOptionalYesNo

Rear Power Take-Off (PTO)

Rated PTO Power18 hp
Rated PTO Power14 kW
Economy PTO SpeedsRear: 540 rpm; Mid: 2100 rpm
Engagement MethodIndependent
PTO ClutchWet disk
Brake (For Mid and Rear PTO)Wet diskWet disc (left-hand pedal)Wet discWet diskWet multi discWet discWet diskWet disc

Rear Hitch

Rear Hitch Category (SAE Designation)Limited Category 1
Lift Capacity Through Full Lift Range at 610-mm Behind Hitch Point344 kg 758 lb
Draft Control SensingPosition controlSelect controlPosition controlPosition controlPosition control

Drawbar

Drawbar CategoryPosition control

Hydraulics

Hydraulic System TypeOpen center
Pump Rated Output24 L/min 6.3 gpmSteering
13.2 L/min
3.5 gpm
Implement
13.2 L/min
3.5 gpm

24 L/min
6.3 gpm		Steering
13.25 L/min
3.5 gpm
Implement
13.25 L/min
3.5 gpm

26.5 L/min
7.0 gpm		Steering
15 L/min
4 gpm
Implement
20.2 L/min
5.3 gpm

35.2 L/min
9.3 gpm		44.4 L/min
11.7 gpm		Steering
9.5 L/min
2.5 gpm
Implement
14 L/min
3.7 gpm

23.5 L/min
6.2 gpm		Steering
9.8 L/min
2.6 gpm

17 L/min
4.5 gpm		Steering
23.7 L/min
2.7 gpm
Implement
22.1 L/min
5.8 gpm

32.2 L/min
8.5 gpm
Maximum Operating Pressure2000 psi138 bar
2000 psi		137 bar
1987 psi		172 bar
2495 psi
Maximum Operating Pressure138 bar138 bar
2000 psi		137 bar
1987 psi		172 bar
2495 psi
Number of Rear Selective Control Valves (SCVs)3

Rear Axle

Rear Differential LockYes
Final DriveSpur gearSpur gearSpur gearSpur gear

Steering & Brakes

Steering TypePower
Primary BrakesWet disc

Tires

Front Tires SizeR3 Turf: 18x8.50-10; R3 Turf Radial: 18x8.50-10; R4: 18x8.5-10
Front Tread Spacing37 in.
Front Tread Spacing931 mm
Rear Tread Spacing35 in.895 mm
35.2 in.		820 mm
32.2 in.
Rear Tread Spacing895 mm895 mm
35.2 in.		820 mm
32.2 in.

Electrical System

Electrical System Voltage12 V
Battery Cold Cranking Amps500 CCA
Alternator Capacity40 amp

Operator Station

ROPS TypeFoldable
Gearshift LocationLeft-hand side
Seat SuspensionPremium seat

Capacities

Fuel Tank Capacity6.3 gal.24 L
6.3 U.S. gal.		20.4 L
5.39 gal.		28.5 L
7.5 U.S. gal.		34 L
9 gal.		25 L
6.6 U.S. gal.		21.2 L
5.6 U.S. gal.		23 L
6.1 U.S. gal.
Fuel Tank Capacity24 L24 L
6.3 U.S. gal.		20.4 L
5.39 gal.		28.5 L
7.5 U.S. gal.		34 L
9 gal.		25 L
6.6 U.S. gal.		21.2 L
5.6 U.S. gal.		23 L
6.1 U.S. gal.
Transmission - Hydraulic System3.2 gal.
Transmission - Hydraulic System12.3 L
Crankcase Oil Volume2.9 gal.
Crankcase Oil Volume2.7 L

Dimensions & Weights

Wheelbase57.1 in.1450 mm
57.1 in.		1600 mm
63 in.		1593 mm
62.7 in.		1670 mm
65.7 in.		140 cm
55.1 in.		1605 mm
63.2 in.
Wheelbase1450 mm1450 mm
57.1 in.		1600 mm
63 in.		1593 mm
62.7 in.		1670 mm
65.7 in.		140 cm
55.1 in.		1605 mm
63.2 in.
Base Machine Weight1556 lb.
Base Machine Weight706 kg
Front Axle Ground Clearance7.7 in.
Front Axle Ground Clearance195 mm
