Front and Wide-Area Mowers

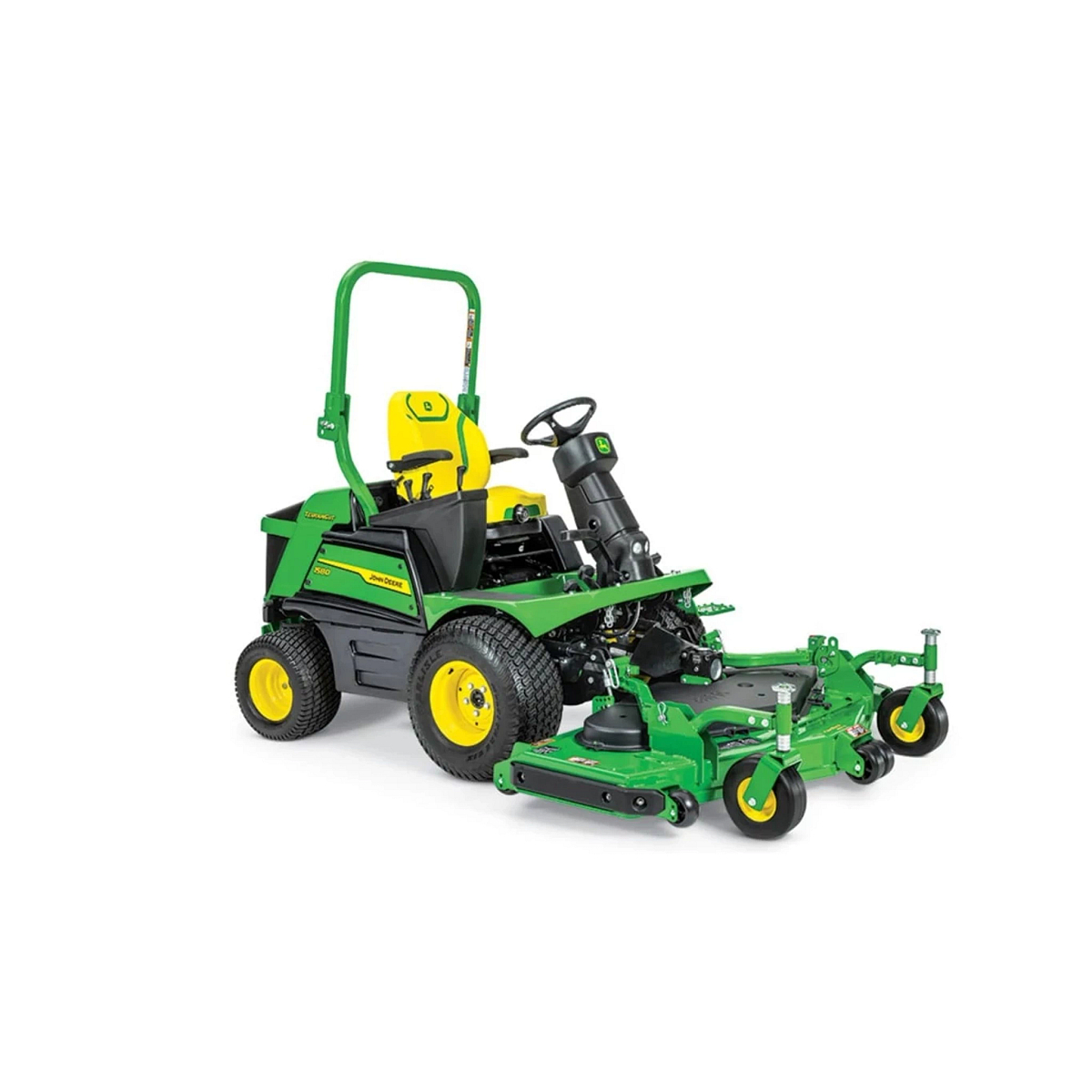

John Deere 1580

Starting at

Key Features

7Iron™ PRO Side Discharge or Fastback™ PRO Rear Discharge Deck
37.4-hp (27.5-kW), PS Direct Fuel Injection Diesel Engine
On-Demand Four-Wheel Drive
Hydrostatic Heavy-Duty Transaxle With Maximum Forward Speed of 15 mph (24.1 km/h)

Diesel Engine has High-Quality Features

The 1500 Series TerrainCut™ Front Mowers are powered by a 3-cylinder, liquid-cooled diesel engine known for low emissions, reduced noise, and exceptional fuel efficiency. This engine meets EPA Tier 4 emissions standards, making it both powerful and environmentally friendly.

Studio view of a 1500 series TerrainCut™ Front Mower's diesel engine

Versatile Mower Deck Compatibility

The TerrainCut™ models are compatible with a variety of John Deere 7Iron™ PRO side-discharge or FastBack PRO rear-discharge mower decks, providing flexibility in cutting widths across diverse conditions. The decks are known for durability and high-quality cutting performance.

Front left view of a yellow-vested operator on a 1580 TerrainCut™ Front Mower mowing a lawn in front of a business

Easy-to-Operate Controls

Featuring hydraulic power steering and a compact control layout, the TerrainCut™ mower offers effortless handling to reduce operator fatigue. The two-pedal directional foot controls and turn-assist brakes allow operator to maneuver while keeping hands free for steering and console controls.

Top studio view of a 1570 TerrainCut™ Front Mower's operator controls

Engine

Engine Manufacturer/Model	3TNV88C
Engine Power - Gross	27.5 kW
Engine Power - Gross	37.4 hp
Rated Engine RPM	3000 rpm
Cylinders	3
Displacement	1640 cc
Displacement	100.2 cu in.
Maximum Torque	109 Nm
Maximum Torque	80.4 lb-ft
Injection	Direct
Fuel Type	Diesel (B20 compatible)
Fuel Tank Capacity	60.6 L
Fuel Tank Capacity	16 U.S. gal.
Cooling	Liquid
Cooling Capacity	7.6 L
Cooling Capacity	8 U.S. qt
Air Cleaner	Dual element dry type
Air Restriction Indicator	Standard
Charging System	Automotive type
Alternator	75 amp
Battery	12 V

Drivetrain

Transmission	Hydrostatic full time 4WD, on-demand
Speed And Direction Control	Two-pedal foot
Cruise Control	Optional
Hi/Lo Range	Yes, dual speed transmission

Travel Speed

High Forward Speed	24 km/h
High Forward Speed	15 mph
High Reverse Speed	8 km/h
High Reverse Speed	5 mph

Hydraulics

Type	Open center
Pump Capacity	23.8 L/min
Pump Capacity	6.3 gpm
Spool Valve	Front lift, standard
Lift Cylinders	2

Steering

Type	Hydraulic cylinder
Turns Lock-To-Lock	2 maximum, 1.5 minimum

Brakes

Type	Internal wet disk
Individual Turn Brakes	Standard
Master Brake	Standard, locking

Buyer's Notes

Warranty

24 months

Tires

Drive Wheels	26x12-12
Steering	20x10-10

Weight Transfer

Type	Optional hydraulic

Dimensions

Wheelbase	125 cm
Wheelbase	49.2 in.
Ground Clearance	17.8 cm
Ground Clearance	7 in.
Length	2.202 m
Length	7.225 ft
Overall Width	1.407–1.532 m
Overall Width	4.617–5.027 ft
Rollover Protective Structure (ROPS)	Standard (folding)
ROPS Certification	Two-post: OSHA 1928, Canadian Std.: CSA-352; Four-post: SAE J2194, EU Standard: 86/298/EEC, ISO 21299:2009
Overall Height With ROPS	213 cm
Overall Height With ROPS	83.7 in.
Overall Height With ROPS Folded	150 cm
Overall Height With ROPS Folded	59 in.
Shipping Weight	962 kg
Shipping Weight	2120 lb.

Mower Decks

Construction	One-piece forged: 7Iron PRO in.
Deck Thickness	7 gauge
Deck Thickness	0.46 cm
Deck Thickness	0.18 in.
Mower Deck Size	152, 183 cm
Mower Deck Size	60, 72 in.
Deck Offset	Yes
Cutting Height - Low	2.54 cm
Cutting Height - Low	1 in.
Cutting Height - High	15.24 cm
Cutting Height - High	6 in.
Belt Tensioning	Spring loaded
Blade Tip Speed	5486 m/min
Blade Tip Speed	18000 fpm
Caster Wheels	Flat free, 11x4-5
Front Anti-Scalp Rollers	Yes, gauge wheels in.
Rear Anti-Scalp Rollers	Yes, gauge wheels in.

Mower Deck (Rear Discharge)

Cutting Width	157, 183 cm
Cutting Width	62, 72 in.
Cutting Height - Low	2.54 cm
Cutting Height - Low	1 in.
Cutting Height - High	15.24 cm
Cutting Height - High	6 in.
Caster Wheels	Flat free, 11x4-5
