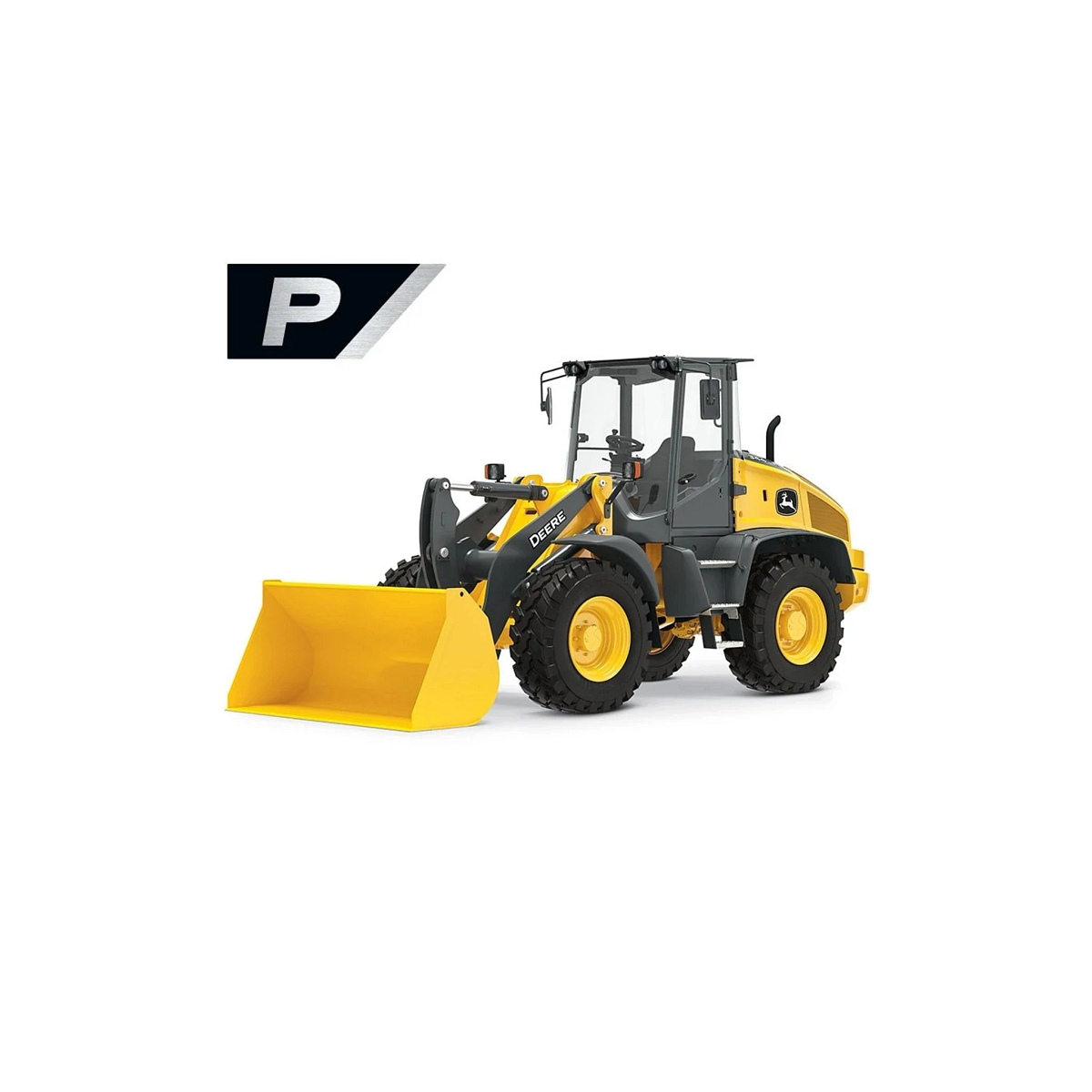

Studio image of a 344 P-Tier Compact Wheel Loader

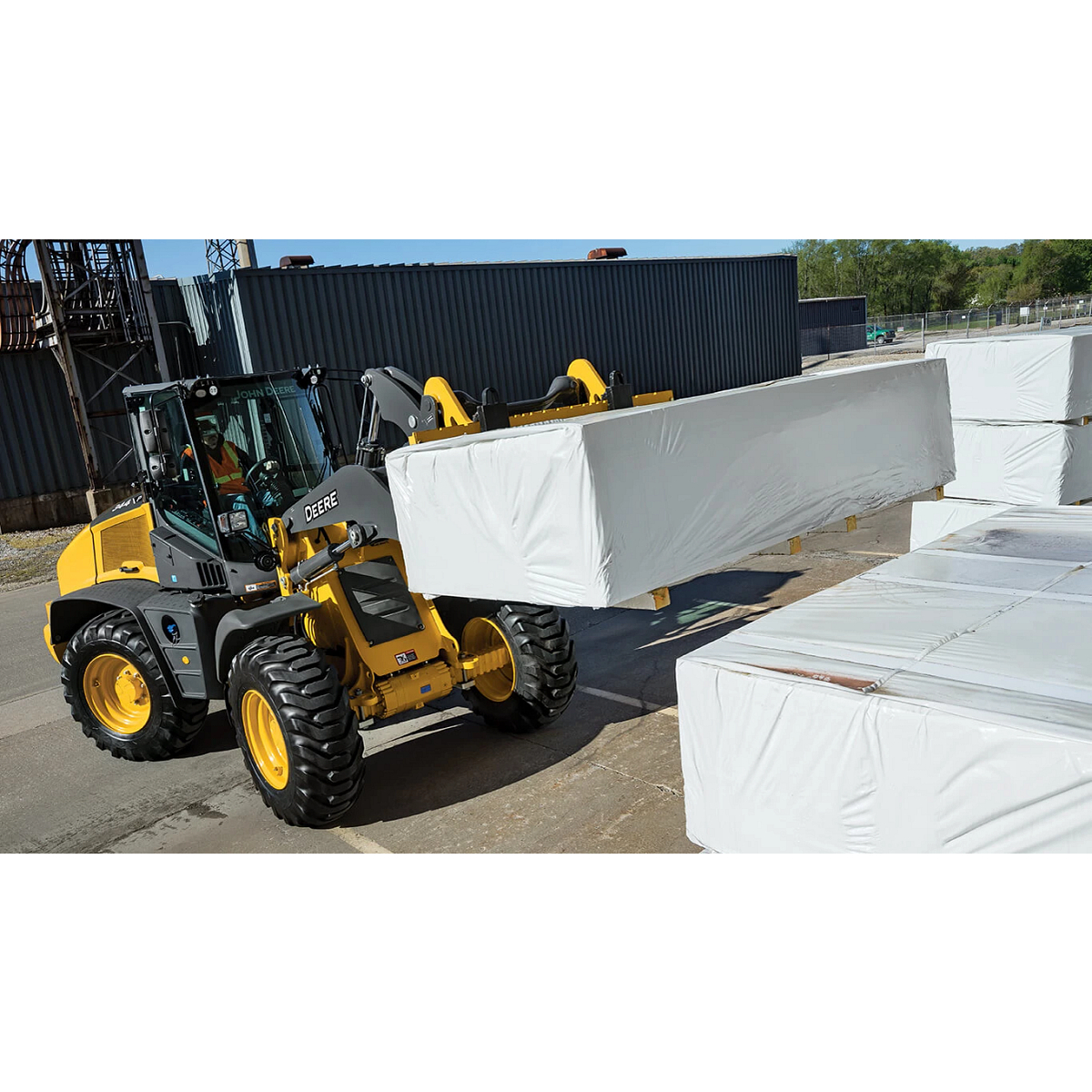

344 P-Tier wheel loader moving pallets with fork attachments.
No items found.
new
John Deere
344 P
Wheel Loaders

John Deere 344 P-Tier

Starting at

219,864.00

Articulation Plus™ Steering

Articulation Plus™ Steering combines 30 degrees of standard articulation with 10 degrees of rear-wheel steering for improved maneuverability and tighter turns. This exclusive feature leads to a considerably higher full turn tipping load without excessive articulation, making it ideal for tighter job sites.

Rear left view of a 244 P-Tier compact wheel loader handling dirt with Articulation Plus™ steering in action
Productivity Enhancements That Can Benefit You

The 344 P-Tier is equipped with features that boost productivity in various applications. The John Deere 4045T engine with a high-pressure common rail system and SCR technology meets Final Tier 4 emissions. Automatic shift logic and ride control ensure seamless operation, while optional high lift linkage increases dump height and reach.

Side left view of a 344 P-Tier Compact Wheel Loader dumping material over a fence at a farm
Ergonomic Operator Cab

The spacious cab offers comfort with its adjustable high-back air suspension seat, optimal air conditioning, and ergonomic controls. The adjustable steering column, coupled with low-effort controls, ensures operator comfort even during long shifts. Ample storage and improved visibility enhance the all-day operator experience.

Enhanced Operator Comfort
Question text goes here

Answer text goes here

Engine
Engine Manufacturer

John Deere

Engine Model

PowerTech PWS 4045H

Non-Road Emission Standards

EPA Final Tier 4/EU Stage V

Cylinders

4

Displacement

275 cu in.

Displacement

4.5 L

Lubrication

Pressure system with full-flow spin-on filter

Aspiration

Turbocharged, charge-air cooled

Cooling
Fan

Suction type, hydraulically driven, proportionally controlled

Engine Coolant Rating

-34 °F

Engine Coolant Rating

-37 ℃

Powertrain
Differentials Front

Locking

Differentials Rear

Open

Steering Type

Hydraulic power steering; 30-degree articulation left and right with mechanical-actuated rear-wheel steering

Degree Of Articulation Left And Right

30 degree (angle)

Articulation Arc

60 degree (angle)

Final Drive Type

Heavy-duty planetary, mounted outboard

Service Brakes (SAE J1473, ISO3450)

Hydraulically actuated, self-adjusting internal wet-disc brake and driveline drum brake

Parking Brake (SAE J1473, ISO3450)

Automatically spring-applied, hydraulically released, internal wet disc

Hydraulics
Main Pump (Loader and Steering)

Constant-displacement gear pump

Max Rated Flow at 1,000 psi

30 gpm

Max Rated Flow At 6895 kPa

115 L/min

System Relief Pressure (Loader)

3480 psi

System Relief Pressure (Loader)

24000 kPa

System Relief Pressure (Steering)

3480 psi

System Relief Pressure (Steering)

24000 kPa

Hydraulic Raise Cycle Time

6.9 seconds

Hydraulic Dump Cycle Time

3 seconds

Hydraulic Lower (Power Down) Cycle Time

4 seconds

Total Cycle Time

13.9 seconds

Controls Type

Pilot-operated, pressure-compensating, 2-function valve with unloader; single-lever control and control-lever lockout feature; optional third-function valve

Electrical And Lighting
System Type

Electrical load center with blade-type multi-fused circuits

Voltage

12 V

Battery Capacity

1700 CCA

Alternator Rating

90 amp

Lights (SAE 99)

2 front and 2 rear standard/optional LED field kit

Serviceability
Cooling System (Engine and Radiator) Refill Capacity

21 L

Cooling System (Engine and Radiator) Refill Capacity

22.2 qt

Differential and Planetary Front Axle Refill Capacity

7.5 L

Differential and Planetary Front Axle Refill Capacity

7.9 qt

Differential and Planetary Rear Axle Refill Capacity

7.5 L

Differential and Planetary Rear Axle Refill Capacity

7.9 qt

Engine Oil with Filter Refill Capacity

14 L

Engine Oil with Filter Refill Capacity

14.8 qt

Fuel Tank Refill Capacity

155 L

Fuel Tank Refill Capacity

40.9 gal.

Hydraulic/hydrostatic Reservoir with Filter Refill Capacity

115 L

Hydraulic/hydrostatic Reservoir with Filter Refill Capacity

30.4 gal.

Hydrostatic Motor Gearbox Refill Capacity

2 L

Hydrostatic Motor Gearbox Refill Capacity

2.1 qt
