John Deere 326 P-Tier

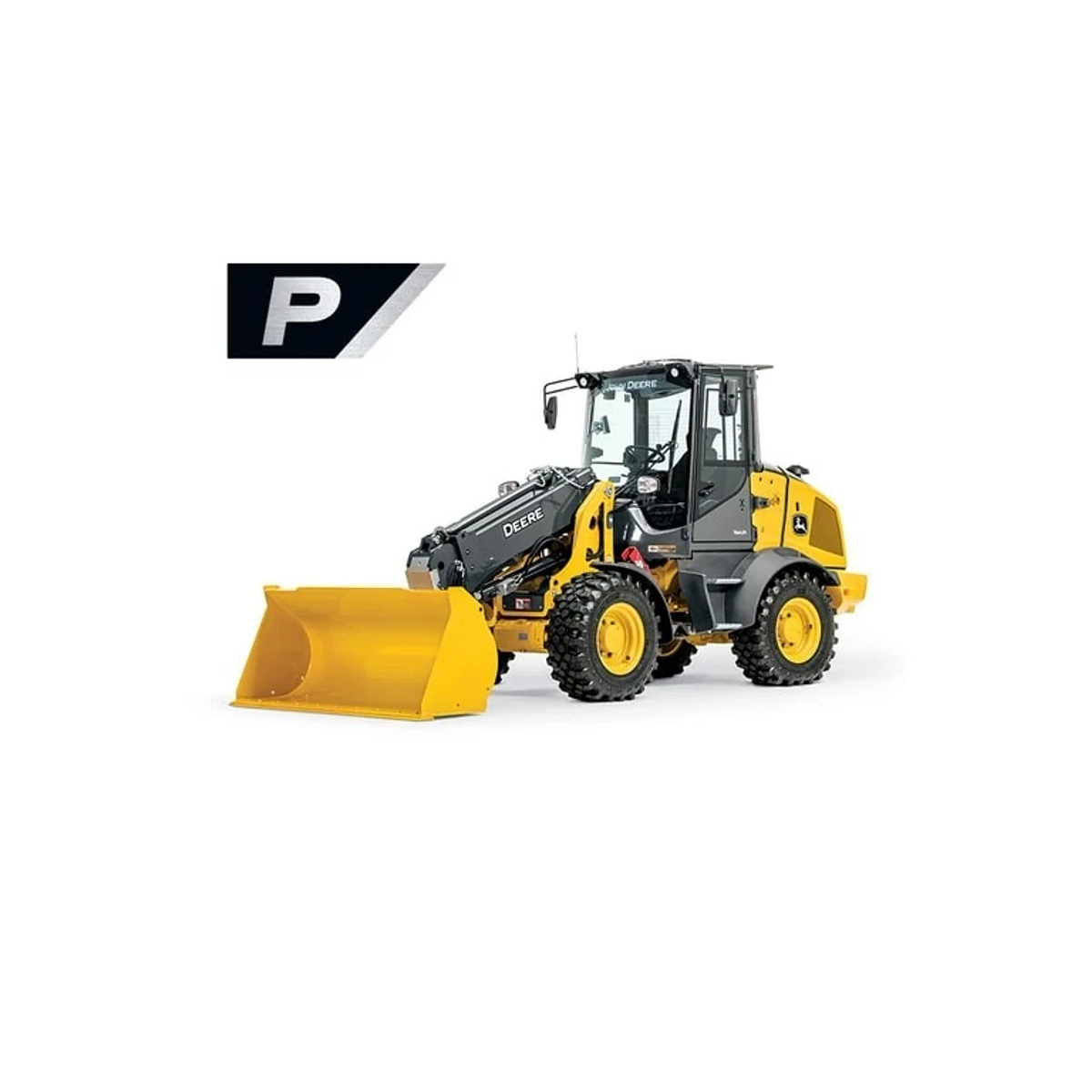

Studio image of a 326 P-Tier Compact Wheel Loader

No items found.

Wheel Loaders

John Deere 326 P-Tier

Name: John Deere 326 P-Tier Compact Construction
Brand: John Deere

Starting at

194,719.00

Key Features

Net Power: 52 kW (71 hp) at 2,400 rpm
Operating Weight: 6400 kg (14,110 lb.)
Bucket Capacity: 0.8–2.0 m³ (1.0–2.6 cu. yd.)
Load Limitation System

EH Controls and Touchscreen Display

The enhanced EH controls allow operators to perform various functions with ease, while the 9-in. (22.9-cm) touchscreen display offers key information and intuitive navigation. Automated features like Return to Dig and adjustable settings enhance operator comfort and performance.

Front left view of a 326 P-Tier Compact Tele-lift Wheel Loader's touchscreen display and corner windows in a studio with yellow bucket in the background

Articulation Plus™ Steering Paired with Tele Lift

This steering system combines standard articulation with rear-wheel steering, providing a tighter turning radius and increased stability. It improves maneuverability and full-turn tipping load, allowing more efficient operations in tighter spaces.

Rear left studio view of a 326 P-Tier compact wheel loader demonstrating Articulation Plus™ steering and raised bucket with tele lift

Telescopic Lift Arms

The 326 P-Tier features purpose-built telescopic lift arms, providing unparalleled lifting prowess. It can lift up to 16 ft (4.9 m), offering greater vertical and horizontal reach. This feature enhances control and allows operators to work efficiently without requiring a larger machine.

Side-right, studio view of a 326 P-Tier Tele Lift Compact Wheel Loader with boom and bucket fully extended

Engine

Engine Manufacturer	Yanmar
Engine Model	4TNV98CT
Non-Road Emission Standards	EPA Final Tier 4/EU Stage V
Cylinders	4
Valves Per Cylinder	4
Displacement	203 cu in.
Displacement	3.3 L
Engine Bore And Stroke	3.89 x 4.33 in.
Engine Bore And Stroke	98 x 110 mmByMm
Lubrication	Pressure system with full-flow spin-on filter
Aspiration	Turbocharged
Air Cleaner	Dual safety element dry type

Cooling

Fan	Hydraulically driven, proportionally controlled
Engine Coolant Rating	-34 °F
Engine Coolant Rating	-37 ℃

Powertrain

Differentials Front	Open
Differentials Rear	Open
Maximum Rise And Fall, Single Wheel	14.5 in.
Maximum Rise And Fall, Single Wheel	370 mm
Steering Type	Hydraulic power steering (SAE J1511); 30-degree articulation left and right with mechanical-actuated rear-wheel steering
Degree Of Articulation Left And Right	30 degree (angle)
Articulation Arc	60 degree (angle)
Steering Wheel Number Of Turns Left Stop To Stop	2
Steering Wheel Turns Right Stop to Stop	2.25
Final Drive Type	Heavy-duty outboard planetary
Service Brakes (SAE J1473, ISO3450)	Hydraulically actuated, self-adjusting internal wet-disc brake and driveline drum brake
Parking Brake (SAE J1473, ISO3450)	Automatically spring-applied, hydraulically released, internal wet disc

Hydraulics

Main Pump (Loader and Steering)	Fixed-displacement gear pump; open-center system
Max Rated Flow at 1,000 psi	25 gpm
Max Rated Flow At 6895 kPa	93 L/min
Maximum Pressure at Couplings	3336 psi
Maximum Pressure at Couplings	23000 kPa
System Relief Pressure (Loader)	2750 psi
System Relief Pressure (Loader)	18960 kPa
System Relief Pressure (Steering)	2611 psi
System Relief Pressure (Steering)	18000 kPa
Hydraulic Raise Cycle Time	5.2 seconds
Hydraulic Dump Cycle Time	2 seconds
Hydraulic Lower (Power Down) Cycle Time	4 seconds
Controls Type	Electrohydraulic (EH) 4-function valve with single-lever control for boom and bucket; proportional mini joystick control of first auxiliary and telescopic functions

Cylinders

Cylinders Type

Heat-treated, chrome-plated, polished cylinder rods; hardened steel (replaceable bushings) pivot pins

Electrical And Lighting

System Type	Electrical load center with blade-type multi-fused circuits
Voltage	12 V
Number Of Batteries	1
Battery Capacity	295 CCA
Alternator Rating	120 amp
Lights (SAE 99)	Driving/front working lights (2), turn signals, flashers, and stop- and taillights

Operator Station and Controls

Noise Level For Operator (ISO 6396)	73 dBA
Noise Level for Bystander (ISO 6395)	101 dBA

Wheels And Tires

Tread Width: 405/70R20 Mitas EM-01 Tires on Single-Piece Rims	1683 mm
Tread Width: 405/70R20 Mitas EM-01 Tires on Single-Piece Rims	66 in.
Width Over Tires: 405/70R20 Mitas EM-01 Tires on Single-Piece Rims	2060 mm
Width Over Tires: 405/70R20 Mitas EM-01 Tires on Single-Piece Rims	82 in.
Tread Width: 400/70R20 Michelin XMCL Tires on Single-Piece Rims	1678 mm
Tread Width: 400/70R20 Michelin XMCL Tires on Single-Piece Rims	66 in.
Width Over Tires: 400/70R20 Michelin XMCL Tires on Single-Piece Rims	2090 mm
Width Over Tires: 400/70R20 Michelin XMCL Tires on Single-Piece Rims	82 in.
Change in Vertical Height: 400/70R20 Michelin XMCL Tires on Single-Piece Rims	6 mm
Change in Vertical Height: 400/70R20 Michelin XMCL Tires on Single-Piece Rims	0.2 in.
Tread Width 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims	1680 mm
Tread Width 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims	66 in.
Width Over Tires 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims	2080 mm
Width Over Tires 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims	72 in.
Change in Vertical Height 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims	10 mm
Change in Vertical Height 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims	0.4 in.

Serviceability

Cooling System (Engine and Radiator) Refill Capacity	9 L
Cooling System (Engine and Radiator) Refill Capacity	9.5 qt
Differential and Planetary Front Axle Refill Capacity	6.8 L
Differential and Planetary Front Axle Refill Capacity	7.2 qt
Differential and Planetary Rear Axle Refill Capacity	6 L
Differential and Planetary Rear Axle Refill Capacity	6.3 qt
Engine Oil with Filter Refill Capacity	10.2 L
Engine Oil with Filter Refill Capacity	10.8 qt
Fuel Tank Refill Capacity	90 L
Fuel Tank Refill Capacity	23.8 gal.
Hydraulic/hydrostatic Reservoir with Filter Refill Capacity	66 L
Hydraulic/hydrostatic Reservoir with Filter Refill Capacity	17.4 gal.
Hydrostatic Motor Gearbox Refill Capacity	1.3 L
Hydrostatic Motor Gearbox Refill Capacity	1.4 qt
