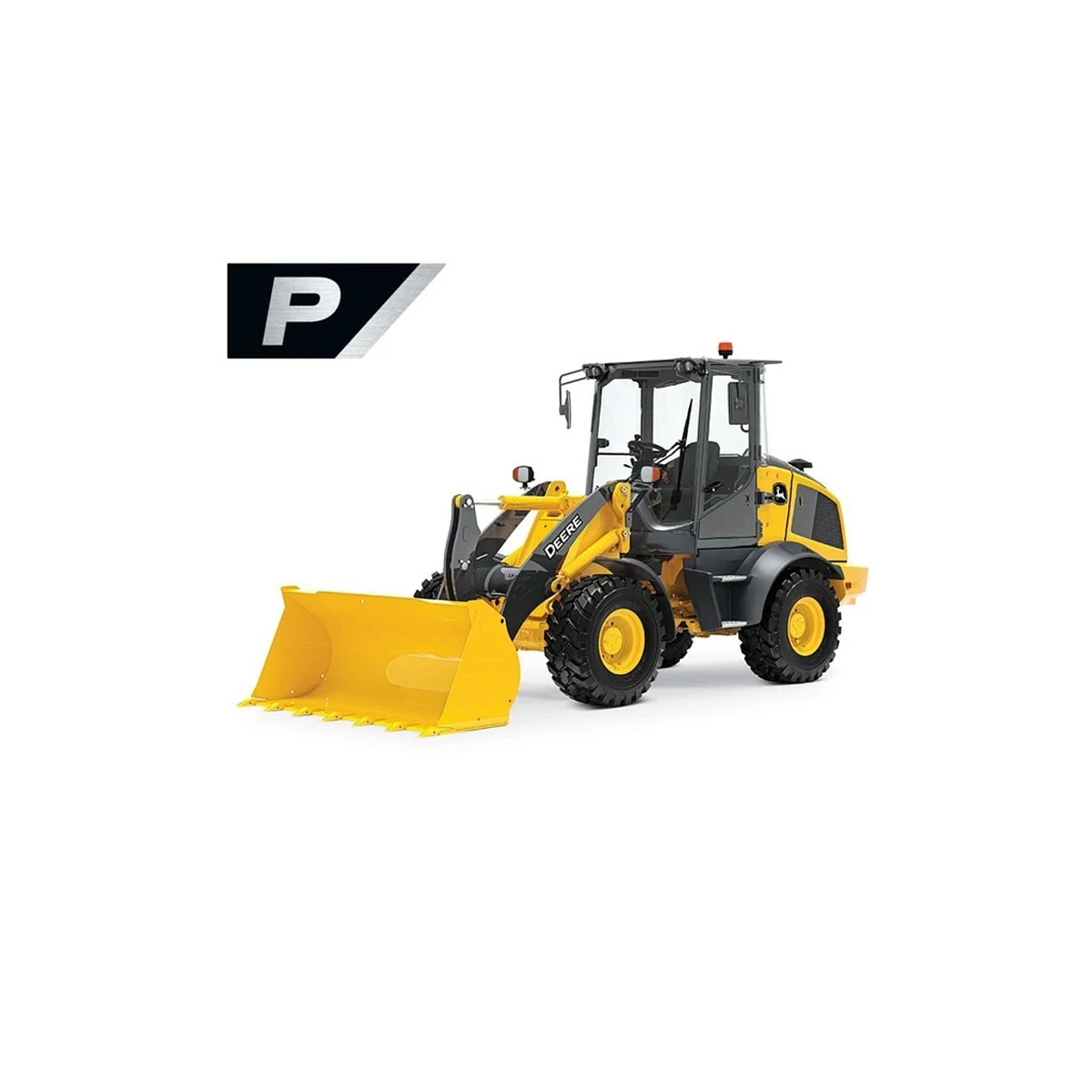

Studio image of a 324 P-Tier Wheel Loader

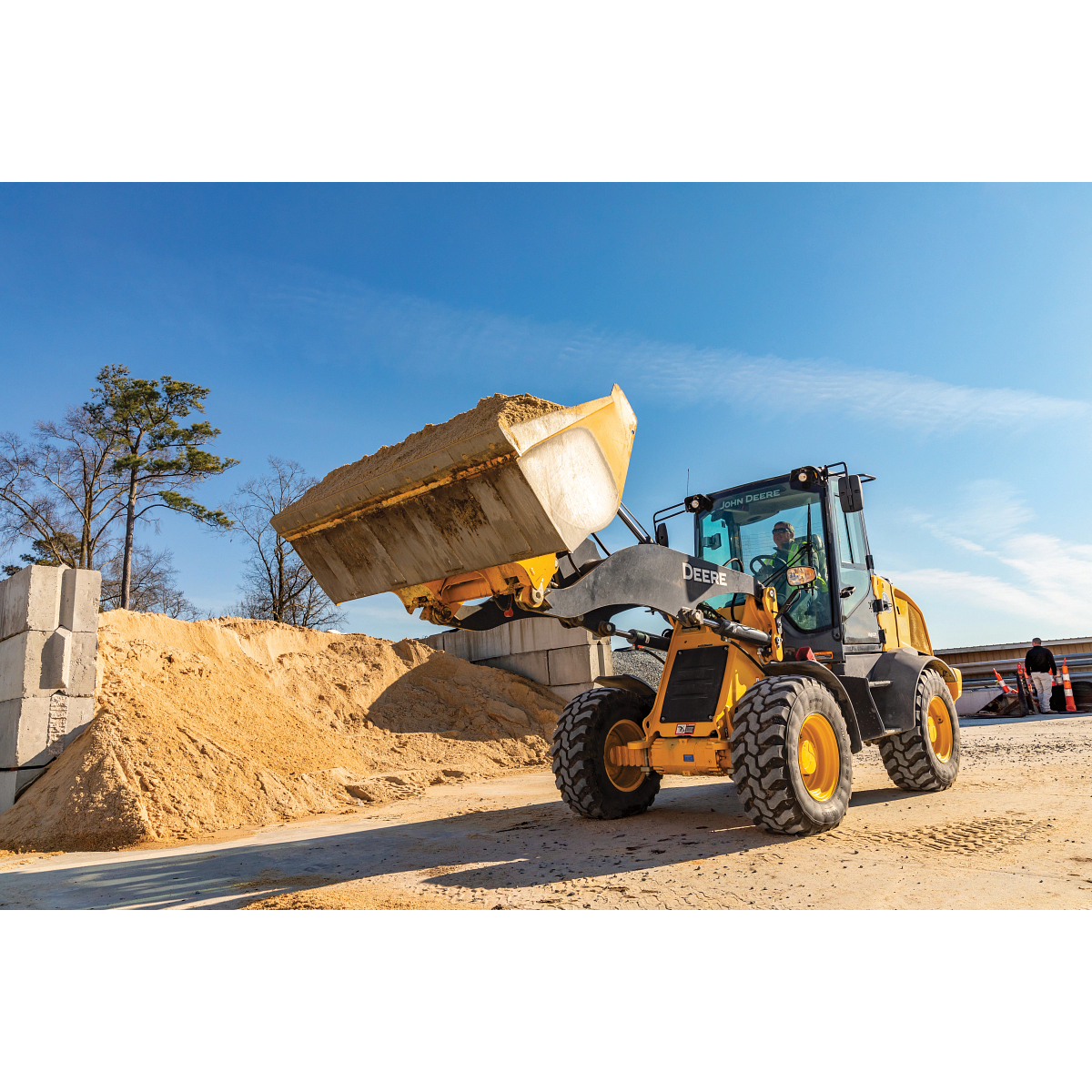

A wheel loader lifting a full bucket of sand at a construction site, with piled material, concrete blocks, trees, and a clear blue sky in the background.
No items found.
new
John Deere
324 P
Wheel Loaders

John Deere 324 P-Tier

Starting at

162,055.00

Articulation Plus™ Steering

Articulation Plus™ Steering combines 30 degrees of standard articulation with 10 degrees of rear-wheel steering for improved maneuverability and tighter turns. This exclusive feature leads to a considerably higher full turn tipping load without excessive articulation, making it ideal for tighter job sites.

Rear left view of a 244 P-Tier compact wheel loader handling dirt with Articulation Plus™ steering in action
Ergonomic Operator Cab

The spacious cab offers comfort with its adjustable high-back air suspension seat, optimal air conditioning, and ergonomic controls. The adjustable steering column, coupled with low-effort controls, ensures operator comfort even during long shifts. Ample storage and improved visibility enhance the all-day operator experience.

Enhanced Operator Comfort
Increase Your Machine's Versatility with a Wide Array of Attachments

With over 100 attachments offered in the John Deere attachment portfolio, you can make the most out of your compact loader by equipping it with many popular attachments.

Front left view of a 184 G-Tier compact wheel loader being driven by an operator picking up brush
Question text goes here

Answer text goes here

Engine
Engine Manufacturer

Yanmar

Engine Model

4TNV98CT

Non-Road Emission Standards

EPA Final Tier 4/EU Stage V

Cylinders

4

Valves Per Cylinder

4

Displacement

203 cu in.

Displacement

3.3 L

Engine Bore And Stroke

3.89 x 4.33 in.

Engine Bore And Stroke

98 x 110 mmByMm

Lubrication

Pressure system with full-flow spin-on filter

Aspiration

Turbocharged

Air Cleaner

Dual safety element dry type

Cooling
Fan

Hydraulically driven, proportionally controlled

Engine Coolant Rating

-34 °F

Engine Coolant Rating

-37 ℃

Powertrain
Differentials Front

Locking

Differentials Rear

Open

Maximum Rise And Fall, Single Wheel

14.5 in.

Maximum Rise And Fall, Single Wheel

370 mm

Steering Type

Hydraulic power steering (SAE J1511); 30-degree articulation left and right with mechanical-actuated rear-wheel steering

Degree Of Articulation Left And Right

30 degree (angle)

Articulation Arc

60 degree (angle)

Steering Wheel Number Of Turns Left Stop To Stop

2

Steering Wheel Turns Right Stop to Stop

2.5

Final Drive Type

Heavy-duty outboard planetary

Service Brakes (SAE J1473, ISO3450)

Hydraulically actuated, self-adjusting internal wet-disc brake and driveline drum brake

Parking Brake (SAE J1473, ISO3450)

Automatically spring-applied, hydraulically released, internal wet disc

Hydraulics
Main Pump (Loader and Steering)

Fixed-displacement gear pump; open-center system

Maximum Pressure at Couplings

3045 psi

Maximum Pressure at Couplings

21000 kPa

System Relief Pressure (Loader)

2750 psi

System Relief Pressure (Loader)

18960 kPa

System Relief Pressure (Steering)

2611 psi

System Relief Pressure (Steering)

18000 kPa

Hydraulic Raise Cycle Time

5.6 seconds

Hydraulic Dump Cycle Time

2 seconds

Hydraulic Lower (Power Down) Cycle Time

4.4 seconds

Total Cycle Time

12 seconds

Controls Type

Pilot-operated, 3-function valve with single-lever control for boom and bucket, standard pin disconnect and third-function proportional electrohydraulic (EH) auxiliary hydraulics

Cylinders
Cylinders Type

Heat-treated, chrome-plated, polished cylinder rods; hardened steel (replaceable bushings) pivot pins

Electrical And Lighting
System Type

Electrical load center with blade-type multi-fused circuits

Voltage

12 V

Number Of Batteries

1

Battery Capacity

925 CCA

Alternator Rating

80 amp

Lights (SAE 99)

Driving/front working lights (2), turn signals, flashers, and stop- and taillights

Operator Station and Controls
Noise Level For Operator (ISO 6396)

68 dBA

Noise Level for Bystander (ISO 6395)

101 dBA

Wheels And Tires
Tread Width: 405/70R20 Mitas EM-01 Tires on Single-Piece Rims

1630 mm

Tread Width: 405/70R20 Mitas EM-01 Tires on Single-Piece Rims

64 in.

Width Over Tires: 405/70R20 Mitas EM-01 Tires on Single-Piece Rims

2090 mm

Width Over Tires: 405/70R20 Mitas EM-01 Tires on Single-Piece Rims

82 in.

Tread Width: 400/70R20 Michelin XMCL Tires on Single-Piece Rims

1630 mm

Tread Width: 400/70R20 Michelin XMCL Tires on Single-Piece Rims

64 in.

Width Over Tires: 400/70R20 Michelin XMCL Tires on Single-Piece Rims

2090 mm

Width Over Tires: 400/70R20 Michelin XMCL Tires on Single-Piece Rims

82 in.

Change in Vertical Height: 400/70R20 Michelin XMCL Tires on Single-Piece Rims

6 mm

Tread Width: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims

1630 mm

Tread Width: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims

64 in.

Width Over Tires: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims

2090 mm

Width Over Tires: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims

82 in.

Change in Vertical Height: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims

27 mm

Change in Vertical Height: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims

1 in.

Tread Width 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims

1630 mm

Tread Width 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims

64 in.

Width Over Tires 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims

2080 mm

Width Over Tires 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims

82 in.

Change in Vertical Height 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims

2 mm

Serviceability
Cooling System (Engine and Radiator) Refill Capacity

12.1 L

Cooling System (Engine and Radiator) Refill Capacity

12.7 qt

Differential and Planetary Front Axle Refill Capacity

7.4 L

Differential and Planetary Front Axle Refill Capacity

7.8 qt

Differential and Planetary Rear Axle Refill Capacity

6.8 L

Differential and Planetary Rear Axle Refill Capacity

7.2 qt

Engine Oil with Filter Refill Capacity

10 L

Engine Oil with Filter Refill Capacity

10.8 qt

Fuel Tank Refill Capacity

90 L

Fuel Tank Refill Capacity

23.8 gal.

Hydraulic/hydrostatic Reservoir with Filter Refill Capacity

66 L

Hydraulic/hydrostatic Reservoir with Filter Refill Capacity

17.4 gal.

Hydrostatic Motor Gearbox Refill Capacity

1.7 L

Hydrostatic Motor Gearbox Refill Capacity

1.8 qt
