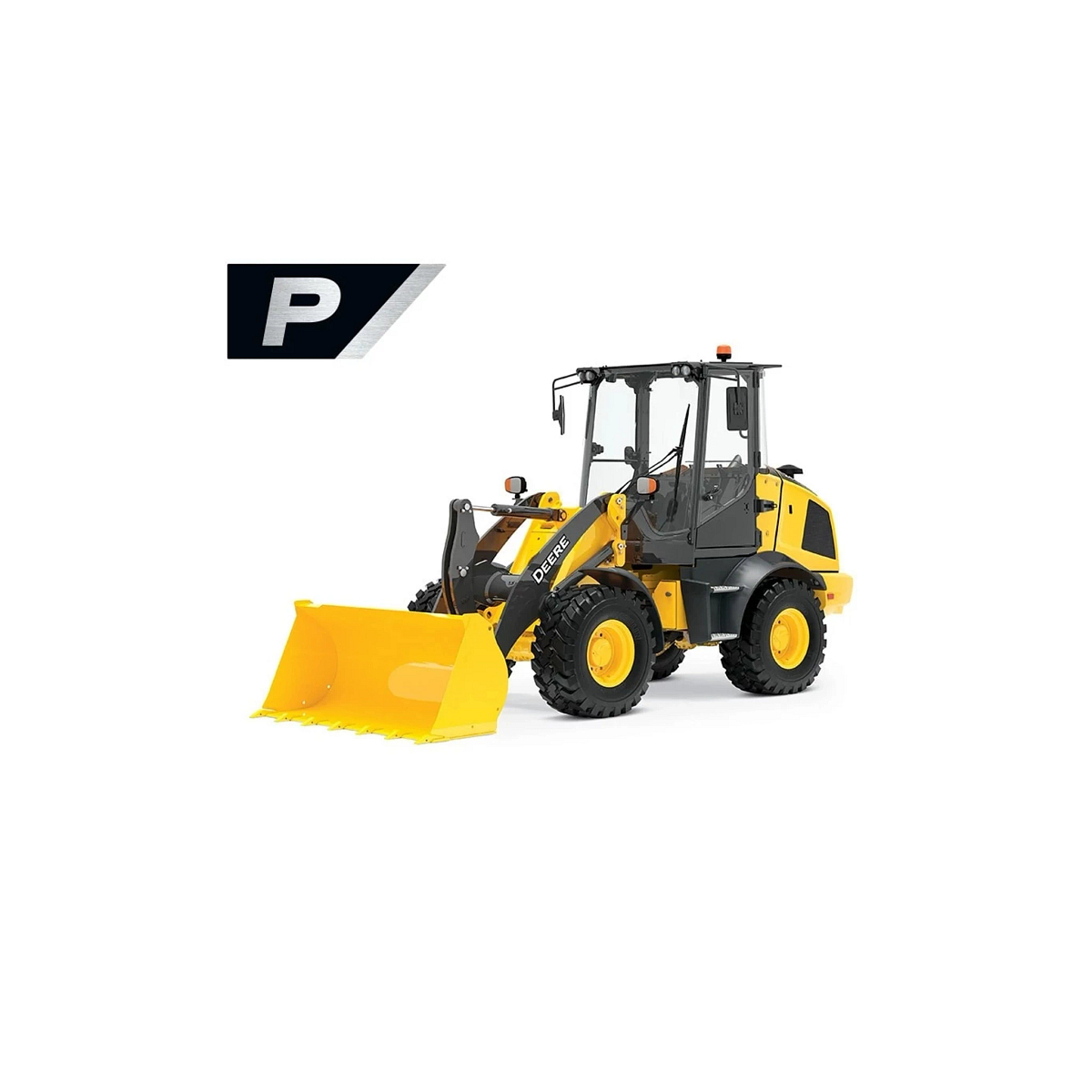

Studio image of a 244 P-Tier Compact Wheel Loader
No items found.
new
John Deere
244 P
Wheel Loaders

John Deere 244 P-Tier

Starting at

144,298.00

112,500.00

Articulation Plus™ Steering

Articulation Plus™ Steering combines 30 degrees of standard articulation with 10 degrees of rear-wheel steering for improved maneuverability and tighter turns. This exclusive feature leads to a considerably higher full turn tipping load without excessive articulation, making it ideal for tighter job sites.

Rear left view of a 244 P-Tier compact wheel loader handling dirt with Articulation Plus™ steering in action
Ergonomic Operator Cab

The spacious cab offers comfort with its adjustable high-back air suspension seat, optimal air conditioning, and ergonomic controls. The adjustable steering column, coupled with low-effort controls, ensures operator comfort even during long shifts. Ample storage and improved visibility enhance the all-day operator experience.

Enhanced Operator Comfort
Increase Your Machine's Versatility with a Wide Array of Attachments

With over 100 attachments offered in the John Deere attachment portfolio, you can make the most out of your compact loader by equipping it with many popular attachments.

Front left view of a 184 G-Tier compact wheel loader being driven by an operator picking up brush
Question text goes here

Answer text goes here

Engine
Engine Manufacturer

Yanmar

Engine Model

4TNV98CT

Non-Road Emission Standards

EPA Final Tier 4/EU Stage 5

Cylinders

4

Valves Per Cylinder

4

Displacement

203 cu in.

Displacement

3.3 L

Engine Bore And Stroke

3.89 x 4.33 in.

Engine Bore And Stroke

98 x 110 mmByMm

Lubrication

Pressure system with full-flow spin-on filter

Aspiration

Turbocharged

Air Cleaner

Dual safety element dry type

Cooling
Fan

Hydraulically driven, proportionally controlled

Engine Coolant Rating

-34 °F

Engine Coolant Rating

-37 ℃

Powertrain
Differentials Front

Locking

Differentials Rear

Open

Maximum Rise And Fall, Single Wheel

14.5 in.

Maximum Rise And Fall, Single Wheel

370 mm

Degree Of Articulation Left And Right

30 degree (angle)

Articulation Arc

60 degree (angle)

Steering Wheel Number Of Turns Left Stop To Stop

2

Steering Wheel Turns Right Stop to Stop

2.5

Final Drive Type

Heavy-duty outboard planetary

Service Brakes (SAE J1473, ISO3450)

Hydraulically actuated, self-adjusting internal we-disc brake and driveline drum brake

Parking Brake (SAE J1473, ISO3450)

Automatically spring-applied, hydraulically released, internal wet disc

Hydraulics
Main Pump (Loader and Steering)

Fixed-displacement gear pump; open-center system

Maximum Pressure at Couplings

3335 psi

Maximum Pressure at Couplings

23000 kPa

System Relief Pressure (Loader)

3335 psi

System Relief Pressure (Loader)

23000 kPa

System Relief Pressure (Steering)

2611 psi

System Relief Pressure (Steering)

18000 kPa

Hydraulic Raise Cycle Time

4.9 seconds

Hydraulic Dump Cycle Time

1.7 seconds

Hydraulic Lower (Power Down) Cycle Time

3.5 seconds

Total Cycle Time

10.1 seconds

Controls Type

Pilot-operated, 3-function valves with single-lever control for boom and bucket, standard pin disconnect and third-function proportional electrohydraulic (EH) auxiliary hydraulics

Cylinders
Cylinders Type

Heat-treated, chrome-plated, polished cylinder rods; hardened steel (replaceable bushings) pivot pins

Electrical And Lighting
System Type

Electrical load center with blade-type multi-fused circuits

Voltage

12 V

Number Of Batteries

1

Battery Capacity

925 CCA

Alternator Rating

80 amp

Lights (SAE 99)

Driving/front working lights (2), turn signals, flashers, and stop- and taillights

Wheels And Tires
Tread Width: Standard Size, 365/70R18 Mitas EM01 Tires on Single-Piece Rims

1510 mm

Tread Width: Standard Size, 365/70R18 Mitas EM01 Tires on Single-Piece Rims

59 in.

Width Over Tires: Standard Size, 365/70R18 Mitas EM01 Tires on Single-Piece Rims

1920 mm

Width Over Tires: Standard Size, 365/70R18 Mitas EM01 Tires on Single-Piece Rims

76 in.

Tread Width: 400/70R20 Michelin XMCL Tires on Single-Piece Rims

1510 mm

Tread Width: 400/70R20 Michelin XMCL Tires on Single-Piece Rims

59 in.

Width Over Tires: 400/70R20 Michelin XMCL Tires on Single-Piece Rims

1960 mm

Width Over Tires: 400/70R20 Michelin XMCL Tires on Single-Piece Rims

77 in.

Change in Vertical Height: 400/70R20 Michelin XMCL Tires on Single-Piece Rims

44 mm

Change in Vertical Height: 400/70R20 Michelin XMCL Tires on Single-Piece Rims

1.7 in.

Tread Width: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims

1510 mm

Tread Width: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims

59 in.

Width Over Tires: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims

1960 mm

Width Over Tires: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims

77 in.

Change in Vertical Height: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims

23 mm

Change in Vertical Height: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims

0.9 in.

Tread Width 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims

1510 mm

Tread Width 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims

59 in.

Width Over Tires 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims

1950 mm

Width Over Tires 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims

76 in.

Change in Vertical Height 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims

48 mm

Change in Vertical Height 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims

1.9 in.

Serviceability
Cooling System (Engine and Radiator) Refill Capacity

12.1 L

Cooling System (Engine and Radiator) Refill Capacity

12.7 qt

Differential and Planetary Front Axle Refill Capacity

5.2 L

Differential and Planetary Front Axle Refill Capacity

5.5 qt

Differential and Planetary Rear Axle Refill Capacity

4.7 L

Differential and Planetary Rear Axle Refill Capacity

5 qt

Engine Oil with Filter Refill Capacity

10 L

Engine Oil with Filter Refill Capacity

10.8 qt

Fuel Tank Refill Capacity

90 L

Fuel Tank Refill Capacity

23.8 gal.

Hydraulic/hydrostatic Reservoir with Filter Refill Capacity

66 L

Hydraulic/hydrostatic Reservoir with Filter Refill Capacity

17.4 gal.

Hydrostatic Motor Gearbox Refill Capacity

1.7 L

Hydrostatic Motor Gearbox Refill Capacity

1.8 qt

Operating Weights Measured with Standard Equipment, 365/70R18 Tires, Standard Counterweight, Cab, 79-kg (175-lb) Operator, and Full Fuel Tank
Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and 1-cu yd Stockpiling/GP Bucket with Bolt-On Edge

12544 lb.

Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and 1.4-cu yd Stockpiling/GP Bucket with Bolt-On Edge

12787 lb.

Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and Fork

550 kg

Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and Fork

12125 lb.
