John Deere 184 G-Tier

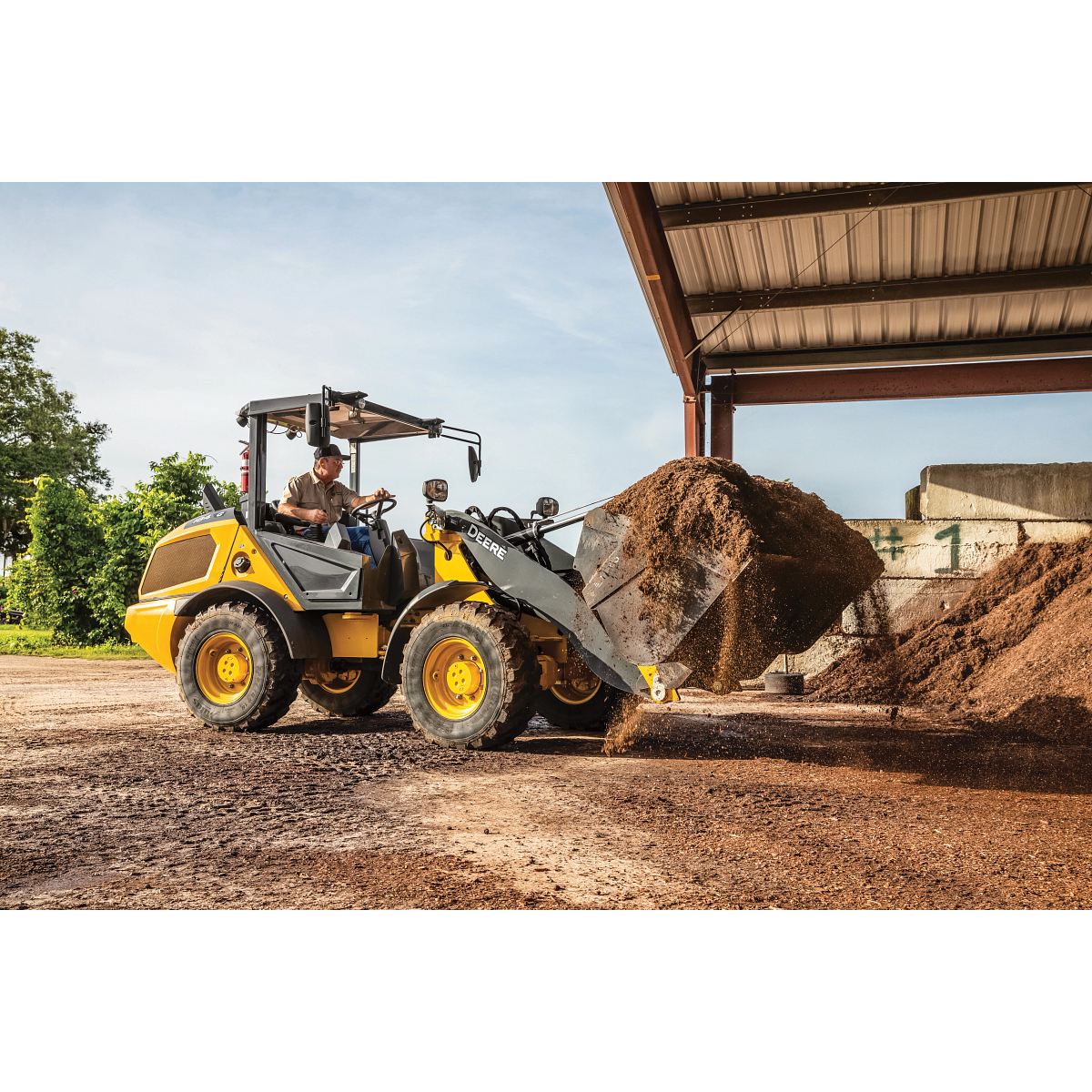

A wheel loader lifting a bucket of loose soil inside an open-sided structure, with material piles on the ground and daylight visible beyond the roofed area.

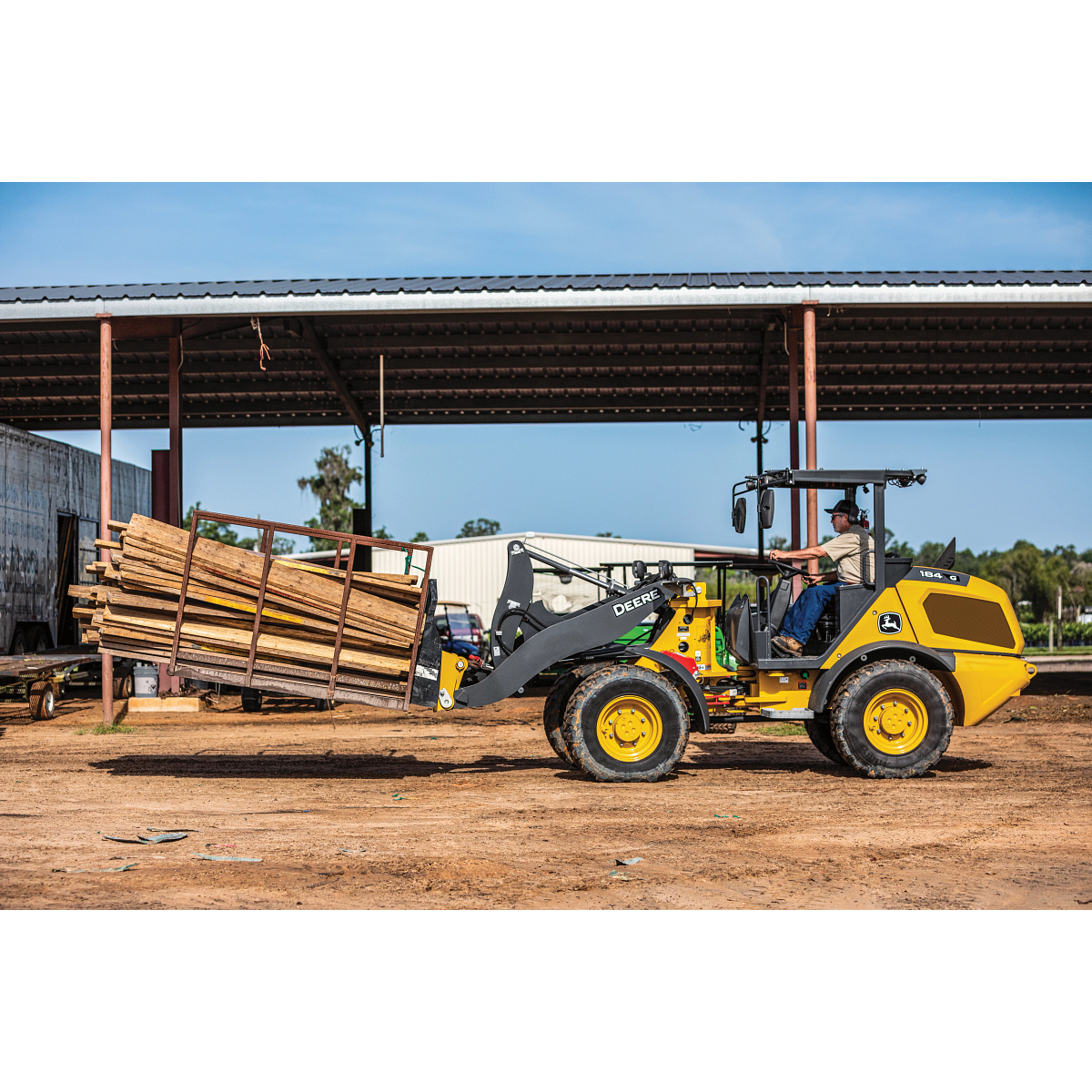

A wheel loader using pallet forks to carry a stacked bundle of lumber across a dirt yard, with an open-sided metal structure and additional materials visible in the background.

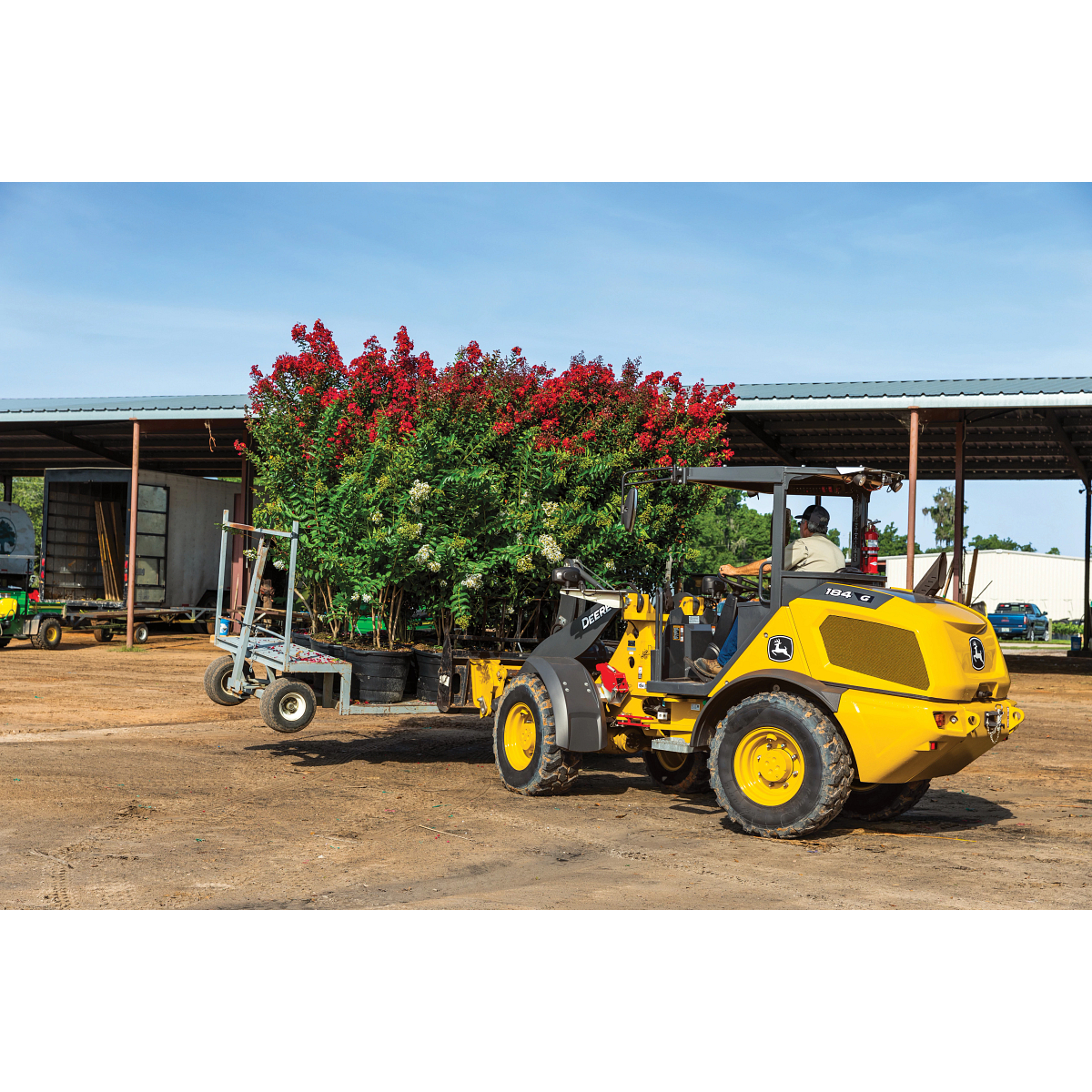

A wheel loader using front forks to transport large potted trees across a dirt yard, with an open-sided storage building and additional equipment visible in the background.

No items found.

Wheel Loaders

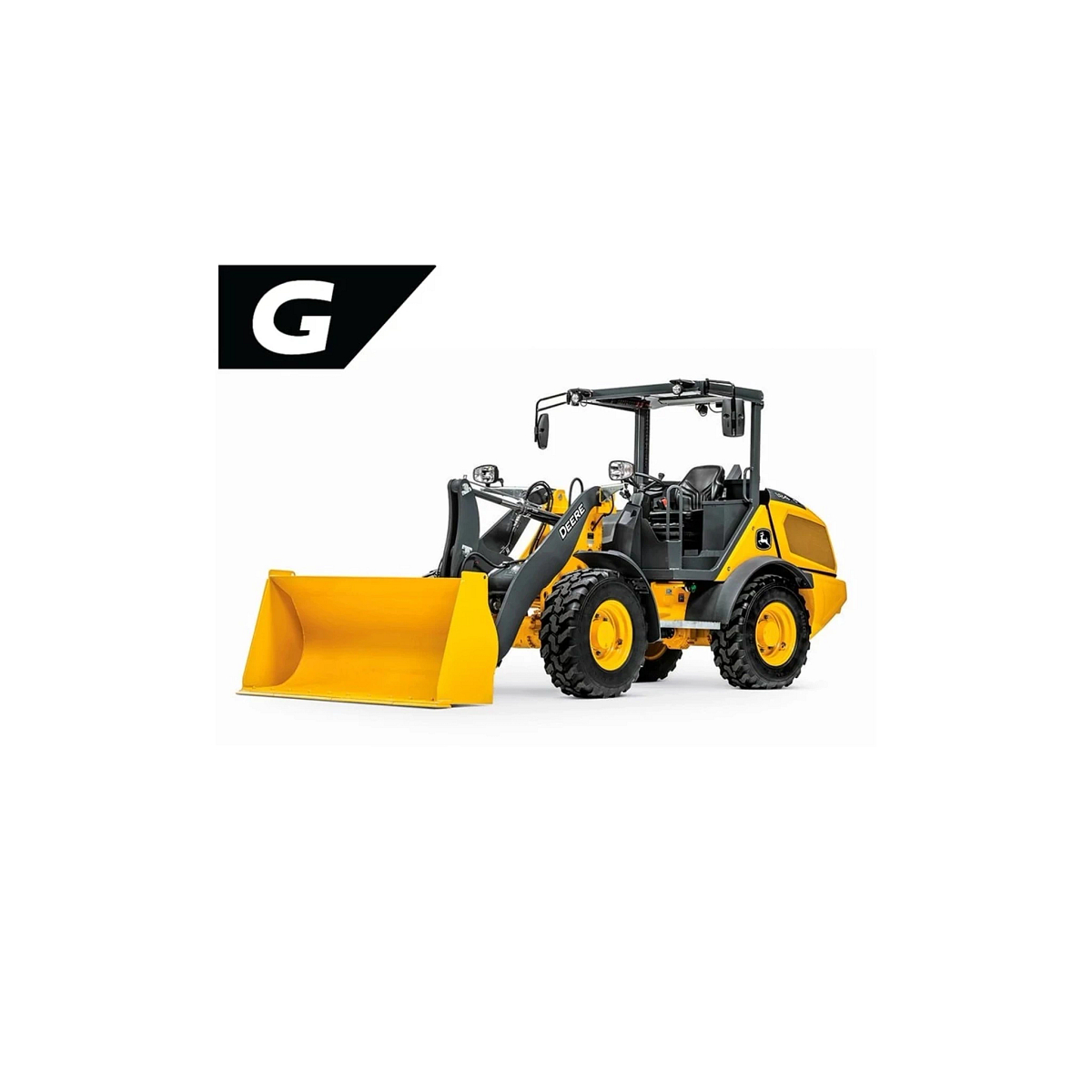

John Deere 184 G-Tier

Name: John Deere 184 G-Tier Compact Construction
Brand: John Deere

Starting at

88,782.00

Key Features

Net Power: 33 kW (44 hp) at 2,200 rpm
Operating Weight: 4,840 kg (10,670 lb)
Bucket Capacity: 0.7–1.1 m³ (0.9–1.4 cu yd)
Height to Top of Cab 2,455 mm (8 ft., 1 in.)

Increase Your Machine's Versatility with a Wide Array of Attachments

With over 100 attachments offered in the John Deere attachment portfolio, you can make the most out of your compact loader by equipping it with many popular attachments.

Front left view of a 184 G-Tier compact wheel loader being driven by an operator picking up brush

Spacious and Ergonomically Friendly Cab to Enjoy All Day Comfort

Designed with operator comfort in mind, this loader features a spacious ergonomic cab with improved air conditioning and adjustable controls. The cab's design maximizes visibility and includes ample storage, making it easier for operators to work efficiently and comfortably.

View of a G-Tier loader cab upon entering: black and gray dash, implements, and operator station

Compact Size to Excel on Any Site

Deere compact wheel loaders are known for their abilities to fit into tight working spaces. The G-Tier lineup provides owners and operators a rugged and reliable yet economical solution that doesn't sacrifice on quality or Deere and dealer support that they've come to expect.

Rear right view of a184 G-Tier compact wheel loader being driven by an operator past potted trees

Engine

Engine Manufacturer	Yanmar
Engine Model	4TNV88C
Non-Road Emission Standards	EPA Final Tier 4 / EU Stage V
Cylinders	4
Valves Per Cylinder	4
Displacement	133.64 cu in.
Displacement	2.2 L
Net Peak Power At 2,200 Rpm (SAE J1349 /ISO 9249)	43.58 hp
Net Peak Power At 2,200 Rpm (SAE J1349 /ISO 9249)	32.5 kW
Gross Rated Power At 2,200 Rpm (ISO 14396)	47.61 hp
Gross Rated Power At 2,200 Rpm (ISO 14396)	35.5 kW
Peak Torque At 1,950 Rpm (SAE J1349 /ISO 9249)	198.25 lb-ft
Peak Torque At 1,950 Rpm (SAE J1349 /ISO 9249)	268.8 Nm
Engine Bore And Stroke	3.46 x 3.54 in.
Engine Bore And Stroke	87.9 x 90 mmByMm
Lubrication	Pressure system with full-flow spin-on filter
Aspiration	Naturally aspirated
Air Cleaner	Dual safety element dry type

Cooling

Fan	Direct driven
Engine Coolant Rating	-34 °F
Engine Coolant Rating	-36.7 ℃

Powertrain

Axles Front	Rigid mount front axles with 10-degree frame oscillation
Axles Rear	Rigid mount rear axles with 10-degree frame oscillation
Differentials Front	45 percent locking front differentials
Differentials Rear	45 percent locking rear differentials
Maximum Rise And Fall, Single Wheel	10 in.
Maximum Rise And Fall, Single Wheel	254 mm
Steering Type	Hydraulic power steering (SAE J1511
Degree Of Articulation Left And Right	40 degree (angle)
Articulation Arc	40 degree (angle)
Steering Wheel Number Of Turns Left Stop To Stop	3.5
Steering Wheel Turns Right Stop to Stop	4.5
Final Drive Type	Heavy-duty outboard planetary
Service Brakes (SAE J1473, ISO3450)	Hydraulically actuated, self-adjusting internal wet-disk brake and driveline drum brake
Parking Brake (SAE J1473, ISO3450)	Automatically spring applied, hydraulically released, internal wet disk

Hydraulics

Main Pump (Loader and Steering)	Fixed-displacement gear pump; open-center system
Max Rated Flow at 1,000 psi	16.11 gpm
Maximum Pressure at Couplings	3335.87 psi
System Relief Pressure (Loader)	3335.87 psi
System Relief Pressure (Steering)	2610.68 psi
Hydraulic Raise Cycle Time	4.6 seconds
Hydraulic Dump Cycle Time	1.3 seconds
Hydraulic Lower (Power Down) Cycle Time	3.0 seconds
Total Cycle Time	8.90 seconds
Controls Type	Three-function valve with single-lever control for boom and bucket, with hydraulic lockout feature; Joystick mounted push button electrohydraulic control for auxiliary hydraulics, with hydraulic lockout feature

Cylinders

Cylinders Type

Heat treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins

Electrical And Lighting

System Type	Electrical load center with blade-type multi-fused circuits
Voltage	12 V
Number Of Batteries	1
Battery Capacity	830 CCA
Alternator Rating	80 amp
Lights (SAE 99)	Driving/Front working lights (two), turn signals, flashers, stop and tail lights

Operator Station and Controls

Noise Level For Operator (ISO 6396)	78 dba
Noise Level for Bystander (ISO 6395)	101 dba

Monitor

Alternator, Low Voltage	Indicator light
Direction Indicator, Forward And Reverse	Indicator light, audible warning
Engine Air Filter Restriction	Indicator light, audible warning
Engine Coolant Temperature	Indicator light, audible warning
Engine Oil Pressure	Indicator light, audible warning
Engine Preheat	Indicator light
Engine rpm	Indicator light, digital
Fuel Level	Indicator light, gauge
Exhaust Filter	Indicator light
High Speed Indicator	Indicator light
Hourmeter	Indicator light, digital
Hydraulic Oil Temperature	Indicator light
Lights, High Beam	Indicator light
Low Speed Indicator	Indicator light
Park Brake Engaged	Indicator light
Pilot Disable	Indicator light
Speedometer	Digital
Stop Indicator	Indicator light, audible warning
Turn Signals And Flashers	Indicator light

Wheels And Tires

Tread Width: Standard Size, 365/70R18 Mitas EM01 Tires on Single-Piece Rims	1370 mm
Tread Width: Standard Size, 365/70R18 Mitas EM01 Tires on Single-Piece Rims	53.94 in.
Width Over Tires: Standard Size, 365/70R18 Mitas EM01 Tires on Single-Piece Rims	1780 mm
Width Over Tires: Standard Size, 365/70R18 Mitas EM01 Tires on Single-Piece Rims	70.08 in.
Tread Width: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims	1360 mm
Tread Width: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims	53.54 in.
Width Over Tires: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims	1820 mm
Width Over Tires: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims	71.65 in.
Change in Vertical Height: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims	23.1 mm
Change in Vertical Height: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims	0.91 in.

Serviceability

Lube Bank	Remote lube bank for easy reach and maintenance
Fueling Level	Ground level
Loader Boom Service Lock Available	Yes
Diagnostic Monitoring Location	In-cab
Quick-Coupler Diagnostic Ports	Priority pressure, hydraulic pump pressure, control valve pressure and hydrostatic pressure
Engine Oil Change Interval (Hours)	500 hr
Hydraulic Oil Change Interval (Hours)	3000 hr
Engine Oil Filter Service Hours	500 hr
Fuel Filter Service Hours	500 hr
Secondary Fuel Filter Service Hours	500 hr
Hydraulic Filter Service Hours	1000 hr
Available Sight Gauges	Hydraulic reservoir; see-through coolant reservoir
Cooling System (Engine and Radiator) Refill Capacity	10.01 L
Cooling System (Engine and Radiator) Refill Capacity	10.57 qt
Differential and Planetary Front Axle Refill Capacity	5.5 L
Differential and Planetary Front Axle Refill Capacity	5.81 qt
Differential and Planetary Rear Axle Refill Capacity	5.5 L
Differential and Planetary Rear Axle Refill Capacity	5.81 qt
Engine Oil with Filter Refill Capacity	7.4 L
Engine Oil with Filter Refill Capacity	7.82 qt
Fuel Tank Refill Capacity	62.04 L
Fuel Tank Refill Capacity	16.38 gal.
Hydraulic/hydrostatic Reservoir with Filter Refill Capacity	45.03 L
Hydraulic/hydrostatic Reservoir with Filter Refill Capacity	11.89 gal.
Hydrostatic Motor Gearbox Refill Capacity	0.5 L
Hydrostatic Motor Gearbox Refill Capacity	0.53 qt

Operating Weights Measured with Standard Equipment, 365/70R18 Tires, Standard Counterweight, Cab, 79-kg (175-lb) Operator, and Full Fuel Tank

Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and 0.9-cu yd Stockpiling/GP Bucket with Bolt-On Edge	10670.36 lb.
Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and 1-cu yd Stockpiling/GP Bucket with Bolt-On Edge	10758.55 lb.
Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and 1.4-cu yd Stockpiling/GP Bucket with Bolt-On Edge	11001.05 lb.
Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and Fork	4760 kg
Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and Fork	10493.99 lb.
Enclosed Cab Loader with Hook/Euro Quick-Coupler and 0.9-cu yd Stockpiling/GP Bucket with Bolt-On Edge	10273.53 lb.
Enclosed Cab Loader with Hook/Euro Quick-Coupler and 1.0-cu yd Stockpiling/GP Bucket with Bolt-On Edge	10339.67 lb.
Enclosed Cab Loader with Hook/Euro Quick-Coupler and 1.4-cu yd Stockpiling/GP Bucket with Bolt-On Edge	10604.22 lb.
Enclosed Cab Loader with Hook/Euro Quick-Coupler and Fork	4590 kg
Enclosed Cab Loader with Hook/Euro Quick-Coupler and Fork	10119.21 lb.
Open ROPS with Quik-Tatch™ Quick-Coupler and 0.9-cu yd Stockpiling/GP Bucket with Bolt-On Edge	10626.27 lb.
Open ROPS with Quik-Tatch™ Quick-Coupler and 1.0-cu yd Stockpiling/GP Bucket with Bolt-On Edge	10648.31 lb.
Open ROPS with Quik-Tatch™ Quick-Coupler and 1.4-cu yd Stockpiling/GP Bucket with Bolt-On Edge	10890.82 lb.
Optional Quik-Tatch Coupler Fork and Tines 48 in.	722.89 lb.
Open ROPS with Hook/Euro Quick-Coupler and 0.9-cu yd Stockpiling/GP Bucket with Bolt-On Edge	10163.3 lb.
Open ROPS with Hook/Euro Quick-Coupler and 1.0-cu yd Stockpiling/GP Bucket with Bolt-On Edge	10229.44 lb.
Open ROPS with Hook/Euro Quick-Coupler and 1.4-cu yd Stockpiling/GP Bucket with Bolt-On Edge	10493.99 lb.
Open ROPS with Hook/Euro Quick-Coupler and Fork	4540 kg
Open ROPS with Hook/Euro Quick-Coupler and Fork	10008.97 lb.
Optional Quik-Tatch Coupler Bucket, 0.9-cu yd	858.48 lb.
