John Deere 334 P-Tier

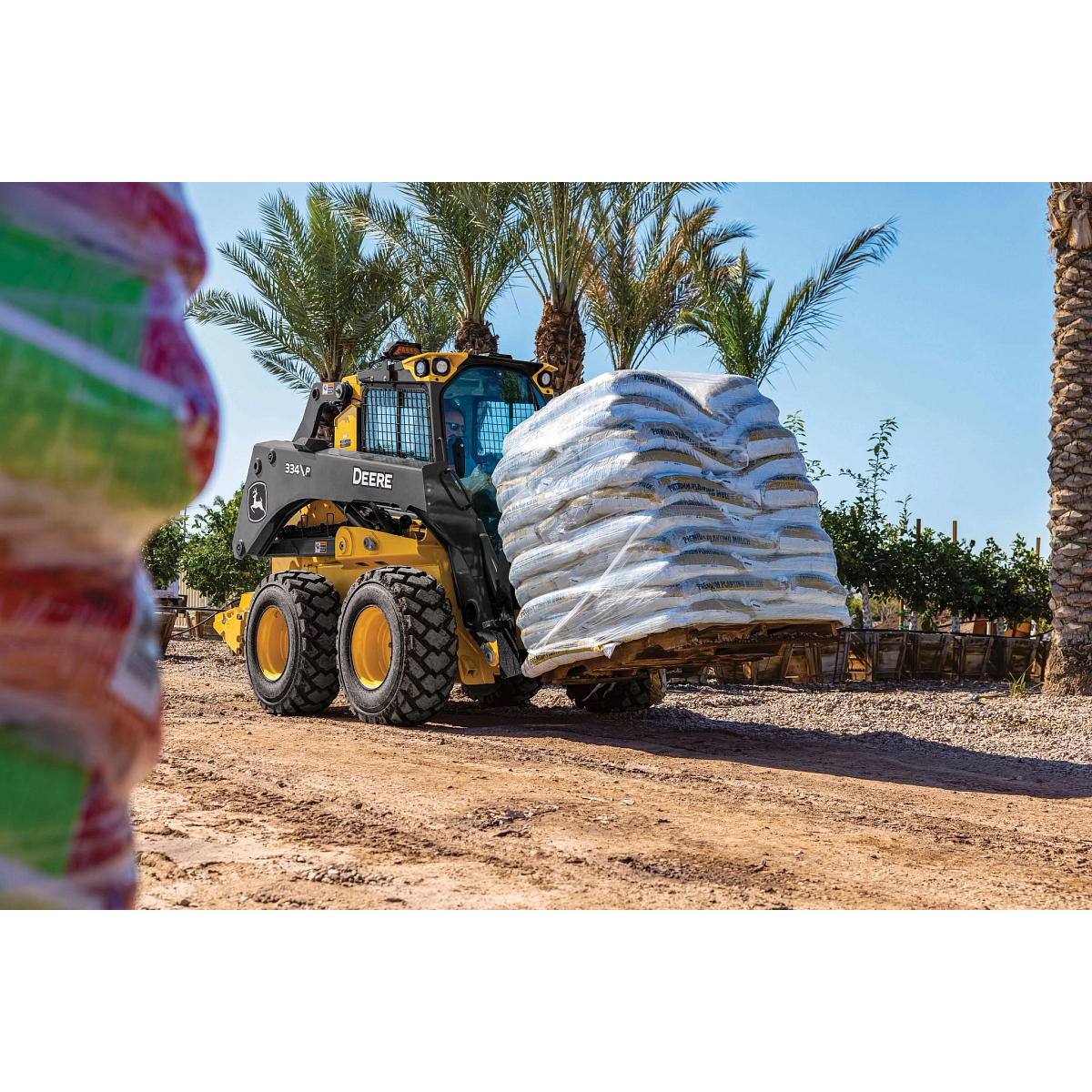

334 P-Tier skid steer loader transports a large pallet stacked with white bagged materials along a dirt path.

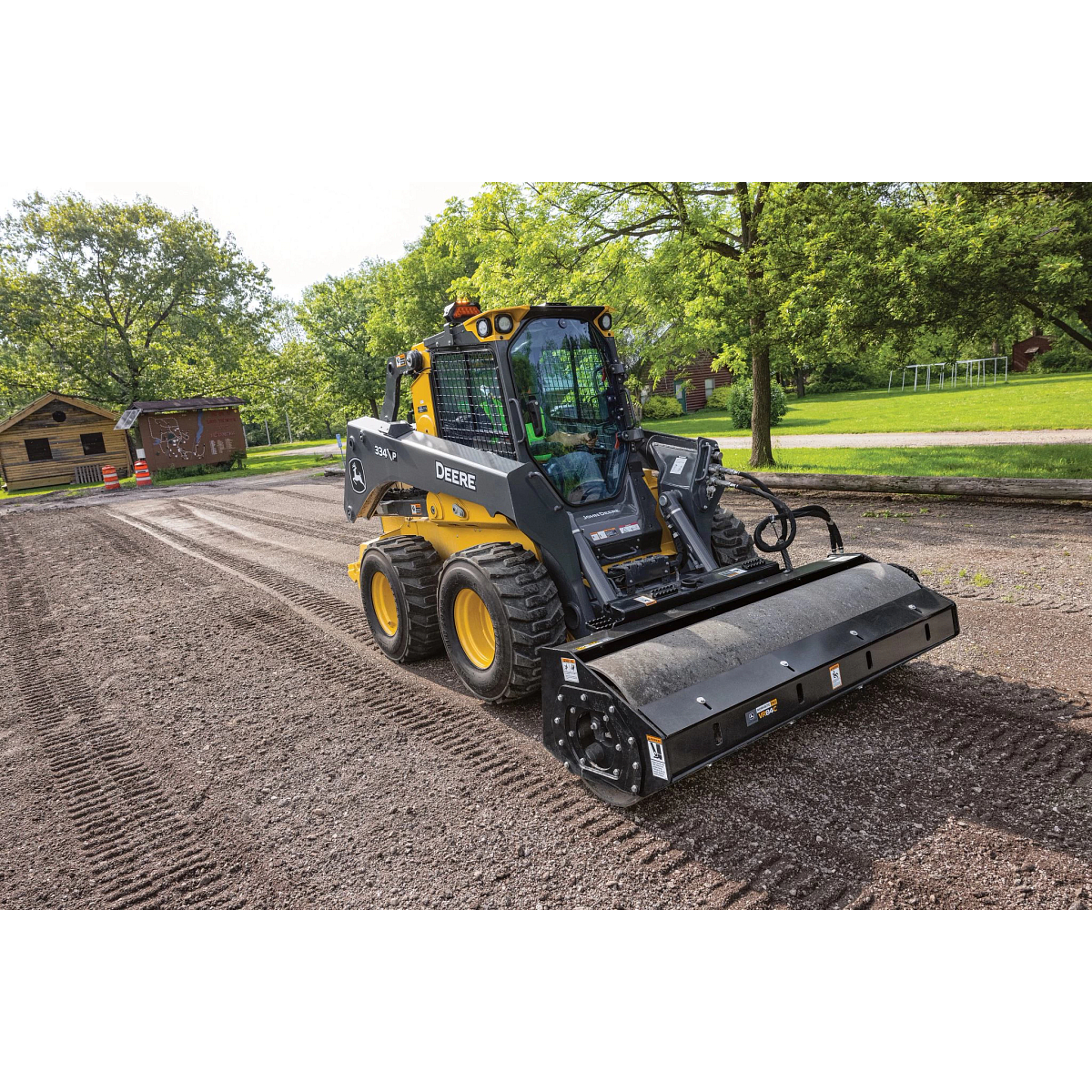

334 P-Tier skid steer loader equipped with a large cylindrical brush attachment cleans and smooths a dirt surface in a park-like setting.

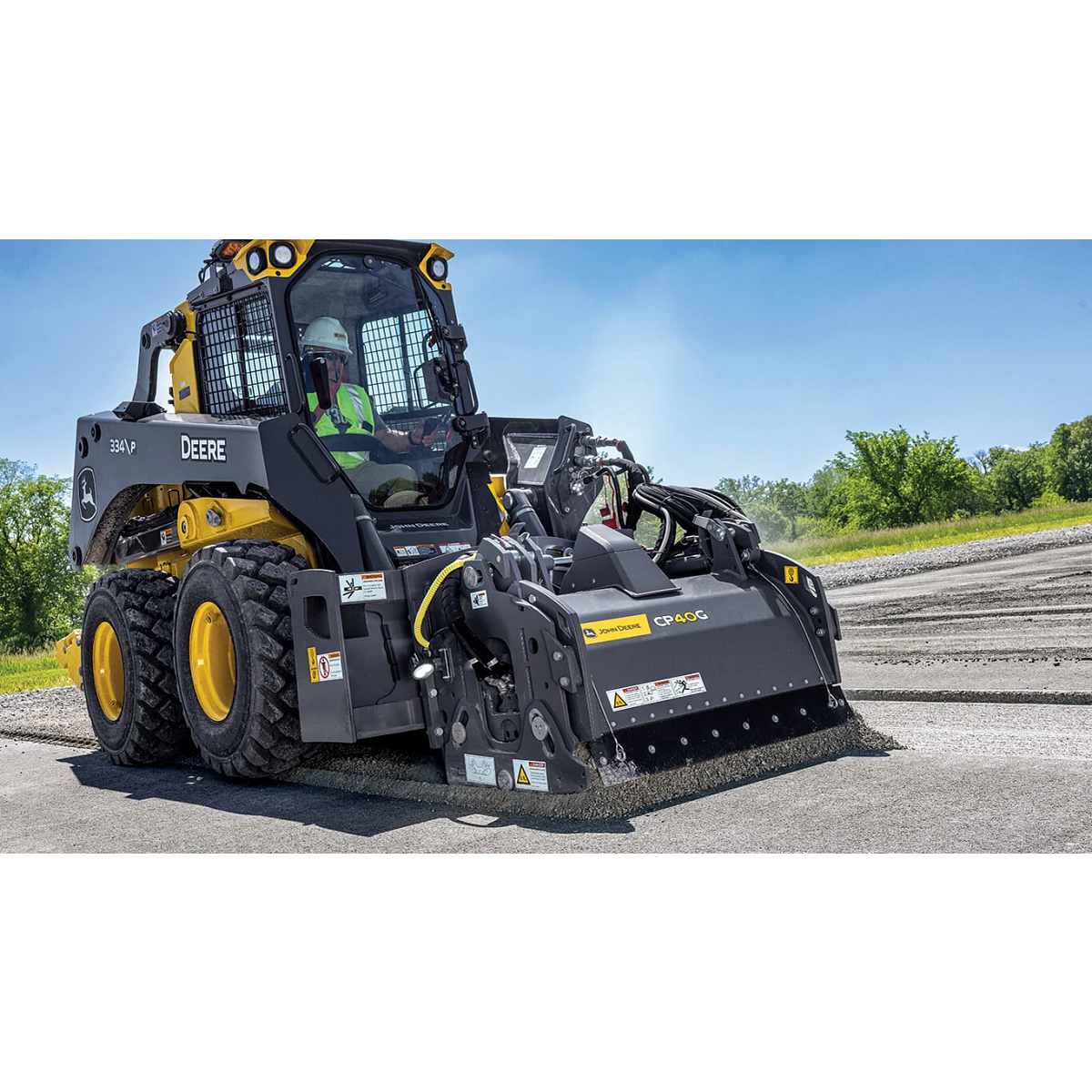

334 P-Tier skid steer with CP40G cold planer attachment.

No items found.

Skid Steers

John Deere 334 P-Tier

Name: John Deere 334 P-Tier Compact Construction
Brand: John Deere

Starting at

117,805.00

Key Features

Gross Rated Power: 118.0 hp (88.0 kW)
Net Peak Power: 114.7 hp (85.5 kW)
Rated Operating Capacity: 4,000 lb. (1816 kg) With 1 Standard Counterweight Set
Operating Weight: 10,264 lb. (4660 kg)

High-Power Performance

Packed with 118 hp (87.9 kW), the 334 P‑Tier delivers the power operators need to tackle demanding tasks like grading, material handling, and site development with confidence.

Premium Operator Comfort and Controls

Standard features include a heated and ventilated seat, touchscreen display, adjustable controls, and EH dual leveling—helping operators stay comfortable, focused, and productive all day.

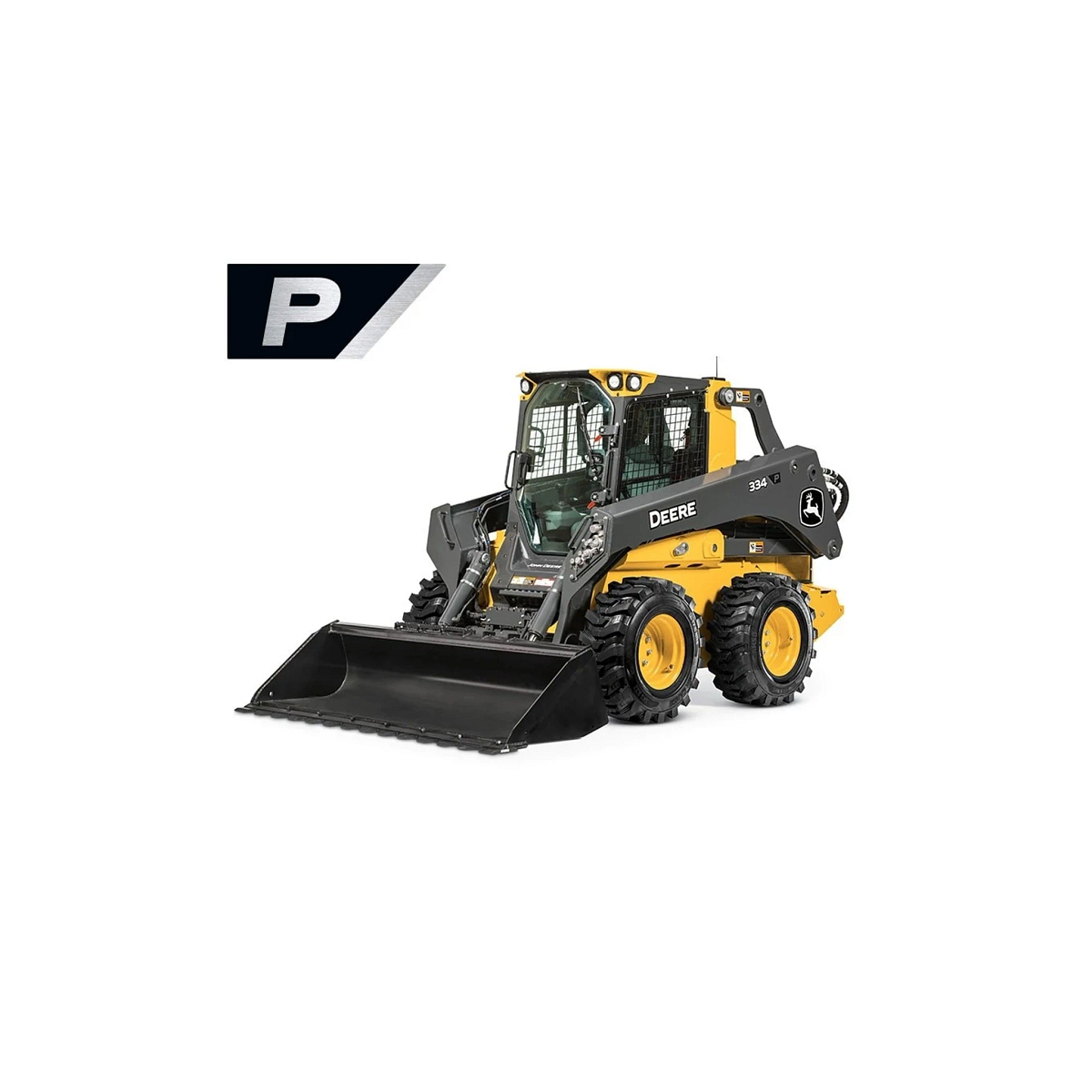

Front-facing view of a 334 P-Tier skid steer on a plain white background

Productivity‑Driven Hydraulics and Uptime Features

High‑flow hydraulics, ride control, optimized cooling, and increased fuel and DEF capacity are designed to keep the machine running efficiently through long, demanding workdays.

334 P-Tier skid steer loaders clear snow in an open area covered in deep white snow.

Engine

Manufacturer	Yanmar®
Model	4TNV94FHT
Non-Road Emission Standards	EPA Final Tier 4
Engine Cylinders	4
Net Power (SAE J1349, ISO 9249) At 2500 RPM	115.33 hp
Rated Gross Power (ISO 14396) At 2500 RPM	118 hp
Peak Torque At 1700 RPM	291.34 lb-ft
Displacement	186.33 cu in.
Rated Engine Speed	2500 rpm
Torque Rise At 1700 RPM	39 %
Aspiration	Turbocharged, intercooled
Air Cleaner	Dry dual element

Cooling

Fan Drive Type

Variable speed hydraulic drive

Powertrain

Controls Type	Electrohydraulic
Travel Speed High	12 mph
Tractive Effort	9300 lbf
Final Drive	Chains high strength, adjustment free
Parking Brake Type	Spring applied, hydraulically released wet-disk park brake

Hydraulics

Standard Pump Flow	25 gpm
High Flow Option Total Pump Flow	44 gpm
System Pressure At Couplers	3450 psi
Optional High Pressure System Pressure At Couplers	4000 psi
Hydraulic Horsepower Standard Flow (calculated)	50.32 hp
Hydraulic Horsepower High Flow (calculated)	88.56 hp
Hydraulic Horsepower High Flow/High Pressure (calculated)	102.68 hp

Cylinders

Cylinders Type

John Deere heat treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins

Electrical

Voltage	12 V
Battery capacity	950 CCA
Alternator Rating	120 amp
Lighting Options	Halogen, Two (2) Front and One (1) Rear

Operator Station

Structure

ROPS (ISO3471) FOPS (ISO3449) Structure with Quick Pivot

Monitoring

Alternator, Low Voltage	Indicator light
Auxiliary Hydraulics	Indicator light
Battery Voltage	Digital
Diagnostics	Digital
Engine Air Filter Restriction Indicator	Indicator light
Engine Coolant Temperature	Indicator light, Gauge, Digital
Engine Oil Pressure	Indicator light
Engine RPM Indicator	Digital
Fuel Gauge	Gauge
Diesel Exhaust Fluid (DEF) Level Indicator	Audible warning, Gauge
Hourmeter	Digital
Hydraulic Oil Filter Restriction	Indicator light
Hydraulic Oil Temperature	Indicator light, Gauge, Digital
Park Brake Engaged	Indicator light
Warm-Up Indicator	Indicator light, Digital

Tires and Wheels

Standard Tire Size

14X17.5 14 PR Galaxy Hulk

Serviceability

Fuel Tank	35.5 gal.
Fuel Tank	35.5 L

Operating Weight

Machine Configuration That Will Produce Base Machine Weight (ISO 6016)	Base Machine
Base Machine Weight	10264 lb.

Machine Dimensions

Length Without Bucket	125.2 in.
Length Without Bucket	10, 5 ft, in.
Length With Foundry Bucket	150.7 in.
Length With Foundry Bucket	12, 7 ft, in.
Width Without Bucket	76.6 in.
Width Without Bucket	6, 5 ft, in.
Height To Top Of Rollover Protective Structure (ROPS)	87 in.
Height To Top Of Rollover Protective Structure (ROPS)	7, 3 ft, in.
Height To Hinge Pin	131 in.
Height To Hinge Pin	11, 0 ft, in.
Dump Height, Foundry Bucket	106.7 in.
Dump Height, Foundry Bucket	8, 11 ft, in.
Dump Reach, Foundry Bucket	31.9 in.
Dump Reach, Foundry Bucket	2, 8 ft, in.
Dump Reach, Construction Bucket	37 in.
Dump Reach, Construction Bucket	3,1 ft, in.
Wheelbase	49.91 in.
Wheelbase	4, 2 ft, in.
Ground Clearance	9.7 in.
Ground Clearance	0, 10 ft, in.
Angle Of Departure Degree	23.5 degree (angle)
Front Turn Radius, Foundry Bucket	84.3 in.
Front Turn Radius, Foundry Bucket	7, 0 ft, in.
Dump Angle (Full Lift Height) Degree	48 degree (angle)
Bucket Rollback (Ground Level) Degree	35 degree (angle)
Advertised Tipping Load	8000 lb.
Advertised SAE Rated Operating Capacity	4000 lb.
Boom Breakout Foundry Bucket	8500 lb.
Boom Breakout Construction Bucket	7900 lb.
Bucket Breakout Foundry Bucket	13800 lb.
Bucket Breakout Construction Bucket	9500 lb.
