John Deere 318 P-Tier

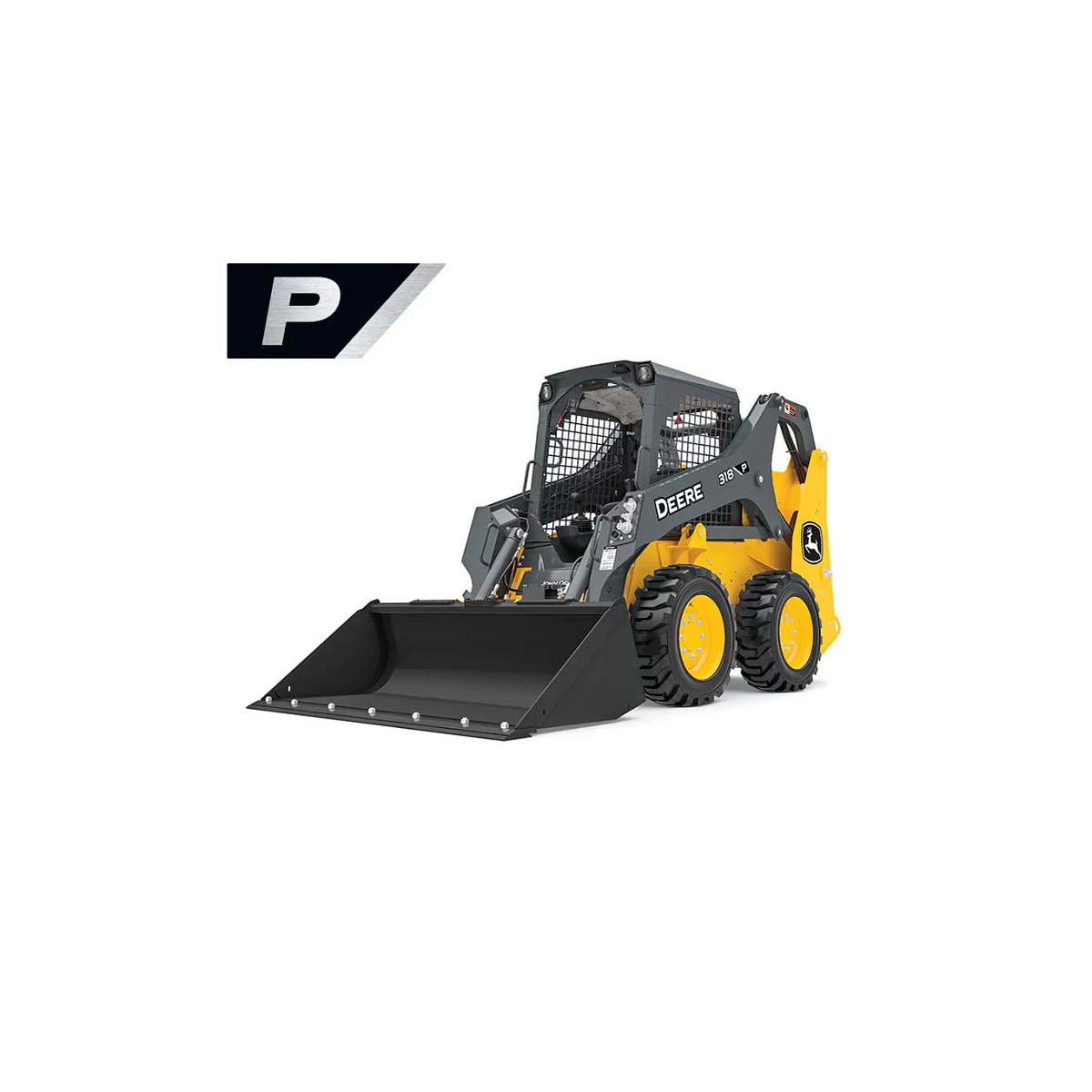

Front left studio view of 318 P-Tier Skid Steer with stylized P in the upper left corner

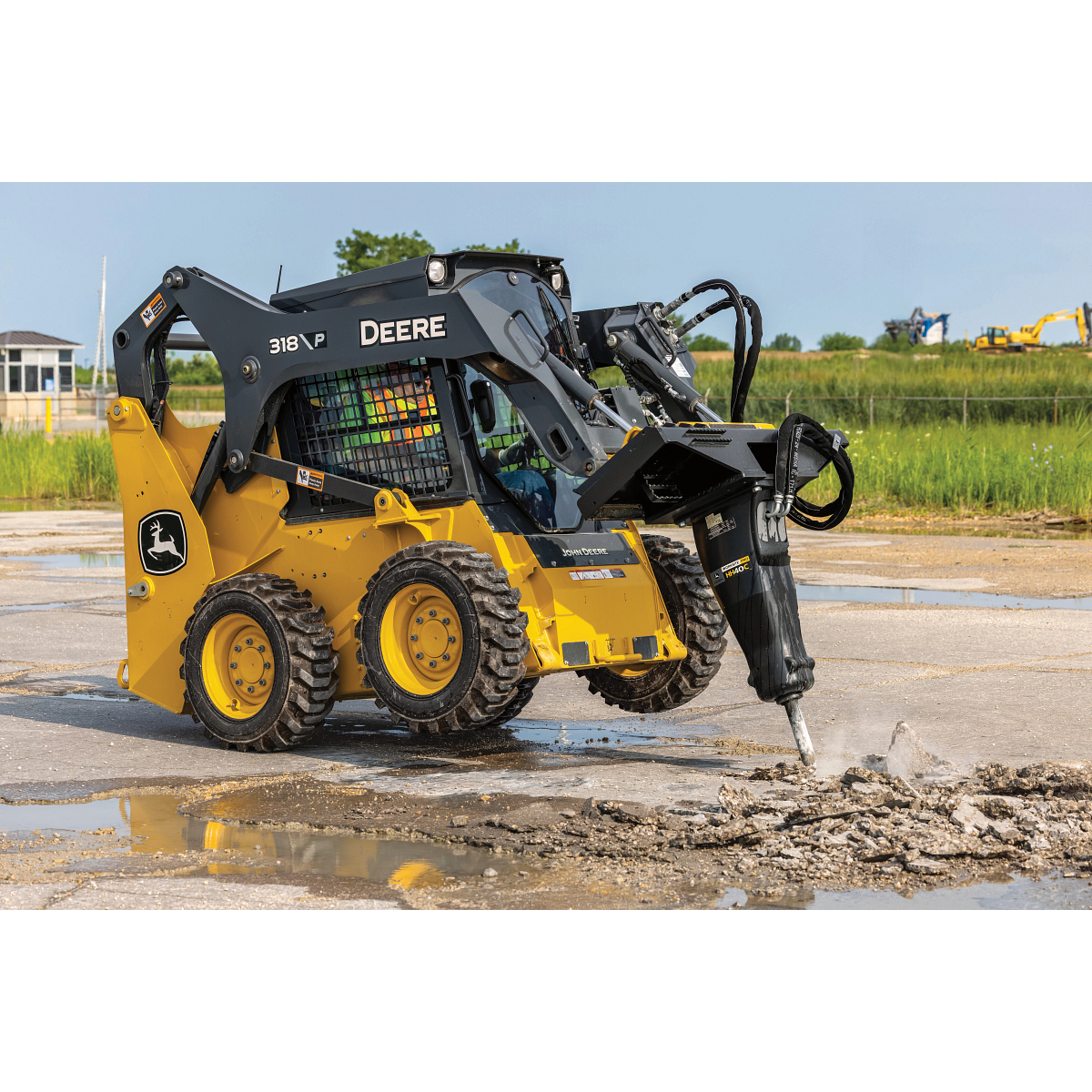

A 318 P-Tier skid steer operates on a paved surface, using a mounted hydraulic breaker attachment to break up concrete.

No items found.

Skid Steers

John Deere 318 P-Tier

Name: John Deere 318 P-Tier Compact Construction
Brand: John Deere

Starting at

59,342.00

Key Features

Gross Power: 65 hp (48.5 kW)
Net Power: 61 hp (45.6 kW)
Rated Operating Capacity: 1,945 lb. (883 kg)
Operating Weight: 6,542 lb. (2970 kg)

Compact Vertical‑Lift Performance

The vertical‑lift boom provides added reach and stability at full lift, making the 318 P‑Tier ideal for stacking, truck‑loading, and material placement in confined jobsites

A yellow John Deere loader lifts and tips a front bucket full of dark, moist soil onto a large dirt pile at a muddy construction site.

Operator‑Focused Cab & Controls

A sealed, pressurized cab with increased interior space, optional air‑ride heated seat, and electrohydraulic controls helps reduce fatigue and improve comfort through long workdays.

316 P-Tier skid steer with a protective cage cab is shown on a plain white background

Attachment Versatility & Precise Control

Compatibility with over 100 John Deere attachments—along with features like optional creep control and Quik‑Tatch™ allows operators to easily adapt the machine to a wide range of tasks.

316 P-Tier skid steer loader moves along a paved surface at a construction site, pushing a small pile of reddish dirt with its front bucket.

Engine

Manufacturer	Yanmar®
Model	4TNV86CHT
Non-Road Emission Standards	EPA Final Tier 4
Engine Cylinders	4
Net Power (SAE J1349, ISO 9249) At 2600 RPM	61 hp
Net Power (SAE J1349, ISO 9249) At 2600 RPM	45.6 kW
Rated Gross Power (ISO 14396) At 2600 RPM	65 hp
Rated Gross Power (ISO 14396) At 2600 RPM	48.5 kW
Displacement	128 cu in.
Displacement	2.1 L
Rated Engine Speed	2600 rpm
Aspiration	Turbocharged
Air Cleaner	Dry dual element

Cooling

Fan Drive Type

Direct belt drive

Powertrain

Pump Type	Hydrostatic-manual or electrohydraulic (EH); 4 – 80 heavy-duty (HD) continuous-loop chain
Travel Speed High	10.1 mph
Tractive Effort	7831 lbf
Tractive Effort	3552 kgf
Final Drive	High-strength, adjustment-free chains
Parking Brake Type	Integral, automatic, spring-applied, hydraulically released, wet-disc park brake

Hydraulics

Standard Pump Flow	17 gpm
Standard Pump Flow	63 L/min
System Pressure At Couplers	3450 psi
System Pressure At Couplers	23787 kPa
Hydraulic Horsepower Standard Flow (calculated)	33 hp
Hydraulic Power Standard Flow (calculated)	25 kW

Cylinders

Cylinders Type

John Deere heat-treated, chrome-plated polished cylinder rods, hardened steel (replaceable bushings) pivot pins

Electrical

Voltage	12 V
Battery capacity	750 CCA
Alternator Rating	75 amp
Lighting Options	Halogen: 2 front and 1 rear

Operator Station

Structure

ROPS (ISO 3471) / FOPS (ISO 3449) structure with quick pivot standard

Tires and Wheels

Standard Tire Size

10 x 16.5

Serviceability

Fuel Tank	19 gal.
Fuel Tank	71 L

Operating Weight

Base Machine Weight	6542 lb.
Base Machine Weight	2970 kg

Machine Dimensions

Length Without Bucket	103 in.
Length Without Bucket	8, 7 ft, in.
Length Without Bucket	2.63 m
Length With Foundry Bucket	127.6 in.
Length With Foundry Bucket	10, 8 ft, in.
Length With Foundry Bucket	3.24 m
Width Without Bucket	62.9 in.
Width Without Bucket	5, 3 ft, in.
Width Without Bucket	1.6 m
Height To Top Of Rollover Protective Structure (ROPS)	77.2 in.
Height To Top Of Rollover Protective Structure (ROPS)	6, 5 ft, in.
Height To Top Of Rollover Protective Structure (ROPS)	1.96 m
Height To Hinge Pin	120 in.
Height To Hinge Pin	10, 0 ft, in.
Height To Hinge Pin	3.05 m
Dump Height, Foundry Bucket	94.3 in.
Dump Height, Foundry Bucket	7, 10 ft, in.
Dump Height, Foundry Bucket	2.4 m
Dump Reach, Foundry Bucket	34 in.
Dump Reach, Foundry Bucket	0.86 m
Dump Reach, Construction Bucket	41.3 in.
Dump Reach, Construction Bucket	3, 5 ft, in.
Dump Reach, Construction Bucket	1.05 m
Wheelbase	41.5 in.
Wheelbase	3, 5 ft, in.
Wheelbase	1.05 m
Ground Clearance	7 in.
Ground Clearance	0.18 m
Angle Of Departure Degree	22.3 degree (angle)
Front Turn Radius, Foundry Bucket	79 in.
Front Turn Radius, Foundry Bucket	6, 7 ft, in.
Front Turn Radius, Foundry Bucket	2.01 m
Dump Angle (Full Lift Height) Degree	42 degree (angle)
Bucket Rollback (Ground Level) Degree	30 degree (angle)
Advertised Tipping Load	3890 lb.
Advertised Tipping Load	1766 kg
Advertised SAE Rated Operating Capacity	1945 lb.
Advertised SAE Rated Operating Capacity	883 kg
Rated Operating Capacity With Counterweight	2095 lb.
Rated Operating Capacity With Counterweight	951 kg
Boom Breakout Foundry Bucket	5250 lb.
Boom Breakout Foundry Bucket	2384 kg
Boom Breakout Construction Bucket	5000 lb.
Boom Breakout Construction Bucket	2270 kg
Bucket Breakout Force Foundry Bucket	6000 lb.
Bucket Breakout Force Foundry Bucket	2724 kg
Bucket Breakout Force Construction Bucket	4250 lb.
Bucket Breakout Force Construction Bucket	1930 kg
