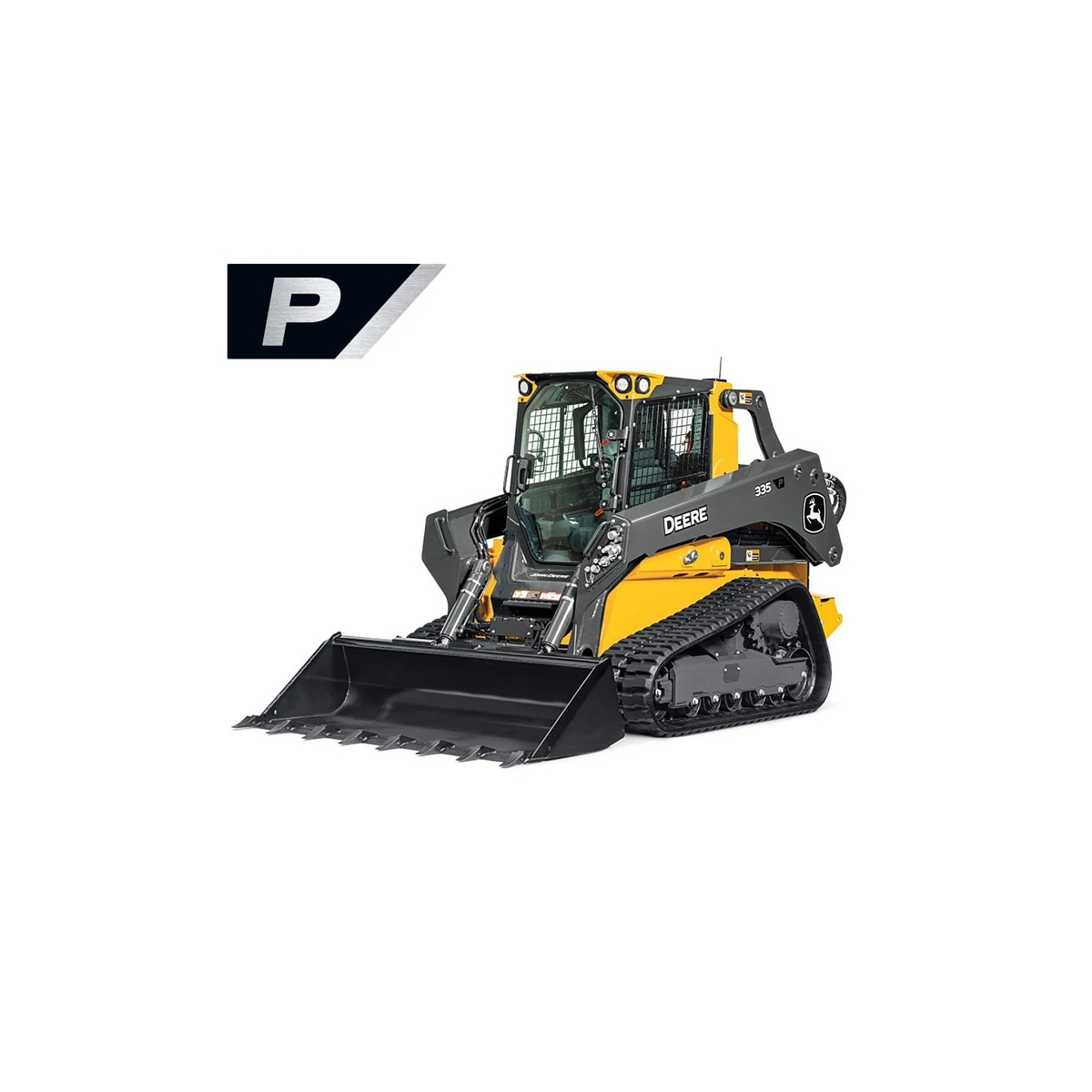

Studio image of a 335 P-Tier Compact Track Loader

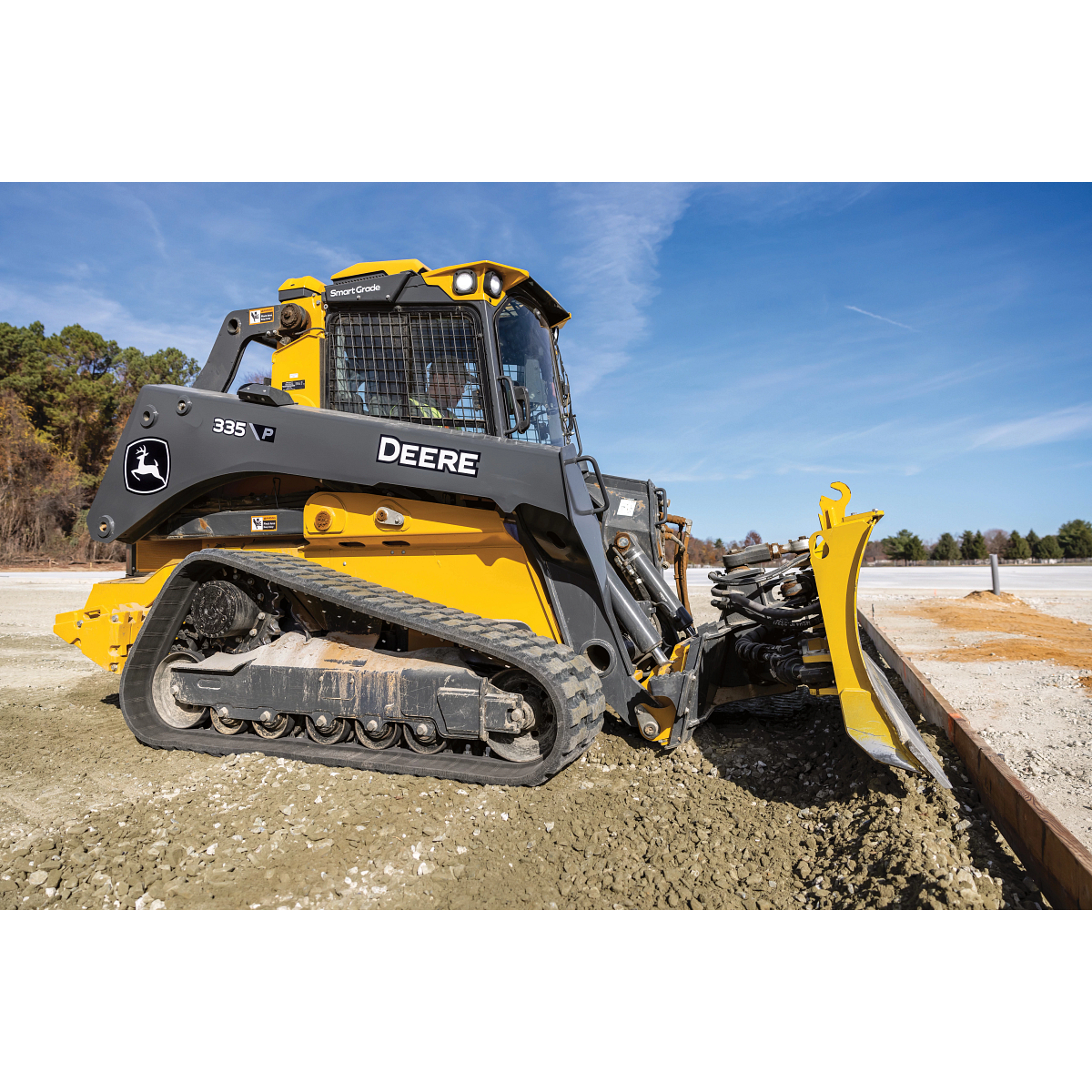

Side right view of a 335 P-Tier Compact Track Loader pushing gravel and forms into place on a jobsite

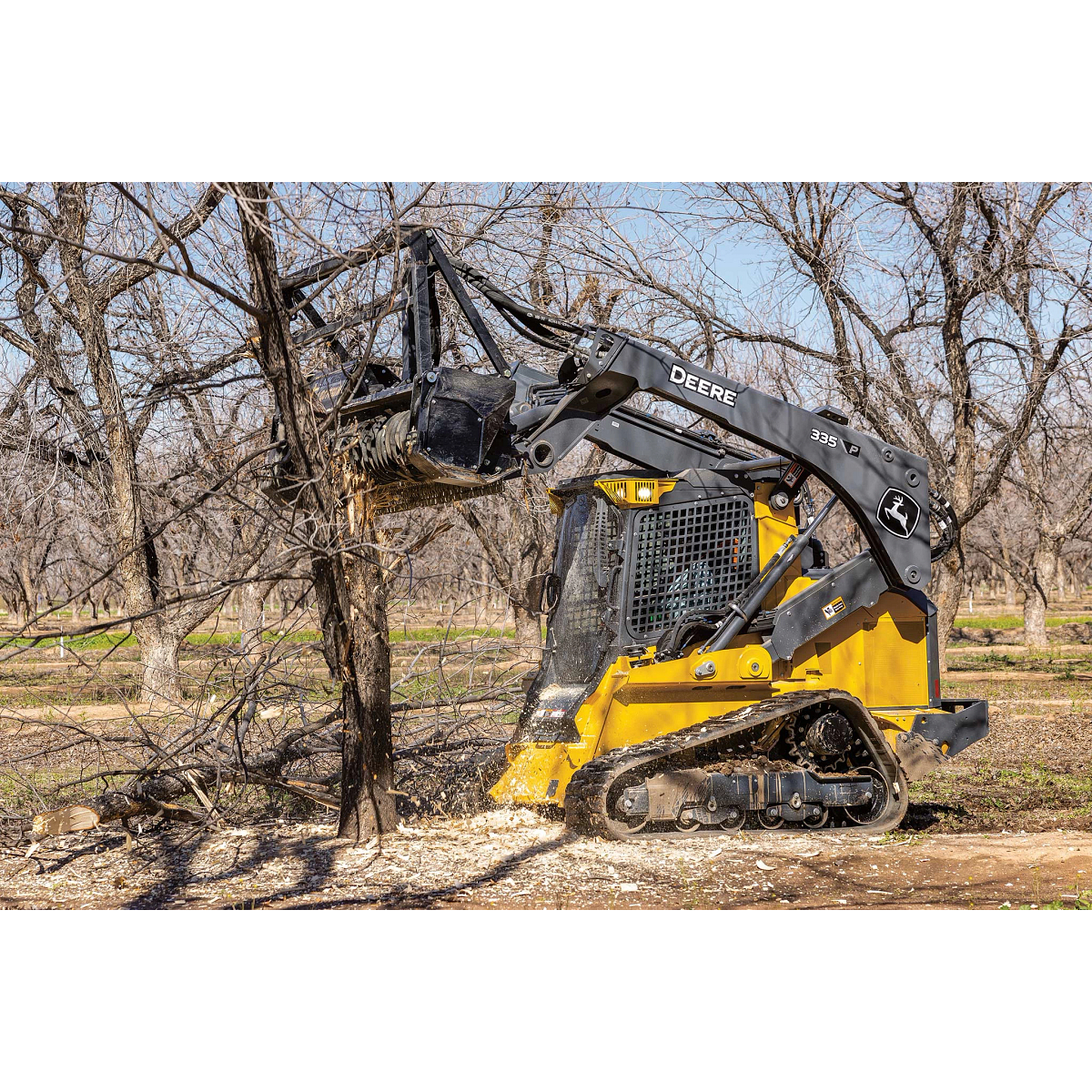

Side left view of a 335 P-Tier compact track loader grinding a tree with an MK76 mulching head

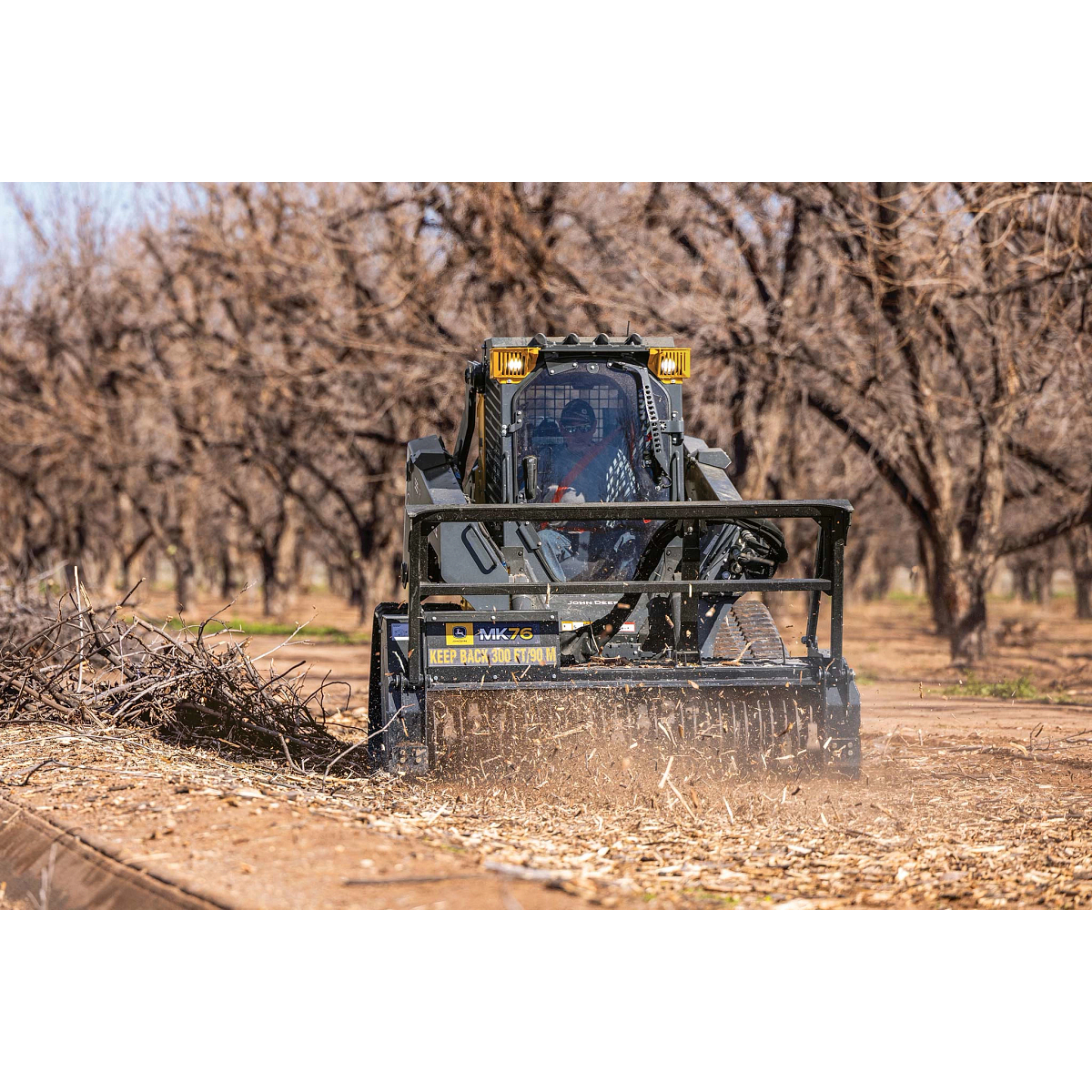

Front view of a 335 P-Tier compact track loader mulching brush with an MK76 mulching head

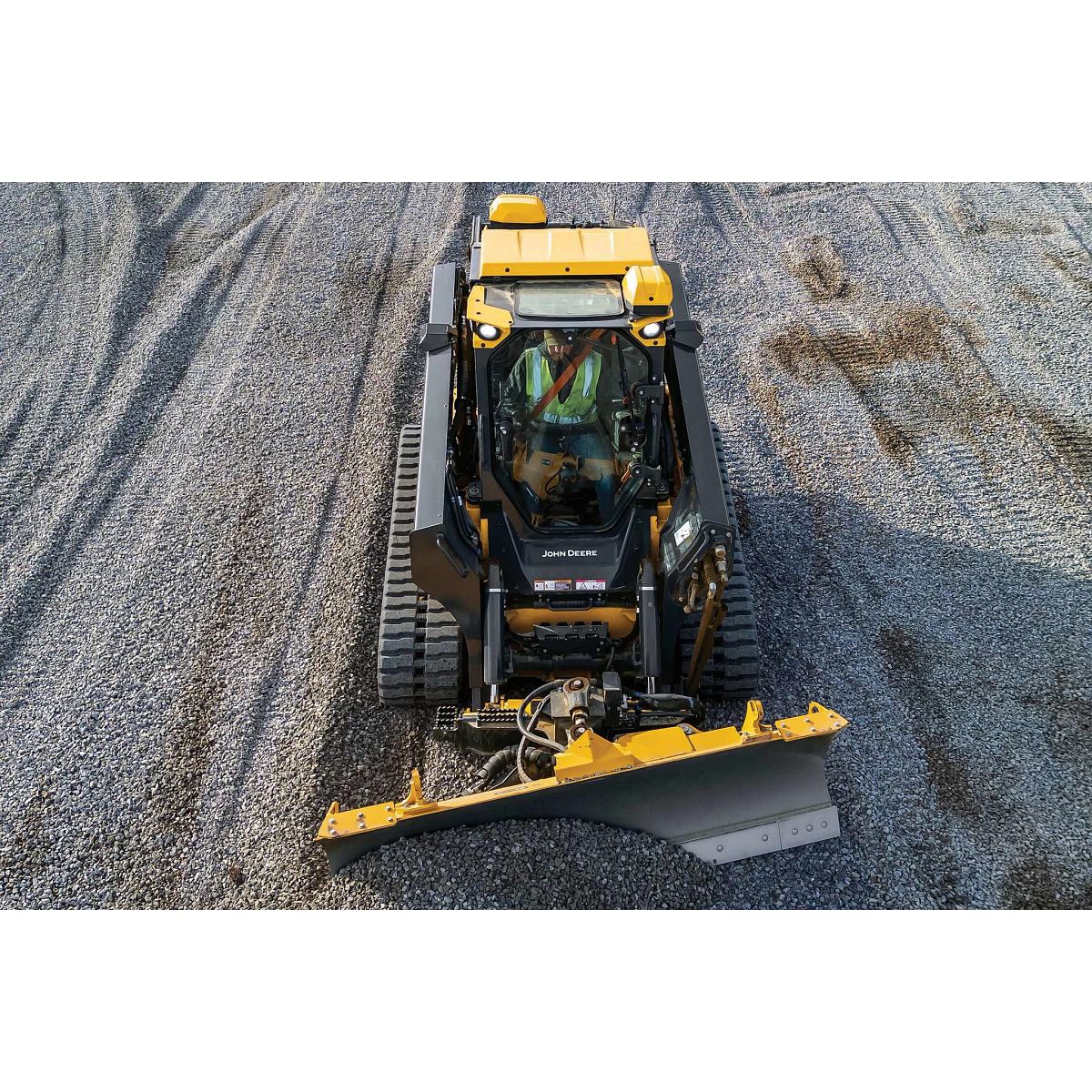

Top view of a 335 P-Tier compact track loader pushing gravel
No items found.
new
John Deere
335 P
Compact Track Loaders

John Deere 335 P-Tier

Starting at

143,639.00

Premium Cab, Advanced Hydraulics, and Attachment Versatility

A completely redesigned, sealed, and pressurized cab delivers a quieter, cleaner, and more comfortable operator environment, with features such as a touchscreen display, hands‑free Bluetooth calling, and ergonomic electrohydraulic controls. High‑flow hydraulics and compatibility with over 100 John Deere attachments allow the 335 P‑Tier to take on everything from grading and material handling to mulching and land clearing—making it one of the most versatile CTLs in the lineup.

Side right view of a 335 P-Tier compact track loader handling a tree with an MB60 material boom
Maximum Power and Lift for High‑Production Work

With 118 gross horsepower and a high rated operating capacity, the 335 P‑Tier is engineered to handle demanding applications such as site development, roadbuilding, and vegetation management. Its vertical‑lift boom design delivers excellent reach and stability for truck loading and material placement, while the tracked undercarriage provides traction and control on soft or uneven ground.

335 P-Tier compact track loader using a mulching head attachment to clear brush.
SmartGrade™ Technology for Precision and Efficiency

The 335 P‑Tier can be equipped with John Deere SmartGrade™ technology, along with slope control and laser slope control options, helping operators grade faster and more accurately with fewer passes and less rework. By automating blade movement and maintaining consistent grade, SmartGrade improves productivity and makes it easier for operators of all experience levels to achieve quality results the first time.

Side left aerial view of a yellow and black 335 P-Tier compact track loader on a gravel and dirt jobsite
Question text goes here

Answer text goes here

Engine
Manufacturer

Yanmar®

Model

4TNV94FHT

Non-road emission standards

Final Tier 4

Engine cylinders

4

Net power (SAE J1349, ISO 9249) at 2500 rpm

114.66 hp

Net power (SAE J1349, ISO 9249) at 2500 rpm

85.5 kW

Rated gross power (ISO 14396) at 2500 rpm

118 hp

Rated gross power (ISO 14396) at 2500 rpm

88 kW

Rated gross power (ISO 14396) at 2600 rpm

118 hp

Rated gross power (ISO 14396) at 2600 rpm

88 kW

Peak torque at 1700 rpm

291.34 lb-ft

Peak torque at 1700 rpm

395.1 Nm

Displacement

186.33 cu in.

Displacement

3.05 L

Rated engine speed

2500 rpm

Torque rise percent at 1700 rpm

39 %

Aspiration

Turbocharged, intercooled

Air cleaner type

Dry dual element

Cooling
Fan drive type

Variable speed hydraulic drive

Powertrain
Pump type

Axial piston hydrostatic pump

Controls type

Electrohydraulic

Travel speed low

5.5 mph

Travel speed low

8.85 km/h

Travel speed high

8.5 mph

Travel speed high

13.68 km/h

Parking brake type

Integral, automatic, spring applied, hydraulically released wet-disk brake

Undercarriage
Rubber tracks construction

New-generation smooth-ride long-life rubber with steel inserts

Standard track width

17.7 in.

Standard track width

449.6 mm

Optional track width

15.8 in.

Optional track width

401.3 mm

Ground pressure standard track

4.76 psi

Ground pressure standard track

32.8 kPa

Ground pressure optional track

5.28 psi

Ground pressure optional track

36.4 kPa

Track rollers (per side)

5 triple-flange smooth-ride, all-steel rollers

Track idlers (per side)

2 double-flange smooth-ride, all-steel rollers

Bearings/seals (rollers/idlers) type

Not specified

Tractive effort

11500 lbf

Tractive effort

5216.4 kgf

Hydraulics
Standard pump flow

25 gpm

Standard pump flow

94.6 L/min

High flow option total pump flow

44 gpm

High flow option total pump flow

166.6 L/min

System pressure at couplers

3500 psiPerMin

System pressure at couplers

24131 kPa

Optional high pressure system pressure at couplers

4000 psi

Optional high pressure system pressure at couplers

27579 kPa

Hydraulic horsepower standard flow (calculated)

51.05 hp

Hydraulic horsepower standard flow (calculated)

38.1 kW

Hydraulic horsepower high flow/high pressure (calculated)

102.68 hp

Hydraulic horsepower high flow/high pressure (calculated)

76.6 kW

Cylinders
Cylinders type

John Deere heat treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins

Electrical
Voltage

12 V

Battery Capacity

950 CCA

Alternator rating with A/C

120 amp

Lighting options

Halogen, Two (2) Front and One (1) Rear; (Optional): LED, Four (4) Front, and One (1) Rear

Operator Station
Structure

ROPS (ISO3471) FOPS (ISO3449) Structure with Quick Pivot

Monitoring
Alternator, low voltage

Indicator light

Auxiliary hydraulics

Indicator light

Battery voltage

Indicator light, Digital

Diagnostics

Digital

Engine air filter restriction indicator

Indicator light

Engine coolant temperature

Indicator light, Gauge, Digital

Engine oil pressure

Indicator light

Engine rpm indicator

Digital

Fuel gauge

Gauge

Diesel exhaust fluid (DEF) level indicator

Audible warning, Gauge

Hourmeter

Digital

Hydraulic oil filter restriction

Indicator light

Hydraulic oil temperature

Indicator light, Gauge, Digital

Park brake engaged

Indicator light

Hi-flow indicator

Indicator light

Warm-up indicator

Indicator light, Digital

Serviceability
Fuel tank

36 gal.

Fuel tank

136.3 L

Operating Weights
Machine configuration that will produce base machine weight (ISO 6016)

Standard 17.7-in. (450 mm) Track

Standard track

12320 lb.

Standard track

5589.4 kg

Machine Dimensions
Length without bucket

125 in.

Length without bucket

10, 5 ft, in.

Length without bucket

3.18 m

Length with foundry bucket

151.2 in.

Length with foundry bucket

12, 7 ft, in.

Length with foundry bucket

3.84 m

Width without bucket with 15.8-in. tracks

78.86 in.

Width without bucket with 15.8-in. tracks

6, 7 ft, in.

Width without bucket with 400-mm tracks

2 m

Width without bucket with 17.7-in. tracks

80.7 in.

Width without bucket with 17.7-in. tracks

6, 9 ft, in.

Width without bucket with 450-mm tracks

2.05 m

Height to top of rollover protective structure (ROPS)

87.4 in.

Height to top of rollover protective structure (ROPS)

7, 3 ft, in.

Height to top of rollover protective structure (ROPS)

2.22 m

Height to hinge pin

132 in.

Height to hinge pin

11, 0 ft, in.

Height to hinge pin

3.35 m

Dump height, foundry bucket

106.08 in.

Dump height, foundry bucket

8, 10 ft, in.

Dump height, foundry bucket

2.69 m

Dump reach, foundry bucket

29 in.

Dump reach, foundry bucket

2, 5 ft, in.

Dump reach, foundry bucket

0.74 m

Dump reach, construction bucket, no edge

36.2 in.

Dump reach, construction bucket, no edge

3, 0 ft, in.

Dump reach, construction bucket, no edge

0.92 m

Ground clearance

9.75 in.

Ground clearance

0.25 m

Angle of departure degree

24.7 degree (angle)

Front turn radius, foundry bucket

86 in.

Front turn radius, foundry bucket

2.18 m

Front turn radius, foundry bucket

7, 2 ft, in.

Dump angle (full lift height) degree

48 degree (angle)

Bucket rollback (ground level) degree

35 degree (angle)

Loader Performance
SAE rated operating capacity at 35% tipping load (construction bucket)

4025 lb.

SAE rated operating capacity at 35% tipping load (construction bucket)

1825.3 kg

SAE rated operating capacity at 50% tipping load (construction bucket)

4800 lb.

SAE rated operating capacity at 50% tipping load (construction bucket)

2177 kg

Boom breakout force with foundry bucket

8500 lb.

Boom breakout force with foundry bucket

3855.5 kg

Boom breakout force with construction bucket

7800 lb.

Boom breakout force with construction bucket

3538.4 kg

Bucket breakout force with foundry bucket

13800 lb.

Bucket breakout force with foundry bucket

6259.7 kg
