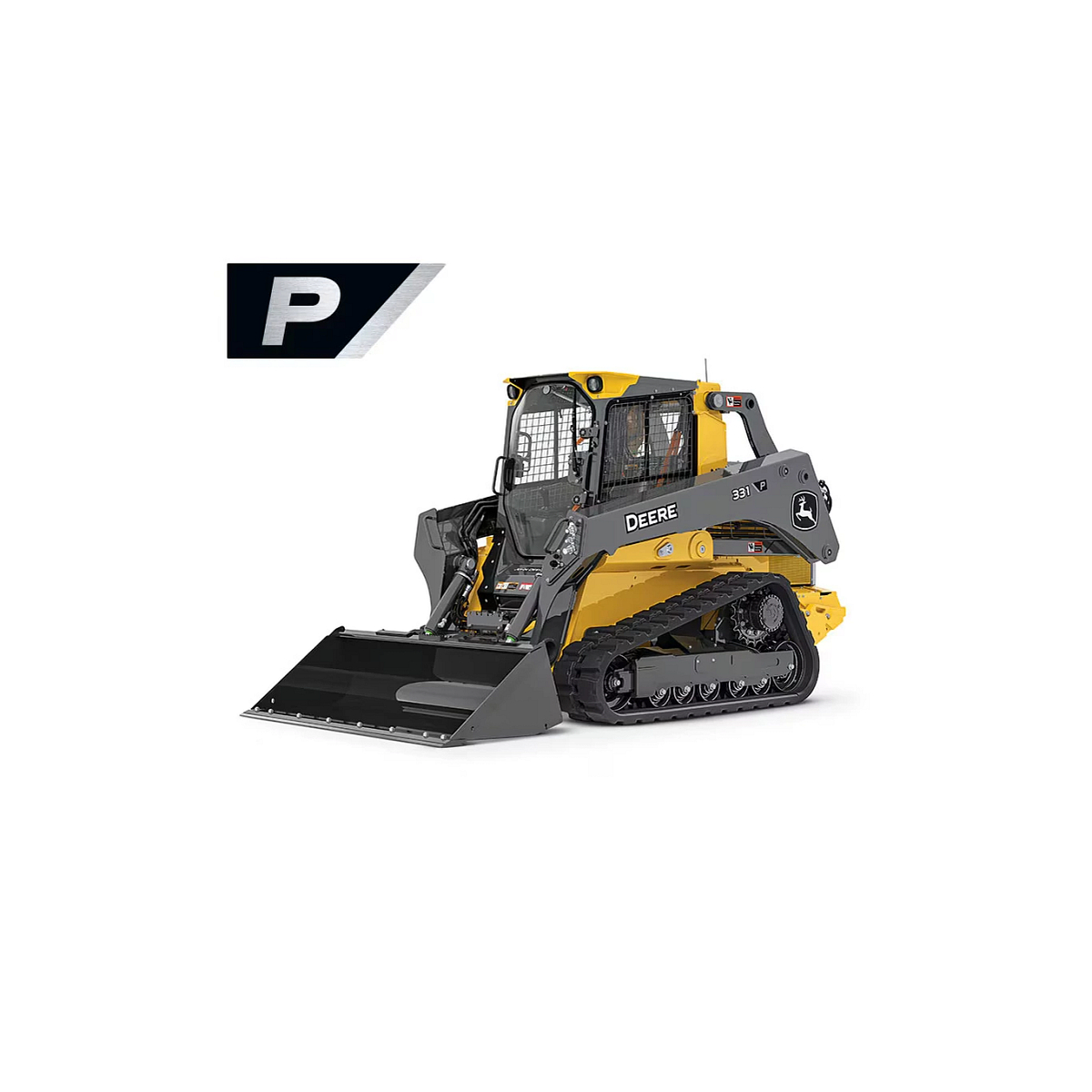

studio shot of a 331 P-Tier on a white background
No items found.
new
John Deere
331 P
Compact Track Loaders

John Deere 331 P-Tier

Starting at

94,809.00

94,900.00

Powerful Vertical‑Lift Performance in a Compact Footprint

The 331 P‑Tier combines a vertical‑lift boom design with strong breakout force and a high rated operating capacity, enabling precise material placement and efficient truck loading. Its compact track platform delivers excellent traction and stability, helping operators work confidently on soft ground while maintaining the performance expected from a larger machine.

Premium Cab Designed for Long Workdays

A completely redesigned, sealed, and pressurized cab delivers a quieter, cleaner, and more comfortable work environment. Increased glass area improves visibility, while ergonomically positioned joysticks, a redesigned switch module, and available heated and ventilated seating help reduce fatigue and keep operators productive throughout long shifts.

Interior cab view of a skid steer loader showing a central padded operator seat, protective side grid panels, and dual joystick controls on both armrests
Additional Attachment Offerings for Optimal Pairing

Availability of over 100 John Deere attachments allows the 331 P‑Tier to move seamlessly between tasks such as grading, material handling, and site preparation. Advanced electrohydraulic controls make attachment operation smooth and responsive, while optional technology features—including grade‑management readiness—help operators work more efficiently and precisely as jobsite demands change.

Question text goes here

Answer text goes here

Engine
Manufacturer

Yanmar®

Model

4TNV94FHT

Non-road emission standards

Final Tier 4

Engine cylinders

4

Net power (SAE J1349, ISO 9249) at 2500 rpm

94.96 hp

Net power (SAE J1349, ISO 9249) at 2500 rpm

70.8 kW

Rated gross power (ISO 14396) at 2500 rpm

97.89 hp

Rated gross power (ISO 14396) at 2500 rpm

73 kW

Rated gross power (ISO 14396) at 2600 rpm

98 hp

Rated gross power (ISO 14396) at 2600 rpm

73 kW

Peak torque at 1700 rpm

281.75 lb-ft

Peak torque at 1700 rpm

382 Nm

Displacement

186.33 cu in.

Displacement

3.05 L

Torque rise percent at 1700 rpm

47 %

Aspiration

Turbocharged, intercooled

Air cleaner type

Dry dual element

Cooling
Fan drive type

Variable speed hydraulic drive

Powertrain
Pump type

Axial piston hydrostatic pump

Controls type

Electrohydraulic

Travel speed low

5.5 mph

Travel speed low

8.85 km/h

Travel speed high

8.5 mph

Travel speed high

13.68 km/h

Parking brake type

Integral, automatic, spring applied, hydraulically released wet-disk brake

Undercarriage
Rubber tracks construction

New-generation smooth-ride long-life rubber with steel inserts

Standard track width

15.8 in.

Standard track width

401.3 mm

Optional track width

17.7 in.

Optional track width

449.6 mm

Ground pressure standard track

5.1 psi

Ground pressure standard track

35.2 kPa

Ground pressure optional track

4.6 psi

Ground pressure optional track

31.7 kPa

Track rollers (per side)

5 triple-flange smooth-ride, all-steel rollers

Track idlers (per side)

2 double-flange smooth-ride, all-steel rollers

Bearings/seals (rollers/idlers) type

Not specified

Tractive effort

11500 lbf

Tractive effort

5216.4 kgf

Hydraulics
Standard pump flow

25 gpm

Standard pump flow

94.6 L/min

High flow option total pump flow

39 gpm

High flow option total pump flow

147.6 L/min

System pressure at couplers

3450 psiPerMin

System pressure at couplers

23779.5 kPa

Hydraulic horsepower standard flow (calculated)

50.32 hp

Hydraulic horsepower standard flow (calculated)

37.5 kW

Hydraulic horsepower high flow (calculated)

78.5 hp

Hydraulic horsepower high flow (calculated)

58.5 kW

Cylinders
Cylinders type

John Deere Heat treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins

Electrical
Voltage

12 V

Battery Capacity

950 CCA

Alternator rating with A/C

120 amp

Lighting options

Halogen, Two (2) Front and One (1) Rear, (Optional): LED, Four (4) Front, and One (1) Rear

Operator Station
Structure

ROPS (ISO3471) FOPS (ISO3449) Structure with Quick Pivot

Monitoring
Alternator, low voltage

Indicator light

Auxiliary hydraulics

Indicator light

Battery voltage

Indicator light, Digital

Diagnostics

Digital

Engine air filter restriction indicator

Indicator light

Engine coolant temperature

Indicator light, Gauge, Digital

Engine oil pressure

Indicator light

Engine rpm indicator

Digital

Fuel gauge

Gauge

Diesel exhaust fluid (DEF) level indicator

Audible warning, Gauge

Hourmeter

Digital

Hydraulic oil filter restriction

Indicator light

Hydraulic oil temperature

Indicator light, Gauge, Digital

Park brake engaged

Indicator light

Hi-flow indicator

Indicator light

Warm-up indicator

Indicator light, Digital

Serviceability
Fuel tank

29.5 gal.

Fuel tank

111.7 L

Operating Weights
Machine configuration that will produce base machine weight (ISO 6016)

Standard 450 mm (17.7-in.) Track *E trim

Standard track

11914 lb.

Standard track

5404 kg

Machine Dimensions
Length without bucket

125 in.

Length without bucket

10, 5 ft, in.

Length without bucket

3.18 m

Length with foundry bucket

151.2 in.

Length with foundry bucket

12, 7 ft, in.

Length with foundry bucket

3.84 m

Width without bucket with 15.8-in. tracks

78.86 in.

Width without bucket with 15.8-in. tracks

6, 7 ft, in.

Width without bucket with 400-mm tracks

2 m

Width without bucket with 17.7-in. tracks

80.7 in.

Width without bucket with 17.7-in. tracks

6, 9 ft, in.

Width without bucket with 450-mm tracks

2.05 m

Height to top of rollover protective structure (ROPS)

87.4 in.

Height to top of rollover protective structure (ROPS)

7, 3 ft, in.

Height to top of rollover protective structure (ROPS)

2.22 m

Height to hinge pin

132 in.

Height to hinge pin

11, 0 ft, in.

Height to hinge pin

3.35 m

Dump height, foundry bucket

106.08 in.

Dump height, foundry bucket

8, 10 ft, in.

Dump height, foundry bucket

2.69 m

Dump reach, foundry bucket

29 in.

Dump reach, foundry bucket

2, 5 ft, in.

Dump reach, foundry bucket

0.74 m

Dump reach, construction bucket, no edge

36.2 in.

Dump reach, construction bucket, no edge

3, 0 ft, in.

Dump reach, construction bucket, no edge

0.92 m

Ground clearance

9.75 in.

Ground clearance

0.25 m

Angle of departure degree

30 degree (angle)

Front turn radius, foundry bucket

86 in.

Front turn radius, foundry bucket

2.18 m

Front turn radius, foundry bucket

7, 2 ft, in.

Dump angle (full lift height) degree

48 degree (angle)

Bucket rollback (ground level) degree

35 degree (angle)

Loader Performance
Advertised tipping load with construction bucket

9000 lb.

Advertised tipping load with construction bucket

4082.3 kg

SAE rated operating capacity at 35% tipping load (construction bucket)

3150 lb.

SAE rated operating capacity at 35% tipping load (construction bucket)

1428.8 kg

SAE rated operating capacity at 50% tipping load (construction bucket)

4500 lb.

SAE rated operating capacity at 50% tipping load (construction bucket)

2041.2 kg

Boom breakout force with foundry bucket

6700 lb.

Boom breakout force with foundry bucket

3039 kg

Boom breakout force with construction bucket

6000 lb.

Boom breakout force with construction bucket

2721.6 kg

Bucket breakout force with foundry bucket

11000 lb.

Bucket breakout force with foundry bucket

4989.5 kg
