Compact Construction
>
Compact Excavators
>
John Deere 60 P-Tier

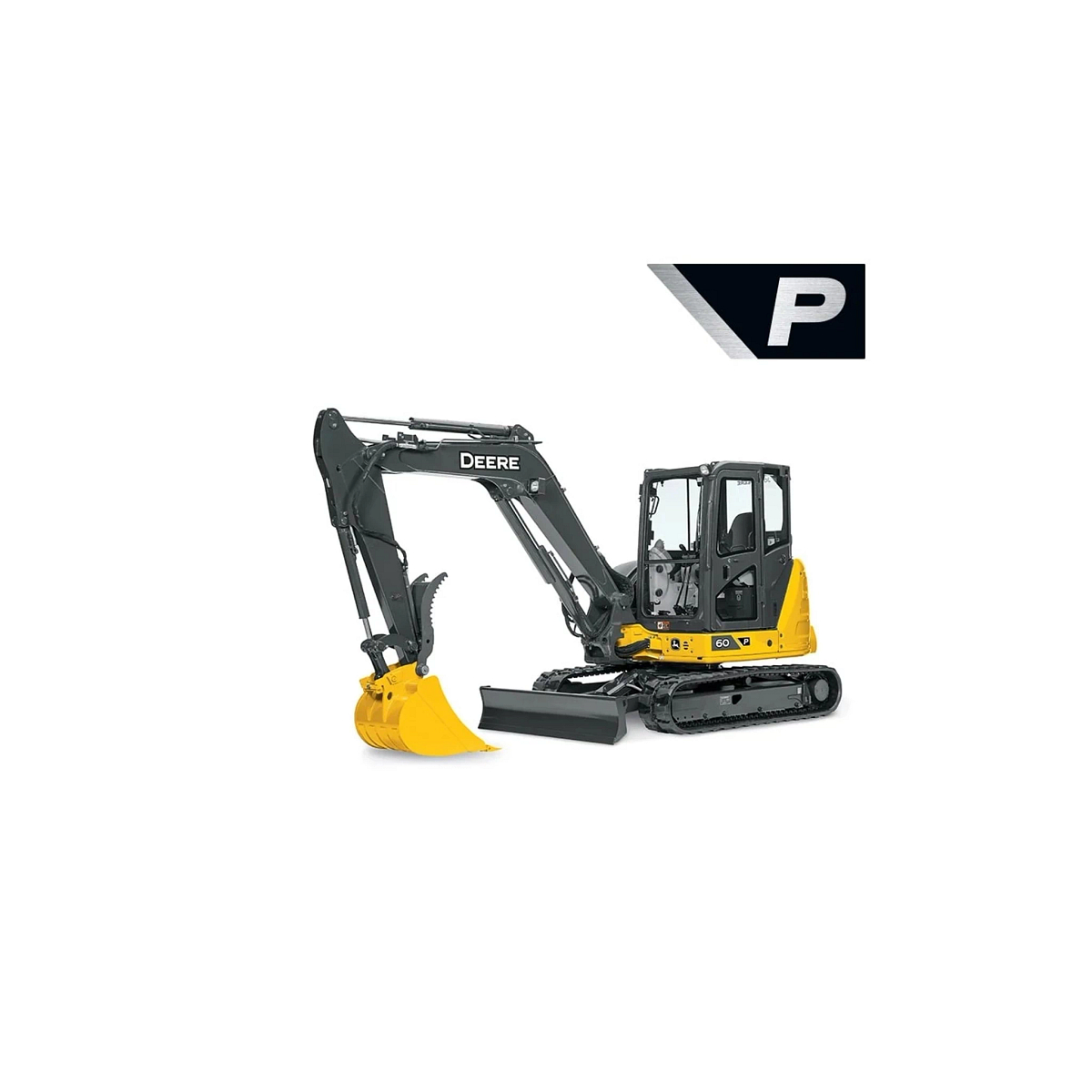

Studio image with a front left view of a 60 P-Tier Compact Excavator

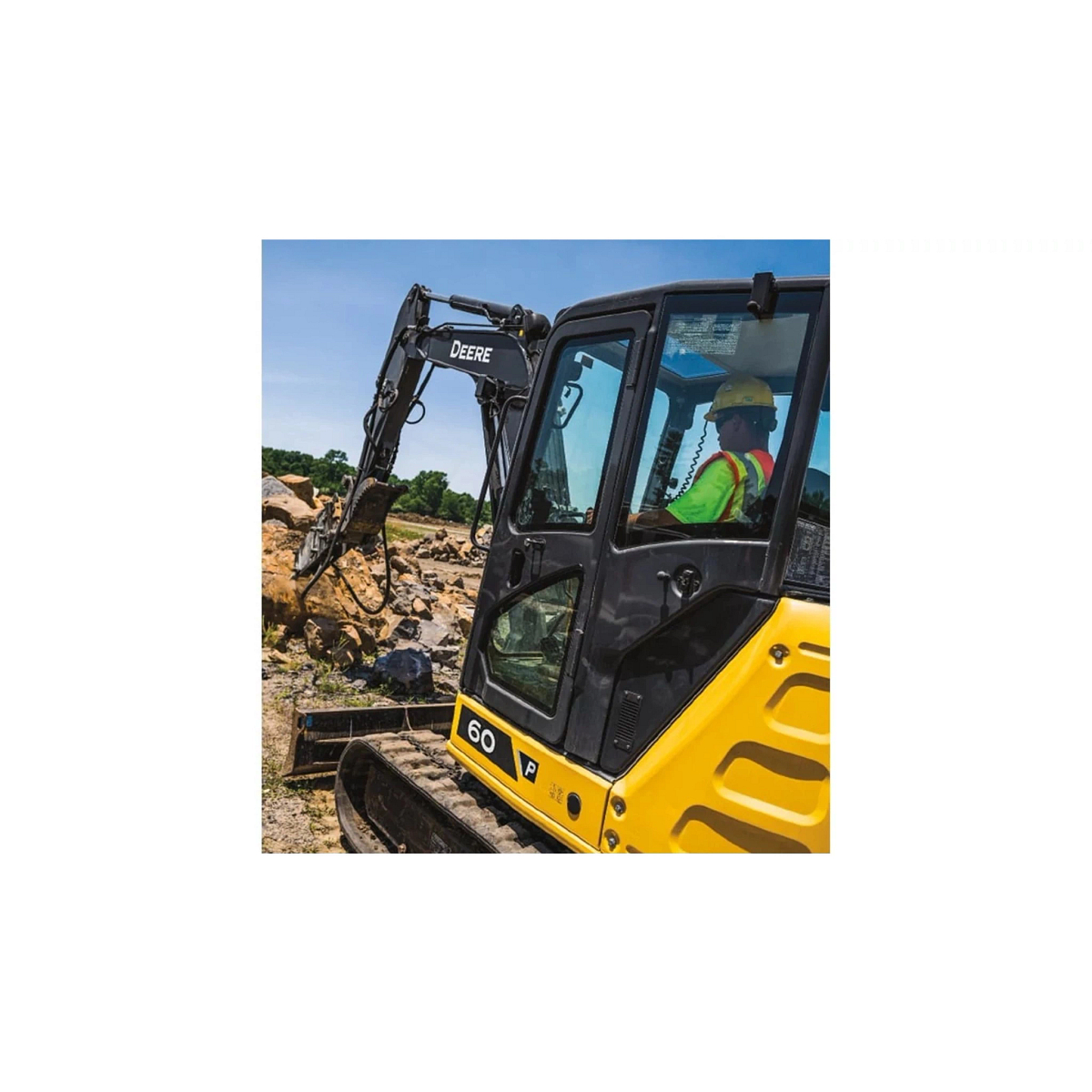

An operator using a 60 P-Tier Excavator to scoop rocks at a worksite
No items found.
new
John Deere
60 P
Compact Excavators

John Deere 60 P-Tier

Starting at

108,837.00

92,500.00

Key Features

  • Net Power: 53 hp (39.6 kW)
  • Max Digging Depth: 12 ft. 4 in. (3.77 m)
  • Operating Weight: 13,620 lb. (6,180 kg)
  • Max Reach: 20 ft. 5 in. (6.23 m)
Request a Quote
Order Now
Apply for financing
Apply for financing
Print Page
Loan Calculator
Product Brochure
Features
Specifications
Handle Bigger Jobs With Compact Power

With 53 horsepower and increased digging depth, the 60 P‑Tier provides the strength needed for more demanding trenching, loading, and utility work—bridging the gap between compact and mid‑size capability.

Maximize Productivity with Precision Hydraulics

A robust hydraulic system delivers smooth, responsive control for accurate digging and grading, helping operators work efficiently across a wide range of applications.

Compact yellow John Deere excavator with a black arm fitted with a brush-cutting attachment, clearing dense green vegetation along a narrow gravel path
Stay Versatile With Jobsite‑Ready Attachments

Standard auxiliary hydraulics and quick‑coupler capability enable fast attachment changes, allowing crews to move seamlessly between tasks and get more done with one machine.

Compact yellow John Deere excavator with a black arm and tilt-rotator attachment digging a narrow trench in sandy soil
Question text goes here

Answer text goes here

Specs & Compare
Select up to 4 models to compare specifications
John Deere
60 P
Compact Excavator
JOHN DEERE
60G-Tier Tier 4 Final
JOHN DEERE
60 P-Tier (Canopy) Tier 4 Final
JOHN DEERE
60G-Tier (Canopy) Tier 4 Final
CATERPILLAR
308 CR Tier 4 Final
GEHL
Z 80 GEN:2 Tier 4 Final
HYUNDAI
HX60A Tier 4 Final
SANY
SY 80 U Tier 4 Final
SANY
SY 60 C Tier 4 Final
YANMAR
ViO 80-1 Interim Tier 4
YANMAR
ViO 80-1A Tier 4 Final
YANMAR
SV 100-2A Tier 4 Final
YANMAR
SV 100-2 Interim Tier 4
ADD MODEL

Engine

ManufacturerYanmarYanmarYanmarYanmarCaterpillarYanmarHyundaiYanmarIsuzuYanmarYanmarYanmarYanmar
Displacement203 cu in.3.32 (203)3.32 (203)3.32 (203)3.33 (203)3.32 (202.5)2.39 (146)3.32 (202.5)2.18 (133)3.32 (203)3.32 (202.5)3.32 (203)3.32 (203)
Displacement3.32 L3.32 (203)3.32 (203)3.32 (203)3.33 (203)3.32 (202.5)2.39 (146)3.32 (202.5)2.18 (133)3.32 (203)3.32 (202.5)3.32 (203)3.32 (203)
Net power2000 rpm
Net power at net power rpm (ISO 9249)53 hp
Net power at net power rpm (ISO 9249)39.6 kW

Powertrain

Maximum travel speed high/fast3 mph
Maximum travel speed high/fast4.8 km/h
Swing speed9.5 rpm9.59.59.510.699.4119.6999.19.1

Hydraulics

Main pump maximum rated flow38 gpm144 (38)144 (38)144 (38)167 (44)140.6 (37.2)121 (32)193 (51)142.7 (37.7)193.8 (51.3)140.6 (37.2)212.9 (56.2)214 (56.5)
Main pump maximum rated flow144 L/min144 (38)144 (38)144 (38)167 (44)140.6 (37.2)121 (32)193 (51)142.7 (37.7)193.8 (51.3)140.6 (37.2)212.9 (56.2)214 (56.5)

Undercarriage

Standard track width16 in.
Standard track width400 mm

Refill Capacities

Fuel tank31.7 gal.120 (31.7)120 (31.7)120 (31.7)147 (39)115 (30.4)125 (33)99.9 (26.4)130 (34.3)115 (30.4)115 (30.4)115 (30.3)115 (30.3)
Fuel tank120 L120 (31.7)120 (31.7)120 (31.7)147 (39)115 (30.4)125 (33)99.9 (26.4)130 (34.3)115 (30.4)115 (30.4)115 (30.3)115 (30.3)
Hydraulic tank21.1 gal.80 (21.1)80 (21.1)80 (21.1)53 (14)60 (15.9)70 (18.5)119.9 (31.7)85 (22.5)
Hydraulic tank80 L80 (21.1)80 (21.1)80 (21.1)53 (14)60 (15.9)70 (18.5)119.9 (31.7)85 (22.5)

Operating weight with standard arm

Operating weight13620 lb.6180 (13620)6010 (13250)6010 (13250)8440 (18610)8225 (18136)6160 (13580)8800 (19401)6100 (13448)8225 (18136)8225 (18136)9775 (21550)9775 (21550)
Operating weight6180 kg6180 (13620)6010 (13250)6010 (13250)8440 (18610)8225 (18136)6160 (13580)8800 (19401)6100 (13448)8225 (18136)8225 (18136)9775 (21550)9775 (21550)

Operating dimensions with standard arm

Maximum digging reach20, 5 ft, in.6230 (20 ft 5 in)6230 (20 ft 5 in)6230 (20 ft 5 in)7141 (23 ft 5 in)6450 (21 ft 2 in)
Maximum digging reach6.23 m6230 (20 ft 5 in)6230 (20 ft 5 in)6230 (20 ft 5 in)7141 (23 ft 5 in)6450 (21 ft 2 in)
Maximum digging depth12, 4 ft, in.
Maximum digging depth3.77 m
Maximum dumping height13, 8 ft, in.
Maximum dumping height4.17 m
Transport height8, 4 ft, in.2540 (8 ft 4 in)2540 (8 ft 4 in)2540 (8 ft 4 in)2660 (8 ft 9 in)2690 (8 ft 10 in)2595 (8 ft 6 in)2550 (8 ft 5 in)2645 (8 ft 8 in)2690 (8 ft 10 in)2680 (8 ft 10 in)2810 (9 ft 3 in)2810 (9 ft 3 in)
Transport height2.54 m2540 (8 ft 4 in)2540 (8 ft 4 in)2540 (8 ft 4 in)2660 (8 ft 9 in)2690 (8 ft 10 in)2595 (8 ft 6 in)2550 (8 ft 5 in)2645 (8 ft 8 in)2690 (8 ft 10 in)2680 (8 ft 10 in)2810 (9 ft 3 in)2810 (9 ft 3 in)
Transport length18, 11 ft, in.5760 (18 ft 11 in)5760 (18 ft 11 in)5760 (18 ft 11 in)6574 (21 ft 7 in)6460 (21 ft 2 in)5995 (19 ft 8 in)7010 (23 ft )6015 (19 ft 9 in)6460 (21 ft 2 in)6460 (21 ft 2 in)6490 (21 ft 4 in)6490 (21 ft 4 in)
Transport length5.76 m5760 (18 ft 11 in)5760 (18 ft 11 in)5760 (18 ft 11 in)6574 (21 ft 7 in)6460 (21 ft 2 in)5995 (19 ft 8 in)7010 (23 ft )6015 (19 ft 9 in)6460 (21 ft 2 in)6460 (21 ft 2 in)6490 (21 ft 4 in)6490 (21 ft 4 in)
