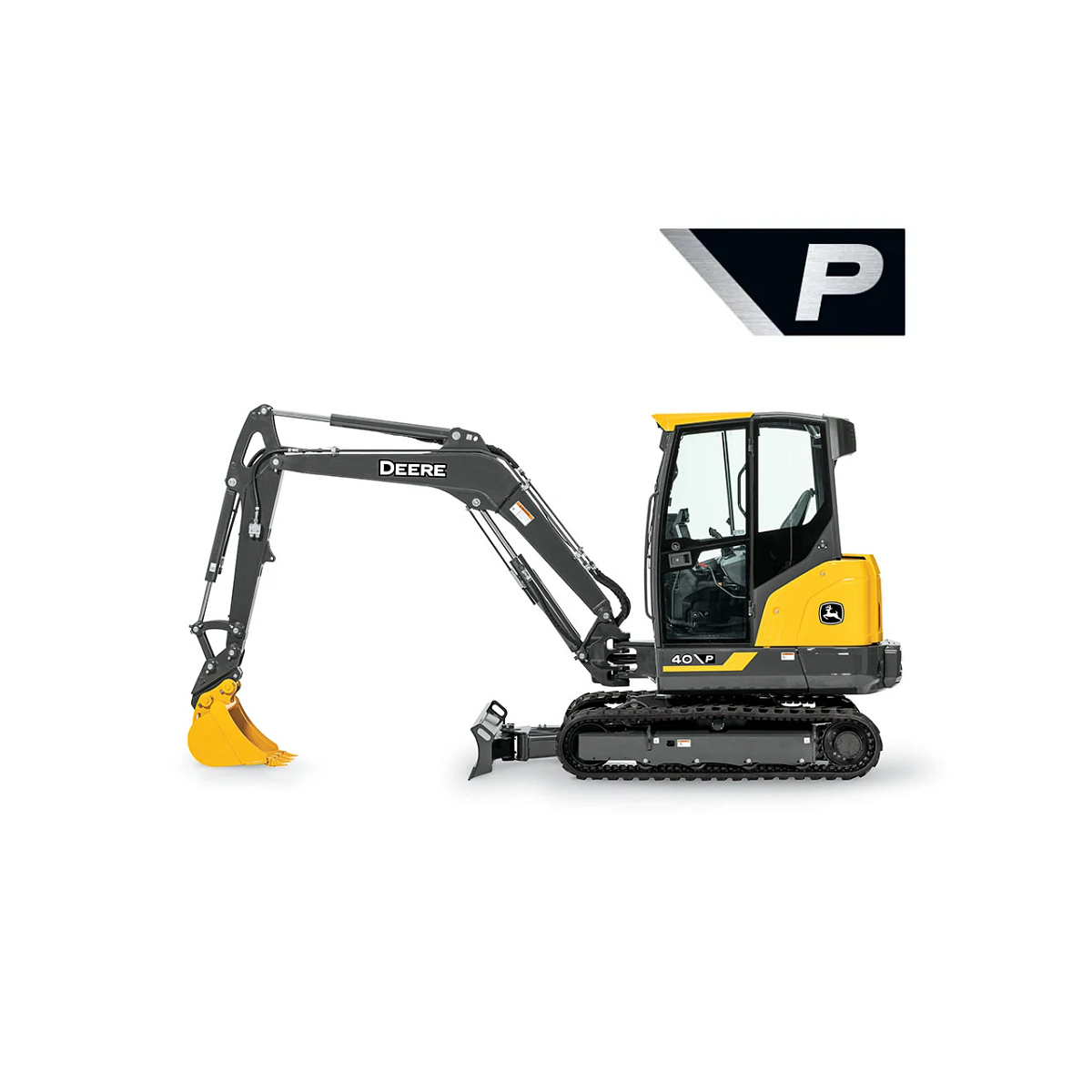

Front left angle of 40 P-Tier Excavator with P flag in the top right corner and "new" in the top left corner
No items found.
new
John Deere
40 P
Compact Excavators

John Deere 40 P-Tier

Starting at

Key Features

  • Turbocharged Engine Delivers Impressive Power
  • Optimized for Attachment Versatility and Digging Power
  • Easier Service Access to Help Reduce Downtime
  • Technology Options like Camera System and JDLink™/Connected Support
Request a Quote
Order Now
Apply for financing
Apply for financing
Print Page
Loan Calculator
Product Brochure
Features
Specifications
Smooth, Efficient Performance for Everyday Jobs

Compact size paired with precise hydraulic control and fuel‑saving features like auto‑idle helps operators work efficiently while maintaining control and reducing operating costs across a wide range of applications.

Construction site with a skid-steer loader and a compact excavator digging into dirt piles, with concrete retaining walls and a mountainous landscape in the background
Designed for Simplified Transport

Under 10,000 lbs for simplified transport, helping ease logistics costs for contractors and rental operations.

Compact excavator operating on a rocky slope at a construction site, with the machine’s arm digging into the dirt and a large mound of earth rising behind it
Maximize Versatility with Quick Attachment Changes

Standard auxiliary hydraulics and quick‑coupler capability enable fast switching between buckets, augers, and hammers, helping crews stay productive and adapt quickly as jobsite needs change.

Compact excavator using a mulching head to cut down and clear small trees and brush in a grassy field, with debris falling and dense greenery in the foreground
Question text goes here

Answer text goes here

Engine
Manufacturer

Yanmar

Model

3TNV86CT-DJWN9

Non-road emission standards

EPA Tier 4 Final

Displacement

95.8 cu in.

Displacement

1.57 L

Net power

2600 rpm

Net power at net power rpm (ISO 9249)

40 hp

Net power at net power rpm (ISO 9249)

30 kW

Powertrain
Maximum travel speed low/slow

1.7 mph

Maximum travel speed low/slow

2.8 km/h

Maximum travel speed high/fast

3.1 mph

Maximum travel speed high/fast

5.1 km/h

Hydraulics
Main pump maximum rated flow

26.4 gpm

Main pump maximum rated flow

100 L/min

Auxiliary hydraulics

18.5 gpm

Auxiliary hydraulics

70 L/min

Electrical
Alternator rating

55 amp

Work lights

LED Boom light and front left light standard on cab and canopy. Additional LED lights available (1x front right, 1x rear)

Undercarriage
Standard track width

14.3 in.

Standard track width

362 mm

Ground pressure with long arm, standard track, and cab

4.5 psi

Ground pressure with long arm, standard track, and cab

31 kPa

Upperstructure
Maximum boom swing angle, left

75 degrees

Swing speed, right/left

9.5 rpm

Rear overhang

14 in.

Rear overhang

350 mm

Refill Capacities
Fuel tank

15.3 gal.

Fuel tank

58 L

Operating weight with standard arm
Conditions for measuring operating weight with standard arm

Standard Arm, Cab, Standard Counterweight, straight blade, hydraulic coupler, and rubber tracks

Operating weight

8795 lb.

Operating weight

3990 kg

Operating weight with long arm
Conditions for measuring operating weight with long arm

Long Arm, Cab, Extra Counterweight, straight blade, hydraulic coupler, and rubber tracks

Operating weight

9190 lb.

Operating weight

4169 kg

Operating dimensions with standard arm
Conditions for measuring operating dimensions

Standard Arm 1.4 m (4 ft. 7.12 in.), Canopy, Standard Counterweight, rubber track, and coupler

Maximum digging reach

18, 1 ft, in.

Maximum digging reach

5.52 m

Maximum digging depth

11 ft, in.

Maximum digging depth

3.36 m

Transport height

8, 2 ft, in.

Transport height

2.5 m

Overall length, blade in front

16, 6 ft, in.

Overall length, blade in front

5.03 m

Digging force, bucket

8340 lbf

Digging force, bucket

37.1 kN

Digging force, arm

4496 lbf

Digging force, arm

20 kN

Operating dimensions with long arm
Conditions for measuring operating dimensions

Long Arm 1.65 m (5 ft. 4.96 in.), Cab, extra Counterweight, rubber track, and coupler

Maximum digging reach

18, 10 ft, in.

Maximum digging reach

5.75 m

Maximum digging depth

11, 10 ft, in.

Maximum digging depth

3.61 m

Transport height

8 ,2 ft, in.

Transport height

2.5 m

Overall length, blade in front

16, 9 ft, in.

Overall length, blade in front

5.11 m

Digging force, bucket

8340 lbf

Digging force, bucket

37.1 kN

Digging force, arm

4496 lbf

Digging force, arm

20 kN
