Compact Construction
>
Compact Excavators
>
John Deere 35 P-Tier

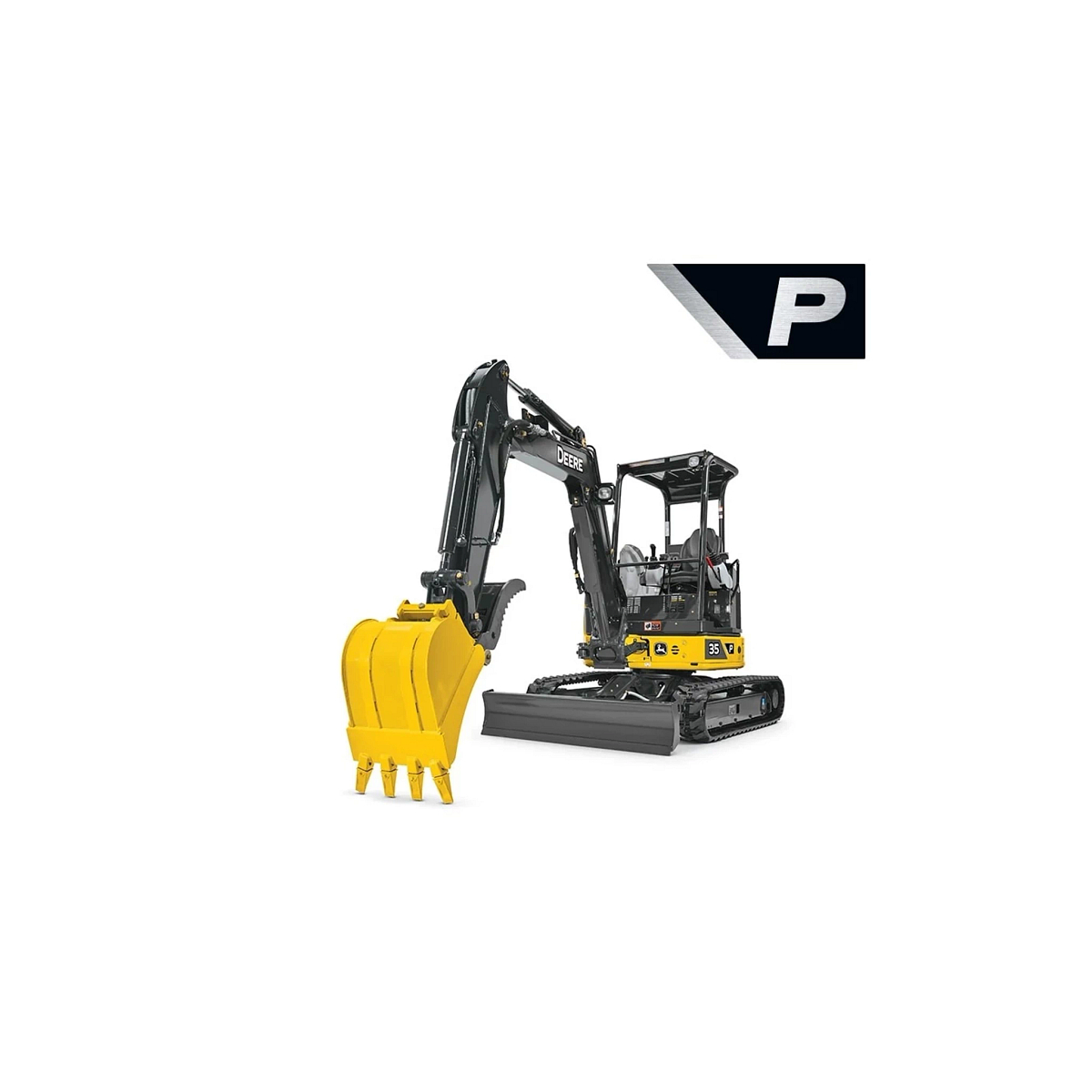

Studio image of a 35 P-Tier Compact Excavator

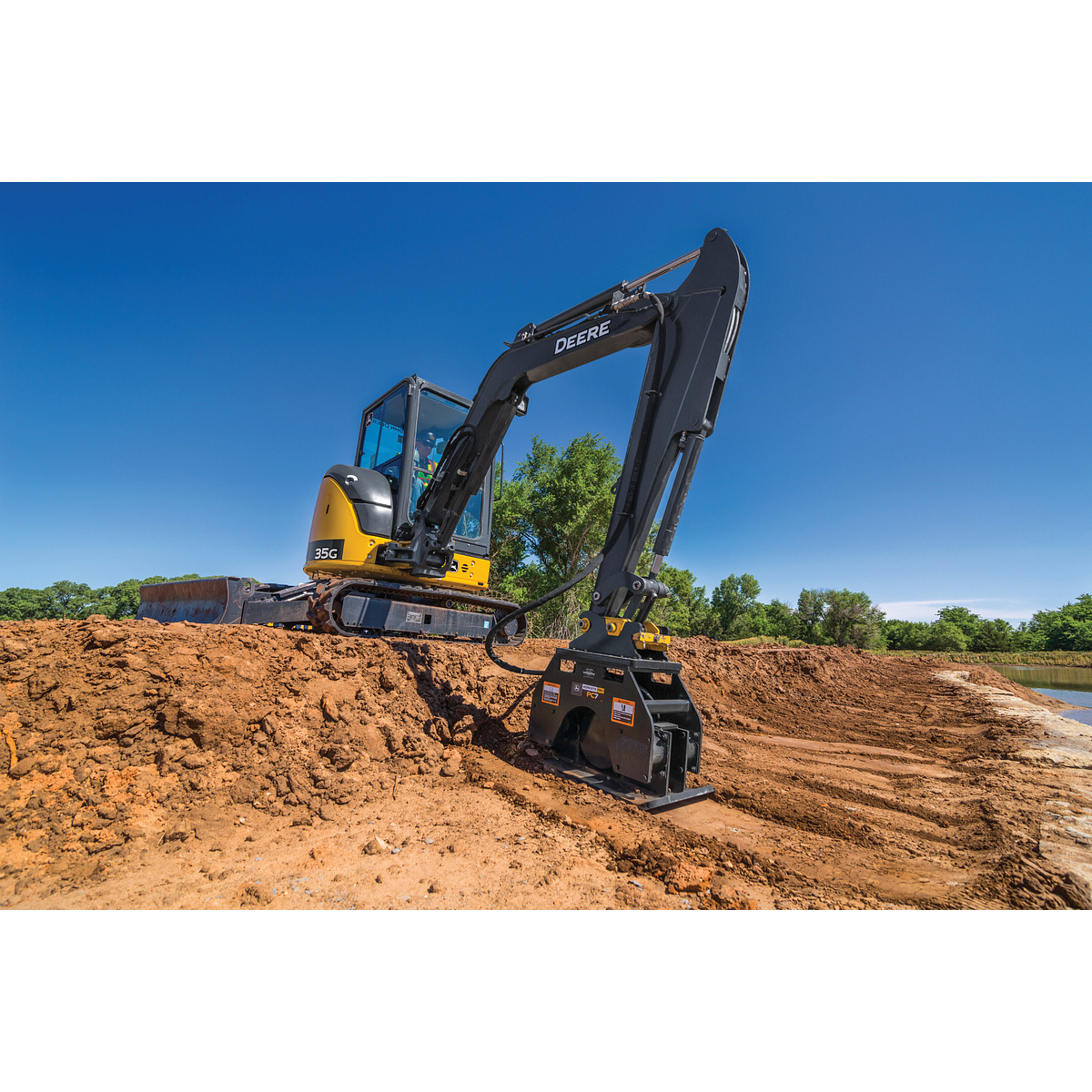

Yellow and black tracked excavator using a plate compactor attachment to smooth dirt on a large construction site, with green trees under a clear blue sky in the background
No items found.
new
John Deere
35 P
Compact Excavators

John Deere 35 P-Tier

Starting at

68,240.00

52,900.00

Key Features

  • Net Power: 23.3 hp (17.4 kW)
  • Max. Digging Depth: 10 ft. 0 in. (3.06 m)
  • Operating Weight: 8,135 lb. (3,690 kg)
  • Max Reach: 17 ft. 1 in. (5.21 m)
Request a Quote
Order Now
Apply for financing
Apply for financing
Print Page
Loan Calculator
Product Brochure
Features
Specifications
Work Confidently in Tight Spaces

A zero‑tail‑swing design allows operators to work close to structures, traffic, and obstacles with reduced risk of contact—perfect for urban jobsites, residential work, and confined utility projects.

Construction worker in a high-visibility vest and hard hat attaching a chain to equipment while standing next to an excavator bucket at a job site
Maximize Productivity with Versatile Attachments

Standard auxiliary hydraulics and quick‑coupler capability enable fast attachment changes, helping crews move seamlessly between digging, trenching, grading, and material handling without downtime.

Close-up of a person’s hand gripping a joystick control lever inside heavy equipment, with a cloudy sky visible through the window in the background
Smooth, Efficient Performance for Everyday Jobs

Compact size paired with precise hydraulic control and fuel‑saving features like auto‑idle helps operators work efficiently while maintaining control and reducing operating costs across a wide range of applications.

Construction site with a skid-steer loader and a compact excavator digging into dirt piles, with concrete retaining walls and a mountainous landscape in the background
Question text goes here

Answer text goes here

Specs & Compare
Select up to 4 models to compare specifications
John Deere
35 P
Compact Excavator
JOHN DEERE
30 P-Tier (Cab) Tier 4 Final
JOHN DEERE
30G-Tier Tier 4 Final
JOHN DEERE
35G-Tier (Canopy) Tier 4 Final
JOHN DEERE
35G-Tier Tier 4 Final
JOHN DEERE
30 P-Tier (Canopy) Tier 4 Final
JOHN DEERE
35 P-Tier Tier 4 Final
BOBCAT
E 37 Tier 4 Final
DEVELON
DX35Z Tier 3
HITACHI
ZX 35 U-5N (Canopy) Tier 4 Final
HITACHI
ZX 35 U-5N Tier 4 Final
HYUNDAI
R 35 Z-9A Tier 4 Final
KUBOTA
U 35-4 Tier 4 Final
SANY
SY 26 U Tier 4 Final
VOLVO
EC37F (Canopy) Tier 4 Final
WACKER NEUSON
EZ 36
YANMAR
ViO 35-5B Tier 3
ADD MODEL

Engine

ManufacturerYanmarYanmarYanmarYanmarYanmarYanmarYanmarKubotaYanmarYanmarYanmarYanmarKubotaYanmarVolvoYanmarYanmar
Displacement100.2 cu in.1.64 (100.2)1.64 (100.2)1.64 (100.2)1.64 (100.2)1.64 (100.2)1.64 (100.2)1.86 (114)1.64 (100.2)1.64 (100.2)1.64 (100)1.65 (100.5)1.65 (101)1.6 (100.2)
Displacement1.64 L1.64 (100.2)1.64 (100.2)1.64 (100.2)1.64 (100.2)1.64 (100.2)1.64 (100.2)1.86 (114)1.64 (100.2)1.64 (100.2)1.64 (100)1.65 (100.5)1.65 (101)1.6 (100.2)
Net power2400 rpm
Net power at net power rpm (ISO 9249)23.3 hp
Net power at net power rpm (ISO 9249)17.4 kW

Powertrain

Maximum travel speed high/fast2.7 mph
Maximum travel speed high/fast4.3 km/h
Swing speed9 rpm9.19.1999.198.6999.58.910910

Hydraulics

Main pump maximum rated flow20.2 gpm76.8 (20.2)76.8 (20.2)76.8 (20.2)76.8 (20.2)76.8 (20.2)76.8 (20.2)101.2 (26.73)76.8 (20.2)76.8 (20.2)74.8 (19.8)79.2 (21)78 (20.6)110 (29.1)120 (31.7)115.8 (31)
Main pump maximum rated flow76.8 L/min76.8 (20.2)76.8 (20.2)76.8 (20.2)76.8 (20.2)76.8 (20.2)76.8 (20.2)101.2 (26.73)76.8 (20.2)76.8 (20.2)74.8 (19.8)79.2 (21)78 (20.6)110 (29.1)120 (31.7)115.8 (31)

Undercarriage

Standard track width12 in.
Standard track width300 mm

Refill Capacities

Fuel tank11.1 gal.42 (11.1)42 (11.1)42 (11.1)42 (11.1)42 (11.1)42 (11.1)52 (13.74)42 (11.1)42 (11.1)40 (10.5)46.9 (12.4)34 (9)70 (18.5)42 (11)
Fuel tank42 L42 (11.1)42 (11.1)42 (11.1)42 (11.1)42 (11.1)42 (11.1)52 (13.74)42 (11.1)42 (11.1)40 (10.5)46.9 (12.4)34 (9)70 (18.5)42 (11)
Hydraulic tank8.5 gal.43 (11.4)43 (11.4)32 (8.5)32 (8.5)43 (11.4)32 (8.5)8.3 (2.2)32 (8.5)32 (8.5)37 (9.8)44.6 (11.8)30 (7.9)47 (12.4)246 (65)
Hydraulic tank32 L43 (11.4)43 (11.4)32 (8.5)32 (8.5)43 (11.4)32 (8.5)8.3 (2.2)32 (8.5)32 (8.5)37 (9.8)44.6 (11.8)30 (7.9)47 (12.4)246 (65)

Operating weight with standard arm

Operating weight8135 lb.3275 (7220)3275 (7220)3520 (7760)3690 (8135)3105 (6850)3520 (7760)3677 (8106.39)3660 (8068)3440 (7584)3610 (7959)3550 (7800)3687 (8129)2760 (6085)3675 (8101)3718 (8196.8)3700 (8157)
Operating weight3690 kg3275 (7220)3275 (7220)3520 (7760)3690 (8135)3105 (6850)3520 (7760)3677 (8106.39)3660 (8068)3440 (7584)3610 (7959)3550 (7800)3687 (8129)2760 (6085)3675 (8101)3718 (8196.8)3700 (8157)

Operating dimensions with standard arm

Maximum digging reach17, 1 ft, in.4890 (16 ft 1 in)4890 (16 ft 1 in)5210 (17 ft 1 in)5210 (17 ft 1 in)4890 (16 ft 1 in)5210 (17 ft 1 in)5101 (16 ft 9 in)5090 (16 ft 8 in)5210 (17 ft 1 in)5210 (17 ft 1 in)5315 (17 ft 5 in)5272 (17 ft 4 in)5123 (16 ft 10 in)5302 (17 ft 5 in)
Maximum digging reach5.21 m4890 (16 ft 1 in)4890 (16 ft 1 in)5210 (17 ft 1 in)5210 (17 ft 1 in)4890 (16 ft 1 in)5210 (17 ft 1 in)5101 (16 ft 9 in)5090 (16 ft 8 in)5210 (17 ft 1 in)5210 (17 ft 1 in)5315 (17 ft 5 in)5272 (17 ft 4 in)5123 (16 ft 10 in)5302 (17 ft 5 in)
Maximum digging depth10 ft, in.
Maximum digging depth3.06 m
Maximum dumping height10, 10 ft, in.
Maximum dumping height3.31 m
Transport height8, 2 ft, in.2480 (8 ft 2 in)2480 (8 ft 2 in)2480 (8 ft 2 in)2480 (8 ft 2 in)2480 (8 ft 2 in)2480 (8 ft 2 in)2468 (8 ft 1 in)2515 (8 ft 3 in)2480 (8 ft 2 in)2480 (8 ft 2 in)2500 (8 ft 2 in)2470 (8 ft 1 in)2430 (8 ft )2458 (8 ft 1 in)2629 (8 ft 8 in)
Transport height2.48 m2480 (8 ft 2 in)2480 (8 ft 2 in)2480 (8 ft 2 in)2480 (8 ft 2 in)2480 (8 ft 2 in)2480 (8 ft 2 in)2468 (8 ft 1 in)2515 (8 ft 3 in)2480 (8 ft 2 in)2480 (8 ft 2 in)2500 (8 ft 2 in)2470 (8 ft 1 in)2430 (8 ft )2458 (8 ft 1 in)2629 (8 ft 8 in)
Transport length15, 3 ft, in.4450 (14 ft 7 in)4450 (14 ft 7 in)4640 (15 ft 3 in)4640 (15 ft 3 in)4450 (14 ft 7 in)4640 (15 ft 3 in)4661 (15 ft 4 in)4645 (15 ft 3 in)4640 (15 ft 3 in)4640 (15 ft 3 in)4790 (15 ft 9 in)4749 (15 ft 7 in)4285 (14 ft 1 in)4596 (15 ft 1 in)5507 (18 ft 1 in)4610 (15 ft 1 in)
Transport length4.64 m4450 (14 ft 7 in)4450 (14 ft 7 in)4640 (15 ft 3 in)4640 (15 ft 3 in)4450 (14 ft 7 in)4640 (15 ft 3 in)4661 (15 ft 4 in)4645 (15 ft 3 in)4640 (15 ft 3 in)4640 (15 ft 3 in)4790 (15 ft 9 in)4749 (15 ft 7 in)4285 (14 ft 1 in)4596 (15 ft 1 in)5507 (18 ft 1 in)4610 (15 ft 1 in)
