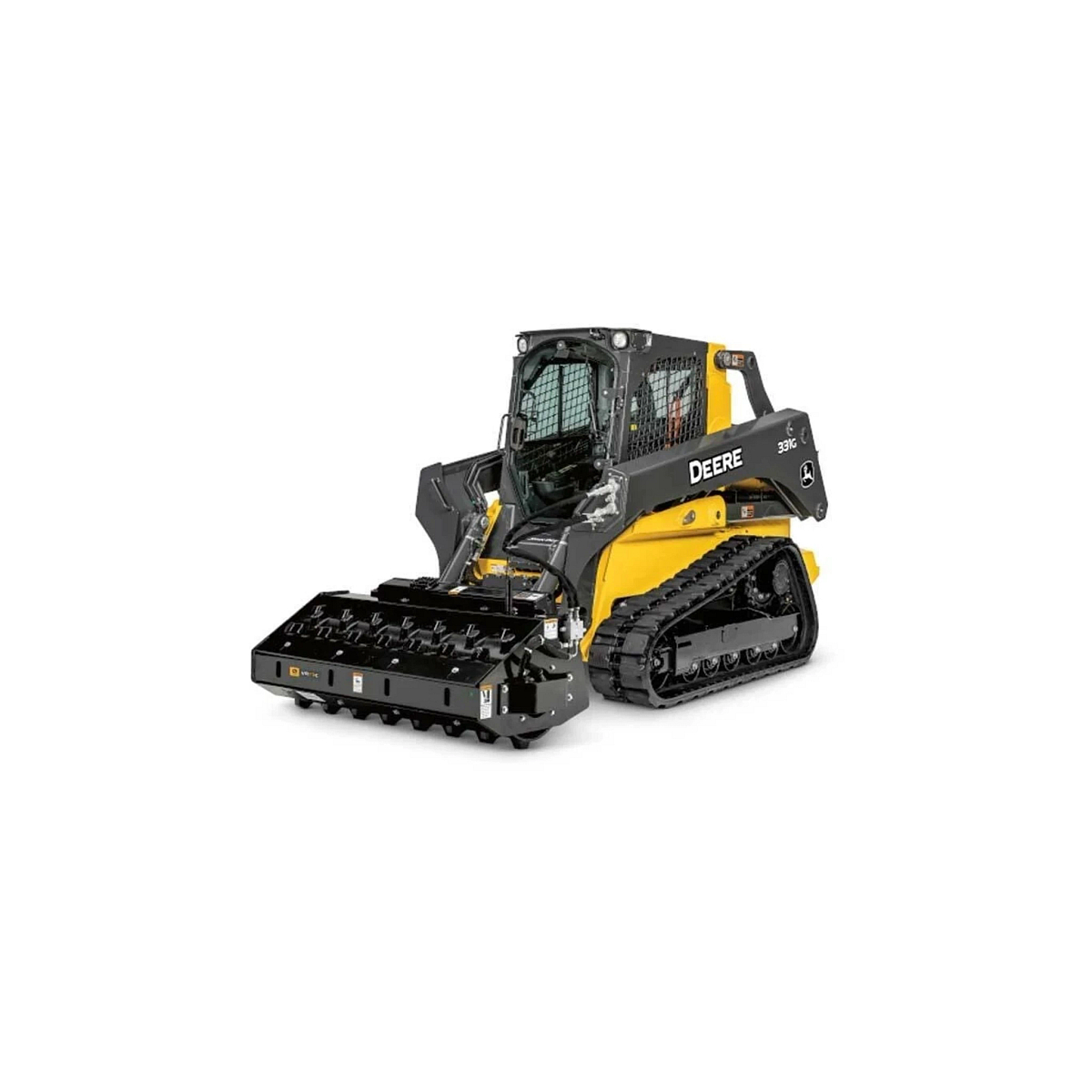

Studio image of a VR73C Vibratory Roller attachment on a skid steer with tracks
No items found.
new
John Deere
VR73C
Attachments

John Deere VR73C Vibratory Roller

Starting at

14,445.00

Quik-Tatch™ System

Equipped with the Quik-Tatch™ system, the C-Series vibratory rollers allows for rapid attachment to compatible loaders. In just one minute, operators can securely connect or disconnect the roller, minimizing downtime and boosting efficiency on site.

Skid steer loader with a front grading attachment working on a dirt slope.
Versatile Drum Options

The vibratory roller offers two drum styles: a smooth drum for coarse materials like sand and gravel, and a sheepsfoot drum for compacting dense materials such as clay. This allows operators to opt for the best configuration tailored to their specific tasks, enhancing productivity.

Overhead front right view of smooth drum vibratory roller mounted to the front of a skid steer in a large dirt field
Improve Productivity with the C-Series Vibratory Rollers

Utilizing standard hydraulics, the roller produces significant compaction forces, and its drum oscillation of ±15 degrees ensures adaptability to different terrains. Compatible with John Deere loaders, it's an economic solution eliminating the costs tied to self-propelled rollers.

Front left view of VR Series Vibratory Roller on a 320D Skid Steer rolling a gravel section of parking lot outside a large building
Question text goes here

Answer text goes here

Dimensions
Overall Width

2 m

Overall Width

79 in.

Overall Length

99 cm

Overall Length

39 in.

Overall Height

79 cm

Overall Height

31 in.

Drum
Width

1.8 m

Width

73 in.

Diameter - Smooth Drum

61 cm

Diameter - Smooth Drum

24 in.

Diameter - Sheepsfoot Drum (Without Pads)

51 cm

Diameter - Sheepsfoot Drum (Without Pads)

20 in.

Oscillation

15 degree (angle)

Operation
Dynamic Force

3878 kgf

Dynamic Force

8550 lbf

Vibrations Per Minute - Range

41–95 L/min

Vibrations Per Minute - Range

11–25 gpm

Vibrations Per Minute - Optimum Performance

75.7 L/min

Vibrations Per Minute - Optimum Performance

20 gpm

Operating Weight - Smooth Drum

1043 kg

Operating Weight - Smooth Drum

2300 lb.

Operating Weight - Sheepsfoot Drum

1012 kg

Operating Weight - Sheepsfoot Drum

2230 lb.

Vehicle Compatibility
Compact Track Loader - Smooth Drum (May Require Additional Weights)

317G, 325G, 331G, 333G

Skid Steer Loader - Smooth Drum (May Require Additional Weights)

330G, 332G

Compact Track Loader - Sheepsfoot Drum (May Require Additional Weights)

317G, 325G, 331G, 333G

Skid Steer Loader - Sheepsfoot Drum (May Require Additional Weights)

330G, 332G
