new
John Deere
SB72E
Attachments

John Deere SB72E Snow Blower

Starting at

Direct Drive Motor System

The Snow Blower features a direct drive motor located at both the auger and impeller. This design is meant to enhance reliability and performance with fewer parts compared to chain and sprocket configurations, ideal for efficient snow removal.

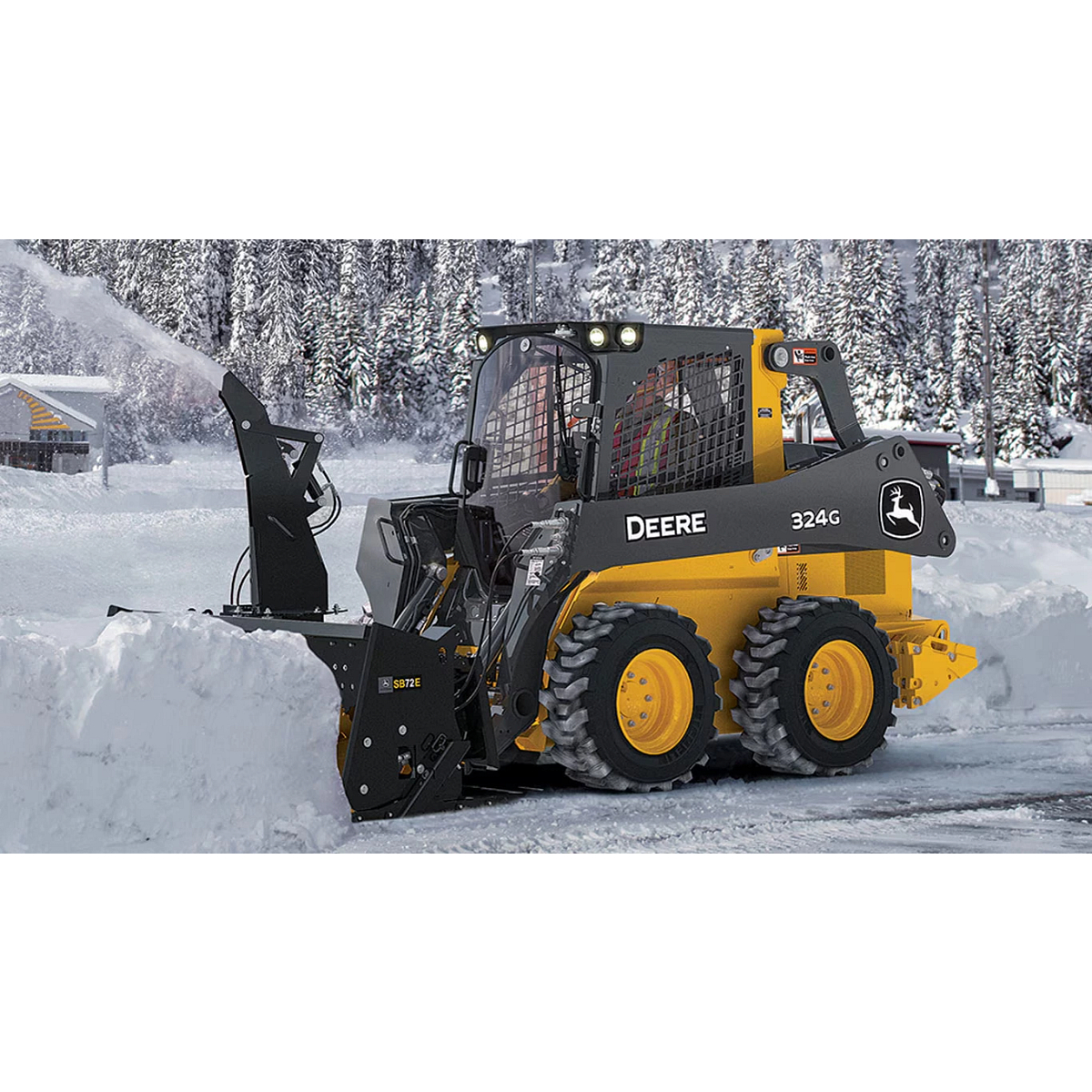

A compact loader equipped with a front snow blower clearing snow off a road, blowing snow to the side with trees and buildings in the background
Hydraulically-Actuated Chute and Deflector

This snow blower comes with a hydraulically-actuated chute and deflector, allowing operators to control snow placement easily from inside the cab. The chute rotates 270 degrees, enabling versatile and precise snow throwing without needing to exit the vehicle.

A close-up of a construction snowblower attachment with a discharge chute connected by hydraulic arms, shown with visible hoses and warning labels
High-Volume Intake Opening

With a high-volume intake opening, the snow blower can handle deep snow, helping to maximize productivity during snow clearing operations. The intake is designed to efficiently channel large amounts of snow into the blower.

A compact loader equipped with a front snow blower clearing a path by blowing snow forward and to the side, with leafless trees in the background
Question text goes here

Answer text goes here

Dimensions
Length

1170 mm

Length

46 in.

Width

1955 mm

Width

77 in.

Height

1500 mm

Height

95 in.

Weight

410 kg

Weight

905 lb.

Operation
Intake Width

1830 mm

Intake Width

72 in.

Intake Height

685 mm

Intake Height

27 in.

Auger Diameter

380 mm

Auger Diameter

15 in.

Fan Diameter

485 mm

Fan Diameter

19 in.

Maximum Throw Distance

12.2 m

Maximum Throw Distance

40 ft

Discharge Chute Control

Electric-over-hydraulic control

Chute Rotation

270 degree (angle)

Hydraulics
Required Hydraulics

Standard flow

Auger Motors

Single

Minimum Required Flow

57 L/min

Minimum Required Flow

15 gpm

Maximum Required Flow

102 L/min

Maximum Required Flow

27 gpm

Maximum Operating Pressure

24100 kPa

Maximum Operating Pressure

3500 psi

Vehicle Compatibility
Electrical Connection Requirements

14-pin Deutsch electrical connector

Hydraulic Connection Required Quick-Connect Coupler Diameter

12.7 mm

Hydraulic Connection Required Quick-Connect Coupler Diameter

0.5 in.

Compact Track Loader

317G, 325G

Compact Wheel Loader

184 G, 204L/P, 304L/P

Skid Steer Loader

316GR, 318G, 320G, 324G
