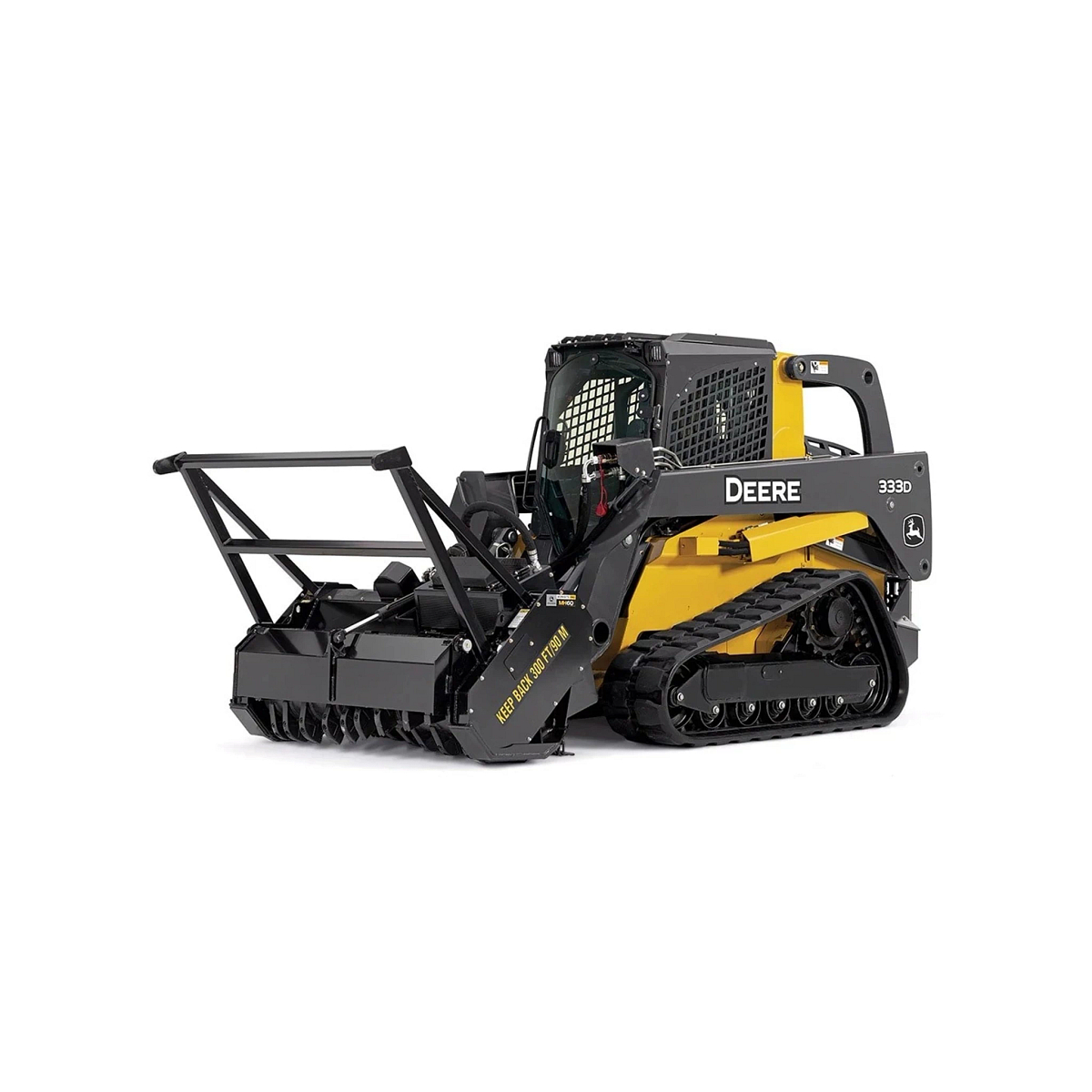

Studio image with a front left view of an MH60D Mulching Head
No items found.
new
John Deere
MH60D
Attachments

John Deere MH60D Mulching Head

Starting at

46,512.00

Designed for durability and flexibility

These mulching heads, built for John Deere and compatible loaders, feature a durable steel frame, efficient mulching chamber, and smooth rotor design that reduces drag and power use. An adjustable push bar and sealed rotor bearings enhance versatility and long-term performance.

Designed for Durability and Flexibility
Efficient mulching capabilities

Equipped with a two-speed hydraulic system and 36 double-carbide-tipped teeth, the mulching head efficiently processes up to 8-in. (20.3-cm) trees and 12-in. (30.5-cm) stumps. Its redesigned chamber optimizes material flow and reduces wear, delivering high-quality mulch quickly and effectively.

Skid steer loader using a front-mounted mulching head to grind branches in a dry, brushy area in front of a house
Prominent Pressure Gauge

Prominently positioned pressure gauge that is visible from the cab lets operators easily monitor hydraulic operating pressure for optimized performance.

Close-up of hydraulic pressure gauge mounted, showing color-coded pressure ranges in green, yellow, and red, with braided hoses and a warning label visible on the metal housing.
Question text goes here

Answer text goes here

Mulching Head
Overall Width

1880 mm

Overall Width

74 in.

Cutting Width

1520 mm

Cutting Width

60 in.

Height

1430 mm

Height

56 in.

Length

1390 mm

Length

55 in.

Weight

1240 kg

Weight

2730 lb.

Cutting Tools
Cutting Tool Type, Standard

Double-carbide tipped tool

Cutting Tool Type, Optional

Knife tool

Number of Cutting Tools with Smooth Rotor

30

Hydraulics
Minimum Flow

91 L/min

Minimum Flow

24 gpm

Maximum Flow

170 L/min

Maximum Flow

45 gpm

Maximum Operating Pressure

28000 kPa

Maximum Operating Pressure

4000 psi

Vehicle Compatibility
Hydraulic Connection

12.7-mm (0.5 in.) quick-connect couplers with 9.525-mm (0.375 in.) case-drain coupler

Compact Track Loaders

331G, 333G

Skid Steer Loaders

330G, 332G
