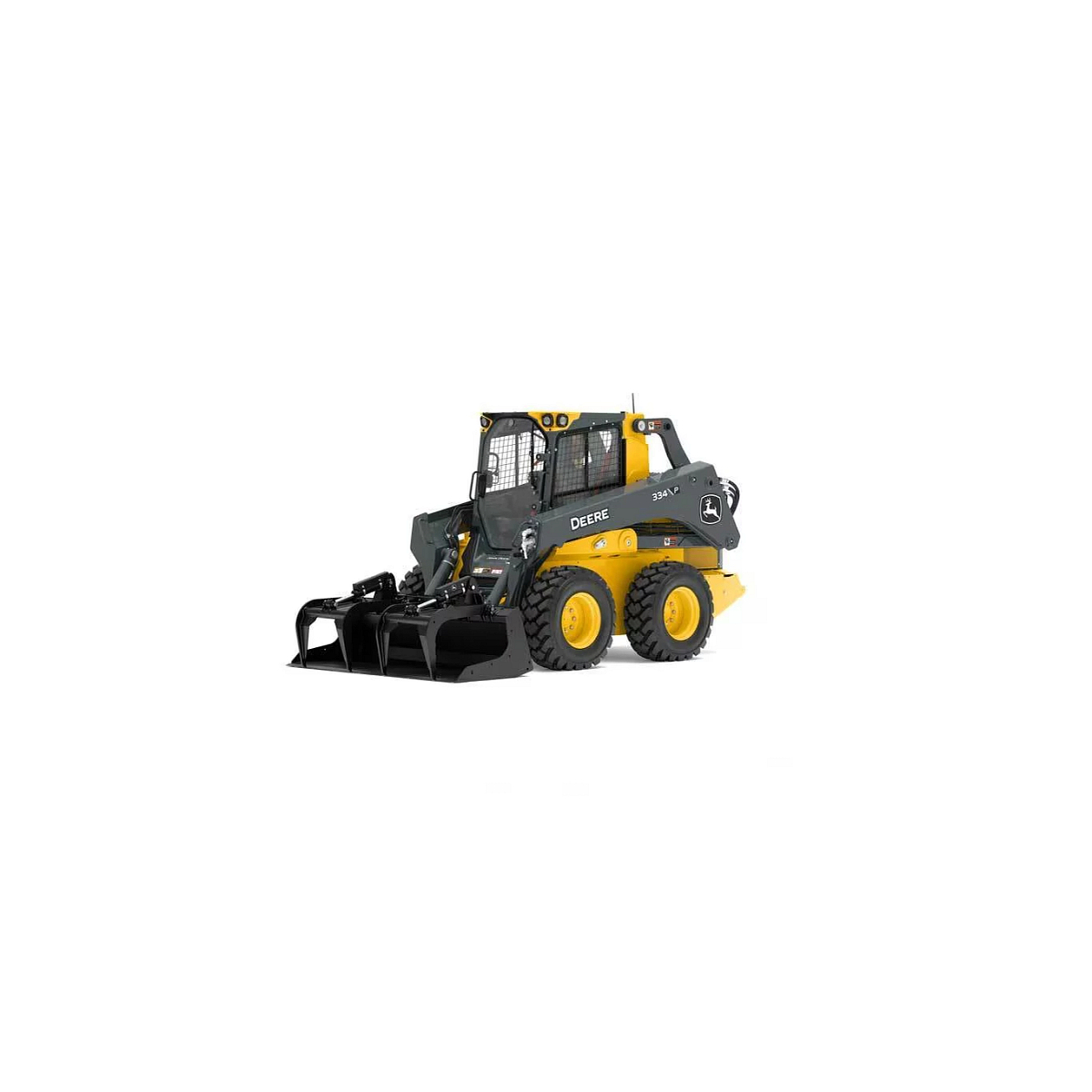

Front studio view of GS84B Scrap Grapple on 334P Skid Steer
No items found.
new
John Deere
GS84B
Attachments

John Deere GS84B Scrap Grapple

Starting at

7,577.00

Independent-Action Grapples

The GS Series Scrap Grapple features two independent-action grapples, making it easy to handle different-sized objects simultaneously. This capability enhances efficiency in handling materials of varying shapes and sizes, ideal for operations in scrap yards or construction sites.

Front left view of a wheel loader using a GS scrap grapple to move cubes of scrap metal
Convenient Pre-Drilled Cutting Edges

This model is equipped with pre-drilled holes on its cutting edges to accommodate optional bolt-on, replaceable edges. This feature provides flexibility in maintaining sharp edges for optimal performance and durability, minimizing downtime.

Yellow and black John Deere 317G compact track loader with rubber tracks, lifting and dumping a bucket of dirt and gravel onto a construction site surface, with a grassy field and trees in the background under a clear sky.
Improved Design

Integrated design improvements include better hose routing and low-profile cylinder guards to prevent interference and simplify maintenance, ensuring efficient operation.

Front studio view of a black GS series scrap grapple
Question text goes here

Answer text goes here

Hydraulics
Cylinder Bore Diameter

63.5 mm

Cylinder Bore Diameter

2.5 in.

Cylinder Rod Diameter

35.6 mm

Cylinder Rod Diameter

1.4 in.

Cylinder Stroke

205.7 mm

Cylinder Stroke

8.1 in.

Maximum Operating Pressure

24131.7 kPa

Maximum Operating Pressure

3500 psi

Dimensions
Weight

537.6 kg

Weight

1185 lb.

Bucket Width

2133.6 mm

Bucket Width

84 in.

Grapple Arm Width

619.8 mm

Grapple Arm Width

24.4 in.

Grapple Width

1658.6 mm

Grapple Width

65.3 in.

Bucket Depth Length

838.2 mm

Bucket Depth Length

33 in.

Grapple Closed Length

1033.8 mm

Grapple Closed Length

40.7 in.

Grapple Opened Length

1059.2 mm

Grapple Opened Length

41.7 in.

Grapple Closed Height

828 mm

Grapple Closed Height

32.6 in.

Grapple Opened Height

1168.4 mm

Grapple Opened Height

46 in.

Grapple Opening (Tine Tip)

950 mm

Grapple Opening (Tine Tip)

37.4 in.

Grapple Opening (Grapple Closed)

459.7 mm

Grapple Opening (Grapple Closed)

18.1 in.

Grapple Opening (Grapple Opened)

1035.05 mm

Grapple Opening (Grapple Opened)

40.75 in.

Pivot Pin Diameter

34.9 mm

Pivot Pin Diameter

1.375 in.

Options
Bolt-On Side Plates

Yes

Vehicle Compatibility
Hydraulic Connection

12.7-mm (0.5 in.) quickconnect couplers

Compact Track Loaders

325G, 331G, 333G

Compact Wheel Loaders

204L, 244L, 304L, 324L

Skid Steer Loaders

320G, 324G, 330G, 332G
