500E Loader

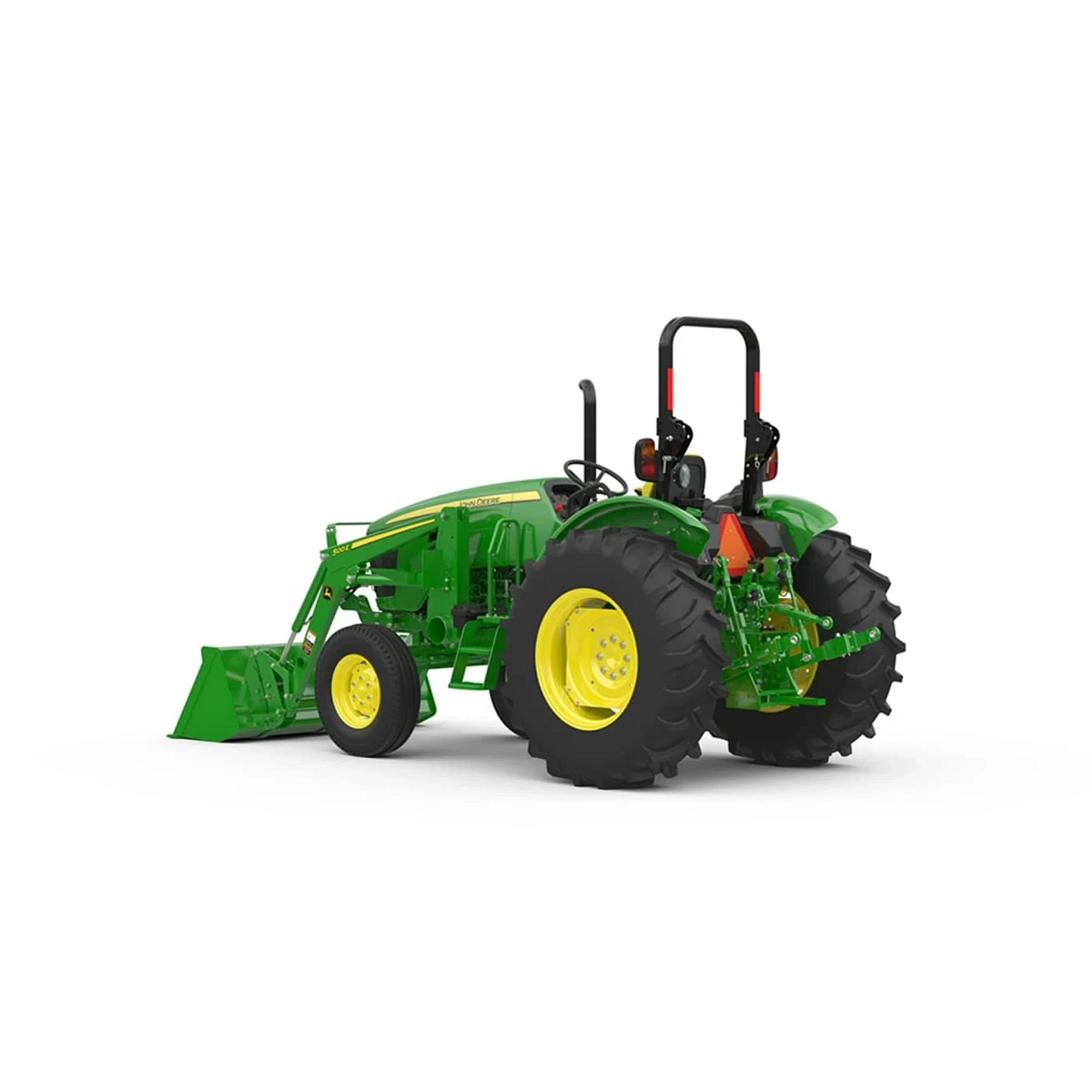

Studio image with a rear left view of a 500E Utility Loader

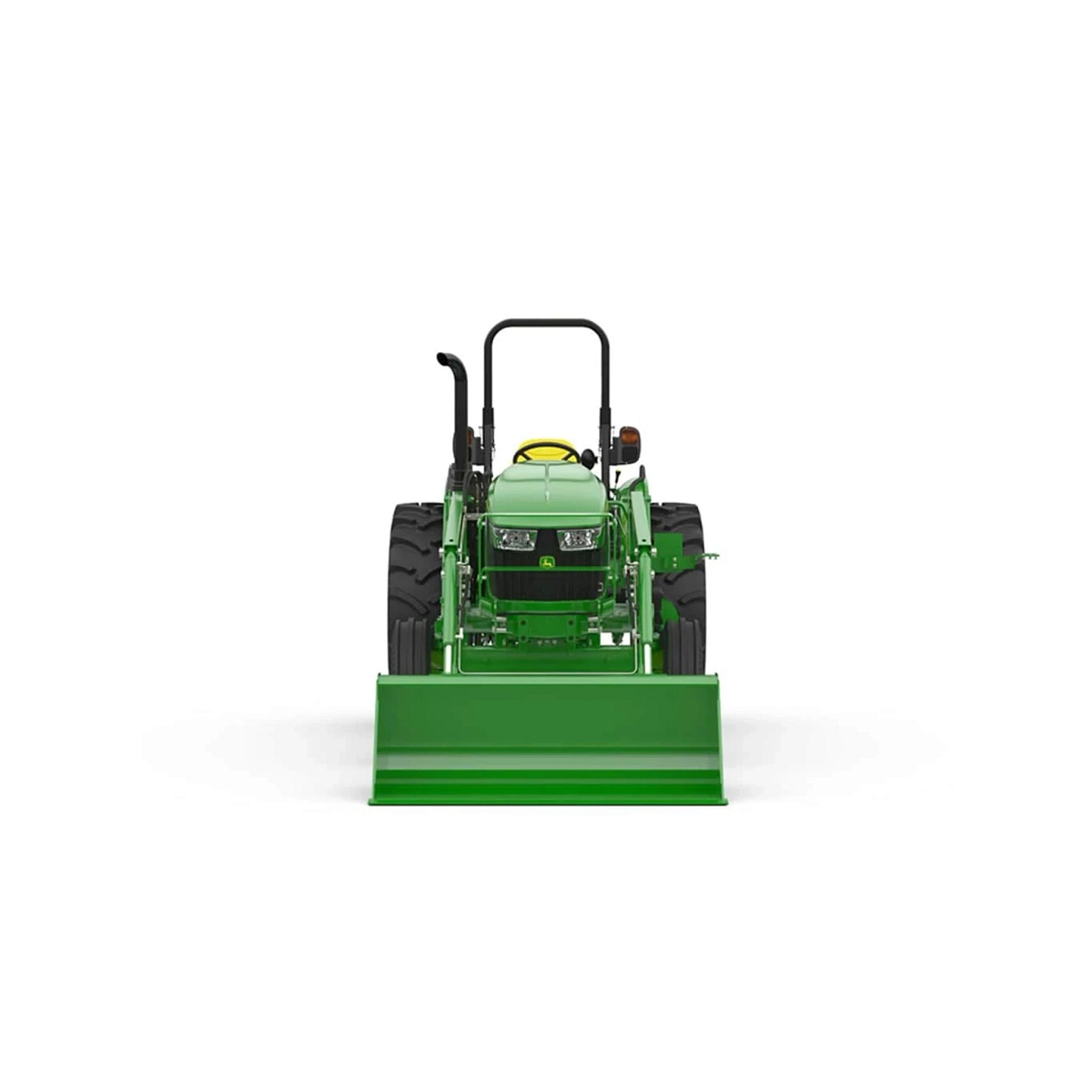

Studio image with a front view of a 500E Utility Loader

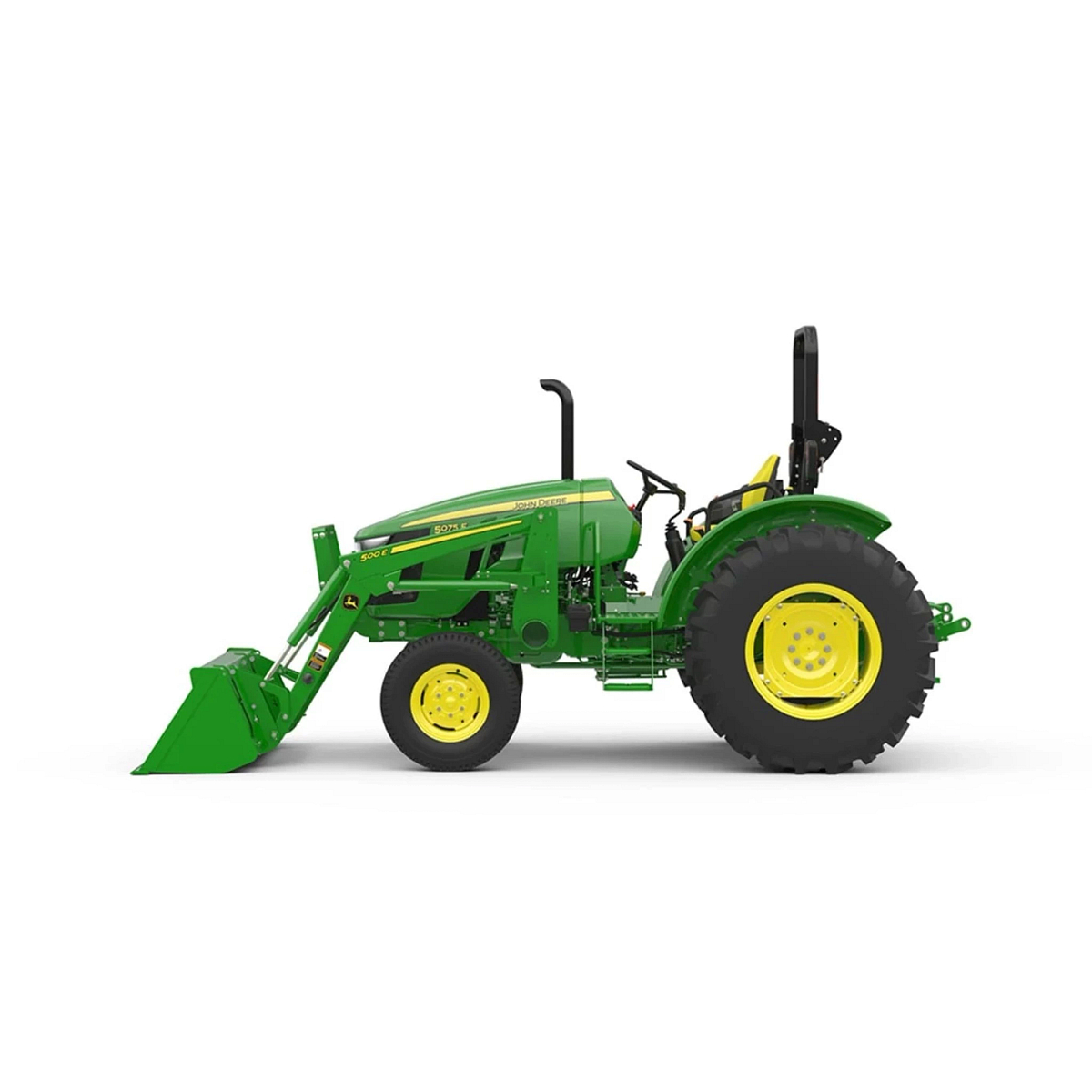

Studio image with a left view of a 500E Utility Loader
No items found.
new
John Deere
500E
Tractor Front Loaders

John Deere 500E

Starting at

Key Features

  • Parking Stands and Couplers
  • Hydraulic Hose and Fittings
  • Quick-Change Attachment Carrier
  • Nitro-Carbonized (Nitrite or Black) Cylinder Rods
Request a Quote
Order Now
Apply for financing
Apply for financing
Print Page
Loan Calculator
Product Brochure
Features
Specifications
Easy Attachment Change

Featuring the John Deere 500 Style attachment carrier, the 500E allows for a quick switch between attachments such as buckets, pallet forks, or bale spears. The process only takes seconds and does not require tools, boosting operator productivity.

500E Front Loader arms positioned behind a detached bucket attachment resting on the ground
Rigid Mounted Design With Optional Upgrades

The 500E Loader is designed as a rigid mounted unit, ensuring close proximity to the tractor for improved maneuverability and visibility. An optional parking stand and coupler kit allows for easy removal if desired, enhancing the loader’s versatility.

Computer-generated black and white sketch of a 500E loader's parking stand
Quick-Change Attachment Carrier

The quick-change attachment carrier allows for fast, easy removal and mounting of attachments without tools.

Studio front left image of a loader resting on the floor, ready to be attached to the quick-change attachment carrier on the tractor behind it
Question text goes here

Answer text goes here

Tractor
Model

5E Series 2WD Tractor

Front Tire

7.5-16 6 PR R1

Rear Tire

13.6-28 6 PR R1

Pump Capacity

11.4 gpm

Rated Pressure

2828 psi

Loader
Base Weight

280.53 kg

Bucket Used

Materials - 1850 mm / 73 in.

Bucket Weight

159 kg

Bucket Weight

351 lb.

Lift Capacity At Full Height - Measured At Pivot (U)

1000 kg

Lift Capacity At Full Height - Measured At Pivot (U)

2200 lb.

Lift Capacity At Full Height - Measured At 800 mm Ahead Of Pivot

682 kg

Lift Capacity At Full Height - Measured At 800 mm Ahead Of Pivot

1500 lb.

Lift Capacity At 59 in. (1500 mm) - Measured At Pivot

1380 kg

Lift Capacity At 59 in. (1500 mm) - Measured At Pivot

3043 lb.

Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X)

980 kg

Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X)

2161 lb.

Boom Breakout Force - Measured At Pivot (Y)

2019 kg

Boom Breakout Force - Measured At Pivot (Y)

4451 lb.

Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z)

1335 kg

Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z)

2944 lb.

At Maximum Height (VV)

979 kg

At Maximum Height (VV)

2158 lb.

Bucket Rollback Force Capacity At Ground-Level Line (ZZ)

1410 kg

Bucket Rollback Force Capacity At Ground-Level Line (ZZ)

3109 lb.

Maximum Lift Height (A)

2850 mm

Maximum Lift Height (A)

112 in.

At Full Height - Bucket Level (B)

2605 mm

At Full Height - Bucket Level (B)

102.5 in.

Clearance At Full Height - Bucket Dumped

2140 mm

Clearance At Full Height - Bucket Dumped

84 in.

Overall Length (I+F)

3790 mm

Overall Length (I+F)

149 in.

Overall Height In Carry Position

1442 mm

Overall Height In Carry Position

57 in.

Digging Depth (H)

180 mm

Digging Depth (H)

7 in.

Reach - At Maximum Height (D)

615 mm

Reach - At Maximum Height (D)

24 in.

Reach - At Ground Level - Bucket Level

1730 mm

Reach - At Ground Level - Bucket Level

68 in.

Dump Angle (E)

43 degree (angle)

Rollback Angle (G)

30 degree (angle)
