Grease fittings accessible from the loader’s side make maintenance easier.
The quick-change attachment carrier allows for fast, easy removal and mounting of attachments without tools.

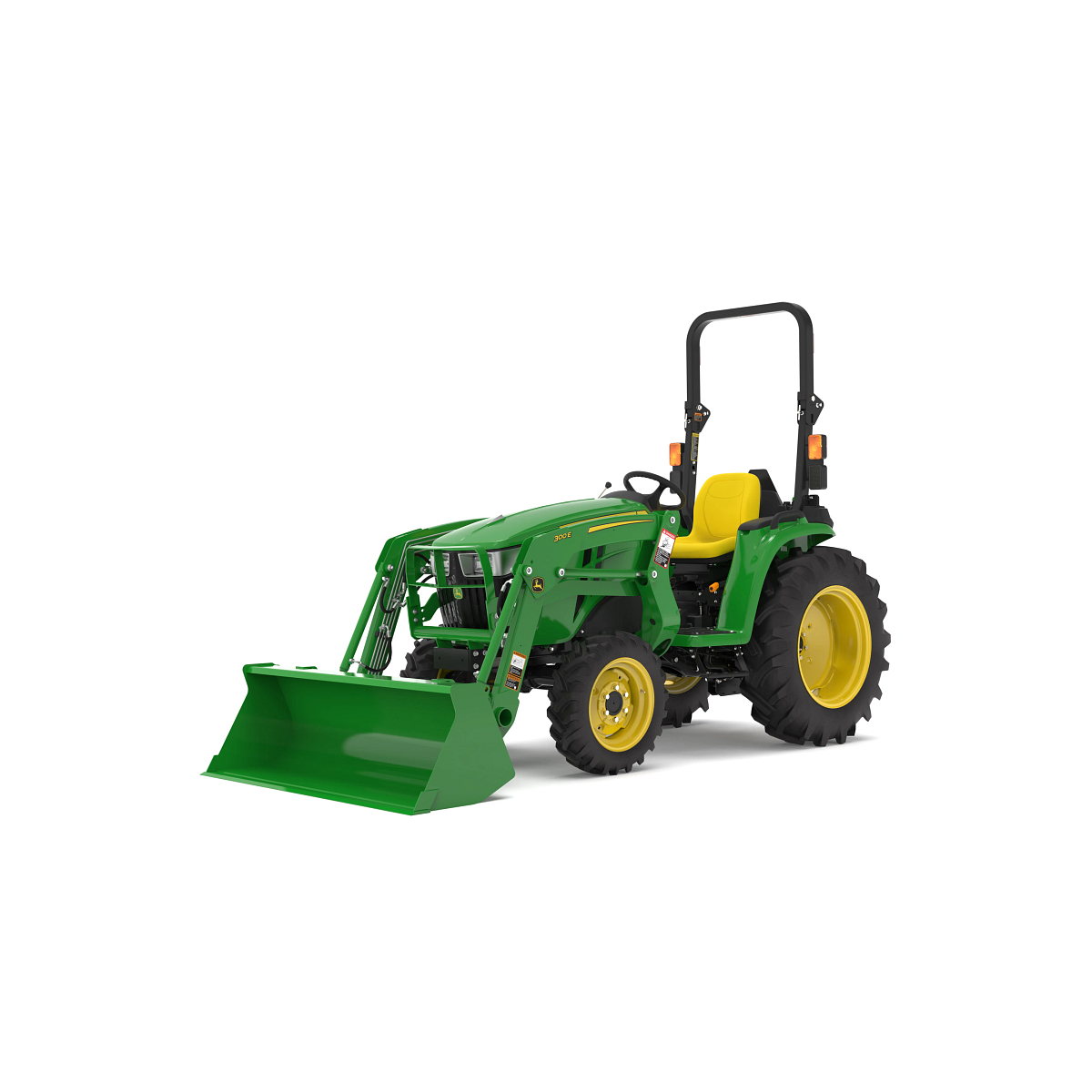

The MSL loader for 1, 2, 3D, and 3E Tractors enables operators of all experience levels to handle loads with greater ease and confidence, thanks to features like consistent implement positioning, increased lift capacity, and reduced material loss.
Answer text goes here
Tractor | |||||||||||||||||||||
| Model | 3025E, 3032E, 3038E | 2025R/2026R | 1025R/1023E/1026R Tractor | 1025R/1023E/1026R Tractor | 2032R, 2038R | 2032R, 2038R | 3203 | 3120/3320/3520/3720/3033R/3039R/3046R | 4310 | 3203 | 3120/3320/3520/3720/3033R/3038R/3039R/3045R/3046R | 4105 | 4310 | 990 and 4005 | 4044M, 4049M, 4052M, 4066M and OOS: 4044R, 4049R, 4052R, 4066R | 4044R, 4049R, 4052R, 4066R | 4044R, 4049R, 4052R, 4066R | 3032E, 3038E | 1023E/1026R Tractor | 4X20 | 4X20 |
| Front Tire | 25x8.50-14 4PR R4 | 23x8.50-12 6PR R4 CL | 23x8.50-12 6PR R4 CL | 23x8.50-12 6PR R4 CL | 23x8.50-14 4PR R4 | 23x8.50-14 4PR R4 | 25X8.50-14 6PR R4 | 7.00-14 6PR R1 | 25X8.50-14 6PR R4 | 25X8.50-14 6PR R4 | 7.00-14 6PR R1 | 10-16.5 6PR R4T1 | 25X8.50-14 6PR R4 | 8.00-16 6PR R1 | 25x10-16.5 4PR R4 | 25x8-16 6PR R1 T1 | 25x8-16 6PR R1 T1 | 25x8.50-14 4PR R4 | 18x8.5-10 4PR R4 | 8.00-16 6PR R1 TI | 8.00-16 6PR R1 TI |
| Rear Tire | 15.00-19.5 4PR | 12.00-16.5 6PR R4 CL | 12.00-16.5 6PR R4 CL | 12.00-16.5 6PR R4 CL | 14-17.5 6PR R4 | 14-17.5 6PR R4 | 15.00-19.5 6PR R4 | 11.2-24 6PR R1 | 15.00-19 6PR R4 | 15.00-19.5 6PR R4 | 11.2-24 6PR R1 | 17.52-24 8PR R4T1 | 15.00-19 6PR R4 | 14.9-24 4PR R1 | 16.9-24 4PR | 13.8-28 4PR R1 T1 | 13.8-28 4PR R1 T1 | 15.00-19.5 4PR | 26x12.00-12 4PR R4 | 13.6-28 4PR R1 TI | 13.6-28 4PR R1 TI |
| Wheelbase | 1595 mm | 1600 mm | 1600 mm | 1600 mm | 1725 mm 68 in. | 1725 mm 68 in. | 1727 mm 68 in. | 1727 mm 68 in. | 1727 mm 68 in. | 1727 mm 68 in. | 1727 mm 68 in. | 1727 mm 68 in. | 1727 mm 68 in. | 1750 mm 68.9 in. | 1850 mm 73 in. | 1846 mm 73 in. | 1846 mm 73 in. | 1525 mm 60 in. | 1450 mm 57 in. | 1816 mm 71.4 in. | 1816 mm 71.4 in. |
| Wheelbase | 62.8 in. | 1600 mm | 1600 mm | 1600 mm | 1725 mm 68 in. | 1725 mm 68 in. | 1727 mm 68 in. | 1727 mm 68 in. | 1727 mm 68 in. | 1727 mm 68 in. | 1727 mm 68 in. | 1727 mm 68 in. | 1727 mm 68 in. | 1750 mm 68.9 in. | 1850 mm 73 in. | 1846 mm 73 in. | 1846 mm 73 in. | 1525 mm 60 in. | 1450 mm 57 in. | 1816 mm 71.4 in. | 1816 mm 71.4 in. |
| Pump Capacity | 5.3 gpm | 26.5 L/min | 26.5 L/min | 26.5 L/min | 20.2 L/min 5.3 gpm | 20.2 L/min 5.3 gpm | 8.5 gpm | 8.6 gpm | 8.6 gpm | 8.5 gpm | 8.6 gpm | 5.7 gpm | 8.6 gpm | 8.55 gpm | 10.2 gpm | 60.2 L/min 15.9 gpm | 60.2 L/min 15.9 gpm | 5.3 gpm | 3.5 gpm | 60.2 L/min 16 gpm | 60.2 L/min 16 gpm |
| Rated Pressure | 2495 psi | 2146 psi | 2146 psi | 2146 psi | 17.23 MPa 2499 psi | 17.23 MPa 2499 psi | 2498 psi | 2500 psi | 2500 psi | 2500 psi | 2500 psi | 2500 psi | 2500 psi | 2260 psi | 2500 psi | 17.2 MPa 2499 psi | 17.2 MPa 2499 psi | 2495 psi | 1987 psi | 17.2 MPa 2500 psi | 17.2 MPa 2500 psi |
Loader | |||||||||||||||||||||
| Base Weight | 306.4 kg | 283.88 kg | 283.88 kg | 255.88 kg | 330.9 kg | 330.9 kg 729 lb | 257.21 kg | 257.21 kg | 257.21 kg | 281.09 kg | 281.09 kg | 281.09 kg | 281.09 kg | 281.09 kg | 150.99 kg | 302 kg 665.8 lb | 302 kg 665.8 lb | 220.5 kg | 302 kg 665.8 lb | 302 kg 665.8 lb | |
| Bucket Used | Materials - 1550 mm | Materials 1350 mm | General Material 1250 | General Material 1250 mm | 1450 mm 57 in. | 1450 mm 57 in. | Materials | Materials | Materials | Materials: 185.4 cm 73 in. | Materials | Materials | Pin on Materials 1250 mm 49 in. | Materials: 185.4 cm 73 in. | Materials: 185.4 cm 73 in. | ||||||
| Bucket Weight | 93 kg | 83 kg 183 lb | 83 kg 183 lb | 70 kg 155 lb | 88 kg 194 lb | 88 kg 194 lb | 93.8 kg 207 lb | 93.8 kg 207 lb | 93.8 kg 207 lb | 93.8 kg 207 lb | 93.8 kg 207 lb | 93.8 kg 207 lb | 93.8 kg 207 lb | 93.8 kg 207 lb | 108 kg 238 lb | 146 kg 321 lb | 146 kg 321 lb | 93 kg 205 lb | 53 kg 117 lb | 146 kg 321 lb | 146 kg 321 lb |
| Bucket Weight | 205 lb. | 83 kg 183 lb | 83 kg 183 lb | 70 kg 155 lb | 88 kg 194 lb | 88 kg 194 lb | 93.8 kg 207 lb | 93.8 kg 207 lb | 93.8 kg 207 lb | 93.8 kg 207 lb | 93.8 kg 207 lb | 93.8 kg 207 lb | 93.8 kg 207 lb | 93.8 kg 207 lb | 108 kg 238 lb | 146 kg 321 lb | 146 kg 321 lb | 93 kg 205 lb | 53 kg 117 lb | 146 kg 321 lb | 146 kg 321 lb |
| Lift Capacity At Full Height - Measured At Pivot (U) | 539 kg | ||||||||||||||||||||
| Lift Capacity At Full Height - Measured At Pivot (U) | 1186 lb. | ||||||||||||||||||||
| Lift Capacity at Full Height - Measured at 500 mm Ahead of Pivot | 384 kg | ||||||||||||||||||||
| Lift Capacity at Full Height - Measured at 500 mm Ahead of Pivot | 845 lb. | ||||||||||||||||||||
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 588 kg | Measured at pivot (W) 434 kg 957 lb Measured at 500 mm ahead of pivot (X) 312 kg 688 lb | Measured at pivot (W) 337 kg 743 lb Measured at 500 mm ahead of pivot (X) 263 kg 580 lb | Measured at pivot (W) 337 kg 743 lb Measured at 500 mm ahead of pivot (X) 263 kg 580 lb | Measured at pivot (W) 589 kg 1296 lb Measured at 500 mm ahead of pivot (X) 445 kg 979 lb | Measured at pivot (W) 589 kg 1296 lb Measured at 500 mm ahead of pivot (X) 445 kg 979 lb | Measured at pivot (W) 760 kgf 1676 lbf Measured at 500 mm ahead of pivot (X) 586 kgf 1292 lbf | Measured at pivot (W) 771 kg 1700 lb Measured at 500 mm ahead of pivot (X) 595 kg 1312 lb | Measured at pivot (W) 771 kgf 1700 lbf Measured at 500 mm ahead of pivot (X) 595 kgf 1312 lbf | Measured at pivot (W) 971 kgf 2141 lbf Measured at 500 mm ahead of pivot (X) 752 kgf 1658 lbf | Measured at pivot (W) 964 kgf 2125 lbf Measured at 500 mm ahead of pivot (X) 748 kgf 1649 lbf | Measured at pivot (W) 959 kgf 2109 lbf Measured at 500 mm ahead of pivot (X) 745 kgf 1639 lbf | Measured at pivot (W) 964 kgf 2125 lbf Measured at 500 mm ahead of pivot (X) 748 kgf 1649 lbf | Measured at pivot (W) 817 kgf 1797 lbf Measured at 500 mm ahead of pivot (X) 634 kgf 1395 lbf | Measured at pivot (W) 1307 kg 2881 lb Measured at 500 mm ahead of pivot (X) 1043 kg 2299 lb | Measured at pivot (W) 1263 kg 2779 lb Measured at 500 mm ahead of pivot (X) 1201 kg 2642 lb | Measured at pivot (W) 1374 kg 3023 lb Measured at 500 mm ahead of pivot (X) 1097 kg 2413 lb | Measured at pivot (W) 588 kg 1294 lb Measured at 500 mm ahead of pivot (X) 444 kg 977 lb | Measured at pivot (W) 429 kg 944 lb Measured at 500 mm ahead of pivot (X) 309 kg 680 lb | Measured at pivot (W) 1338 kg 2944 lb Measured at 500 mm ahead of pivot (X) 1284 kg 2825.2 lb | Measured at pivot (W) 1344 kg 2957 lb Measured at 500 mm ahead of pivot (X) 1072 kg 2358 lb |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 1294 lb. | Measured at pivot (W) 434 kg 957 lb Measured at 500 mm ahead of pivot (X) 312 kg 688 lb | Measured at pivot (W) 337 kg 743 lb Measured at 500 mm ahead of pivot (X) 263 kg 580 lb | Measured at pivot (W) 337 kg 743 lb Measured at 500 mm ahead of pivot (X) 263 kg 580 lb | Measured at pivot (W) 589 kg 1296 lb Measured at 500 mm ahead of pivot (X) 445 kg 979 lb | Measured at pivot (W) 589 kg 1296 lb Measured at 500 mm ahead of pivot (X) 445 kg 979 lb | Measured at pivot (W) 760 kgf 1676 lbf Measured at 500 mm ahead of pivot (X) 586 kgf 1292 lbf | Measured at pivot (W) 771 kg 1700 lb Measured at 500 mm ahead of pivot (X) 595 kg 1312 lb | Measured at pivot (W) 771 kgf 1700 lbf Measured at 500 mm ahead of pivot (X) 595 kgf 1312 lbf | Measured at pivot (W) 971 kgf 2141 lbf Measured at 500 mm ahead of pivot (X) 752 kgf 1658 lbf | Measured at pivot (W) 964 kgf 2125 lbf Measured at 500 mm ahead of pivot (X) 748 kgf 1649 lbf | Measured at pivot (W) 959 kgf 2109 lbf Measured at 500 mm ahead of pivot (X) 745 kgf 1639 lbf | Measured at pivot (W) 964 kgf 2125 lbf Measured at 500 mm ahead of pivot (X) 748 kgf 1649 lbf | Measured at pivot (W) 817 kgf 1797 lbf Measured at 500 mm ahead of pivot (X) 634 kgf 1395 lbf | Measured at pivot (W) 1307 kg 2881 lb Measured at 500 mm ahead of pivot (X) 1043 kg 2299 lb | Measured at pivot (W) 1263 kg 2779 lb Measured at 500 mm ahead of pivot (X) 1201 kg 2642 lb | Measured at pivot (W) 1374 kg 3023 lb Measured at 500 mm ahead of pivot (X) 1097 kg 2413 lb | Measured at pivot (W) 588 kg 1294 lb Measured at 500 mm ahead of pivot (X) 444 kg 977 lb | Measured at pivot (W) 429 kg 944 lb Measured at 500 mm ahead of pivot (X) 309 kg 680 lb | Measured at pivot (W) 1338 kg 2944 lb Measured at 500 mm ahead of pivot (X) 1284 kg 2825.2 lb | Measured at pivot (W) 1344 kg 2957 lb Measured at 500 mm ahead of pivot (X) 1072 kg 2358 lb |
| Lift Capacity at 59 in (1500 mm) - Measured at 500 mm Ahead of Pivot | 444 kg | Measured at pivot (W) 434 kg 957 lb Measured at 500 mm ahead of pivot (X) 312 kg 688 lb | Measured at pivot (W) 337 kg 743 lb Measured at 500 mm ahead of pivot (X) 263 kg 580 lb | Measured at pivot (W) 337 kg 743 lb Measured at 500 mm ahead of pivot (X) 263 kg 580 lb | Measured at pivot (W) 589 kg 1296 lb Measured at 500 mm ahead of pivot (X) 445 kg 979 lb | Measured at pivot (W) 589 kg 1296 lb Measured at 500 mm ahead of pivot (X) 445 kg 979 lb | Measured at pivot (W) 760 kgf 1676 lbf Measured at 500 mm ahead of pivot (X) 586 kgf 1292 lbf | Measured at pivot (W) 771 kg 1700 lb Measured at 500 mm ahead of pivot (X) 595 kg 1312 lb | Measured at pivot (W) 771 kgf 1700 lbf Measured at 500 mm ahead of pivot (X) 595 kgf 1312 lbf | Measured at pivot (W) 971 kgf 2141 lbf Measured at 500 mm ahead of pivot (X) 752 kgf 1658 lbf | Measured at pivot (W) 964 kgf 2125 lbf Measured at 500 mm ahead of pivot (X) 748 kgf 1649 lbf | Measured at pivot (W) 959 kgf 2109 lbf Measured at 500 mm ahead of pivot (X) 745 kgf 1639 lbf | Measured at pivot (W) 964 kgf 2125 lbf Measured at 500 mm ahead of pivot (X) 748 kgf 1649 lbf | Measured at pivot (W) 817 kgf 1797 lbf Measured at 500 mm ahead of pivot (X) 634 kgf 1395 lbf | Measured at pivot (W) 1307 kg 2881 lb Measured at 500 mm ahead of pivot (X) 1043 kg 2299 lb | Measured at pivot (W) 1263 kg 2779 lb Measured at 500 mm ahead of pivot (X) 1201 kg 2642 lb | Measured at pivot (W) 1374 kg 3023 lb Measured at 500 mm ahead of pivot (X) 1097 kg 2413 lb | Measured at pivot (W) 588 kg 1294 lb Measured at 500 mm ahead of pivot (X) 444 kg 977 lb | Measured at pivot (W) 429 kg 944 lb Measured at 500 mm ahead of pivot (X) 309 kg 680 lb | Measured at pivot (W) 1338 kg 2944 lb Measured at 500 mm ahead of pivot (X) 1284 kg 2825.2 lb | Measured at pivot (W) 1344 kg 2957 lb Measured at 500 mm ahead of pivot (X) 1072 kg 2358 lb |
| Lift Capacity at 59 in. (1500 mm) - Measured at 500 mm Ahead of Pivot | 977 lb. | Measured at pivot (W) 434 kg 957 lb Measured at 500 mm ahead of pivot (X) 312 kg 688 lb | Measured at pivot (W) 337 kg 743 lb Measured at 500 mm ahead of pivot (X) 263 kg 580 lb | Measured at pivot (W) 337 kg 743 lb Measured at 500 mm ahead of pivot (X) 263 kg 580 lb | Measured at pivot (W) 589 kg 1296 lb Measured at 500 mm ahead of pivot (X) 445 kg 979 lb | Measured at pivot (W) 589 kg 1296 lb Measured at 500 mm ahead of pivot (X) 445 kg 979 lb | Measured at pivot (W) 760 kgf 1676 lbf Measured at 500 mm ahead of pivot (X) 586 kgf 1292 lbf | Measured at pivot (W) 771 kg 1700 lb Measured at 500 mm ahead of pivot (X) 595 kg 1312 lb | Measured at pivot (W) 771 kgf 1700 lbf Measured at 500 mm ahead of pivot (X) 595 kgf 1312 lbf | Measured at pivot (W) 971 kgf 2141 lbf Measured at 500 mm ahead of pivot (X) 752 kgf 1658 lbf | Measured at pivot (W) 964 kgf 2125 lbf Measured at 500 mm ahead of pivot (X) 748 kgf 1649 lbf | Measured at pivot (W) 959 kgf 2109 lbf Measured at 500 mm ahead of pivot (X) 745 kgf 1639 lbf | Measured at pivot (W) 964 kgf 2125 lbf Measured at 500 mm ahead of pivot (X) 748 kgf 1649 lbf | Measured at pivot (W) 817 kgf 1797 lbf Measured at 500 mm ahead of pivot (X) 634 kgf 1395 lbf | Measured at pivot (W) 1307 kg 2881 lb Measured at 500 mm ahead of pivot (X) 1043 kg 2299 lb | Measured at pivot (W) 1263 kg 2779 lb Measured at 500 mm ahead of pivot (X) 1201 kg 2642 lb | Measured at pivot (W) 1374 kg 3023 lb Measured at 500 mm ahead of pivot (X) 1097 kg 2413 lb | Measured at pivot (W) 588 kg 1294 lb Measured at 500 mm ahead of pivot (X) 444 kg 977 lb | Measured at pivot (W) 429 kg 944 lb Measured at 500 mm ahead of pivot (X) 309 kg 680 lb | Measured at pivot (W) 1338 kg 2944 lb Measured at 500 mm ahead of pivot (X) 1284 kg 2825.2 lb | Measured at pivot (W) 1344 kg 2957 lb Measured at 500 mm ahead of pivot (X) 1072 kg 2358 lb |
| Boom Breakout Force - Measured At Pivot (Y) | 760 kg | ||||||||||||||||||||
| Boom Breakout Force - Measured At Pivot (Y) | 1704 lb. | ||||||||||||||||||||
| Boom Breakout Force - Measured at 500 mm Ahead of Pivot | 537 kg | ||||||||||||||||||||
| Boom Breakout Force - Measured at 500 mm Ahead of Pivot | 1204 lb. | ||||||||||||||||||||
| At Maximum Height (VV) | 639 kg | ||||||||||||||||||||
| At Maximum Height (VV) | 1433 lb. | ||||||||||||||||||||
| At 59-in. (1500 mm) Lift Height (XX) | 809 kg | Measured at pivot (W) 434 kg 957 lb Measured at 500 mm ahead of pivot (X) 312 kg 688 lb | Measured at pivot (W) 337 kg 743 lb Measured at 500 mm ahead of pivot (X) 263 kg 580 lb | Measured at pivot (W) 337 kg 743 lb Measured at 500 mm ahead of pivot (X) 263 kg 580 lb | Measured at pivot (W) 589 kg 1296 lb Measured at 500 mm ahead of pivot (X) 445 kg 979 lb | Measured at pivot (W) 589 kg 1296 lb Measured at 500 mm ahead of pivot (X) 445 kg 979 lb | Measured at pivot (W) 760 kgf 1676 lbf Measured at 500 mm ahead of pivot (X) 586 kgf 1292 lbf | Measured at pivot (W) 771 kg 1700 lb Measured at 500 mm ahead of pivot (X) 595 kg 1312 lb | Measured at pivot (W) 771 kgf 1700 lbf Measured at 500 mm ahead of pivot (X) 595 kgf 1312 lbf | Measured at pivot (W) 971 kgf 2141 lbf Measured at 500 mm ahead of pivot (X) 752 kgf 1658 lbf | Measured at pivot (W) 964 kgf 2125 lbf Measured at 500 mm ahead of pivot (X) 748 kgf 1649 lbf | Measured at pivot (W) 959 kgf 2109 lbf Measured at 500 mm ahead of pivot (X) 745 kgf 1639 lbf | Measured at pivot (W) 964 kgf 2125 lbf Measured at 500 mm ahead of pivot (X) 748 kgf 1649 lbf | Measured at pivot (W) 817 kgf 1797 lbf Measured at 500 mm ahead of pivot (X) 634 kgf 1395 lbf | Measured at pivot (W) 1307 kg 2881 lb Measured at 500 mm ahead of pivot (X) 1043 kg 2299 lb | Measured at pivot (W) 1263 kg 2779 lb Measured at 500 mm ahead of pivot (X) 1201 kg 2642 lb | Measured at pivot (W) 1374 kg 3023 lb Measured at 500 mm ahead of pivot (X) 1097 kg 2413 lb | Measured at pivot (W) 588 kg 1294 lb Measured at 500 mm ahead of pivot (X) 444 kg 977 lb | Measured at pivot (W) 429 kg 944 lb Measured at 500 mm ahead of pivot (X) 309 kg 680 lb | Measured at pivot (W) 1338 kg 2944 lb Measured at 500 mm ahead of pivot (X) 1284 kg 2825.2 lb | Measured at pivot (W) 1344 kg 2957 lb Measured at 500 mm ahead of pivot (X) 1072 kg 2358 lb |
| At 59-in. (1500 mm) Lift Height (XX) | 1814 lb. | Measured at pivot (W) 434 kg 957 lb Measured at 500 mm ahead of pivot (X) 312 kg 688 lb | Measured at pivot (W) 337 kg 743 lb Measured at 500 mm ahead of pivot (X) 263 kg 580 lb | Measured at pivot (W) 337 kg 743 lb Measured at 500 mm ahead of pivot (X) 263 kg 580 lb | Measured at pivot (W) 589 kg 1296 lb Measured at 500 mm ahead of pivot (X) 445 kg 979 lb | Measured at pivot (W) 589 kg 1296 lb Measured at 500 mm ahead of pivot (X) 445 kg 979 lb | Measured at pivot (W) 760 kgf 1676 lbf Measured at 500 mm ahead of pivot (X) 586 kgf 1292 lbf | Measured at pivot (W) 771 kg 1700 lb Measured at 500 mm ahead of pivot (X) 595 kg 1312 lb | Measured at pivot (W) 771 kgf 1700 lbf Measured at 500 mm ahead of pivot (X) 595 kgf 1312 lbf | Measured at pivot (W) 971 kgf 2141 lbf Measured at 500 mm ahead of pivot (X) 752 kgf 1658 lbf | Measured at pivot (W) 964 kgf 2125 lbf Measured at 500 mm ahead of pivot (X) 748 kgf 1649 lbf | Measured at pivot (W) 959 kgf 2109 lbf Measured at 500 mm ahead of pivot (X) 745 kgf 1639 lbf | Measured at pivot (W) 964 kgf 2125 lbf Measured at 500 mm ahead of pivot (X) 748 kgf 1649 lbf | Measured at pivot (W) 817 kgf 1797 lbf Measured at 500 mm ahead of pivot (X) 634 kgf 1395 lbf | Measured at pivot (W) 1307 kg 2881 lb Measured at 500 mm ahead of pivot (X) 1043 kg 2299 lb | Measured at pivot (W) 1263 kg 2779 lb Measured at 500 mm ahead of pivot (X) 1201 kg 2642 lb | Measured at pivot (W) 1374 kg 3023 lb Measured at 500 mm ahead of pivot (X) 1097 kg 2413 lb | Measured at pivot (W) 588 kg 1294 lb Measured at 500 mm ahead of pivot (X) 444 kg 977 lb | Measured at pivot (W) 429 kg 944 lb Measured at 500 mm ahead of pivot (X) 309 kg 680 lb | Measured at pivot (W) 1338 kg 2944 lb Measured at 500 mm ahead of pivot (X) 1284 kg 2825.2 lb | Measured at pivot (W) 1344 kg 2957 lb Measured at 500 mm ahead of pivot (X) 1072 kg 2358 lb |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 634 kg | ||||||||||||||||||||
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 1422 lb. | ||||||||||||||||||||
| Maximum Lift Height (A) | 2140 mm | 1828 mm 72 in. | 1828 mm 72 in. | 1828 mm 72 in. | 2160 mm 85 in. | 2160 mm 85 in. | 2259 mm 89 in. | 2284 mm 90 in. | 2284 mm 90 in. | 2593 mm 102 in. | 2593 mm 102 in. | 2616 mm 103.3 in. | 2593 mm 102 in. | 2640 mm 103.9 in. | 2850 mm 112.1 in. | 2796 mm 110 in. | 2798.7 mm 110 in. | 1809 mm 71.2 in. | 2767.1 mm 109 in. | 2767 mm 109 in. | |
| Maximum Lift Height (A) | 84 in. | 1828 mm 72 in. | 1828 mm 72 in. | 1828 mm 72 in. | 2160 mm 85 in. | 2160 mm 85 in. | 2259 mm 89 in. | 2284 mm 90 in. | 2284 mm 90 in. | 2593 mm 102 in. | 2593 mm 102 in. | 2616 mm 103.3 in. | 2593 mm 102 in. | 2640 mm 103.9 in. | 2850 mm 112.1 in. | 2796 mm 110 in. | 2798.7 mm 110 in. | 1809 mm 71.2 in. | 2767.1 mm 109 in. | 2767 mm 109 in. | |
| At Full Height - Bucket Level (B) | 1979 mm | ||||||||||||||||||||
| At Full Height - Bucket Level (B) | 78 in. | ||||||||||||||||||||
| Clearance At Full Height - Bucket Dumped | 1596 mm | ||||||||||||||||||||
| Clearance At Full Height - Bucket Dumped | 63 in. | ||||||||||||||||||||
| Overall Length (I+F) | 2900 mm | 2888 mm 113.7 in. | 2786 mm 107.9 in. | 2786 mm 109.7 in. | 3076 mm 121 in. | 3076 mm 121 in. | 3.5 m 11.5 ft | 3.122 m 10.24 ft | 3.108 m 10.2 ft | 3.7 m 12 ft | 3.207 m 10.52 ft | 3.218 m 10.55 ft | 3.218 m 10.55 ft | 3.211 m 10.53 ft | 3.522 m 11.5 ft | 3.54 m 11.7 ft | 3.5 m 11.67 ft | 2.9 m 9.5 ft | 2.6 m 8.6 ft | 3.5 m 11.5 ft | 3.5 m 11.5 ft |
| Overall Length (I+F) | 114 in. | 2888 mm 113.7 in. | 2786 mm 107.9 in. | 2786 mm 109.7 in. | 3076 mm 121 in. | 3076 mm 121 in. | 3.5 m 11.5 ft | 3.122 m 10.24 ft | 3.108 m 10.2 ft | 3.7 m 12 ft | 3.207 m 10.52 ft | 3.218 m 10.55 ft | 3.218 m 10.55 ft | 3.211 m 10.53 ft | 3.522 m 11.5 ft | 3.54 m 11.7 ft | 3.5 m 11.67 ft | 2.9 m 9.5 ft | 2.6 m 8.6 ft | 3.5 m 11.5 ft | 3.5 m 11.5 ft |
| Overall Height In Carry Position | 161 mm | 1.5 m 4.94 ft | 1.53 m 5 ft | 1.53 m 5 ft | 0.15 m 5 ft | 1.5 m 5 ft | 1.5 m 5 ft | ||||||||||||||
| Overall Height In Carry Position | 6 in. | 1.5 m 4.94 ft | 1.53 m 5 ft | 1.53 m 5 ft | 0.15 m 5 ft | 1.5 m 5 ft | 1.5 m 5 ft | ||||||||||||||
| Digging Depth (H) | 131 mm | -86 mm -3.4 in. | -88 mm -3.2 in. | -82 mm -3.2 in. | 149 mm 6 in. | 149 mm 6 in. | 104 mm 4 in. | 76 mm 2.9 in. | 76 mm 2.9 in. | 133 mm 5 in. | 143 mm 5.6 in. | 121 mm 4.76 in. | 143 mm 5.6 in. | 104 mm 4 in. | -146 mm 5.7 in. | 122 mm 5 in. | 119 mm 5 in. | 131 mm 5 in. | -101 mm -4 in. | 164 mm 6 in. | 164 mm 6 in. |
| Digging Depth (H) | 5 in. | -86 mm -3.4 in. | -88 mm -3.2 in. | -82 mm -3.2 in. | 149 mm 6 in. | 149 mm 6 in. | 104 mm 4 in. | 76 mm 2.9 in. | 76 mm 2.9 in. | 133 mm 5 in. | 143 mm 5.6 in. | 121 mm 4.76 in. | 143 mm 5.6 in. | 104 mm 4 in. | -146 mm 5.7 in. | 122 mm 5 in. | 119 mm 5 in. | 131 mm 5 in. | -101 mm -4 in. | 164 mm 6 in. | 164 mm 6 in. |
| Reach - At Maximum Height (D) | 603 mm | ||||||||||||||||||||
| Reach - At Maximum Height (D) | 24 in. | ||||||||||||||||||||
| Reach - At Ground Level - Bucket Level | 1369 mm | ||||||||||||||||||||
| Reach - At Ground Level - Bucket Level | 54 in. | ||||||||||||||||||||
| Dump Angle (E) | 43.8 degree (angle) | -40.5 degree (angle) | -40.5 degree (angle) | -40.5 degree (angle) | 36 degree (angle) | 36 degree (angle) | 40 degree (angle) | 43 degree (angle) | 40 degree (angle) | 44 degree (angle) | 41.1 degree (angle) | 49.3 degree (angle) | 41.1 degree (angle) | 45 degree (angle) | 42 degree (angle) | 46.6 degree (angle) | 47.47 degree (angle) | -40.1 degree (angle) | 47.4 degree (angle) | 47.40 degree (angle) | |
| Rollback Angle (G) | 31.4 degree (angle) | 30.08 degree (angle) | 29.87 degree (angle) | 29.87 degree (angle) | 34 degree (angle) | 34 degree (angle) | 22 degree (angle) | 25 degree (angle) | 21 degree (angle) | 31 degree (angle) | 31 degree (angle | 23.8 degree (angle) | 31 degree (angle) | 27 degree (angle) | 28.6 degree (angle) | 38.4 degree (angle) | 33.42 degree (angle) | 31.2 degree (angle) | 42.23 degree (angle) | 44.11 degree (angle) | |
| Dump Angle, Ground | 122 degree (angle) | ||||||||||||||||||||
| Loader Raise | 3.31 seconds | ||||||||||||||||||||
| Loader Lower | 2.75 seconds | ||||||||||||||||||||
| Bucket Dump | 1.75 seconds | 1304 mm 51.3 in. | 1371 mm 54 in. | 1371 mm 54 in. | 1667 mm 66 in. | 1667 mm 66 in. | 1741 mm 69 in. | 1743 mm 69 in. | 1743 mm 68.6 in. | 1993 mm 78 in. | 2024 mm 79.7 in. | 2003 kgf 78.8 lbf | 2024 mm 79.6 in. | 2047 mm 80.36 in. | 2298 mm 90.4 in. | 2178 mm 86 in. | 2195 mm 86 in. | 1371 mm 54 in. | 2220 mm 87 in. | 2164 mm 85 in. | |
| Bucket Rollback | 1.88 seconds | At ground-level line (ZZ) 753 kgf 1659 lbf | At ground-level line (ZZ) 819 kg 1807 lb | At ground-level line (ZZ) 819 kgf 1807 lbf | At ground-level line (ZZ) 972 kgf 2138 lbf | At ground-level line (ZZ) 972 kgf 2138 lbf | At ground-level line (ZZ) 1174 kgf 2588 lbf | At ground-level line (ZZ) 1188 kg 2619 lb | At ground-level line (ZZ) 1188 kgf 2619 lbf | At ground-level line (ZZ) 1440 kgf 3175 lbf | At ground-level line (ZZ) 1401 kgf 3087 lbf | At ground-level line (ZZ) 1335.4 kgf 2944 lbf | At ground-level line (ZZ) 1400.2 kgf 3087 lbf | At ground-level line (ZZ) 1256 kgf 2770 lbf | At ground-level line (ZZ) 3485 lb 1580 kg | At ground-level line (ZZ) 2101 kg 4622 lb | At ground-level line (ZZ) 1554 kg 3419 lb | At ground-level line (ZZ) 707 kg 1559 lb | At ground-level line (ZZ) 2268 kg 4990 lb | At ground-level line (ZZ) 1532 kg 3370 lb | |
