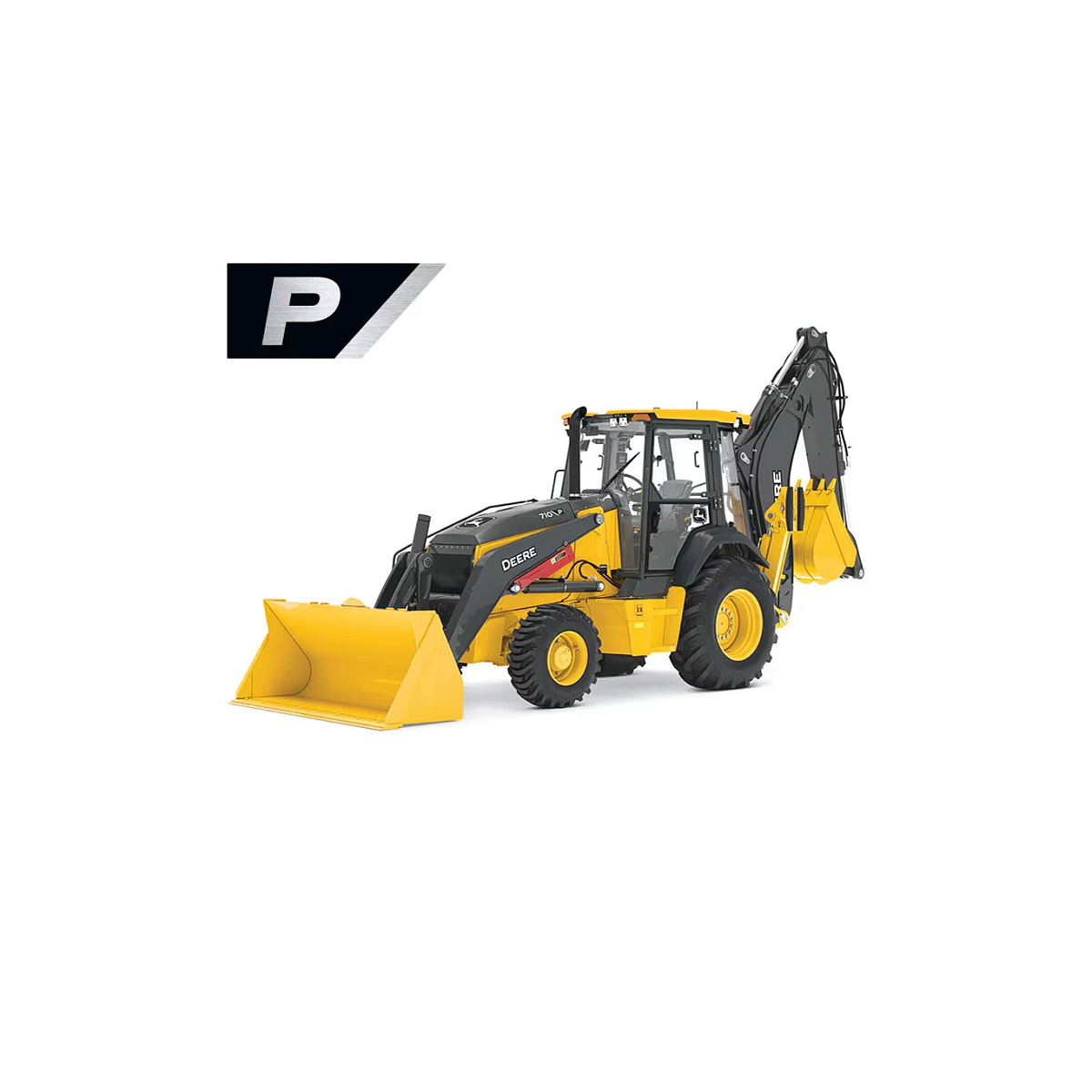

John Deere 710 P-Tier

Manufacturer

John Deere

Model

PowerTech™ Plus series turbocharged

Non-Road Emission Standards

EPA Final Tier 4/EU Stage IV

Cylinders

4

Valves Per Cylinder

4

Displacement

276 cu in.

Displacement

4.52 L

Bore and Stroke

4.19 x 5.00 in.

Bore and Stroke

106.4 x 127.0 mm

Rated Speed

2200 rpm

Gross Power At Rated Speed

149 hp

Gross Power At Rated Speed

111.1 kW

Peak Power Speed

2240 rpm

Gross Peak Power At Peak Power Speed

150 hp

Gross Peak Power At Peak Power Speed

111.9 kW

Peak Torque Speed

1400 rpm

Gross Peak Torque At Peak Torque Speed

426 lb-ft

Gross Peak Torque At Peak Torque Speed

577.8 Nm

Net Power At Rated Speed (ISO9249)

147 hp

Net Power At Rated Speed (ISO9249)

109.6 kW

Net Peak Power At Peak Power Speed (ISO9249)

110.3 kW

Net Peak Torque At Peak Torque Speed (ISO9249)

420 lb-ft

Net Peak Torque At Peak Torque Speed (ISO9249)

569 Nm

Net Torque Rise

20 %

Oil Specification

JD Torq-Gard or equivalent

Lubrication

Pressure system with spin-on filter and cooler

Fuel System

Level 34 Electronic Fuel System with Denso High Pressure Common Rail

Air Cleaner

Dual stage dry type with safety element and evacuator valve

Fan Type

Electronically controlled, variable rate, suction type cooling fan, Standard

Engine Coolant Rating

-40 °F

Engine Coolant Rating

-40 ℃

Engine Radiator (Fins Per In.)

10

Engine Oil Cooler Type

Oil-to-water

Hydraulic Cooler Type

Oil-to-air

Transmission Cooler Type

Oil-to-air

Transmission Type

4 speed, helical cut gears, full power-shifted transmission with hydraulic reverser standard; Electric clutch cutoff on loader lever; AutoShift transmission optional

Number Of Gears Forward

4

Number Of Gears Reverse

3

Shift Control Type

Electric forward-neutral-reverse control lever with neutral start interlock

Torque Converter Type

Single stage, dual phase with 1.92:1 stall ratio

Torque Converter

11 in.

Torque Converter

279.4 mm

Conditions For Measuring Travel Speeds

Power-Shift, Standard Transmission with Tire Size 21L-28 Rear Tires

Gear 1, Forward Maximum Speed

3.7 mph

Gear 1, Forward Maximum Speed

6 km/h

Gear 1, Reverse Maximum Speed

4.2 mph

Gear 1, Reverse Maximum Speed

6.8 km/h

Gear 2, Forward Maximum Speed

6.2 mph

Gear 2, Forward Maximum Speed

10 km/h

Gear 2, Reverse Maximum Speed

7 mph

Gear 2, Reverse Maximum Speed

11.3 km/h

Gear 3, Forward Maximum Speed

15.3 mph

Gear 3, Forward Maximum Speed

24.6 km/h

Gear 3, Reverse Maximum Speed

17 mph

Gear 3, Reverse Maximum Speed

27.4 km/h

Gear 4, Forward Maximum Speed

22.9 mph

Gear 4, Forward Maximum Speed

36.9 km/h

Axle Oscillation Stop To Stop, Front Axle

18 degree (angle)

Front Axle, Sae J43 Rating

19800 lb.

Front Axle, Sae J43 Rating

8981 kg

Front Axle, Dynamic Rating

27600 lb.

Front Axle, Dynamic Rating

12519 kg

Front Axle, Static Rating

67200 lb.

Front Axle, Static Rating

30484 kg

Front Axle, Ultimate Rating

99200 lb.

Front Axle, Ultimate Rating

44999 kg

Rear Axle, SAE J43 Rating

25400 lb.

Rear Axle, SAE J43 Rating

11521 kg

Rear Axle, Dynamic Rating

30900 lb.

Rear Axle, Dynamic Rating

14016 kg

Rear Axle, Static Rating

68300 lb.

Rear Axle, Static Rating

30987 kg

Rear Axle, Ultimate Rating

99200 lb.

Rear Axle, Ultimate Rating

44999 kg

Maximum Axle Torque

57500 lb.

Maximum Axle Torque

26082 kg

Mechanical Front Wheel Drive Axle Differential Type

Automatic, Limited-Slip Traction Control

Rear Axle Differential Type

Foot actuated, hydraulically engaged mechanical lock

Rear Differential Lock Pressure

290 psi

Rear Differential Lock Pressure

1999 kPa

Steering Type

Hydrostatic Power Steering and Emergency Steering (ISO5010)

Steering Pressure

3625 psi

Steering Pressure

24991.25 kPa

Maximum Steer Angle, Mechanical Front-Wheel Drive (MFWD) Axle

52 degree (angle)

Maximum Steer Angle, Non-Powered Front Axle

55 degree (angle)

Curb-Turning Radius, With Brakes, With MFWD Axle

13, 1 ft, in.

Curb-Turning Radius, With Brakes, With MFWD Axle

3.99 m

Curb-Turning Radius, With Brakes, With Non-Powered Front Axle

13, 1 ft, in.

Curb-Turning Radius, With Brakes, With Non-Powered Front Axle

3.99 m

Curb-Turning Radius, Without Brakes, With MFWD Axle

15, 0 ft, in.

Curb-Turning Radius, Without Brakes, With MFWD Axle

4.57 m

Curb-Turning Radius, Without Brakes, With Non-Powered Front Axle

15, 0 ft, in.

Curb-Turning Radius, Without Brakes, With Non-Powered Front Axle

4.57 m

Bucket Clearance Circle, With Brakes, With MFWD Axle

37, 6 ft, in.

Bucket Clearance Circle, With Brakes, With MFWD Axle

11.43 m

Bucket Clearance Circle, With Brakes, With Non-Powered Front Axle

37, 6 ft, in.

Bucket Clearance Circle, With Brakes, With Non-Powered Front Axle

11.43 m

Bucket Clearance Circle, Without Brakes, With MFWD Axle

40, 4 ft, in.

Bucket Clearance Circle, Without Brakes, With MFWD Axle

12.29 m

Bucket Clearance Circle, Without Brakes, With Non-Powered Front Axle

40, 5 ft, in.

Bucket Clearance Circle, Without Brakes, With Non-Powered Front Axle

12.32 m

Number Of Steering Wheel Turns (Lock To Lock) With MFWD Axle

4.4

Number Of Steering Wheel Turns (Lock To Lock) With Non-Powered Front Axle

4.7

MFWD Axle Final Drives And Gears

Heavy duty, outboard planetary final drives distribute shock loads over 3 gears

MFWD Axle Total Ratio

14.308:1

Rear Axle Final Drives And Gears

Heavy duty, inboard planetary final drives distribute shock loads over 3 gears

Rear Axle Total Ratio

20.945:1

Brakes

Conform to ISO 3450

Service Brakes

Full power, hydraulic wet disc, mounted inboard, self adjusting and self equalizing

Service Brakes Friction Disc Area Per Side

287700 mmByMm

Hydraulics System Type

Pressure compensated load sensing (PCLS), axial piston pump

Rated Rpm

2200 rpm

Backhoe Pump Flow

52.3 gpm

Backhoe Pump Flow

197.9 L/min

Loader Pump Flow

52.3 gpm

Loader Pump Flow

197.9 L/min

Backhoe System Relief Pressure

3625 psi

Backhoe System Relief Pressure

24991.25 kPa

Backhoe Lift Mode System Relief Pressure

3900 psi

Backhoe Lift Mode System Relief Pressure

26887.5 kPa

Loader System Relief Pressure

3625 psi

Loader System Relief Pressure

24991.25 kPa

Backhoe Controls

Pilot controls with pattern select standard; electrohydraulic (EH) auxiliary functions optional

Loader Controls

Single-lever control with electric clutch cutoff switch and MFWD (momentary) standard; single-lever control with electric clutch cutoff switch, electrohydraulic (EH) proportional auxiliary roller, MFWD (momentary), and transmission quick-shift optional

Voltage

12 V

Number Of Batteries

2

Battery Capacity (2 Batteries)

1900 CCA

Reserve Capacity (2 Batteries)

350 min.

Alternator Rating

160 amp

Lighting Options

10 halogen: 4 front, 4 rear, and 2 side docking (32,500 candlepower each); turn signals and flashers: 2 front and 2 rear; stop and taillights; and 2 rear reflectors; factory installed option for 2 LED spot lights and 8 LED flood lights in lieu of the standard halogen light package

Operator Station Type

Fully enclosed cab, isolation mounted, ROPS/FOPS, left/right access, with molded roof; optional canopy

Alternator, Low Voltage

Indicator light, Audible

Service Code Indicator

Indicator light, Audible

Engine Air Filter Restriction

Indicator light, Audible

Engine Coolant Temperature

Indicator light, Audible, Gauge

Engine Oil Pressure

Indicator light, Audible

Fuel Level

Indicator light, Audible, Gauge

Hydraulic Oil Filter Restriction

Audible, Digital

Park Brake On/Off

Indicator light

Seat Belt Reminder

Indicator light, Digital

Stop Indicator

Indicator light, Audible

MFWD Active

Indicator light

Hydraulics Enabled

Indicator light

Hydraulics Temperature

Indicator light, Audible, Digital

Engine Preheat

Indicator light, Digital

Aftertreatment Temperature High

Indicator light

Torque Converter Oil Temp

Indicator light, Audible, Gauge

Job Timer

Digital

Hourmeter

Digital

Engine Rpm

Digital

System Voltage

Digital

Machine Information And Configuration

Digital

Diesel-Exhaust Fluid (DEF) Level

Indicator light, Audible, Digital

Sight Gauges

Hydraulic Reservoir

Diagnostics

In-Cab Monitor Information

Refill Capacity Cooling System (Cab)

30 qt

Refill Capacity Cooling System (Cab)

28.39 L

Refill Capacity Cooling System (Canopy)

27.9 qt

Refill Capacity Cooling System (Canopy)

26.4 L

Refill Capacity Rear Axle Differential Housing

26.4 qt

Refill Capacity Rear Axle Differential Housing

24.98 L

Refill Capacity Engine Oil

13.7 qt

Refill Capacity Engine Oil

12.97 L

Refill Capacity Torque Converter And Transmission

16 qt

Refill Capacity Torque Converter And Transmission

15.14 L

Refill Capacity Fuel Tank

46 gal.

Refill Capacity Fuel Tank

174.13 L

Refill Capacity Diesel-Exhaust Fluid (DEF) Tank

3.6 gal.

Refill Capacity Diesel-Exhaust Fluid (DEF) Tank

13.63 L

Refill Capacity Hydraulic System

46 gal.

Refill Capacity Hydraulic System

174.13 L

Refill Capacity Hydraulic Reservoir

13.2 gal.

Refill Capacity Hydraulic Reservoir

49.97 L

Refill Capacity Mechanical Front-Wheel Drive Housing Axle

15.9 qt

Refill Capacity Mechanical Front-Wheel Drive Housing Axle

15.05 L

Refill Capacity Mechanical Front-Wheel Drive Housing Planetary Each

2.3 qt

Refill Capacity Mechanical Front-Wheel Drive Housing Planetary Each

2.18 L

Operator And Standard Equipment With Full Fuel Tank

25588 lb.

Operator And Standard Equipment With Full Fuel Tank

11607.2 kg

Typical With Cab, Extendible Dipperstick, And 1500-Lb Counterweight

27033 lb.

Typical With Cab, Extendible Dipperstick, And 680-Kg Counterweight

12264.3 kg

Cab

645 lb.

Cab

292.6 kg

Mechanical Front-Wheel Drive With Tires

822 lb.

Mechanical Front-Wheel Drive With Tires

372.9 kg

Extendable Dipperstick

700 lb.

Extendable Dipperstick

317.5 kg

Front Loader Coupler

800 lb.

Front Loader Coupler

362.9 kg

Hydraulic Capacity Minimum Tines

48 in.

Hydraulic Capacity Minimum Tines

1219.2 mm

At Maximum Height With Minimum Tines

5803 lb.

At Maximum Height With Minimum Tines

2632.7 kg

At Maximum Reach With Minimum Tines

9651 lb.

At Maximum Reach With Minimum Tines

4377.3 kg

At Ground Line With Minimum Tines

13353 lb.

At Ground Line With Minimum Tines

6057.3 kg

Below Ground Line With Minimum Tines

5.5 in.

Below Ground Line With Minimum Tines

139.7 mm
