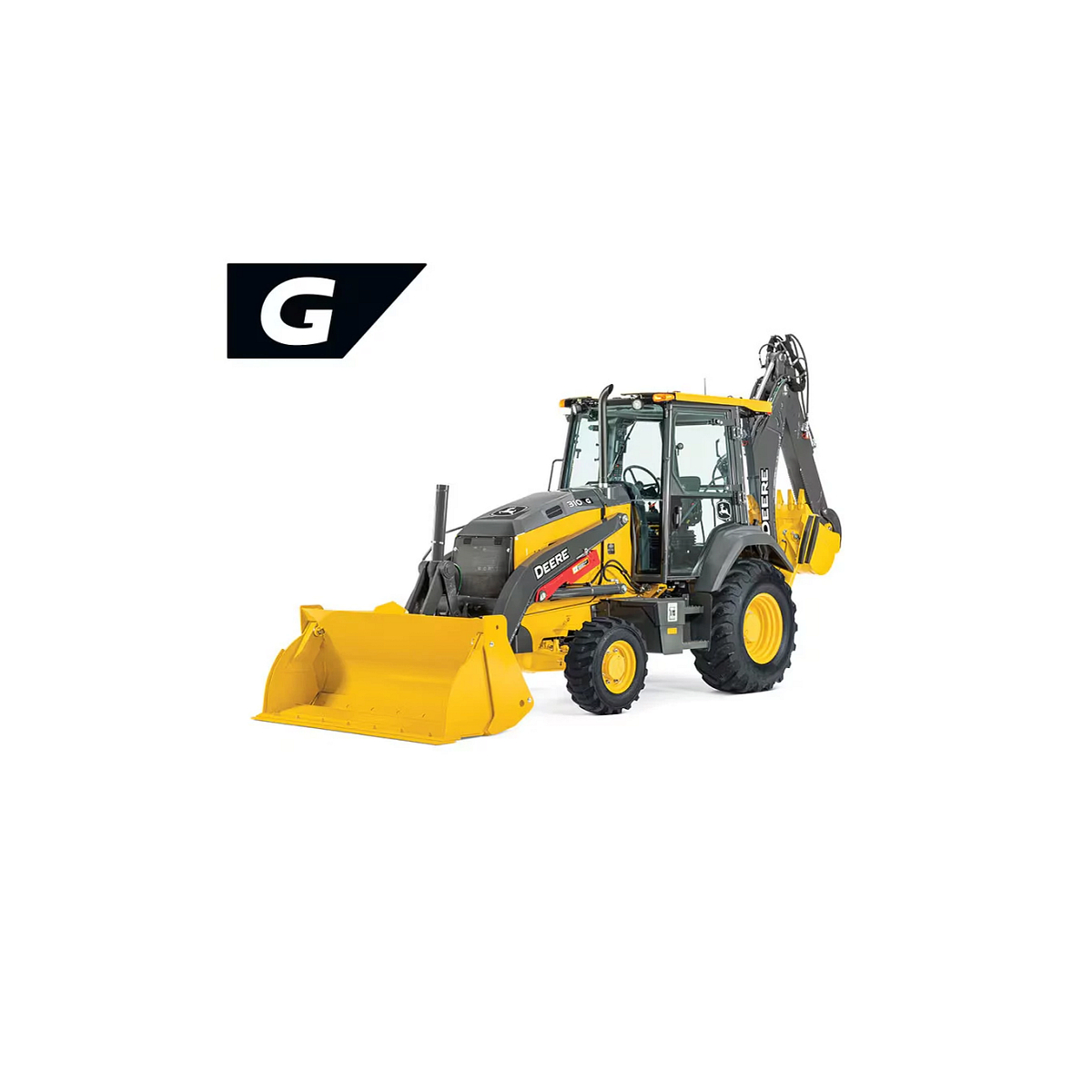

The 310 G‑Tier is built to deliver reliable performance at a lower acquisition cost, with a simplified operator station and durable components that make it an ideal fit for rental fleets and value‑driven customers.
Powered by a dependable Yanmar® 3.3L engine, the 310 G‑Tier delivers reliable performance and fuel efficiency without the need for engine aftertreatment—helping reduce complexity, maintenance, and total cost of ownership.
A straightforward four‑speed manual transmission with synchronized gears and an easy‑to‑use forward‑neutral‑reverse lever provides smooth control, durability, and confident operation for a wide range of backhoe tasks.
Answer text goes here
Manufacturer | Yanmar® |
Model | 4TNV98CT turbocharged |
Non-Road Emission Standards | EPA Interim Tier 4/EU Stage III B |
Cylinders | 4 |
Valves Per Cylinder | 2 |
Displacement | 203 cu in. |
Displacement | 3.33 L |
Bore and Stroke | 3.86 x 4.33 in. |
Bore and Stroke | 98.0 x 110.0 mm |
Rated Speed | 2300 rpm |
Gross Power At Rated Speed | 71 hp |
Gross Power At Rated Speed | 52.9 kW |
Peak Power Speed | 2100 rpm |
Gross Peak Power At Peak Power Speed | 72 hp |
Gross Peak Power At Peak Power Speed | 53.7 kW |
Peak Torque Speed | 1800 rpm |
Gross Peak Torque At Peak Torque Speed | 207 lb-ft |
Gross Peak Torque At Peak Torque Speed | 280.7 Nm |
Net Power At Rated Speed (ISO9249) | 68 hp |
Net Power At Rated Speed (ISO9249) | 50.7 kW |
Net Peak Power At Peak Power Speed (ISO9249) | 51.5 kW |
Net Peak Torque At Peak Torque Speed (ISO9249) | 200 lb-ft |
Net Peak Torque At Peak Torque Speed (ISO9249) | 271.2 Nm |
Net Torque Rise | 29 % |
Oil Specification | JD Torq-Gard™ or equivalent |
Lubrication | Pressure system with spin-on filter and cooler |
Fuel System | Bosch electronic fuel system with high pressure common rail |
Air Cleaner | Dual stage dry type with safety element and evacuator valve |
Fan Type | Variable rate, temperature controlled (viscous) cooling fan, standard |
Engine Coolant Rating | -40 °F |
Engine Coolant Rating | -40 ℃ |
Engine Radiator (Fins Per In.) | 10 |
Engine Oil Cooler Type | Oil-to-water |
Hydraulic Cooler Type | Oil-to-air |
Transmission Cooler Type | Oil-to-air |
Transmission Type | 4 speed manual range gear selection transmission with synchronizers; Electric clutch cutoff on loader lever and Manual range selection lever |
Number Of Gears Forward | 4 |
Number Of Gears Reverse | 4 |
Shift Control Type | Electric forward-neutral-reverse control lever with neutral start interlock |
Torque Converter Type | Single stage, dual phase with 3.01:1 stall ratio |
Torque Converter | 11.8 in. |
Torque Converter | 299.7 mm |
Conditions For Measuring Travel Speeds | Synchro-Shuttle, standard transmission; with tire size 19.5L-24 rear tires |
Gear 1, Forward Maximum Speed | 3.5 mph |
Gear 1, Forward Maximum Speed | 5.6 km/h |
Gear 1, Reverse Maximum Speed | 3.5 mph |
Gear 1, Reverse Maximum Speed | 5.6 km/h |
Gear 2, Forward Maximum Speed | 5.8 mph |
Gear 2, Forward Maximum Speed | 9.3 km/h |
Gear 2, Reverse Maximum Speed | 5.8 mph |
Gear 2, Reverse Maximum Speed | 9.3 km/h |
Gear 3, Forward Maximum Speed | 12.7 mph |
Gear 3, Forward Maximum Speed | 20.4 km/h |
Gear 3, Reverse Maximum Speed | 12.7 mph |
Gear 3, Reverse Maximum Speed | 20.4 km/h |
Gear 4, Forward Maximum Speed | 23.6 mph |
Gear 4, Forward Maximum Speed | 38 km/h |
Gear 4, Reverse Maximum Speed | 23.6 mph |
Gear 4, Reverse Maximum Speed | 38 km/h |
Axle Oscillation Stop To Stop, Front Axle | 22 degree (angle) |
Front Axle, Sae J43 Rating | 11000 lb. |
Front Axle, Sae J43 Rating | 4989.5 kg |
Front Axle, Dynamic Rating | 16500 lb. |
Front Axle, Dynamic Rating | 7484.3 kg |
Front Axle, Static Rating | 51800 lb. |
Front Axle, Static Rating | 23501.2 kg |
Front Axle, Ultimate Rating | 87100 lb. |
Front Axle, Ultimate Rating | 39506.5 kg |
Rear Axle, SAE J43 Rating | 13200 lb. |
Rear Axle, SAE J43 Rating | 5987.4 kg |
Rear Axle, Dynamic Rating | 17600 lb. |
Rear Axle, Dynamic Rating | 7983.2 kg |
Rear Axle, Static Rating | 51800 lb. |
Rear Axle, Static Rating | 23501.2 kg |
Rear Axle, Ultimate Rating | 87100 lb. |
Rear Axle, Ultimate Rating | 39506.5 kg |
Maximum Axle Torque | 33900 lb. |
Maximum Axle Torque | 15376.4 kg |
Mechanical Front Wheel Drive Axle Differential Type | Open |
Rear Axle Differential Type | Foot actuated, hydraulically engaged 100% mechanical lock |
Rear Differential Lock Pressure | 175 psi |
Rear Differential Lock Pressure | 1206.6 kPa |
Steering Type | Hydrostatic power steering and emergency steering (ISO 5010) |
Steering Pressure | 3625 psi |
Steering Pressure | 24987.5 kPa |
Maximum Steer Angle, Mechanical Front-Wheel Drive (MFWD) Axle | 55 degree (angle) |
Maximum Steer Angle, Non-Powered Front Axle | 55 degree (angle) |
Curb-Turning Radius, With Brakes, With MFWD Axle | 11, 1 ft, in. |
Curb-Turning Radius, With Brakes, With MFWD Axle | 3.38 m |
Curb-Turning Radius, With Brakes, With Non-Powered Front Axle | 11, 1 ft, in. |
Curb-Turning Radius, With Brakes, With Non-Powered Front Axle | 3.38 m |
Curb-Turning Radius, Without Brakes, With MFWD Axle | 12, 5 ft, in. |
Curb-Turning Radius, Without Brakes, With MFWD Axle | 3.78 m |
Curb-Turning Radius, Without Brakes, With Non-Powered Front Axle | 12, 6 ft, in. |
Curb-Turning Radius, Without Brakes, With Non-Powered Front Axle | 3.81 m |
Bucket Clearance Circle, With Brakes, With MFWD Axle | 31, 11 ft, in. |
Bucket Clearance Circle, With Brakes, With MFWD Axle | 9.73 m |
Bucket Clearance Circle, With Brakes, With Non-Powered Front Axle | 31, 11 ft, in. |
Bucket Clearance Circle, With Brakes, With Non-Powered Front Axle | 9.73 m |
Bucket Clearance Circle, Without Brakes, With MFWD Axle | 33, 10 ft, in. |
Bucket Clearance Circle, Without Brakes, With MFWD Axle | 10.31 m |
Bucket Clearance Circle, Without Brakes, With Non-Powered Front Axle | 33, 11 ft, in. |
Bucket Clearance Circle, Without Brakes, With Non-Powered Front Axle | 10.34 m |
Number Of Steering Wheel Turns (Lock To Lock) With MFWD Axle | 2.7 |
Number Of Steering Wheel Turns (Lock To Lock) With Non-Powered Front Axle | 3.2 |
MFWD Axle Final Drives And Gears | Heavy duty, outboard planetary final drives distribute shock loads over 3 gears |
MFWD Axle Total Ratio | 13.286:1 |
Rear Axle Final Drives And Gears | Heavy duty, outboard planetary final drives distribute shock loads over 3 gears |
Rear Axle Total Ratio | 17.077:1 |
Brakes | Conform to ISO 3450 |
Service Brakes | Power assisted, hydraulic wet disc, mounted inboard, self adjusting and self equalizing |
Service Brakes Friction Disc Area Per Side | 109100 mmByMm |
Hydraulics System Type | Open center system, axial piston pump |
Rated Rpm | 2200 rpm |
Backhoe Pump Flow | 32.8 gpm |
Backhoe Pump Flow | 124.1 L/min |
Loader Pump Flow | 30.1 gpm |
Loader Pump Flow | 113.9 L/min |
Backhoe System Relief Pressure | 3625 psi |
Backhoe System Relief Pressure | 24987.5 kPa |
Loader System Relief Pressure | 3200 psi |
Loader System Relief Pressure | 22063 kPa |
Backhoe Controls | 2-lever mechanical standard, pilot control with pattern select and manual and/or electric auxiliary functions optional |
Loader Controls | Single-lever control with electric clutch cutoff switch standard; single-lever control with electric clutch cutoff switch, electrohydraulic (EH) proportional auxiliary roller, MFWD (momentary), and transmission quick-shift optional |
Voltage | 12 V |
Number Of Batteries | 1 |
Battery Capacity (1 Battery) | 950 CCA |
Reserve Capacity (1 Battery) | 175 min. |
Alternator Rating | 130 amp |
Lighting Options | 4 halogen: 2 front, 2 rear (32,500 candlepower each); turn signals and flashers: 2 front and 2 rear; stop and taillights; and 2 rear reflectors; factory installed option for 2 LED spot lights and 2 LED flood lights in lieu of the standard halogen light package |
Operator Station Type | Canopy, isolation mounted, ROPS/FOPS, left/right access, with molded roof; optional fully enclosed cab |
Alternator, Low Voltage | Indicator light, Audible |
Service Code Indicator | Indicator light, Audible |
Engine Air Filter Restriction | Indicator light, Audible |
Engine Coolant Temperature | Indicator light, Audible, Gauge |
Engine Oil Pressure | Indicator light, Audible |
Fuel Level | Audible, Gauge, Digital |
Hydraulic Oil Filter Restriction | Audible, Digital |
Park Brake On/Off | Indicator light |
Seat Belt Reminder | Indicator light, Digital |
Stop Indicator | Indicator light, Audible |
MFWD Active | Indicator light |
Hydraulics Enabled | Indicator light |
Engine Preheat | Indicator light, Digital |
Torque Converter Oil Temp | Indicator light, Audible, Gauge, Digital |
Job Timer | Digital |
Hourmeter | Digital |
Engine Rpm | Digital |
System Voltage | Digital |
Machine Information And Configuration | Digital |
Sight Gauges | Hydraulic Reservoir |
Diagnostics | In-Cab Monitor Information |
Refill Capacity Cooling System (Cab) | 20.6 qt |
Refill Capacity Cooling System (Cab) | 19.5 L |
Refill Capacity Cooling System (Canopy) | 18.9 qt |
Refill Capacity Cooling System (Canopy) | 17.89 L |
Refill Capacity Rear Axle Differential Housing | 15.3 qt |
Refill Capacity Rear Axle Differential Housing | 14.48 L |
Refill Capacity Rear Axle Each Planetary | 1.6 qt |
Refill Capacity Rear Axle Each Planetary | 1.51 L |
Refill Capacity Engine Oil | 11.1 qt |
Refill Capacity Engine Oil | 10.5 L |
Refill Capacity Torque Converter And Transmission | 19 qt |
Refill Capacity Torque Converter And Transmission | 17.98 L |
Refill Capacity Fuel Tank | 34 gal. |
Refill Capacity Fuel Tank | 128.7 L |
Refill Capacity Hydraulic System | 33.5 gal. |
Refill Capacity Hydraulic System | 126.81 L |
Refill Capacity Hydraulic Reservoir | 11.9 gal. |
Refill Capacity Hydraulic Reservoir | 45.05 L |
Refill Capacity Mechanical Front-Wheel Drive Housing Axle | 7.9 qt |
Refill Capacity Mechanical Front-Wheel Drive Housing Axle | 7.48 L |
Refill Capacity Mechanical Front-Wheel Drive Housing Planetary Each | 0.8 qt |
Refill Capacity Mechanical Front-Wheel Drive Housing Planetary Each | 0.76 L |
Operator And Standard Equipment With Full Fuel Tank | 13822 lb. |
Operator And Standard Equipment With Full Fuel Tank | 6269.55 kg |
Standard With Bumper | 13822 lb. |
Standard With Bumper | 6269.55 kg |
Typical With Cab, Extendible Dipperstick, And 405-Lb Counterweight | 15516 lb. |
Typical With Cab, Extendible Dipperstick, And 204-Kg Counterweight | 7037.93 kg |
Cab | 580 lb. |
Cab | 263.08 kg |
Mechanical Front-Wheel Drive With Tires | 244 lb. |
Mechanical Front-Wheel Drive With Tires | 110.68 kg |
Extendable Dipperstick | 420 lb. |
Extendable Dipperstick | 190.51 kg |
Front Loader Coupler | 566 lb. |
Front Loader Coupler | 256.74 kg |
Backhoe Bucket Coupler | 130 lb. |
Backhoe Bucket Coupler | 58.97 kg |
Hydraulic Capacity Minimum Tines | 48 in. |
Hydraulic Capacity Minimum Tines | 1219.2 mm |
At Maximum Height With Minimum Tines | 3829 lb. |
At Maximum Height With Minimum Tines | 1737.14 kg |
At Maximum Reach With Minimum Tines | 5959 lb. |
At Maximum Reach With Minimum Tines | 2703.42 kg |
At Ground Line With Minimum Tines | 7603 lb. |
At Ground Line With Minimum Tines | 3448.99 kg |
Below Ground Line With Minimum Tines | 6.1 in. |
Below Ground Line With Minimum Tines | 154.94 mm |
Rated Capacity Of Minimum Tines | 8598 lb. |
Rated Capacity Of Minimum Tines | 3900.91 kg |
Hydraulic Capacity Maximum Tines | 60 in. |
Hydraulic Capacity Maximum Tines | 1524 mm |
At Maximum Height With Maximum Tines | 3563 lb. |
At Maximum Height With Maximum Tines | 1616 kg |
At Maximum Reach With Maximum Tines | 5605 lb. |
At Maximum Reach With Maximum Tines | 2542.47 kg |
At Ground Line With Maximum Tines | 7160 lb. |
At Ground Line With Maximum Tines | 3248.91 kg |
Below Ground Line With Maximum Tines | 6.1 in. |
Below Ground Line With Maximum Tines | 154.94 mm |
Rated Capacity Of Maximum Tines | 8598 lb. |
Rated Capacity Of Maximum Tines | 3900.91 kg |
