When the job demands maximum pull and performance, 9 Series tractors deliver the power, durability, and traction to keep you moving. Built for heavy draft and high-demand applications, they help you maintain field speed, cover more acres, and work through tough conditions—so you can stay on schedule when timing matters most.
Wide implements and high-speed operations push equipment to its limits. John Deere's 9 Series tractors are designed to maintain consistent performance under load, with the power, hydraulics, and traction needed to keep large tools operating at peak efficiency - helping you reduce bottlenecks, improve productivity, and get more done in every pass.
Productivity isn’t just about horsepower - it’s about how consistently you can apply it. 9 Series tractors combine integrated technology, precision capabilities, and reliable performance to help you work with confidence. From the cab to the cloud, you can monitor performance, document work, and make better decisions across your operation.
Answer text goes here
Machine Configuration | |||||||||||||||||
| Wheel or Track Configuration | Wheel | ||||||||||||||||
| Drive Type | 4WD | Outboard planetary | Inboard planetary with double-reduction axle | Bull gear and double idler with floating pinion | Bull gear and double idler with floating pinion | Compound planetary | Compound planetary | Planetary and planetary drop gear | Planetary and planetary drop gear | ||||||||
Engine | |||||||||||||||||
| Engine Make | John Deere | ||||||||||||||||
| Engine Model | JD14 | ||||||||||||||||
| Engine Family | MJDXL13.5334 | MJDXL13.5334 | MJDXL13.5334 | MJDXL13.5334 | MJDXL13.5334 | ||||||||||||
| Emissions Certifications | Final Tier 4 (FT4) | ||||||||||||||||
| Displacement | 827 cu in. | 13.6 L 827 cu in. | 13.6 L 827 cu in. | 13.6 L 827 cu in. | 13.6 L 827 cu in. | 16.8 L 1025 cu in. | 16.8 L 1025 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 16.2 L 988.6 cu in. | 16.2 L 988.6 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. |
| Displacement | 13.6 L | 13.6 L 827 cu in. | 13.6 L 827 cu in. | 13.6 L 827 cu in. | 13.6 L 827 cu in. | 16.8 L 1025 cu in. | 16.8 L 1025 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 16.2 L 988.6 cu in. | 16.2 L 988.6 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. |
| Aspiration | Dual series turbocharger with fixed geometry first stage and wastegated second stage; air-to-air aftercooling and cooled exhaust gas recirculation (EGR) | Dual series turbocharger with fixed geometry first stage and wastegated second stage; air-to-air aftercooling and cooled exhaust gas recirculation (EGR) | Dual series turbocharger with fixed geometry first stage and wastegated second stage; air-to-air aftercooling and cooled exhaust gas recirculation (EGR) | Dual series turbocharger with fixed geometry first stage and wastegated second stage; air-to-air aftercooling and cooled exhaust gas recirculation (EGR) | Dual series turbocharger with fixed geometry first stage and wastegated second stage; air-to-air aftercooling and cooled exhaust gas recirculation (EGR) | Dual twin series turbochargers with eWastegate | Dual twin series turbochargers with eWastegate | Two-stage turbocharged, intercooled and aftercooled | Two-stage turbocharged, intercooled and aftercooled | Two-stage turbocharged, intercooled and aftercooled | Two-stage turbocharged, intercooled and aftercooled | Turbocharged, wastegate turbo | Turbocharged, wastegate turbo | Turbocharged, wastegate turbo | Turbocharged, wastegate turbo | ||
| Number of Cylinders | 6 | ||||||||||||||||
| Cylinder Liners | Wet-sleeve | ||||||||||||||||
| Aftertreatment Type | Diesel oxidation catalyst (DOC)/selective catalytic reduction (SCR) | ||||||||||||||||
| Rated Engine Speed | 2100 rpm | ||||||||||||||||
| Rated Engine Power | 631 hp (hp SAE) | 419 kW 570 hp | 434 kW 590 hp | 434 kW 590 hp | 471 kW 640 hp | 97/68/EC: 403 kW 550 hp | 97/68/EC: 440 kW 600 hp | ECE-R120: 433 kW 580 hp | ECE-R120: 462 kW 620 hp | ECE-R120: 433 kW 580 hp | ECE-R120: 462 kW 620 hp | ECE R 120: 495 kW 673 hp | ECE R 120: 495 kW 673 hp | ECE-R120: 433 kW 580 hp | ECE-R120: 433 kW 580 hp | ECE-R120: 462 kW 620 hp | ECE-R120: 462 kW 620 hp |
| Rated Engine Power | 471 kW | 419 kW 570 hp | 434 kW 590 hp | 434 kW 590 hp | 471 kW 640 hp | 97/68/EC: 403 kW 550 hp | 97/68/EC: 440 kW 600 hp | ECE-R120: 433 kW 580 hp | ECE-R120: 462 kW 620 hp | ECE-R120: 433 kW 580 hp | ECE-R120: 462 kW 620 hp | ECE R 120: 495 kW 673 hp | ECE R 120: 495 kW 673 hp | ECE-R120: 433 kW 580 hp | ECE-R120: 433 kW 580 hp | ECE-R120: 462 kW 620 hp | ECE-R120: 462 kW 620 hp |
| Rated Engine Power | 640 PS (hp ISO) | 419 kW 570 hp | 434 kW 590 hp | 434 kW 590 hp | 471 kW 640 hp | 97/68/EC: 403 kW 550 hp | 97/68/EC: 440 kW 600 hp | ECE-R120: 433 kW 580 hp | ECE-R120: 462 kW 620 hp | ECE-R120: 433 kW 580 hp | ECE-R120: 462 kW 620 hp | ECE R 120: 495 kW 673 hp | ECE R 120: 495 kW 673 hp | ECE-R120: 433 kW 580 hp | ECE-R120: 433 kW 580 hp | ECE-R120: 462 kW 620 hp | ECE-R120: 462 kW 620 hp |
| Engine Torque at Rated Speed | 2179 lb-ft | ||||||||||||||||
| Engine Torque at Rated Speed | 2954 Nm | ||||||||||||||||
| Maximum Engine Power | 682 hp (hp SAE) | 461 kW 627 hp | 477 kW 649 hp | 477 kW 649 hp | 508 kW 691 hp | 97/68/EC: 435 kW 591 hp | 97/68/EC: 475 kW 646 hp | ECE-R120: 476 kW 638 hp | ECE-R120: 509 kW 682 hp | ECE-R120: 476 kW 638 hp | ECE-R120: 509 kW 682 hp | ECE R 120: 495 kW 673 hp | ECE R 120: 495 kW 673 hp | ECE-R120: 476 kW 638 hp | ECE-R120: 476 kW 638 hp | ECE-R120: 509 kW 682 hp | ECE-R120: 509 kW 682 hp |
| Maximum Engine Power | 508 kW | 461 kW 627 hp | 477 kW 649 hp | 477 kW 649 hp | 508 kW 691 hp | 97/68/EC: 435 kW 591 hp | 97/68/EC: 475 kW 646 hp | ECE-R120: 476 kW 638 hp | ECE-R120: 509 kW 682 hp | ECE-R120: 476 kW 638 hp | ECE-R120: 509 kW 682 hp | ECE R 120: 495 kW 673 hp | ECE R 120: 495 kW 673 hp | ECE-R120: 476 kW 638 hp | ECE-R120: 476 kW 638 hp | ECE-R120: 509 kW 682 hp | ECE-R120: 509 kW 682 hp |
| Maximum Engine Power | 691 PS (hp ISO) | 461 kW 627 hp | 477 kW 649 hp | 477 kW 649 hp | 508 kW 691 hp | 97/68/EC: 435 kW 591 hp | 97/68/EC: 475 kW 646 hp | ECE-R120: 476 kW 638 hp | ECE-R120: 509 kW 682 hp | ECE-R120: 476 kW 638 hp | ECE-R120: 509 kW 682 hp | ECE R 120: 495 kW 673 hp | ECE R 120: 495 kW 673 hp | ECE-R120: 476 kW 638 hp | ECE-R120: 476 kW 638 hp | ECE-R120: 509 kW 682 hp | ECE-R120: 509 kW 682 hp |
| Maximum Engine Torque | At 1550 rpm: 2954 Nm / 2179 lb-ft | ||||||||||||||||
| Alternative Fuel Type | B30 Diesel Compatible | ||||||||||||||||
| Power Bulge | 8 % | ||||||||||||||||
| Fuel Type | Diesel | ||||||||||||||||
| Alternative Fuel Type | B20 diesel compatible | ||||||||||||||||
| Torque Rise | 38 % | 38 percent | 38 percent | 38 percent | 38 percent | ||||||||||||
Transmission | |||||||||||||||||

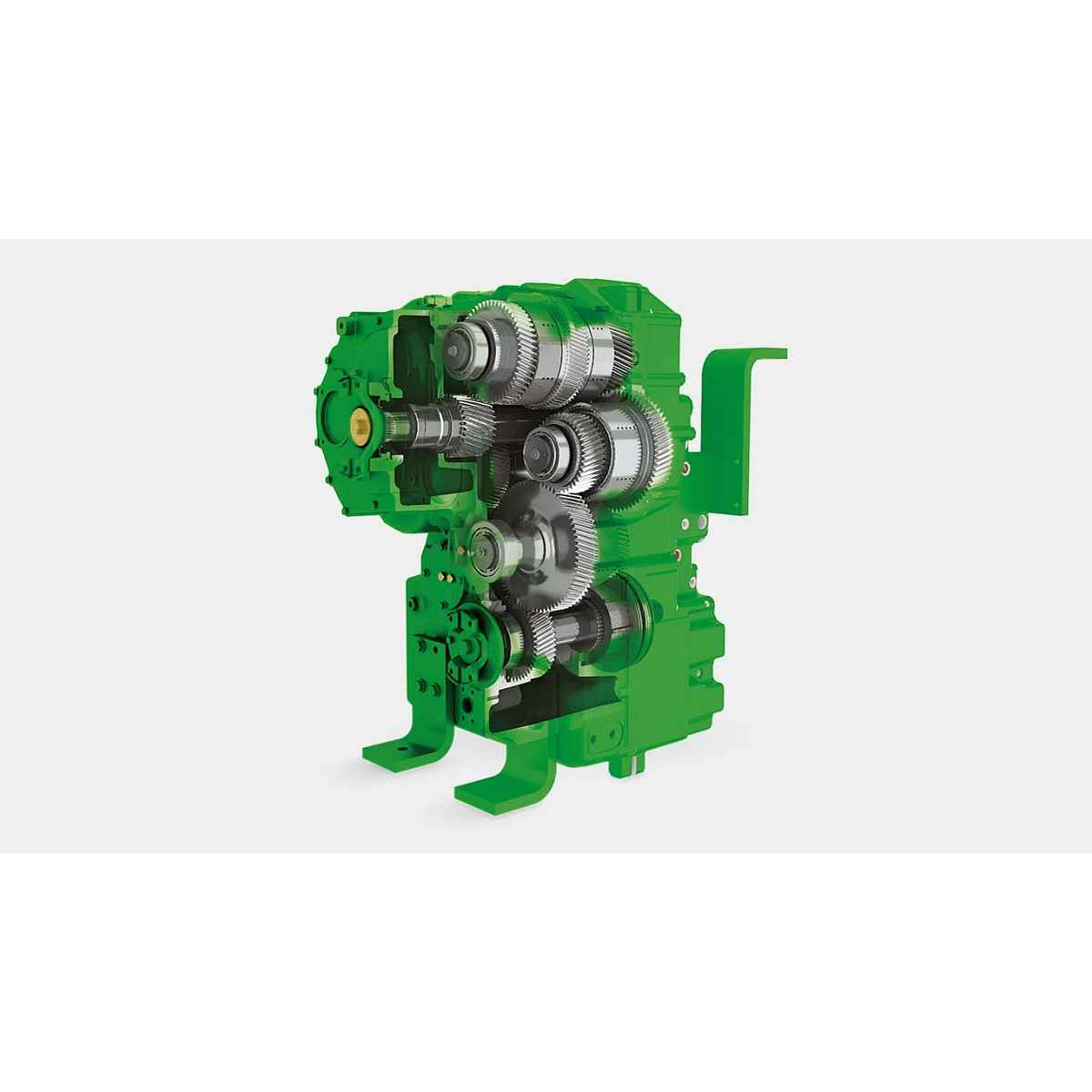

| Transmission Type | John Deere e18™ 18-speed PowerShift™ with Efficiency Manager | John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™: 40 km/h 25 mph | John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™: 40 km/h 25 mph | John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™: 40 km/h 25 mph | John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™: 40 km/h 25 mph | Caterpillar® Powershift 16F/4R | Caterpillar® Powershift 16F/4R | Standard: 16-speed Powershift 40 K | Standard: 16-speed Powershift 40 K | Standard: 16-speed Powershift 40 K | Standard: 16-speed Powershift 40 K | VarioDrive CVT / TA 400T | AccuDrive CVT / TA 400T | Ultra Command™ 16-speed full-powershift: 40 K 25 mph | Ultra Command™ 16-speed full-powershift: 31 K 19 mph | Ultra Command™ 16-speed full-powershift: 40 K 25 mph | Ultra Command™ 16-speed full-powershift: 31 K 19 mph |
| Maximum Speed Forward | 40 km/h / 25 mph | ||||||||||||||||
Rear Power Take-Off (PTO) | |||||||||||||||||
| PTO Category | Independent, 44 mm (1.75 in.) 20-spline, 1000 rpm | ||||||||||||||||
| Rated PTO Power | 335 hp | 245 kW 329 hp | 249 kW 335 hp | 249 kW 335 hp | 249 kW 335 hp | 316 kW 425 hp | 316 kW 425 hp | 352 kW 473 hp | 352 kW 473 hp | 352 kW 473 hp | 352 kW 473 hp | At 1300 PTO rpm: 439 kW 588 hp | At 1300 PTO rpm: 439 kW 588 hp | 396 kW 530 hp | 396 kW 530 hp | 396 kW 530 hp | 396 kW 530 hp |
| Rated PTO Power | 249 kW | 245 kW 329 hp | 249 kW 335 hp | 249 kW 335 hp | 249 kW 335 hp | 316 kW 425 hp | 316 kW 425 hp | 352 kW 473 hp | 352 kW 473 hp | 352 kW 473 hp | 352 kW 473 hp | At 1300 PTO rpm: 439 kW 588 hp | At 1300 PTO rpm: 439 kW 588 hp | 396 kW 530 hp | 396 kW 530 hp | 396 kW 530 hp | 396 kW 530 hp |
| Rated PTO Power | 340 PS | 245 kW 329 hp | 249 kW 335 hp | 249 kW 335 hp | 249 kW 335 hp | 316 kW 425 hp | 316 kW 425 hp | 352 kW 473 hp | 352 kW 473 hp | 352 kW 473 hp | 352 kW 473 hp | At 1300 PTO rpm: 439 kW 588 hp | At 1300 PTO rpm: 439 kW 588 hp | 396 kW 530 hp | 396 kW 530 hp | 396 kW 530 hp | 396 kW 530 hp |
| Engagement Method | Electrohydraulic | ||||||||||||||||
| Number of Splines | 20 | ||||||||||||||||
Rear Hitch | |||||||||||||||||
| Rear Hitch Category (SAE Designation) | Category 4N/4: 6804 kg (15,000 lb); Category 4N/4: 9072 kg (20,000 lb) | Category 4N/N: 6804 kg 15,000 lb Category 4N/N: 9072 kg 20,000 lb | Category 4N/4: 6804 kg 15,000 lb Category 4N/4: 9072 kg 20,000 lb | Category 4N/4 with capacity: 6804 kg 15,000 lb Category 4N/N: 9072 kg 20,000 lb | Category 4N/4: 6804 kg 15,000 lb Category 4N/4: 9072 kg 20,000 lb | Standard: 3/4N | Standard: 3/4N | Category 4N | Category 4N | Category 4N | Category 4N | Standard: 3/4N | Standard: 3/4N | Category 4N: at 610 mm (24 in.) behind ball ends: 8900 kg 19,620 lb | Category 4N: at 610 mm (24 in.) behind ball ends: 8900 kg 19,620 lb | Category 4N: at 610 mm (24 in.) behind ball ends: 8900 kg 19,620 lb | Category 4N: at 610 mm (24 in.) behind ball ends: 8900 kg 19,620 lb |
| Maximum Lift Capacity Directly at Coupling Points | 20.000 | ||||||||||||||||
| Sensing Type | Electrohydraulic with draft sensing | Electrohydraulic with draft sensing | Electrohydraulic with draft sensing | Electrohydraulic with draft sensing | Electrohydraulic with draft sensing | ||||||||||||
Drawbar | |||||||||||||||||
| Drawbar Category | Category 5 | Standard: Category 5 with heavy-duty drawbar support Optional: Category 5 | Category 5 | Category 5 | Category 5 | Category 5 | Category 5 | Standard: Category 4 Optional: Category 5 | Standard: Category 4 Optional: Category 5 | Category 4 Optional: Category 5 | Category 4 Optional: Category 5 | Category 4 Optional: Category 5 | Category 4 Optional: Category 5 | ||||
| Maximum Vertical Load | 12,000 lb / 5440 kg | 5440 kg 12,000 lb | 5440 kg 12,000 lb | 5440 kg 12,000 lb | 5440 kg 12,000 lb | 6,804 kg 15,000 lb | 6,804 kg 15,000 lb | 6,804 kg 15,000 lb | 6,804 kg 15,000 lb | ||||||||
Hydraulics | |||||||||||||||||
| Hydraulic System Type | Closed-center, pressure-and-flow compensated | Closed-center, pressure-and-flow compensated | Closed-center, pressure-and-flow compensated | Closed-center, pressure-and-flow compensated | Closed-center, pressure-and-flow compensated | Closed-center, pressure-flow compensated | Closed center, pressure-flow compensated | Pressure-flow compensated | Pressure-flow compensated | Pressure-flow compensated | Pressure-flow compensated | Closed-center, pressure-flow compensated | Closed-center, pressure-flow compensated | Closed-center, load sensing | Closed-center, load sensing | Closed-center, load sensing | Closed-center, load sensing |
| Pump Rated Output | 208 L/min / 55 gpm (Standard); 416 L/min / 110 gpm (Optional) | Standard: 208 L/min 55 gpm Optional: 416 L/min 110 gpm | Standard: 208 L/min 55 gpm Optional: 416 L/min 110 gpm | Standard: 208 L/min 55 gpm Optional: 416 L/min 110 gpm | Standard: 208 L/min 55 gpm Optional: 416 L/min 110 gpm | Standard: 220 L/min 58.1 gpm Optional: 321.8 L/min 85 gpm | Standard: 220 L/min 58.1 gpm Optional: 321.8 L/min 85 gpm | Standard: 159 L/min 42 gpm Optional: 216 L/min 57 gpm 428 L/min 113 gpm | Standard: 159 L/min 42 gpm Optional: 216 L/min 57 gpm 428 L/min 113 gpm | Standard: 159 L/min 42 gpm Optional: 216 L/min 57 gpm 428 L/min 113 gpm | Standard: 159 L 42 gpm Optional: 216 L/min 57 gpm 428 L/min 113 gpm | Standard: 220 L/min 58.1 gpm Optional: 439 L/min 116 gpm | Standard: 220 L/min 58.1 gpm Optional: 439 L/min 116 gpm | Standard: 159 L/min 42 gpm Optional: 216 L/min 57 gpm 428 L/min 113 gpm | Standard: 159 L/min 42 gpm Optional: 216 L/min 57 gpm 428 L/min 113 gpm | Standard: 159 L/min 42 gpm Optional: 216 L/min 57 gpm 428 L/min 113 gpm | Standard: 159 L/min 42 gpm Optional: 216 L/min 57 gpm 428 L/min 113 gpm |
| Number of Rear Selective Control Valves (SCVs) | Four to six factory or field installed; Base: four 1.3-cm (1/2-in.) couplers; Optional: five to six 1.3-cm (1/2-in.) couplers factory installed; Optional: three 1.9-cm (3/4-in.) couplers plus three 1.3-cm (1/2-in.) couplers factory installed | Four to eight factory or field installed Base: four 1.3-cm (1/2-in.) couplers Optional: five to six 1.3-cm (1/2-in.) couplers factory installed Optional: three 1.9-cm (3/4-in.) couplers plus five 1.3-cm (1/2-in.) couplers factory installed | Four to eight factory or field installed Base: four 1.3-cm (1/2-in.) couplers Optional: five to six 1.3-cm (1/2-in.) couplers factory installed Optional: three 1.9-cm (3/4-in.) couplers plus five 1.3-cm (1/2-in.) couplers factory installed | Four to eight factory or field installed Base: four 1.3-cm (1/2-in.) couplers Optional: five to six 1.3-cm (1/2-in.) couplers factory installed Optional: three 1.9-cm (3/4-in.) couplers plus five 1.3-cm (1/2-in.) couplers factory installed | Four to eight factory or field installed Base: four 1.3-cm (1/2-in.) couplers Optional: five to six 1.3-cm (1/2-in.) couplers factory installed Optional: three 1.9-cm (3/4-in.) couplers plus five 1.3-cm (1/2-in.) couplers factory installed | Standard: four Optional: up to six | Standard: four Optional: up to six | Standard: four Optional: up to eight | Standard: four Optional: up to eight | Standard: four Optional: up to eight | Standard: four Optional: up to eight | Standard: Four Optional: Up to eight | Standard: Four Optional: Up to eight | Standard: Four Optional: Five to eight | Standard: Four Optional: Five to eight | Standard: Four Optional: Five to eight | Standard: Four Optional: Five to eight |
| Available Flow at a Single Rear SCV | 1.3-cm (1/2-in.) couplers: 132 L/min (35 gpm); 1.9-cm (3/4-in.) couplers: 170 L/min (45 gpm) | 1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm 1.9-cm (3/4-in.) couplers: 159 L/min 42 gpm | 1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm 1.9-cm (3/4-in.) couplers: 159 L/min 42 gpm | 1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm 1.9-cm (3/4-in.) couplers: 159 L/min 42 gpm | 1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm 1.9-cm (3/4-in.) couplers: 159 L/min 42 gpm | 140 L/min 37 gpm | 140 L/min 37 gpm | 132 L/min 35 gpm | 132 L/min 35 gpm | 132 L/min 35 gpm | 132 L/min 35 gpm | ||||||
| SCV Control | Electronic | ||||||||||||||||
Front Axle | |||||||||||||||||
| Front Axle Type | Diameter: 120 x 3048 mm (4.72 x 120 in.) | Diameter: 120 x 3048 mm 4.72 x 120 in. | Bar: 140 x 3048 mm 5.5 x 120 in. | Bar: 140 x 3,048 mm 5.5 x 120 in. | Flange | Flange | |||||||||||
| Front Axle Differential Lock | Full-locking electrohydraulic | Full-locking electrohydraulic | Full-locking electrohydraulic | Full-locking electrohydraulic | |||||||||||||
Rear Axle | |||||||||||||||||
| Rear Axle Type | Diameter: 120 x 3048 mm (4.72 x 120 in.) | Diameter: 120 x 3048 mm 4.72 x 120 in. | Bar: 140 x 3048 mm 5.5 x 120 in. | Bar: 140 x 3,048 mm 5.5 x 120 in. | Flange | Flange | |||||||||||
| Rear Differential Lock | Full-locking electrohydraulic | Full-locking electrohydraulic | Full-locking electrohydraulic | Full-locking electrohydraulic | Electrohydraulic | Electrohydraulic | Electrohydraulic | Electrohydraulic | |||||||||
| Final Drive | Inboard planetary with double-reduction axle | Outboard planetary | Inboard planetary with double-reduction axle | Bull gear and double idler with floating pinion | Bull gear and double idler with floating pinion | Compound planetary | Compound planetary | Planetary and planetary drop gear | Planetary and planetary drop gear | ||||||||
Steering & Brakes | |||||||||||||||||
| Steering Type | Hydraulic power steering; Optional: ActiveCommand Steering (ACS™) | Heavy-duty steering pump: 130 cc 7.9 cu in. | Standard: Hydraulic power steering Optional: ActiveCommand Steering (ACS™) | Standard: Hydraulic power steering Optional: ActiveCommand Steering (ACS®) | Standard: Hydraulic power steering Optional: ActiveCommand Steering (ACS™) | ||||||||||||
Electrical System | |||||||||||||||||
| Battery Voltage | 12 V | ||||||||||||||||
| Battery Cold Cranking Amps | 2850 CCA | ||||||||||||||||
| Alternator Capacity | Standard: 250 amp; Optional: 330 amp | ||||||||||||||||
| Working Lights | Standard: 20 halogen; Optional: 20 or 24 light-emitting diode (LED) | Standard: 18 halogen Optional: 18 or 24 LED plus 8 LED convenience lights | Standard: 18 halogen Optional: 18 or 24 LED plus 8 LED convenience lights | Standard: 18 halogen Optional: 18 or 24 LED plus 8 LED convenience lights | Standard: 18 halogen Optional: 18 or 24 LED plus 8 LED convenience lights | ||||||||||||
| Driving Lights | Halogen, 65 W; Optional: LED | ||||||||||||||||

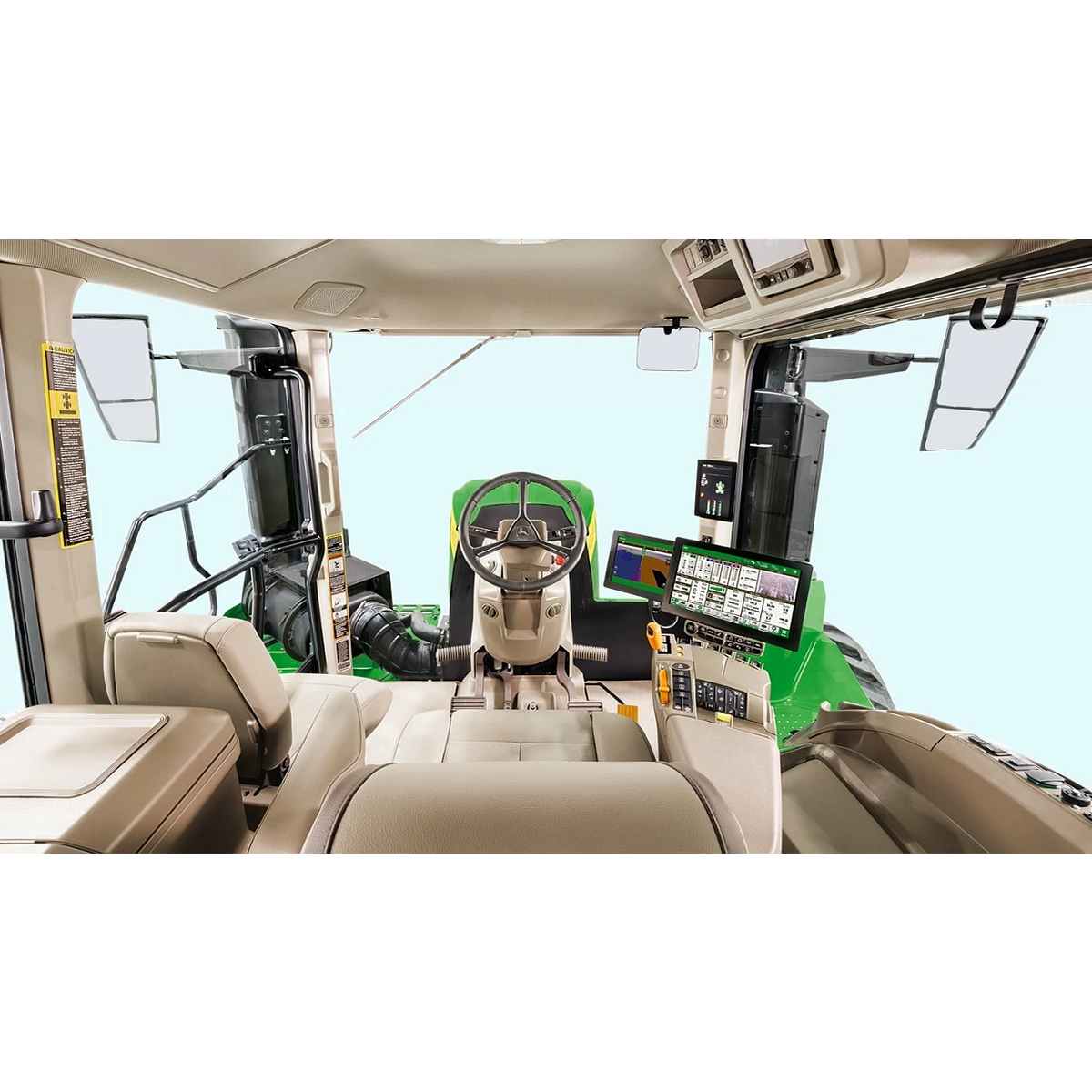

Operator Station | |||||||||||||||||
| Seat Suspension | Air suspension; Optional: ActiveSeat™ II | ||||||||||||||||
| Degree of Seat Swivel, Left Hand | 8 degree (angle) | ||||||||||||||||
| Degree of Seat Swivel, Right Hand | 40 degree (angle) | ||||||||||||||||
| Instructional Seat | Standard | Standard | Standard | Standard | Standard | ||||||||||||
| Primary Display | G5 Plus CommandCenter™: 32.5 cm (12.8 in.) | ||||||||||||||||
| Radio | AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna; Optional: Touchscreen radio | Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna Optional: Touchscreen radio | Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna Optional: Touchscreen radio | Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna Optional: Touchscreen radio | Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna Optional: Touchscreen radio | ||||||||||||
| Inner Cab Volume | 115 cu ft | 3.27 m3 115 cu ft | 3.27 m3 115 cu ft | 3.27 m3 115 cu ft | 3.27 m3 115 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | ||||
| Inner Cab Volume | 3.27 m³ | 3.27 m3 115 cu ft | 3.27 m3 115 cu ft | 3.27 m3 115 cu ft | 3.27 m3 115 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | ||||
| Cab Glass Area | 71.47 sq ft | 6.64 m2 71.47 sq ft | 6.64 m2 71.47 sq ft | 6.64 m2 71.47 sq ft | 6.64 m2 71.47 sq ft | 8.18 m2 88.1 sq ft | 8.18 m2 88.1 sq ft | 8.18 m2 88.1 sq ft | 8.18 m2 88.1 sq ft | 8.18 m3 88.1 sq ft | 8.18 m3 88.1 sq ft | 8.18 m3 88.1 sq ft | 8.18 m3 88.1 sq ft | ||||
| Cab Glass Area | 6.64 m² | 6.64 m2 71.47 sq ft | 6.64 m2 71.47 sq ft | 6.64 m2 71.47 sq ft | 6.64 m2 71.47 sq ft | 8.18 m2 88.1 sq ft | 8.18 m2 88.1 sq ft | 8.18 m2 88.1 sq ft | 8.18 m2 88.1 sq ft | 8.18 m3 88.1 sq ft | 8.18 m3 88.1 sq ft | 8.18 m3 88.1 sq ft | 8.18 m3 88.1 sq ft | ||||
Technology Integration | |||||||||||||||||
| Guidance | Integrated AutoTrac™; Autonomy Ready (available in select regions) | Integrated AutoTrac™ | Integrated AutoTrac™ | Integrated AutoTrac™ | Integrated AutoTrac™ | Auto-Guide™ | Auto-Guide™ | AFS AccuGuide™ | AFS AccuGuide™ | AFS AccuGuide™ | AFS AccuGuide™ | Intellisteer™ guidance | Intellisteer™ guidance | Intellisteer™ guidance | Intellisteer™ guidance | ||
| Connectivity | Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination) | ||||||||||||||||
| Remote Diagnostics | Available with activated JDLink hardware and activations | Available with activated JDLink hardware and activations | Available with activated JDLink hardware and activations | Available with activated JDLink hardware and activations | Available with activated JDLink hardware and activations | ||||||||||||
Capacities | |||||||||||||||||
| Fuel Tank Capacity | 400 gal. | ||||||||||||||||
| Fuel Tank Capacity | 1514 L | ||||||||||||||||
| Diesel Exhaust Fluid (DEF) Tank Capacity | 31.7 gal. | 93.9 L 24.8 U.S. gal. | 120 L 31.7 U.S. gal. | 120 L 31.7 U.S. gal. | 120 L 31.7 U.S. gal. | 115 L 30.5 U.S. gal. | 115 L 30.5 U.S. gal. | 250 L 66 U.S. gal. | 250 L 66 U.S. gal. | 322 L 85 U.S. gal. | 322 L 85 U.S. gal. | 250 L 66 U.S. gal. | 250 L 66 U.S. gal. | 250 L 66 U.S. gal. | 250 L 66 U.S. gal. | ||
| Diesel Exhaust Fluid (DEF) Tank Capacity | 120 L | 93.9 L 24.8 U.S. gal. | 120 L 31.7 U.S. gal. | 120 L 31.7 U.S. gal. | 120 L 31.7 U.S. gal. | 115 L 30.5 U.S. gal. | 115 L 30.5 U.S. gal. | 250 L 66 U.S. gal. | 250 L 66 U.S. gal. | 322 L 85 U.S. gal. | 322 L 85 U.S. gal. | 250 L 66 U.S. gal. | 250 L 66 U.S. gal. | 250 L 66 U.S. gal. | 250 L 66 U.S. gal. | ||
| Cooling System Capacity | 14.9 gal. | ||||||||||||||||
| Cooling System Capacity | 56.5 L | ||||||||||||||||
| Transmission - Hydraulic System | With 3-point hitch and PTO: 60 Without 3-point hitch and PTO: 58 gal. | With 3-point hitch and PTO: 307.8 L 81.3 U.S. gal. Without 3-point hitch and PTO: 300 L 79.3 U.S. gal. | With 3-point hitch and PTO: 227 L 60 U.S. gal. Without 3-point hitch and PTO: 220 L 58 U.S. gal. | With 3-point hitch and PTO: 227 L 60 U.S. gal. Without 3-point hitch and PTO: 220 L 58 U.S. gal. | With 3-point hitch and PTO: 227 L 60 U.S. gal. Without 3-point hitch and PTO: 220 L 58 U.S. gal. | ||||||||||||
| Transmission - Hydraulic System | With 3-point hitch and PTO: 242 Without 3-point hitch and PTO: 235 L | With 3-point hitch and PTO: 307.8 L 81.3 U.S. gal. Without 3-point hitch and PTO: 300 L 79.3 U.S. gal. | With 3-point hitch and PTO: 227 L 60 U.S. gal. Without 3-point hitch and PTO: 220 L 58 U.S. gal. | With 3-point hitch and PTO: 227 L 60 U.S. gal. Without 3-point hitch and PTO: 220 L 58 U.S. gal. | With 3-point hitch and PTO: 227 L 60 U.S. gal. Without 3-point hitch and PTO: 220 L 58 U.S. gal. | ||||||||||||
| Crankcase Oil Volume | 16.9 gal. | 64 L 16.9 U.S. gal. | 64 L 16.9 U.S. gal. | 64 L 16.9 U.S. gal. | 64 L 16.9 U.S. gal. | ||||||||||||
| Crankcase Oil Volume | 64 L | 64 L 16.9 U.S. gal. | 64 L 16.9 U.S. gal. | 64 L 16.9 U.S. gal. | 64 L 16.9 U.S. gal. | ||||||||||||
Dimensions & Weights | |||||||||||||||||
| Wheelbase | 154 in. | 2947 mm 116 in. | 3912 mm 154 in. | 4125 mm 162.4 in. | 4125 mm 162.4 in. | 3912 mm 154 in. | 3,912 mm 154 in. | 3,912 mm 154 in. | 3,912 mm 154 in. | 3,911 mm 154 in. | 3,911 mm 154 in. | 3,911 mm 154 in. | 3,911 mm 154 in. | ||||
| Wheelbase | 3912 mm | 2947 mm 116 in. | 3912 mm 154 in. | 4125 mm 162.4 in. | 4125 mm 162.4 in. | 3912 mm 154 in. | 3,912 mm 154 in. | 3,912 mm 154 in. | 3,912 mm 154 in. | 3,911 mm 154 in. | 3,911 mm 154 in. | 3,911 mm 154 in. | 3,911 mm 154 in. | ||||
| Base Machine Weight | 40660 lb. | 20,582 kg 45,375 lb | 20,856 kg 45,980 lb | 25,546 kg 56,320 lb | 25,846 kg 56,981 lb | 22,828 kg 50,328 lb | 22,828 kg 50,328 lb | 24,629 kg 53,502 lb | 22,828 kg 50,328 lb | ||||||||
| Base Machine Weight | 18482 kg | 20,582 kg 45,375 lb | 20,856 kg 45,980 lb | 25,546 kg 56,320 lb | 25,846 kg 56,981 lb | 22,828 kg 50,328 lb | 22,828 kg 50,328 lb | 24,629 kg 53,502 lb | 22,828 kg 50,328 lb | ||||||||
| Overall Length | 312.8 in. | With front weights, excluding hitch and coupler: 6965 mm 274.2 in. With front weights, including hitch and coupler: 7201 mm 283.5 in. | With front weights, excluding hitch and coupler: 7945 mm 312.8 in. With front weights, including hitch and coupler: 8427 mm 331.8 in. | Excluding hitch: 8309 mm 327.1 in. Including hitch and coupler: 8545 mm 336.4 in. | Excluding hitch: 8309 mm 327.1 in. Including hitch and coupler: 8545 mm 336.4 in. | 7,615 mm 300 in. | 7,615 mm 300 in. | With front weight pack and drawbar: 7,615 mm 300 in. | With front weight pack and drawbar: 7,615 mm 300 in. | With front weight pack and drawbar: 7,615 mm 300 in. | With front weight pack and drawbar: 7,615 mm 300 in. | ||||||
| Overall Length | 7945 mm | With front weights, excluding hitch and coupler: 6965 mm 274.2 in. With front weights, including hitch and coupler: 7201 mm 283.5 in. | With front weights, excluding hitch and coupler: 7945 mm 312.8 in. With front weights, including hitch and coupler: 8427 mm 331.8 in. | Excluding hitch: 8309 mm 327.1 in. Including hitch and coupler: 8545 mm 336.4 in. | Excluding hitch: 8309 mm 327.1 in. Including hitch and coupler: 8545 mm 336.4 in. | 7,615 mm 300 in. | 7,615 mm 300 in. | With front weight pack and drawbar: 7,615 mm 300 in. | With front weight pack and drawbar: 7,615 mm 300 in. | With front weight pack and drawbar: 7,615 mm 300 in. | With front weight pack and drawbar: 7,615 mm 300 in. | ||||||
| Drawbar Ground Clearance | 20.7 in. | ||||||||||||||||
| Drawbar Ground Clearance | 527 mm | ||||||||||||||||
| Maximum Ballast Level | 67000 lb. | 24,494 kg 54,000 lb | 30,391 kg 67,000 lb | 30,391 kg 67,000 lb | 30,391 kg 67,000 lb | ||||||||||||
| Maximum Ballast Level | 30391 kg | 24,494 kg 54,000 lb | 30,391 kg 67,000 lb | 30,391 kg 67,000 lb | 30,391 kg 67,000 lb | ||||||||||||
Additional Information | |||||||||||||||||
| Country of Manufacture | USA | USA | USA | USA | USA | USA | USA | USA | USA | USA | USA | USA | USA | ||||
| Date Collected | 4/3/2025 12:00:00 AM | 22 January 2022 | 22 January 2022 | 22 January 2022 | 22 January 2022 | 14-Oct-19 | 14-Oct-19 | 11-Oct-19 | 11-Oct-19 | 11-Oct-19 | 11-Oct-19 | 24-Mar-12 | 24-Mar-12 | 15-Oct-19 | 15-Oct-19 | 15-Oct-19 | 15-Oct-19 |
