John Deere
9RX 540
9 Series 490-830 HP Track Tractors

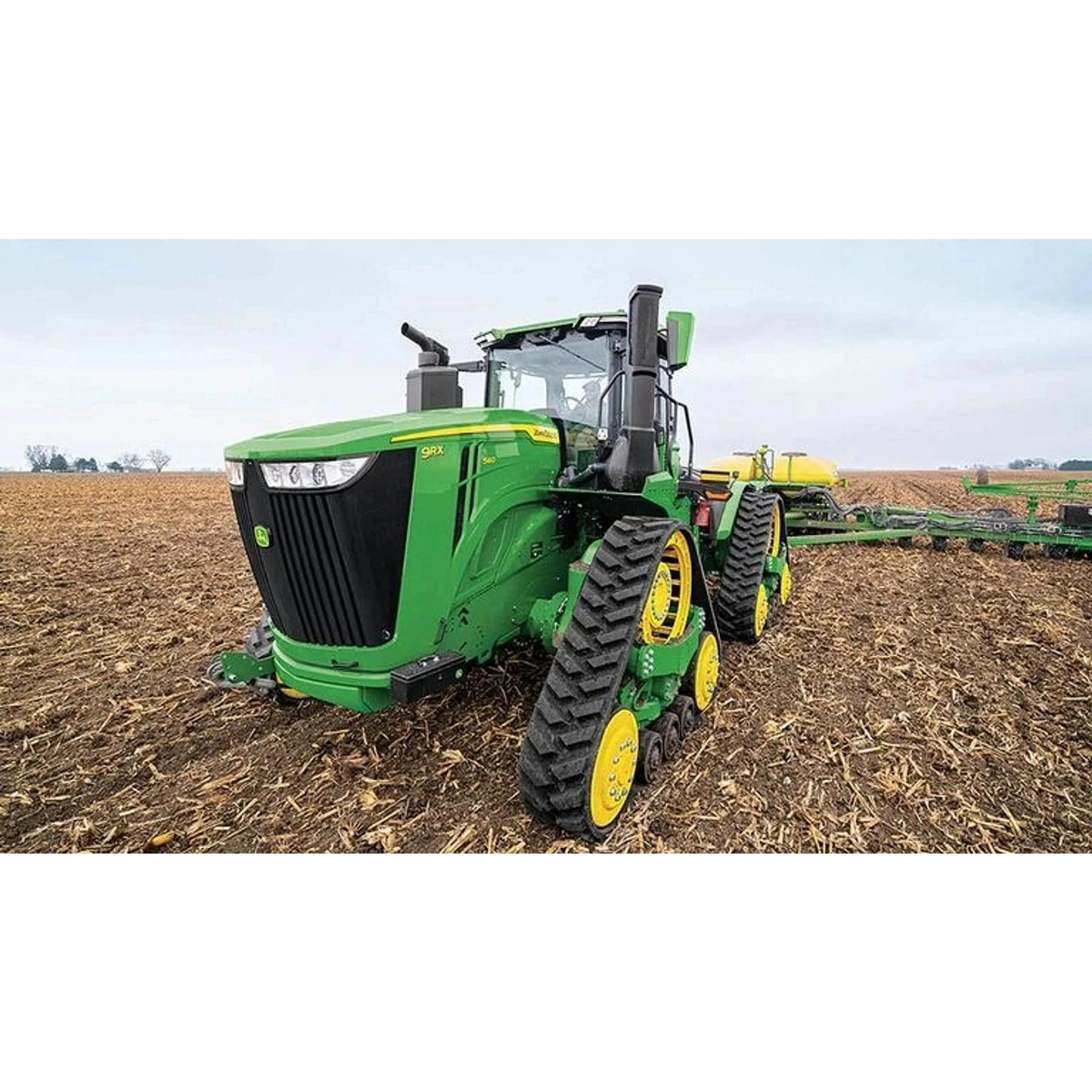

John Deere 9RX 540

Starting at

Take on Your Toughest Work with Confidence

When the job demands maximum pull and performance, 9 Series tractors deliver the power, durability, and traction to keep you moving. Built for heavy draft and high-demand applications, they help you maintain field speed, cover more acres, and work through tough conditions—so you can stay on schedule when timing matters most.

Green tractor with oversized dual tires pulling a cultivator across a harvested field with dust trailing behind the equipment under a cloudy blue sky
Keep Big Tools Moving Efficiently

Wide implements and high-speed operations push equipment to its limits. John Deere's 9 Series tractors are designed to maintain consistent performance under load, with the power, hydraulics, and traction needed to keep large tools operating at peak efficiency - helping you reduce bottlenecks, improve productivity, and get more done in every pass.

Green tractor with large rear tires towing a wide cultivator across a dry, harvested field with dust rising heavily behind the equipment over flat farmland under a hazy sky
Turn Power into Predictable Performance

Productivity isn’t just about horsepower - it’s about how consistently you can apply it. 9 Series tractors combine integrated technology, precision capabilities, and reliable performance to help you work with confidence. From the cab to the cloud, you can monitor performance, document work, and make better decisions across your operation.

Person working at a desk using a keyboard and mouse while viewing a large monitor displaying a detailed map interface; a laptop and desk lamp sit nearby in a bright workspace
Question text goes here

Answer text goes here

Machine Configuration
Wheel or Track Configuration

4-Track

Drive Type

4WD

Engine
Engine Make

John Deere

Engine Model

JD14

Engine Family

VJDXL13.5334

Emissions Certifications

Final Tier 4 (FT4)

Displacement

827 cu in.

Displacement

13.6 L

Aspiration

Single wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR)

Number of Cylinders

6

Cylinder Liners

Wet-sleeve

Aftertreatment Type

Diesel oxidation catalyst (DOC)/selective catalytic reduction (SCR)

Rated Engine Speed

2100 rpm

Rated Engine Power

533 hp
(hp SAE)

Rated Engine Power

397 kW

Rated Engine Power

540 PS
(hp ISO)

Engine Torque at Rated Speed

1838 lb-ft

Engine Torque at Rated Speed

2492 Nm

Maximum Engine Power

586 hp
(hp SAE)

Maximum Engine Power

437 kW

Maximum Engine Power

594 PS
(hp ISO)

Maximum Engine Torque

At 1550 rpm: 2492 Nm / 1838 lb-ft

Alternative Fuel Type

B30 Diesel Compatible

Power Bulge

10 %

Fuel Type

Diesel

Alternative Fuel Type

B20 Diesel Compatible

Torque Rise

38 %

Transmission
Transmission Type

John Deere e18™ 18-speed PowerShift™ with Efficiency Manager

Maximum Speed Forward

40 km/h / 25 mph

Rear Power Take-Off (PTO)
PTO Category

Independent, 44 mm (1.75 in.) 20-spline, 1000 rpm

Rated PTO Power

335 hp

Rated PTO Power

249 kW

Rated PTO Power

340 PS

Engagement Method

Electrohydraulic

Number of Splines

20

Rear Hitch
Rear Hitch Category (SAE Designation)

Category 4N/4: 6804 kg (15,000 lb); Category 4N/4: 9072 kg (20,000 lb)

Maximum Lift Capacity Directly at Coupling Points

20.000

Sensing Type

Electrohydraulic with draft sensing

Drawbar
Drawbar Category

Category 5

Maximum Vertical Load

12,000 lb / 5440 kg

Hydraulics
Hydraulic System Type

Closed-center, pressure-and-flow compensated

Pump Rated Output

208 L/min / 55 gpm (Standard); 416 L/min / 110 gpm (Optional)

Number of Rear Selective Control Valves (SCVs)

Four to six factory or field installed; Base: four 1.3-cm (1/2-in.) couplers; Optional: five to six 1.3-cm (1/2-in.) couplers factory installed; Optional: three 1.9-cm (3/4-in.) couplers plus three 1.3-cm (1/2-in.) couplers factory installed

Available Flow at a Single Rear SCV

1.3-cm (1/2-in.) couplers: 132 L/min (35 gpm); 1.9-cm (3/4-in.) couplers: 170 L/min (45 gpm)

SCV Control

Electronic

Front Axle
Front Axle Differential Lock

Full-locking electrohydraulic

Rear Axle
Rear Differential Lock

Full-locking electrohydraulic

Final Drive

Bull gear and double idler with floating pinion

Steering & Brakes
Steering Type

Hydraulic power steering; Optional: ActiveCommand Steering (ACS™)

Tracks
Track Tread Spacing

Narrow undercarriage: 2032, 2235, or 3048 mm (80, 88, or 120 in.); Wide undercarriage: 2218 or 3048 mm (87 or 120 in.)

Track Width

Standard: 762 mm (30 in.); Optional: 457, 610, or 914 mm (18, 24, or 36 in.)

Number Of Mid Rollers

Narrow undercarriage: Three; Wide undercarriage: Two

Electrical System
Battery Voltage

12 V

Battery Cold Cranking Amps

2850 CCA

Alternator Capacity

Standard: 250 amp; Optional: 330 amp

Working Lights

Standard: 20 halogen; Optional: 20 or 24 light-emitting diode (LED)

Driving Lights

Halogen, 65 W; Optional: LED

Operator Station
Seat Suspension

Air suspension

Degree of Seat Swivel, Left Hand

25 degree (angle)

Degree of Seat Swivel, Right Hand

40 degree (angle)

Cab Suspension

Standard

Instructional Seat

Standard

Primary Display

G5 Plus CommandCenter™: 32.5 cm (12.8 in.)

Radio

AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna; Optional: Touchscreen radio

Inner Cab Volume

115 cu ft

Inner Cab Volume

3.27 m³

Cab Glass Area

71.47 sq ft

Cab Glass Area

6.64 m²

Technology Integration
Guidance

Integrated AutoTrac™; Autonomy Ready (available in select regions)

Connectivity

Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination)

Remote Diagnostics

Available with activated JDLink hardware and activations

Capacities
Fuel Tank Capacity

400 gal.

Fuel Tank Capacity

1514 L

Diesel Exhaust Fluid (DEF) Tank Capacity

31.7 gal.

Diesel Exhaust Fluid (DEF) Tank Capacity

120 L

Cooling System Capacity

14.9 gal.

Cooling System Capacity

56.5 L

Transmission - Hydraulic System

With 3-point hitch and PTO: 60 Without 3-point hitch and PTO: 58 gal.

Transmission - Hydraulic System

With 3-point hitch and PTO: 242 Without 3-point hitch and PTO: 235 L

Crankcase Oil Volume

16.9 gal.

Crankcase Oil Volume

64 L

Dimensions & Weights
Wheelbase

162.5 in.

Wheelbase

4128 mm

Base Machine Weight

57200 lb.

Base Machine Weight

25946 kg

Overall Length

326.6 in.

Overall Length

8295 mm

Drawbar Ground Clearance

12.2 in.

Drawbar Ground Clearance

311 mm

Maximum Ballast Level

62000 lb.

Maximum Ballast Level

28123 kg

Additional Information
Country of Manufacture

USA

Date Collected

4/3/2025 12:00:00 AM
