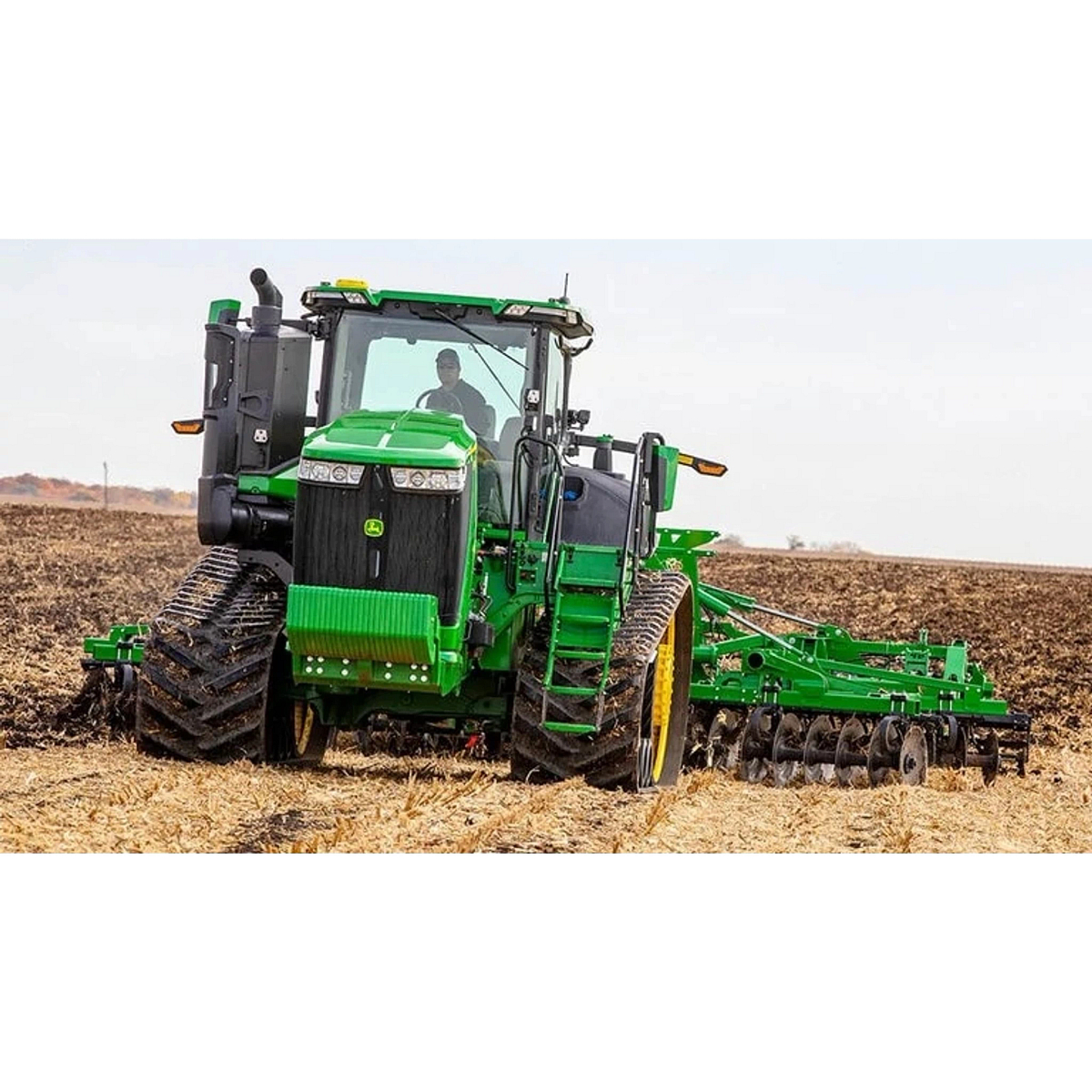

When the job demands maximum pull and performance, 9 Series tractors deliver the power, durability, and traction to keep you moving. Built for heavy draft and high-demand applications, they help you maintain field speed, cover more acres, and work through tough conditions—so you can stay on schedule when timing matters most.

Wide implements and high-speed operations push equipment to its limits. John Deere's 9 Series tractors are designed to maintain consistent performance under load, with the power, hydraulics, and traction needed to keep large tools operating at peak efficiency - helping you reduce bottlenecks, improve productivity, and get more done in every pass.

Productivity isn’t just about horsepower - it’s about how consistently you can apply it. 9 Series tractors combine integrated technology, precision capabilities, and reliable performance to help you work with confidence. From the cab to the cloud, you can monitor performance, document work, and make better decisions across your operation.

Answer text goes here
Machine Configuration | |||||||||||||||||||||||
| Wheel or Track Configuration | 2-Track | ||||||||||||||||||||||
| Drive Type | 4WD | Inboard planetary with double-reduction axle | Inboard planetary with double-reduction axle | Bull gear and double idler with floating pinion | Inboard planetary with double-reduction axle | Outboard planetary | Bull gear and double idler with floating pinion | Planetary | Compound planetary | Planetary and planetary drop gear | Planetary and planetary drop gear | ||||||||||||
Engine | |||||||||||||||||||||||
| Engine Make | John Deere | ||||||||||||||||||||||
| Engine Model | JD14 | ||||||||||||||||||||||
| Engine Family | MJDXL13.5334 | MJDXL13.5334 | MJDXL13.5334 | MJDXL13.5334 | MJDXL13.5334 | MJDXL13.5334 | MJDXL13.5334 | ||||||||||||||||
| Emissions Certifications | Final Tier 4 (FT4) | ||||||||||||||||||||||
| Displacement | 827 cu in. | 13.6 L 827 cu in. | 13.6 L 827 cu in. | 13.6 L 827 cu in. | 13.6 L 827 cu in. | 13.6 L 827 cu in. | 13.6 L 827 cu in. | 9.8 L 598 cu in. | 16.8 L 1025 cu in. | 16.8 L 1025 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 15.2 L 921.5 cu in. | 15.2 L 921.5 cu in. | 15.2 L 921.5 cu in. | 15.2 L 921.5 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. |
| Displacement | 13.6 L | 13.6 L 827 cu in. | 13.6 L 827 cu in. | 13.6 L 827 cu in. | 13.6 L 827 cu in. | 13.6 L 827 cu in. | 13.6 L 827 cu in. | 9.8 L 598 cu in. | 16.8 L 1025 cu in. | 16.8 L 1025 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 15.2 L 921.5 cu in. | 15.2 L 921.5 cu in. | 15.2 L 921.5 cu in. | 15.2 L 921.5 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. | 12.9 L 787 cu in. |
| Aspiration | Single wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR) | Single wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR) | Single wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR) | Single wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR) | Single wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR) | Single wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR) | Single wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR) | Twin series turbochargers | Dual twin series turbochargers with eWastegate | Dual twin series turbochargers with eWastegate | Turbocharged, aftercooled | Wastegate turbocharged, aftercooled | Turbocharged, Aftercooled | Turbocharged, aftercooled | Turbocharged, wastegate turbo | Turbocharged, wastegate turbo | Turbocharged, wastegate turbo | Turbocharged, wastegate turbo | |||||
| Number of Cylinders | 6 | ||||||||||||||||||||||
| Cylinder Liners | Wet-sleeve | ||||||||||||||||||||||
| Aftertreatment Type | Diesel oxidation catalyst (DOC)/selective catalytic reduction (SCR) | ||||||||||||||||||||||
| Rated Engine Speed | 2100 rpm | ||||||||||||||||||||||
| Rated Engine Power | 483 hp (hp SAE) | ECE-R120: 324 kW 440 PS (hp ISO) 434 hp (SAE) | ECE-R120: 360 kW 490 PS (hp ISO) 483 hp (SAE) | ECE-R120: 360 kW 490 PS (hp ISO) 483 hp (SAE) | ECE-R120: 397 kW 540 PS (hp ISO) 533 hp (SAE) | ECE-R120: 397 kW 540 PS (hp ISO) 533 hp (SAE) | ECE-R120: 397 kW 540 PS (hp ISO) 533 hp (SAE) | ECE-R120: 317 kW 431 hp | 97/68/EC: 336 kW 460 hp | 97/68/EC: 365 kW 500 hp | 354 kW 475 hp | ECE-R120: 350 kW 470 hp | ECE-R120: 373 kW 500 hp | ECE-R120: 350 kW 470 hp | ECE-R120: 373 kW 500 hp | ECE R 120: 376 kW 511 hp | ECE R 120: 415 kW 564 hp | ECE R 120: 376 kW 511 hp | ECE R 120: 415 kW 564 hp | ECE-R120: 350 kW 470 hp | ECE-R120: 350 kW 470 hp | ECE-R120: 373 kW 500 hp | ECE-R120: 410 kW 550 hp |
| Rated Engine Power | 360 kW | ECE-R120: 324 kW 440 PS (hp ISO) 434 hp (SAE) | ECE-R120: 360 kW 490 PS (hp ISO) 483 hp (SAE) | ECE-R120: 360 kW 490 PS (hp ISO) 483 hp (SAE) | ECE-R120: 397 kW 540 PS (hp ISO) 533 hp (SAE) | ECE-R120: 397 kW 540 PS (hp ISO) 533 hp (SAE) | ECE-R120: 397 kW 540 PS (hp ISO) 533 hp (SAE) | ECE-R120: 317 kW 431 hp | 97/68/EC: 336 kW 460 hp | 97/68/EC: 365 kW 500 hp | 354 kW 475 hp | ECE-R120: 350 kW 470 hp | ECE-R120: 373 kW 500 hp | ECE-R120: 350 kW 470 hp | ECE-R120: 373 kW 500 hp | ECE R 120: 376 kW 511 hp | ECE R 120: 415 kW 564 hp | ECE R 120: 376 kW 511 hp | ECE R 120: 415 kW 564 hp | ECE-R120: 350 kW 470 hp | ECE-R120: 350 kW 470 hp | ECE-R120: 373 kW 500 hp | ECE-R120: 410 kW 550 hp |
| Rated Engine Power | 490 PS (hp ISO) | ECE-R120: 324 kW 440 PS (hp ISO) 434 hp (SAE) | ECE-R120: 360 kW 490 PS (hp ISO) 483 hp (SAE) | ECE-R120: 360 kW 490 PS (hp ISO) 483 hp (SAE) | ECE-R120: 397 kW 540 PS (hp ISO) 533 hp (SAE) | ECE-R120: 397 kW 540 PS (hp ISO) 533 hp (SAE) | ECE-R120: 397 kW 540 PS (hp ISO) 533 hp (SAE) | ECE-R120: 317 kW 431 hp | 97/68/EC: 336 kW 460 hp | 97/68/EC: 365 kW 500 hp | 354 kW 475 hp | ECE-R120: 350 kW 470 hp | ECE-R120: 373 kW 500 hp | ECE-R120: 350 kW 470 hp | ECE-R120: 373 kW 500 hp | ECE R 120: 376 kW 511 hp | ECE R 120: 415 kW 564 hp | ECE R 120: 376 kW 511 hp | ECE R 120: 415 kW 564 hp | ECE-R120: 350 kW 470 hp | ECE-R120: 350 kW 470 hp | ECE-R120: 373 kW 500 hp | ECE-R120: 410 kW 550 hp |
| Engine Torque at Rated Speed | 1668 lb-ft | ||||||||||||||||||||||
| Engine Torque at Rated Speed | 2262 Nm | ||||||||||||||||||||||
| Maximum Engine Power | 532 hp (hp SAE) | ECE-R120: 356 kW 484 PS (hp ISO) 477 hp (SAE) | ECE-R120: 396 kW 539 PS (hp ISO) 532 hp (SAE) | ECE-R120: 396 kW 539 PS (hp ISO) 532 hp (SAE) | ECE-R120: 437 kW 594 PS (hp ISO) 586 hp (SAE) | ECE-R120: 437 kW 594 PS (hp ISO) 586 hp (SAE) | ECE-R120: 437 kW 594 PS (hp ISO) 586 hp (SAE) | ECE-R120: 317 kW 431 hp | 97/68/EC: 363 kW 494 hp | 97/68/EC: 394 kW 536 hp | 389 kW 522 hp | ECE-R120: 386 kW 517 hp | ECE-R120: 410 kW 550 hp | ECE-R120: 386 517 hp | ECE-R120: 410 kW 550 hp | ECE R 120: 376 kW 511 hp | ECE R 120: 415 kW 564 hp | ECE R 120: 376 kW 511 hp | ECE R 120: 415 kW 564 hp | ECE-R120: 386 kW 517 hp | ECE-R120: 386 kW 517 hp | ECE-R120: 373 kW 500 hp | ECE-R120: 373 kW 500 hp |
| Maximum Engine Power | 396 kW | ECE-R120: 356 kW 484 PS (hp ISO) 477 hp (SAE) | ECE-R120: 396 kW 539 PS (hp ISO) 532 hp (SAE) | ECE-R120: 396 kW 539 PS (hp ISO) 532 hp (SAE) | ECE-R120: 437 kW 594 PS (hp ISO) 586 hp (SAE) | ECE-R120: 437 kW 594 PS (hp ISO) 586 hp (SAE) | ECE-R120: 437 kW 594 PS (hp ISO) 586 hp (SAE) | ECE-R120: 317 kW 431 hp | 97/68/EC: 363 kW 494 hp | 97/68/EC: 394 kW 536 hp | 389 kW 522 hp | ECE-R120: 386 kW 517 hp | ECE-R120: 410 kW 550 hp | ECE-R120: 386 517 hp | ECE-R120: 410 kW 550 hp | ECE R 120: 376 kW 511 hp | ECE R 120: 415 kW 564 hp | ECE R 120: 376 kW 511 hp | ECE R 120: 415 kW 564 hp | ECE-R120: 386 kW 517 hp | ECE-R120: 386 kW 517 hp | ECE-R120: 373 kW 500 hp | ECE-R120: 373 kW 500 hp |
| Maximum Engine Power | 539 PS (hp ISO) | ECE-R120: 356 kW 484 PS (hp ISO) 477 hp (SAE) | ECE-R120: 396 kW 539 PS (hp ISO) 532 hp (SAE) | ECE-R120: 396 kW 539 PS (hp ISO) 532 hp (SAE) | ECE-R120: 437 kW 594 PS (hp ISO) 586 hp (SAE) | ECE-R120: 437 kW 594 PS (hp ISO) 586 hp (SAE) | ECE-R120: 437 kW 594 PS (hp ISO) 586 hp (SAE) | ECE-R120: 317 kW 431 hp | 97/68/EC: 363 kW 494 hp | 97/68/EC: 394 kW 536 hp | 389 kW 522 hp | ECE-R120: 386 kW 517 hp | ECE-R120: 410 kW 550 hp | ECE-R120: 386 517 hp | ECE-R120: 410 kW 550 hp | ECE R 120: 376 kW 511 hp | ECE R 120: 415 kW 564 hp | ECE R 120: 376 kW 511 hp | ECE R 120: 415 kW 564 hp | ECE-R120: 386 kW 517 hp | ECE-R120: 386 kW 517 hp | ECE-R120: 373 kW 500 hp | ECE-R120: 373 kW 500 hp |
| Maximum Engine Torque | At 1550 rpm: 2262 Nm / 1668 lb-ft | ||||||||||||||||||||||
| Alternative Fuel Type | B30 Diesel Compatible | ||||||||||||||||||||||
| Power Bulge | 10 % | ||||||||||||||||||||||
| Fuel Type | Diesel | ||||||||||||||||||||||
| Alternative Fuel Type | B20 diesel compatible | ||||||||||||||||||||||
| Torque Rise | 38 % | 38 percent | 38 percent | 38 percent | 38 percent | 38 percent | 38 percent | ||||||||||||||||
Transmission | |||||||||||||||||||||||
| Transmission Type | John Deere e18™ 18-speed PowerShift™ with Efficiency Manager | John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™: 40 km/h 25 mph | John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™: 40 km/h 25 mph | John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™: 40 km/h 25 mph | John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™: 40 km/h 25 mph | John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™: 40 km/h 25 mph | John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™: 40 km/h 25 mph | Accu-VT™ stepless / TA300T | Caterpillar® Powershift 16F/4R | Caterpillar® Powershift 16F/4R | Standard: PowerDrive full-powershift 16F/2R with 16 Hi - 40 km/h 25 mph Optional: CVXDrive CVT - 40 km/h | Standard: 16-speed Powershift 40 K Optional: CVT: 40 K | Standard: 16-speed Powershift 40 K Optional: CVT: 40 K | Standard: 16-speed Powershift 40 K Optional: CVT: 40 K | Standard: 16-speed Powershift 40 K Optional: CVT: 40 K | VarioDrive CVT / TA 400T | VarioDrive CVT / TA 400T | AccuDrive CVT / TA 400T | AccuDrive CVT / TA 400T | Standard: Ultra Command™ 16-speed full-powershift: 40 K 25 mph Optional: Auto Command™ CVT: 40 K | Standard: Ultra Command™ 16-speed full-powershift: 31 K 19 mph Optional: Auto Command™ CVT: 31 K | Standard: Ultra Command™ 16-speed full-powershift: 40 K 25 mph Optional: Auto Command™ CVT: 40 K | Standard: Ultra Command™ 16-speed full-powershift: 31 K 19 mph Optional: Auto Command™ CVT: 31 K |
| Maximum Speed Forward | 25 mph / 40 km/h | ||||||||||||||||||||||
Rear Power Take-Off (PTO) | |||||||||||||||||||||||
| PTO Category | Independent, 44 mm (1.75 in.) 20-spline, 1000 rpm | ||||||||||||||||||||||
| Rated PTO Power | 335 hp | 249 kW 335 hp | 249 kW 335 hp | 249 kW 335 hp | 249 kW 335 hp | 249 kW 335 hp | 249 kW 335 hp | 272 kW 365 hp | 298 kW 400 hp | 345 kW 462 hp | 302 kW 405 hp | 324 kW 435 hp | 302 kW 405 hp | 324 kW 435 hp | At 1300 PTO rpm: 332 kW 445 hp | At 1300 PTO rpm: 367 kW 492 hp | At 1300 PTO rpm: 332 kW 445 hp | At 1300 PTO rpm: 367 kW 492 hp | 341 kW 457 hp | 341 kW 457 hp | 366 kW 490 hp | 366 kW 490 hp | |
| Rated PTO Power | 249 kW | 249 kW 335 hp | 249 kW 335 hp | 249 kW 335 hp | 249 kW 335 hp | 249 kW 335 hp | 249 kW 335 hp | 272 kW 365 hp | 298 kW 400 hp | 345 kW 462 hp | 302 kW 405 hp | 324 kW 435 hp | 302 kW 405 hp | 324 kW 435 hp | At 1300 PTO rpm: 332 kW 445 hp | At 1300 PTO rpm: 367 kW 492 hp | At 1300 PTO rpm: 332 kW 445 hp | At 1300 PTO rpm: 367 kW 492 hp | 341 kW 457 hp | 341 kW 457 hp | 366 kW 490 hp | 366 kW 490 hp | |
| Rated PTO Power | 340 PS | 249 kW 335 hp | 249 kW 335 hp | 249 kW 335 hp | 249 kW 335 hp | 249 kW 335 hp | 249 kW 335 hp | 272 kW 365 hp | 298 kW 400 hp | 345 kW 462 hp | 302 kW 405 hp | 324 kW 435 hp | 302 kW 405 hp | 324 kW 435 hp | At 1300 PTO rpm: 332 kW 445 hp | At 1300 PTO rpm: 367 kW 492 hp | At 1300 PTO rpm: 332 kW 445 hp | At 1300 PTO rpm: 367 kW 492 hp | 341 kW 457 hp | 341 kW 457 hp | 366 kW 490 hp | 366 kW 490 hp | |
| Engagement Method | Electrohydraulic | ||||||||||||||||||||||
| Number of Splines | 20 | ||||||||||||||||||||||
Rear Hitch | |||||||||||||||||||||||
| Rear Hitch Category (SAE Designation) | Category 4N: 6804 kg (15,000 lb); Category 4N: 9072 kg (20,000 lb); Category 4N/4: 6804 kg; Category 4N/4: 9072 kg | Category 4N: 6804 kg 15,000 lb Category 4N: 9072 kg 20,000 lb Category 4N/4: 6804 kg Category 4N/4: 9072 kg | Category 4N: 6804 kg 15,000 lb Category 4N: 9072 kg 20,000 lb Category 4N/4: 6804 kg Category 4N/4: 9072 kg | Category 4N: 6804 kg 15,000 lb Category 4N: 9072 kg 20,000 lb Category 4N/N: 6804 kg Category 4N/N: 9072 kg | Category 4N/4: 6804 kg 15,000 lb Category 4N/4: 9072 kg 20,000 lb | Category 4N/N: 6804 kg 15,000 lb Category 4N/N: 9072 kg 20,000 lb | Category 4N/N: 6804 kg 15,000 lb Category 4N/N: 9072 kg 20,000 lb | Standard: 3/4N | Standard: 3/4N | Standard: 3/4N | Category 4N convertible to Cat. 3 | Category 4N Optional: Category 3 | Category 4N | Category 4N | Category 4N | Standard: 3/4N | Standard: 3/4N | Standard: 3/4N | Standard: 3/4N | Category 4N/3: at 610 mm (24 in.) behind ball ends: 9071 kg 20,000 lb | Category 4N/3: at 610 mm (24 in.) behind ball ends: 9071 kg 20,000 lb | Category 4N/3: at 610 mm (24 in.) behind ball ends: 9071 kg 20,000 lb | Category 4N/3: at 610 mm (24 in.) behind ball ends: 9071 kg 20,000 lb |
| Maximum Lift Capacity Directly at Coupling Points | 20.000 | ||||||||||||||||||||||
| Sensing Type | Electrohydraulic with draft sensing | Electrohydraulic with draft sensing | Electrohydraulic with draft sensing | Electrohydraulic with draft sensing | Electrohydraulic with draft sensing | Electrohydraulic with draft sensing | Electrohydraulic with draft sensing | ||||||||||||||||
Drawbar | |||||||||||||||||||||||
| Drawbar Category | Category 5 with heavy-duty drawbar support; Optional: Category 5 | Category 4 or Category 5 | Category 5 | Category 5 | Category 5 | Standard: Category 5 with heavy-duty drawbar support Optional: Category 5 | Category 5 | Category 5 | Category 5 | Standard: Category 4 | Standard: Category 4 | Category 4 | Category 4 | Category 4 | Category 4 | ||||||||
| Maximum Vertical Load | 12000 lb / 5440 kg | Standard: 2470 kg 5450 lb Optional: Category 4 with heavy-duty drawbar support: 2470 kg Category 5 with heavy-duty drawbar support: 5440 kg 12,000 lb | 5440 kg 12,000 lb | 5440 kg 12,000 lb | 5440 kg 12,000 lb | 5440 kg 12,000 lb | 5440 kg 12,000 lb | Standard: 2,404 kg 5,300 lb Optional: 4,989 kg 11,000 lb | Standard: 6,804 kg 15,000 lb | Standard: 2,404 kg 5,300 lb Optional: 4,989 kg 11,000 lb | 6,804 kg 15,000 lb | ||||||||||||
Hydraulics | |||||||||||||||||||||||
| Hydraulic System Type | Closed-center, pressure-and-flow compensated | Closed-center, pressure-and-flow compensated | Closed-center, pressure-and-flow compensated | Closed-center, pressure-and-flow compensated | Closed-center, pressure-and-flow compensated | Closed-center, pressure-and-flow compensated | Closed-center, pressure-and-flow compensated | Closed-center, pressure-flow compensated | Closed-center, pressure-flow compensated | Closed-center, pressure-flow compensated | Pressure-flow compensated | Pressure-flow compenstated | Pressure-flow compensated | Pressure-flow compensated | Closed-center, pressure-flow compensated | Closed-center, pressure-flow compensated | Closed-center, pressure-flow compensated | Closed-center, pressure-flow compensated | Closed-center, load sensing | Closed-center, load sensing | Closed-center, load sensing | Closed-center, load sensing | |
| Pump Rated Output | 208 L/min / 55 gpm (Standard); 416 L/min / 110 gpm (Optional) | Standard: 208 L/min 55 gpm Optional: 416 L/min 110 gpm | Standard: 208 L/min 55 gpm Optional: 416 L/min 110 gpm | Standard: 208 L/min 55 gpm Optional: 416 L/min 110 gpm | Standard: 208 L/min 55 gpm Optional: 416 L/min 110 gpm | Standard: 208 L/min 55 gpm Optional: 416 L/min 110 gpm | Standard: 208 L/min 55 gpm Optional: 416 L/min 110 gpm | Standard: 220 lpm 58.1 gpm Optional: 439 lpm 116 gpm | Standard: 220 L/min 58.1 gpm Optional:321.8 L/min 85 gpm | Standard: 220 L/min 58.1 gpm Optional: 321.8 L/min 85 gpm | PowerDrive - Standard: 159 L/min 42 gpm Optional: 216 L/min 57 gpm CVXDrive - 216 L/min | Standard: 159 L/min 42 gpm Optional: 216 L/min 57 gpm 428 L/min 113 gpm | Standard: 159 L/min 42 gpm Optional: 216 L/min 57 gpm 428 L/min 113 gpm | Standard: 159 L/min 42 gpm Optional: 216 L/min 57 gpm 428 L/min 113 gpm | Standard: 159 L/min 42 gpm Optional: 216 L/min 57 gpm 428 L/min 113 gpm | Standard: 220 L/min 58.1 gpm Optional: 439 L/min 116 gpm | Standard: 220 L/min 58.1 gpm Optional: 439 L/min 116 gpm | Standard: 220 L/min 58.1 gpm Optional: 439 L/min 116 gpm | Standard: 220 L/min 58.1 gpm Optional: 439 L/min 116 gpm | Standard: 159 L/min 42 gpm Optional: 216 L/min 57 gpm 428 L/min 113 gpm | Standard: 159 L/min 42 gpm Optional: 216 L/min 57 gpm 428 L/min 113 gpm | Standard: 159 L/min 42 gpm Optional: 216 L/min 57 gpm 428 L/min 113 gpm | Standard: 159 L/min 42 gpm Optional: 216 L/min 57 gpm 428 L/min 113 gpm |
| Number of Rear Selective Control Valves (SCVs) | Four to six factory or field installed; Base: four 1.3-cm (1/2-in.) couplers; Optional: five to six 1.3-cm (1/2-in.) couplers factory installed; Optional: three 1.9-cm (3/4-in.) couplers plus three 1.3-cm (1/2-in.) couplers factory installed | Four to six factory or field installed Base: four 1.3-cm (1/2-in.) couplers Optional: five to six 1.3-cm (1/2-in.) couplers factory installed Optional: three 1.9-cm (3/4-in.) couplers plus three 1.3-cm (1/2-in.) couplers factory installed | Four to six factory or field installed Base: four 1.3-cm (1/2-in.) couplers Optional: five to six 1.3-cm (1/2-in.) couplers factory installed Optional: three 1.9-cm (3/4-in.) couplers plus three 1.3-cm (1/2-in.) couplers factory installed | Four to six factory or field installed Base: four 1.3-cm (1/2-in.) couplers Optional: five to six 1.3-cm (1/2-in.) couplers factory installed Optional: three 1.9-cm (3/4-in.) couplers plus three 1.3-cm (1/2-in.) couplers factory installed | Four to six factory or field installed Base: four 1.3-cm (1/2-in.) couplers Optional: five to six 1.3-cm (1/2-in.) couplers factory installed Optional: three 1.9-cm (3/4-in.) couplers plus three 1.3-cm (1/2-in.) couplers factory installed | Four to six factory or field installed Base: four 1.3-cm (1/2-in.) couplers Optional: five to six 1.3-cm (1/2-in.) couplers factory installed Optional: three 1.9-cm (3/4-in.) couplers plus three 1.3-cm (1/2-in.) couplers factory installed | Four to six factory or field installed Base: four 1.3-cm (1/2-in.) couplers Optional: five to six 1.3-cm (1/2-in.) couplers factory installed Optional: three 1.9-cm (3/4-in.) couplers plus three 1.3-cm (1/2-in.) couplers factory installed | Standard: ISO Couplers: four Optional: ISO Couplers: six | Standard: four Optional: up to 6 | Standard: four Optional: up to six | Standard: four Optional: up to eight | Standard: four Optional: up to eight | Standard: four Optional: up to 8 | Standard: four Optional: up to eight | Standard: Four Optional: Up to eight | Standard: Four Optional: Up to eight | Standard: Four Optional: Up to eight | Standard: Four Optional: Up to eight | Standard: Four Optional: Five to eight | Standard: Four Optional: Five to eight | Standard: Four Optional: Five to eight | Standard: Four Optional: Five to eight | |
| Available Flow at a Single Rear SCV | 1.3-cm (1/2-in.) couplers: 132 L/min (35 gpm); 1.9-cm (3/4-in.) couplers: 170 L/min (45 gpm) | 1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm 1.9-cm (3/4-in.) couplers: 170 L/min 45 gpm | 1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm 1.9-cm (3/4-in.) couplers: 170 L/min 45 gpm | 1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm 1.9-cm (3/4-in.) couplers: 170 L/min 45 gpm | 1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm 1.9-cm (3/4-in.) couplers: 170 L/min 45 gpm | 1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm 1.9-cm (3/4-in.) couplers: 170 L/min 45 gpm | 1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm 1.9-cm (3/4-in.) couplers: 170 L/min 45 gpm | 140 L/min 37 gpm | 140 L/min 37 gpm | 132 L/min 35 gpm | 132 L/min 35 gpm | 132 L/min 35 gpm | 132 L/min 35 gpm | 132 L/min 35 gpm | |||||||||
| SCV Control | Electronic | ||||||||||||||||||||||
Rear Axle | |||||||||||||||||||||||
| Final Drive | Outboard planetary | Inboard planetary with double-reduction axle | Inboard planetary with double-reduction axle | Bull gear and double idler with floating pinion | Inboard planetary with double-reduction axle | Outboard planetary | Bull gear and double idler with floating pinion | Planetary | Compound planetary | Planetary and planetary drop gear | Planetary and planetary drop gear | ||||||||||||
Steering & Brakes | |||||||||||||||||||||||
| Steering Type | Heavy-duty steering pump: 130 cc (7.9 cu in.) | Standard: Hydraulic power steering Optional: ActiveCommand Steering (ACS™) | Standard: Hydraulic power steering Optional: ActiveCommand Steering (ACS™) | Standard: Hydraulic power steering Optional: ActiveCommand Steering (ACS™) | Standard: Hydraulic power steering Optional: ActiveCommand Steering (ACS™) | Heavy-duty steering pump: 130 cc 7.9 cu in. | Standard: Hydraulic power steering Optional: ActiveCommand Steering (ACS™) | ||||||||||||||||
Tracks | |||||||||||||||||||||||
| Track Tread Spacing | 106 in. (2698 mm) | ||||||||||||||||||||||
| Track Width | Standard: 762 mm (30 in.); Optional: 914 mm (36 in.) | Standard: 762 mm 30 in. Optional: 457, 610, or 914 mm 18, 24, or 36 in. | Standard: 762 mm 30 in. Optional: 914 mm 36 in. | Standard: 762 mm 30 in. Optional: 457, 610, or 914 mm 18, 24, or 36 in. | General Ag: 405, 455, 508, 635, 762, or 864 mm 16, 18, 20, 25, 30, or 34 in. Extreme applications: 405, 455, 508, 635, or 762 mm 16, 18, 20, 25, or 30 in. | General Ag: 698.5, 762, or 914 mm 27.5, 30, or 36 in. Extreme Ag: 698.5, or 762 mm 27.5 or 30 in. Extreme applications: 457, 698.5, 762, or 914 mm 18, 27.5, 30, or 36 in. | General Ag: 698.5, 762, or 914 mm 27.5, 30, or 36 in. Extreme Ag: 698.5, or 762 mm 27.5 or 30 in. Extreme applications: 457, 698.5, 762, or 914 mm 18, 27.5, 30, or 36 in. | 762 or 914 mm 30 or 36 in. | 762 or 914 mm 30 or 36 in. | ||||||||||||||
| Number Of Mid Rollers | 4 | ||||||||||||||||||||||
Electrical System | |||||||||||||||||||||||
| Battery Voltage | 12 V | ||||||||||||||||||||||
| Battery Cold Cranking Amps | 2850 CCA | ||||||||||||||||||||||
| Alternator Capacity | Standard: 250 amp; Optional: 330 amp | ||||||||||||||||||||||
| Working Lights | Standard: 20 halogen; Optional: 20 or 24 light-emitting diode (LED) | Standard: 18 halogen Optional: 18 or 24 LED plus 8 LED convenience lights | Standard: 18 halogen Optional: 18 or 24 LED plus 8 LED convenience lights | Standard: 18 halogen Optional: 18 or 24 LED plus 8 LED convenience lights | Standard: 18 halogen Optional: 18 or 24 LED plus 8 LED convenience lights | Standard: 18 halogen Optional: 18 or 24 LED plus 8 LED convenience lights | Standard: 18 halogen Optional: 18 or 24 LED plus 8 LED convenience lights | ||||||||||||||||
| Driving Lights | Halogen, 65 W; Optional: LED | ||||||||||||||||||||||
Operator Station | |||||||||||||||||||||||
| Seat Suspension | Air suspension | ||||||||||||||||||||||
| Degree of Seat Swivel, Left Hand | 8 degree (angle) | ||||||||||||||||||||||
| Degree of Seat Swivel, Right Hand | 40 degree (angle) | ||||||||||||||||||||||
| Instructional Seat | Standard | Standard | Standard | Standard | Standard | Standard | Standard | ||||||||||||||||
| Primary Display | G5ᴾˡᵘˢ CommandCenter™: 32.5 cm (12.8 in.) | ||||||||||||||||||||||
| Radio | AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna; Optional: Touchscreen radio | Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna Optional: Touchscreen radio | Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna Optional: Touchscreen radio | Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna Optional: Touchscreen radio | Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna Optional: Touchscreen radio | Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna Optional: Touchscreen radio | Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna Optional: Touchscreen radio | ||||||||||||||||
| Inner Cab Volume | 115 cu ft | 3.27 m3 115 cu ft | 3.27 m3 115 cu ft | 3.27 m3 115 cu ft | 3.27 m3 115 cu ft | 3.27 m3 115 cu ft | 3.27 m3 115 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu in. | 3.7 m3 132 cu in. | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | ||||||||
| Inner Cab Volume | 3.27 m³ | 3.27 m3 115 cu ft | 3.27 m3 115 cu ft | 3.27 m3 115 cu ft | 3.27 m3 115 cu ft | 3.27 m3 115 cu ft | 3.27 m3 115 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | 3.7 m3 132 cu in. | 3.7 m3 132 cu in. | 3.7 m3 132 cu ft | 3.7 m3 132 cu ft | ||||||||
| Cab Glass Area | 71.47 sq ft | 6.64 m2 71.47 sq ft | 6.64 m2 71.47 sq ft | 6.64 m2 71.47 sq ft | 6.64 m2 71.47 sq ft | 6.64 m2 71.47 sq ft | 6.64 m2 71.47 sq ft | 8.18 m2 88.1 sq ft | 8.18 m2 88.1 sq ft | 8.18 m2 88.1 sq ft | 8.18 m2 88.1 sq ft | 8.18 m3 88.1 sq ft | 8.18 m3 88.1 sq ft | 8.18 m3 88.1 sq ft | 8.18 m3 88.1 sq ft | ||||||||
| Cab Glass Area | 6.64 m² | 6.64 m2 71.47 sq ft | 6.64 m2 71.47 sq ft | 6.64 m2 71.47 sq ft | 6.64 m2 71.47 sq ft | 6.64 m2 71.47 sq ft | 6.64 m2 71.47 sq ft | 8.18 m2 88.1 sq ft | 8.18 m2 88.1 sq ft | 8.18 m2 88.1 sq ft | 8.18 m2 88.1 sq ft | 8.18 m3 88.1 sq ft | 8.18 m3 88.1 sq ft | 8.18 m3 88.1 sq ft | 8.18 m3 88.1 sq ft | ||||||||
Technology Integration | |||||||||||||||||||||||
| Guidance | Integrated AutoTrac™ | Integrated AutoTrac™ Autonomy Ready (available in select regions) | Integrated AutoTrac™ Autonomy Ready (available in select regions) | Integrated AutoTrac™ Optional: Autonomy Ready | Integrated AutoTrac™ Autonomy Ready (available in select regions) | Integrated AutoTrac™ Autonomy Ready (available in select regions) | Integrated AutoTrac™ Optional: Autonomy Ready | Auto-Guide™ | Auto-Guide™ | Auto-Guide™ | AFS AccuGuide™ | AFS AccuGuide™ | AFS AccuGuide™ | AFS AccuGuide™ | AFS AccuGuide™ | Intellisteer™ guidance | Intellisteer™ guidance | Intellisteer™ guidance | Intellisteer™ guidance | ||||
| Connectivity | Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination) | ||||||||||||||||||||||
| Remote Diagnostics | Available with activated JDLink hardware and activations | Available with activated JDLink hardware and activations | Available with activated JDLink hardware and activations | Available with activated JDLink hardware and activations | Available with activated JDLink hardware and activations | Available with activated JDLink hardware and activations | Available with activated JDLink hardware and activations | ||||||||||||||||
Capacities | |||||||||||||||||||||||
| Fuel Tank Capacity | 350 gal. | ||||||||||||||||||||||
| Fuel Tank Capacity | 1324 L | ||||||||||||||||||||||
| Diesel Exhaust Fluid (DEF) Tank Capacity | 24.8 gal. | 120 L 31.7 U.S. gal. | 120 L 31.7 U.S. gal. | 120 L 31.7 U.S. gal. | 120 L 31.7 U.S. gal. | 93.9 L 24.8 U.S. gal. | 120 L 31.7 U.S. gal. | 795 L 21 U.S. gal. | 115 L 30.5 U.S. gal. | 115 L 30.5 U.S. gal. | Wheeled and Rowtrac: 174 L 42 U.S. gal. Quadtrac: 322 L 85 U.S. gal. | 159 L 42 U.S. gal. | 250 L 66 U.S. gal. | 322 L 85 U.S. gal. | 322 L 85 U.S. gal. | 159 L 42 U.S. gal. | 159 L 42 U.S. gal. | 159 L 42 U.S. gal. | 159 L 42 U.S. gal. | ||||
| Diesel Exhaust Fluid (DEF) Tank Capacity | 93.9 L | 120 L 31.7 U.S. gal. | 120 L 31.7 U.S. gal. | 120 L 31.7 U.S. gal. | 120 L 31.7 U.S. gal. | 93.9 L 24.8 U.S. gal. | 120 L 31.7 U.S. gal. | 795 L 21 U.S. gal. | 115 L 30.5 U.S. gal. | 115 L 30.5 U.S. gal. | Wheeled and Rowtrac: 174 L 42 U.S. gal. Quadtrac: 322 L 85 U.S. gal. | 159 L 42 U.S. gal. | 250 L 66 U.S. gal. | 322 L 85 U.S. gal. | 322 L 85 U.S. gal. | 159 L 42 U.S. gal. | 159 L 42 U.S. gal. | 159 L 42 U.S. gal. | 159 L 42 U.S. gal. | ||||
| Cooling System Capacity | 14.9 gal. | ||||||||||||||||||||||
| Cooling System Capacity | 56.5 L | ||||||||||||||||||||||
| Transmission - Hydraulic System | With 3-point hitch and PTO: 81.3 Without 3-point hitch and PTO: 79.3 gal. | With 3-point hitch and PTO: 227 L 60 U.S. gal. Without 3-point hitch and PTO: 220 L 58 U.S. gal. | With 3-point hitch and PTO: 227 L 60 U.S. gal. Without 3-point hitch and PTO: 220 L 58 U.S. gal. | With 3-point hitch and PTO: 227 L 60 U.S. gal. Without 3-point hitch and PTO: 220 L 58 U.S. gal. | With 3-point hitch and PTO: 227 L 60 U.S. gal. Without 3-point hitch and PTO: 220 L 58 U.S. gal. | With 3-point hitch and PTO: 307.8 L 81.3 U.S. gal. Without 3-point hitch and PTO: 300 L 79.3 U.S. gal. | With 3-point hitch and PTO: 227 L 60 U.S. gal. Without 3-point hitch and PTO: 220 L 58 U.S. gal. | ||||||||||||||||
| Transmission - Hydraulic System | With 3-point hitch and PTO: 338 Without 3-point hitch and PTO: 330 L | With 3-point hitch and PTO: 227 L 60 U.S. gal. Without 3-point hitch and PTO: 220 L 58 U.S. gal. | With 3-point hitch and PTO: 227 L 60 U.S. gal. Without 3-point hitch and PTO: 220 L 58 U.S. gal. | With 3-point hitch and PTO: 227 L 60 U.S. gal. Without 3-point hitch and PTO: 220 L 58 U.S. gal. | With 3-point hitch and PTO: 227 L 60 U.S. gal. Without 3-point hitch and PTO: 220 L 58 U.S. gal. | With 3-point hitch and PTO: 307.8 L 81.3 U.S. gal. Without 3-point hitch and PTO: 300 L 79.3 U.S. gal. | With 3-point hitch and PTO: 227 L 60 U.S. gal. Without 3-point hitch and PTO: 220 L 58 U.S. gal. | ||||||||||||||||
| Crankcase Oil Volume | 16.9 gal. | 64 L 16.9 U.S. gal. | 64 L 16.9 U.S. gal. | 64 L 16.9 U.S. gal. | 64 L 16.9 U.S. gal. | 64 L 16.9 U.S. gal. | 64 L 16.9 U.S. gal. | ||||||||||||||||
| Crankcase Oil Volume | 64 L | 64 L 16.9 U.S. gal. | 64 L 16.9 U.S. gal. | 64 L 16.9 U.S. gal. | 64 L 16.9 U.S. gal. | 64 L 16.9 U.S. gal. | 64 L 16.9 U.S. gal. | ||||||||||||||||
Dimensions & Weights | |||||||||||||||||||||||
| Wheelbase | 116 in. | 3912 mm 154 in. | 3912 mm 154 in. | 4128 mm 162.5 in. | 3912 mm 154 in. | 2947 mm 116 in. | 4128 mm 162.5 in. | 257 mm 101 in. | Wheeled: 3759 mm 148 in. Rowtrac: 4064 mm 160 in. Quadtrac: 3912 mm 154 in. | 3,912 mm 154 in. | 3,912 mm 154 in. | 3,912 mm 154 in. | 3,912 mm 154 in. | 3,759 mm 148 in. | 3,759 mm 148 in. | 3,759 mm 148 in. | 3,759 mm 148 in. | ||||||
| Wheelbase | 2947 mm | 3912 mm 154 in. | 3912 mm 154 in. | 4128 mm 162.5 in. | 3912 mm 154 in. | 2947 mm 116 in. | 4128 mm 162.5 in. | 257 mm 101 in. | Wheeled: 3759 mm 148 in. Rowtrac: 4064 mm 160 in. Quadtrac: 3912 mm 154 in. | 3,912 mm 154 in. | 3,912 mm 154 in. | 3,912 mm 154 in. | 3,912 mm 154 in. | 3,759 mm 148 in. | 3,759 mm 148 in. | 3,759 mm 148 in. | 3,759 mm 148 in. | ||||||
| Base Machine Weight | 47326 lb. | 18,482 kg 40,660 lb | 18,482 kg 40,660 lb | Narrow undercarriage: 24,639 kg 54,320 lb Wide undercarriage: 26,650 kg 57,343 lb | 18,482 kg 40,660 lb | 21,512 kg 47,326 lb | Narrow undercarriage: 26,650 kg 57,343 lb Wide undercarriage: 25,546 kg 56,320 lb | Wheeled: 18,062 kg 39,820 lb Rowtrac: 22,818 kg 50,306 lb Quadtrac: 23,416 kg 51,263 lb | 22,818 kg 50,306 lb | 20,090 kg 44,290 lb | 23,818 kg 50,306 lb | 23,416 kg 51,263 lb | |||||||||||
| Base Machine Weight | 21512 kg | 18,482 kg 40,660 lb | 18,482 kg 40,660 lb | Narrow undercarriage: 24,639 kg 54,320 lb Wide undercarriage: 26,650 kg 57,343 lb | 18,482 kg 40,660 lb | 21,512 kg 47,326 lb | Narrow undercarriage: 26,650 kg 57,343 lb Wide undercarriage: 25,546 kg 56,320 lb | Wheeled: 18,062 kg 39,820 lb Rowtrac: 22,818 kg 50,306 lb Quadtrac: 23,416 kg 51,263 lb | 22,818 kg 50,306 lb | 20,090 kg 44,290 lb | 23,818 kg 50,306 lb | 23,416 kg 51,263 lb | |||||||||||
| Overall Length | 274.2 in. | With front weights, excluding hitch and coupler: 7945 mm 312.8 in. With front weights, including hitch and coupler: 8427 mm 331.8 in. | With front weights, excluding hitch and coupler: 7945 mm 312.8 in. With front weights, including hitch and coupler: 8427 mm 331.8 in. | Excluding hitch: 8295 mm 326.6 in. Including hitch and coupler: 8705 mm 342.7 in. | With front weights, excluding hitch and coupler: 7945 mm 312.8 in. With front weights, including hitch and coupler: 8427 mm 331.8 in. | With front weights, excluding hitch and coupler: 6965 mm 274.2 in. With front weights, including hitch and coupler: 7201 mm 283.5 in. | Excluding hitch: 8295 mm 326.6 in. Including hitch and coupler: 8705 mm 342.7 in. | 7,393 mm 291 in. | 7,615 mm 300 in. | With front weight pack and drawbar: 7,493 mm 295 in. | With front weight pack and drawbar: 7,493 mm 295 in. | With front weight pack and drawbar: 7,493 mm 295 in. | With front weight pack and drawbar: 7,493 mm 295 in. | ||||||||||
| Overall Length | 6965 mm | With front weights, excluding hitch and coupler: 7945 mm 312.8 in. With front weights, including hitch and coupler: 8427 mm 331.8 in. | With front weights, excluding hitch and coupler: 7945 mm 312.8 in. With front weights, including hitch and coupler: 8427 mm 331.8 in. | Excluding hitch: 8295 mm 326.6 in. Including hitch and coupler: 8705 mm 342.7 in. | With front weights, excluding hitch and coupler: 7945 mm 312.8 in. With front weights, including hitch and coupler: 8427 mm 331.8 in. | With front weights, excluding hitch and coupler: 6965 mm 274.2 in. With front weights, including hitch and coupler: 7201 mm 283.5 in. | Excluding hitch: 8295 mm 326.6 in. Including hitch and coupler: 8705 mm 342.7 in. | 7,393 mm 291 in. | 7,615 mm 300 in. | With front weight pack and drawbar: 7,493 mm 295 in. | With front weight pack and drawbar: 7,493 mm 295 in. | With front weight pack and drawbar: 7,493 mm 295 in. | With front weight pack and drawbar: 7,493 mm 295 in. | ||||||||||
| Drawbar Ground Clearance | 15 in. | ||||||||||||||||||||||
| Drawbar Ground Clearance | 381 mm | ||||||||||||||||||||||
| Maximum Ballast Level | 54000 lb. | 27,216 kg 60,000 lb | 27,216 kg 60,000 lb | 28,123 kg 62,000 lb | 27,216 kg 60,000 lb | 24,494 kg 54,000 lb | 28,123 kg 62,000 lb | ||||||||||||||||
| Maximum Ballast Level | 24494 kg | 27,216 kg 60,000 lb | 27,216 kg 60,000 lb | 28,123 kg 62,000 lb | 27,216 kg 60,000 lb | 24,494 kg 54,000 lb | 28,123 kg 62,000 lb | ||||||||||||||||
Additional Information | |||||||||||||||||||||||
| Country of Manufacture | USA | USA | USA | USA | USA | USA | USA | USA | USA | USA | USA | USA | USA | USA | USA | ||||||||
| Date Collected | 4/3/2025 12:00:00 AM | 28 February 2024 | 28 February 2024 | 28 February 2024 | 28 February 2024 | 28 February 2024 | 28 February 2024 | 14-Oct-19 | 14-Oct-19 | 14-Oct-19 | 10 July 2023 | 11-Oct-19 | 11-Oct-19 | 11-Oct-19 | 11-Oct-19 | 24-Mar-12 | 24-Mar-12 | 24-Mar-12 | 24-Mar-12 | 15-Oct-19 | 15-Oct-19 | 15-Oct-19 | 15-Oct-19 |
