John Deere
8R 490
8 Series Tractors

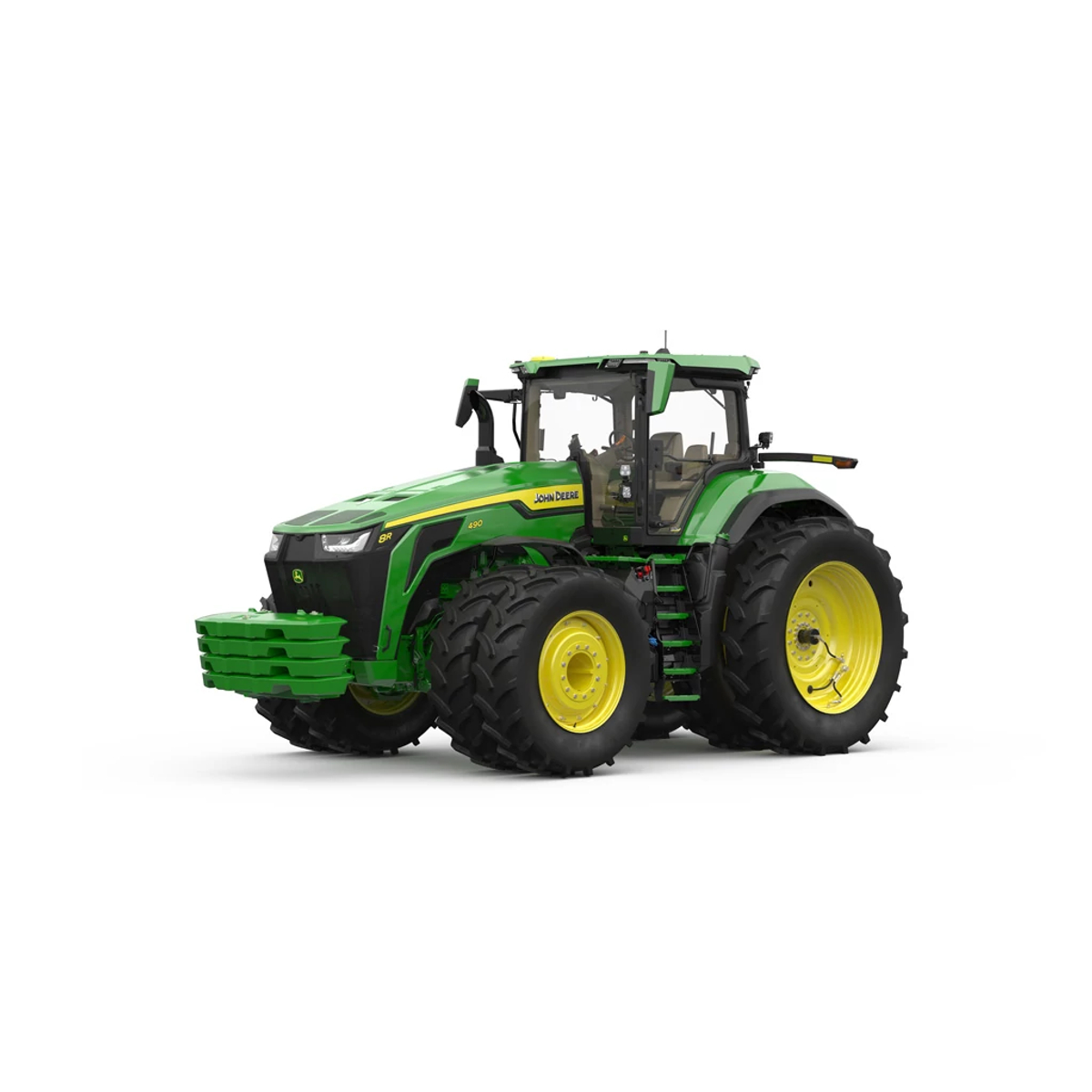

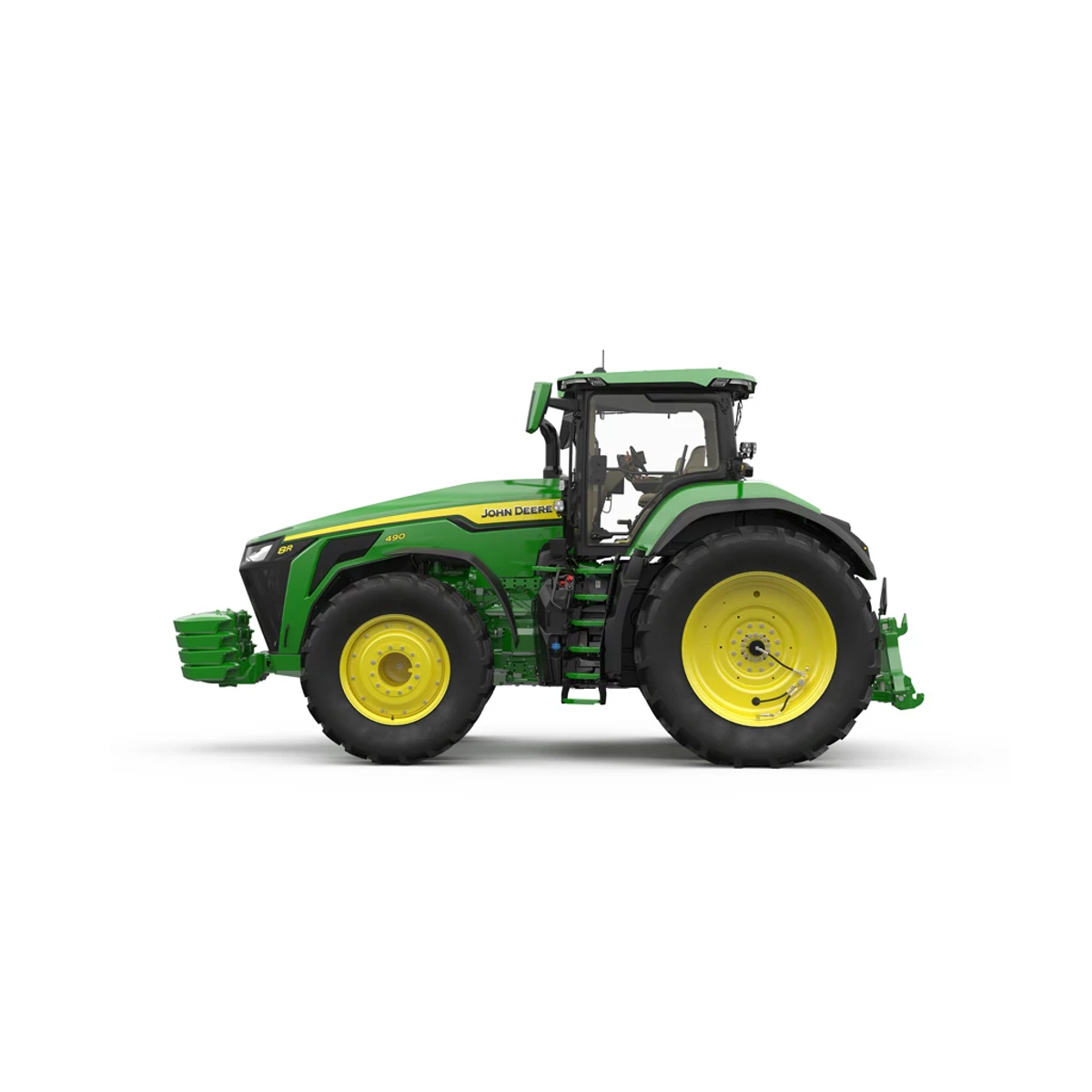

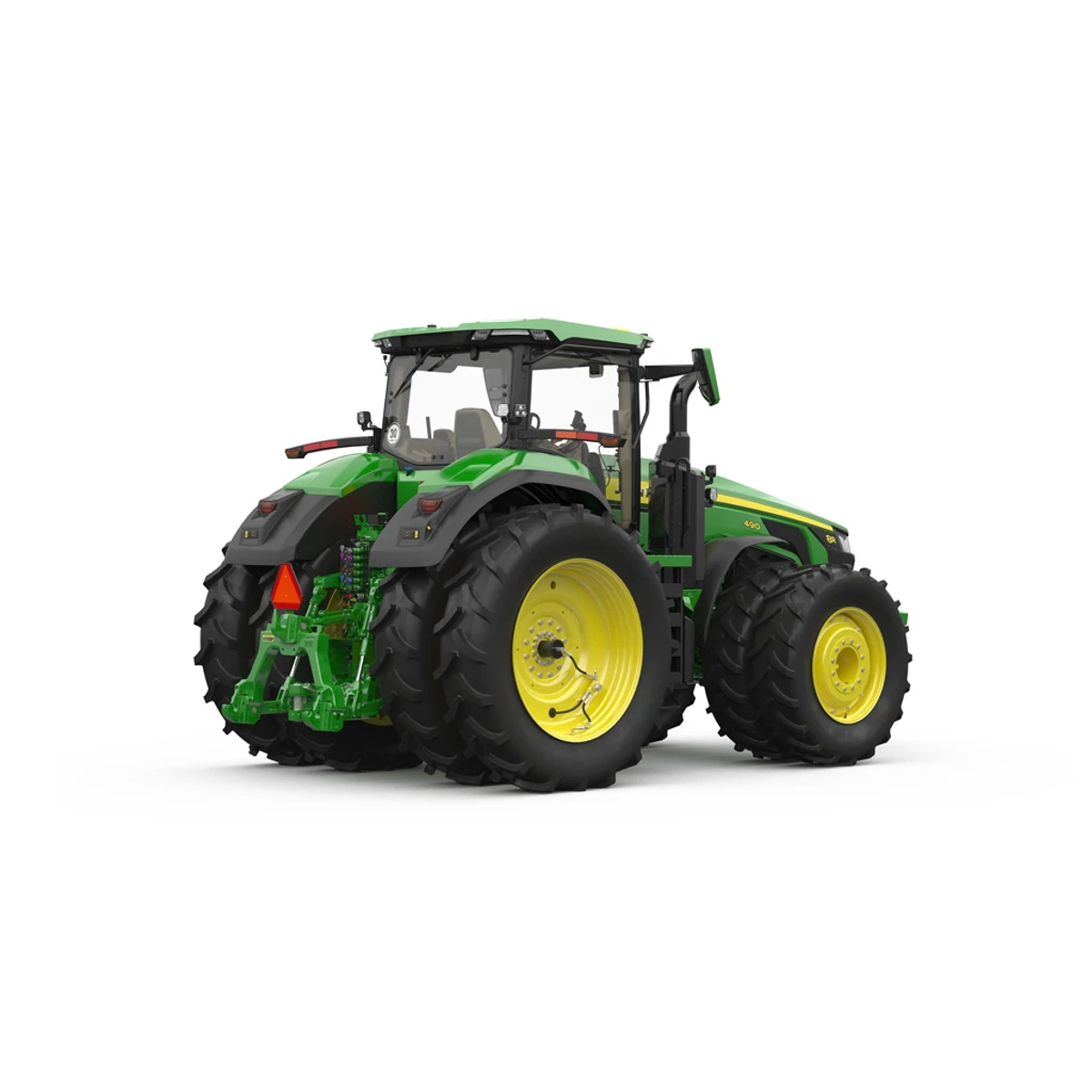

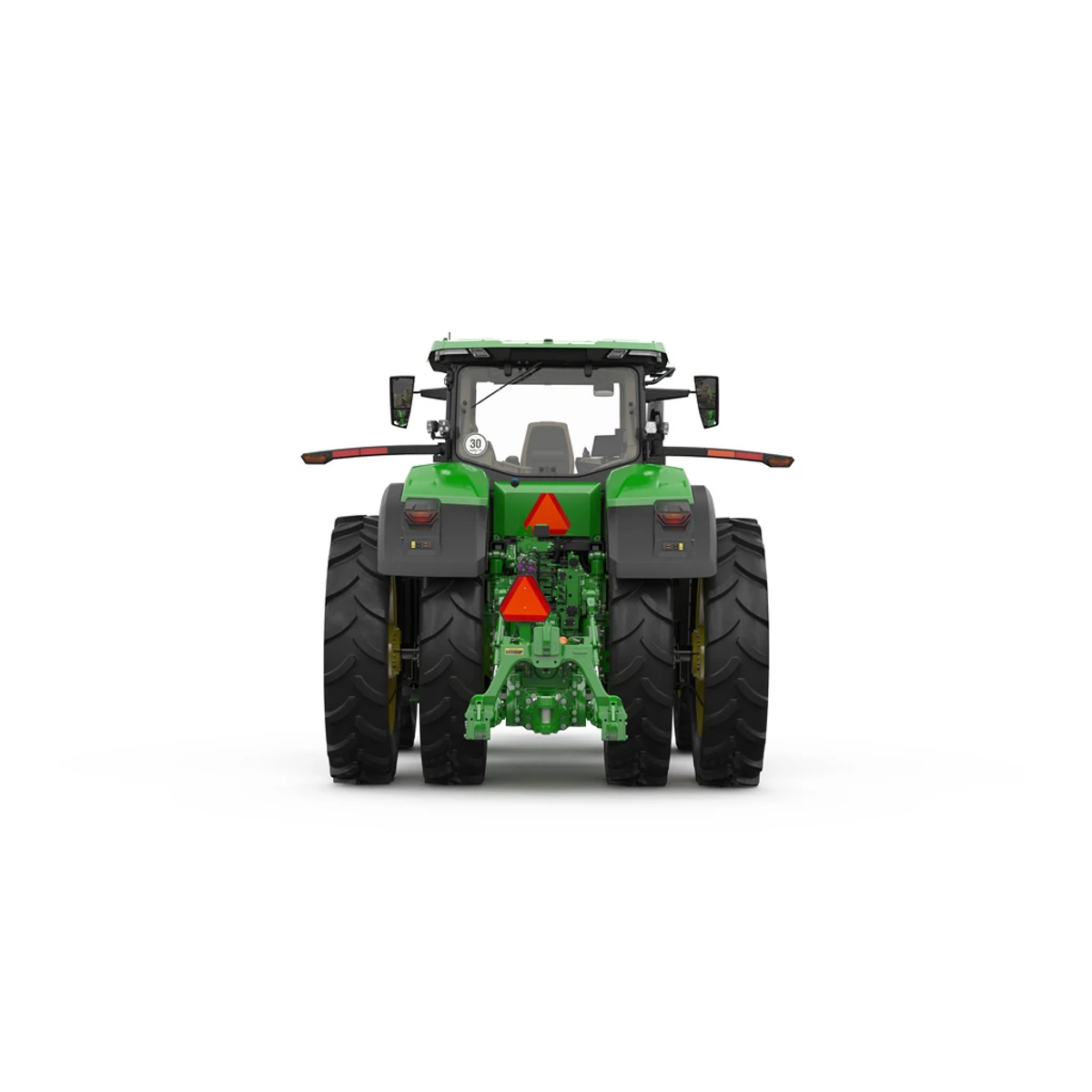

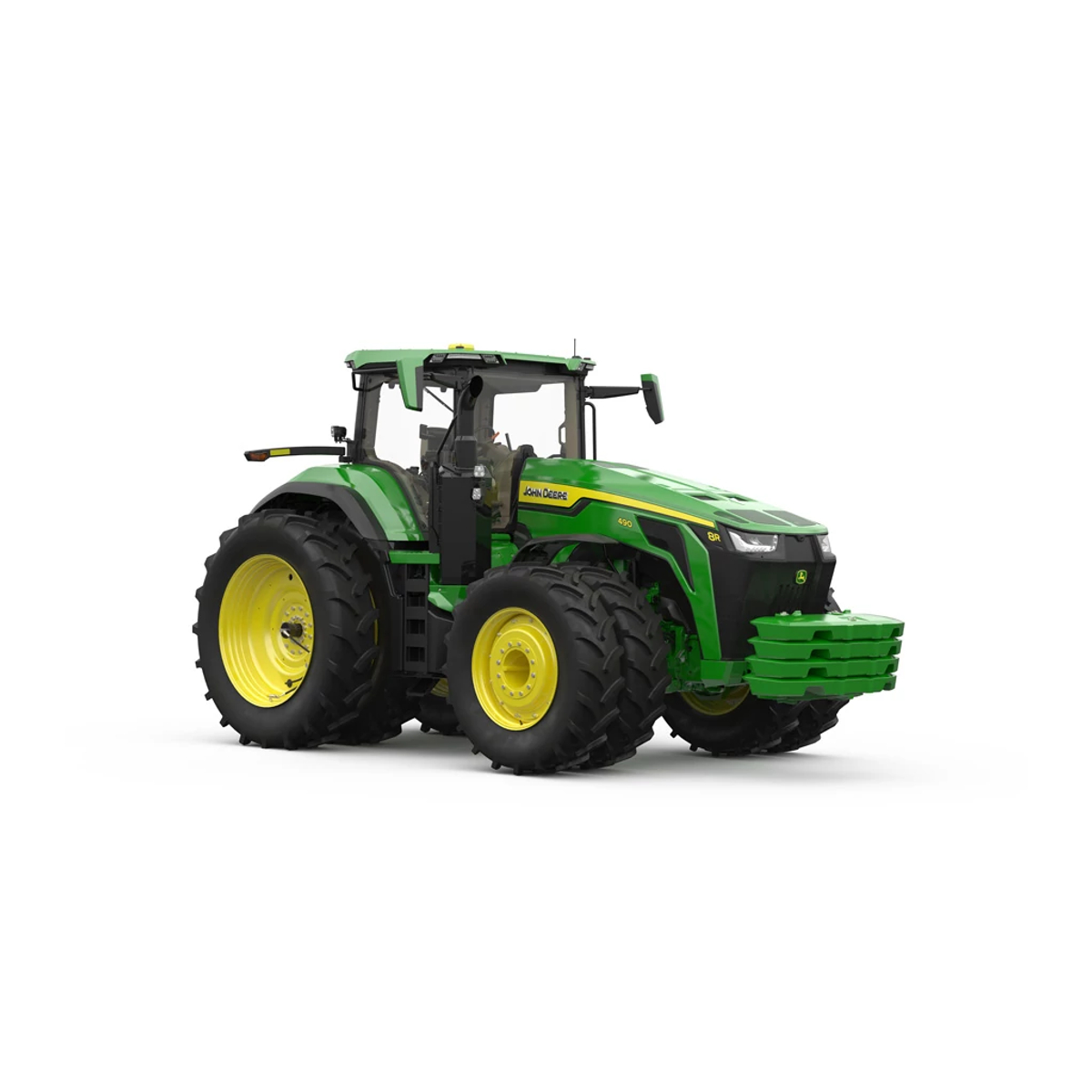

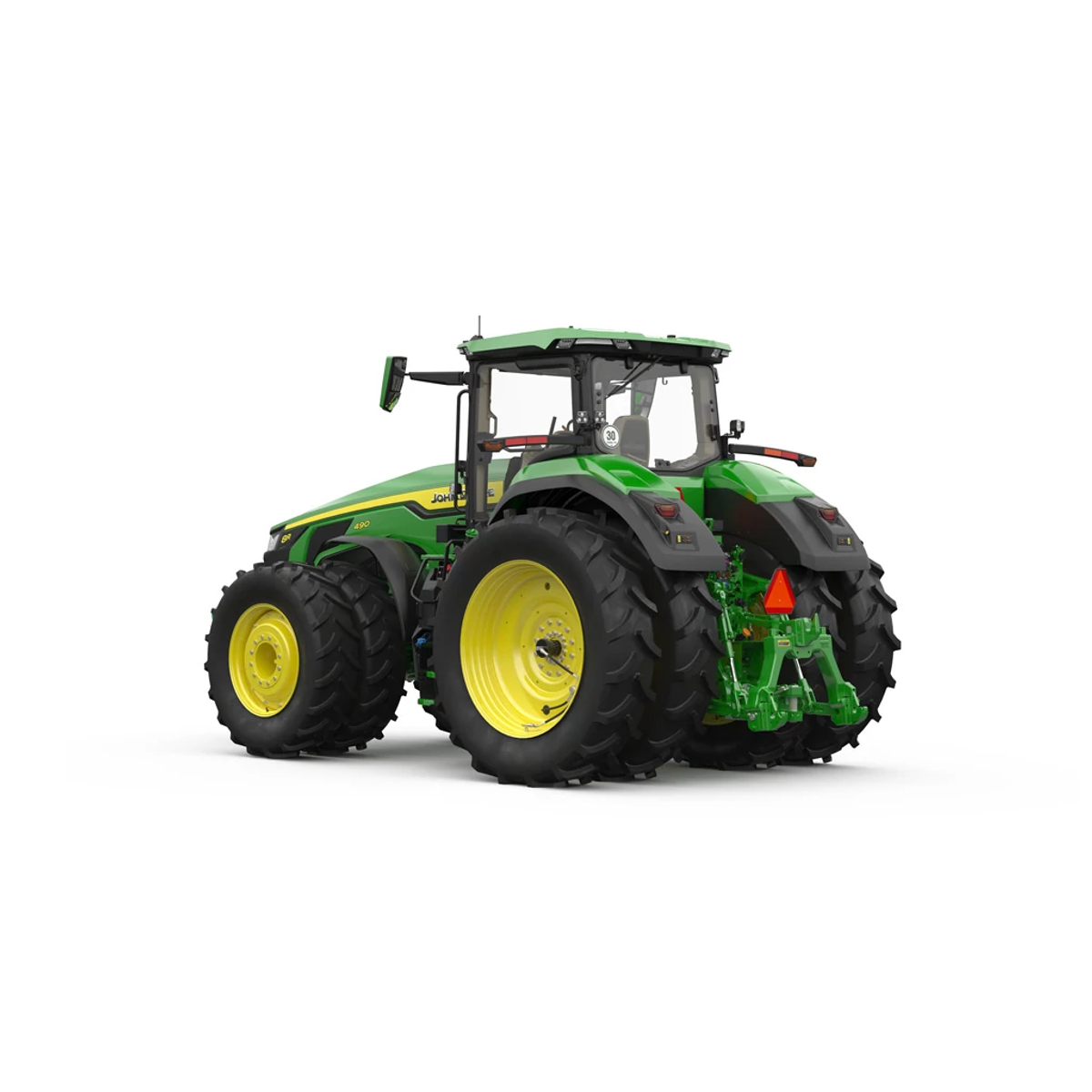

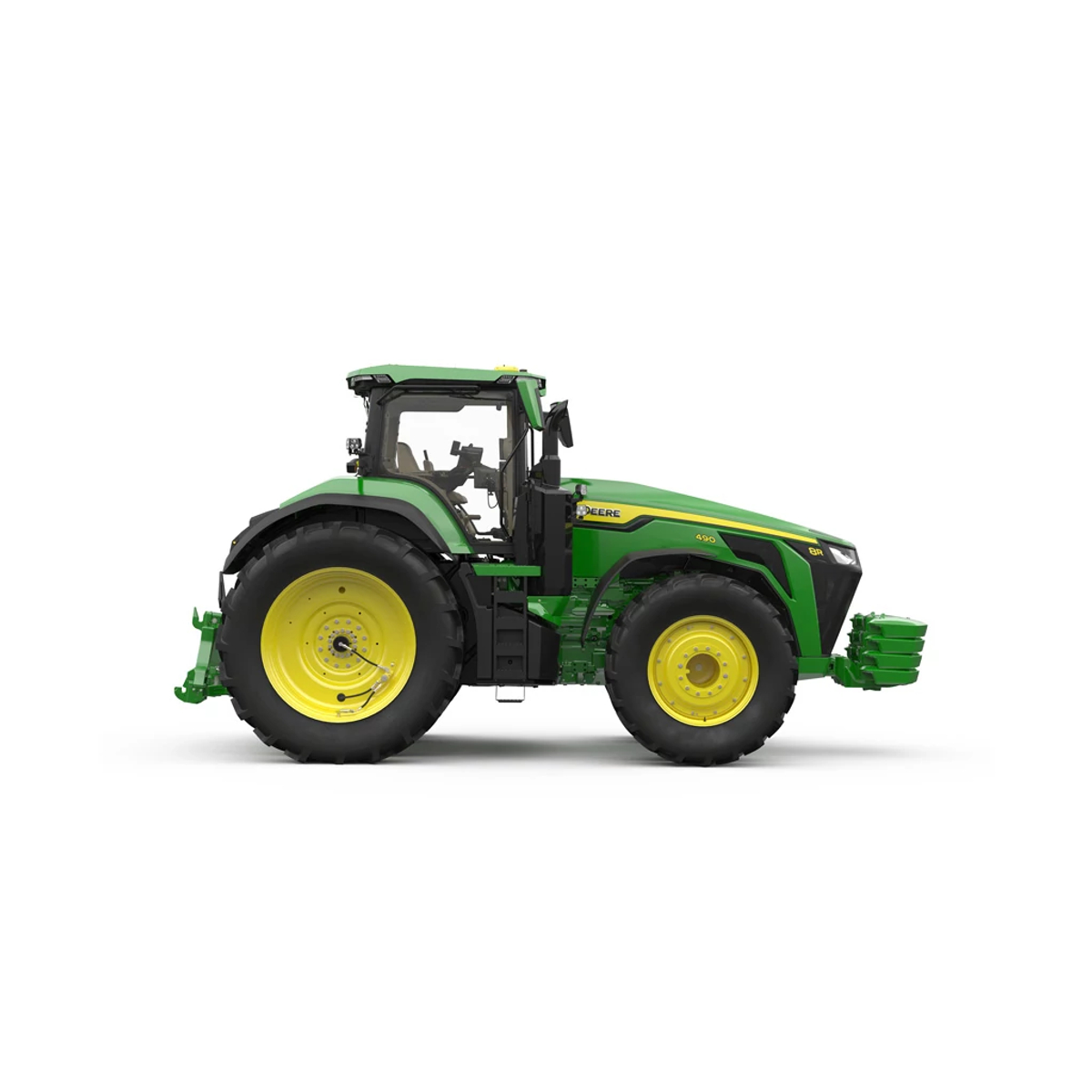

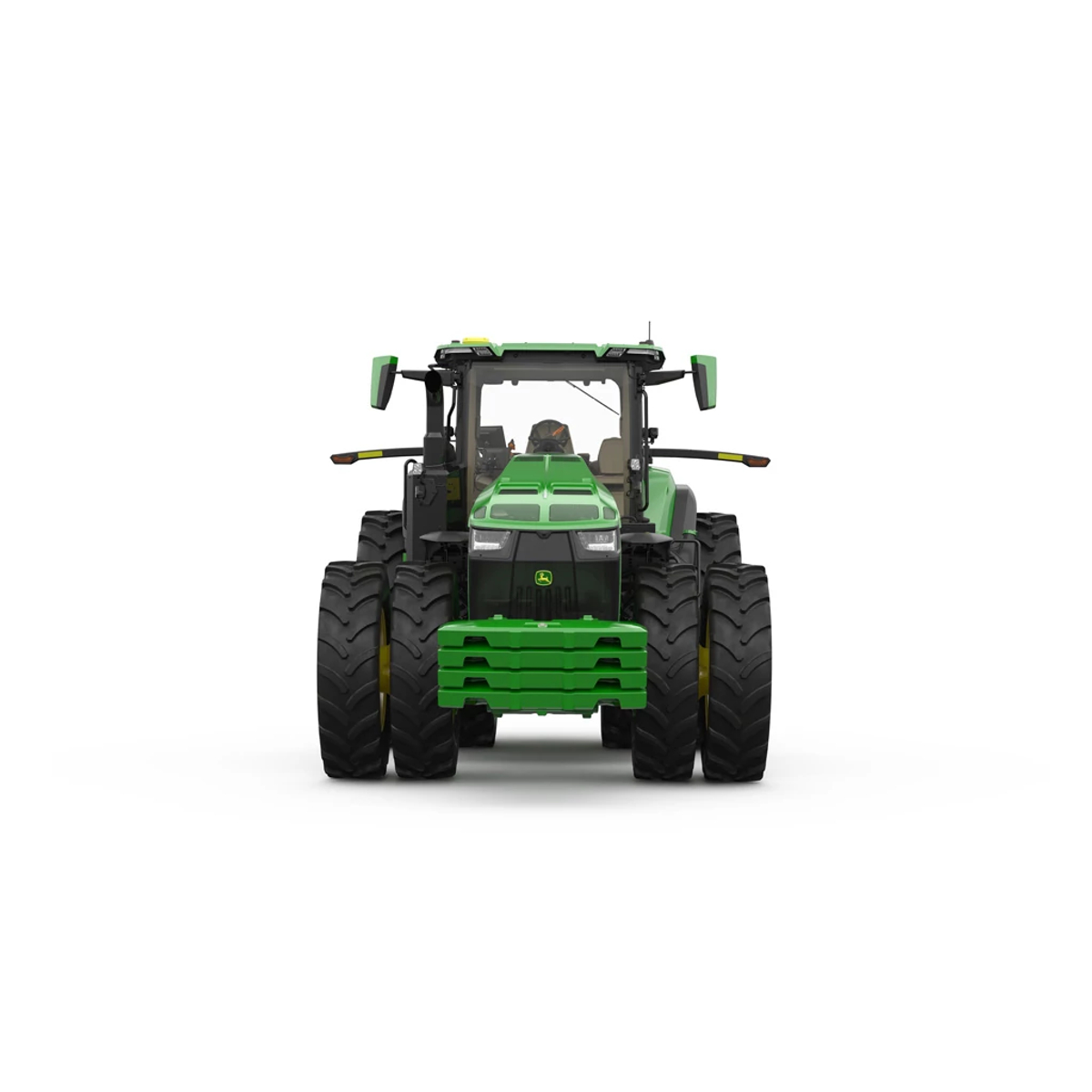

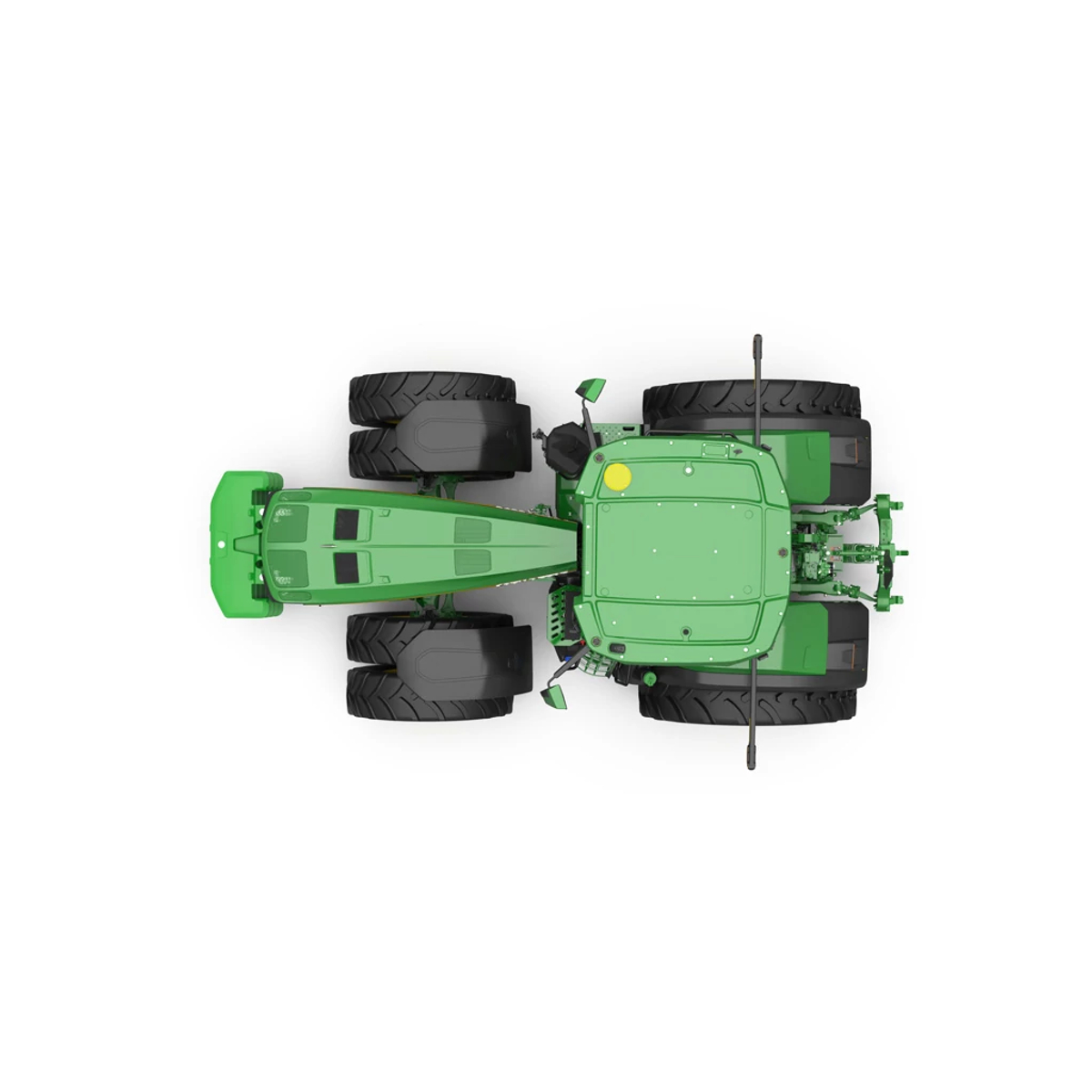

John Deere 8R 490

Starting at

Bring High Horsepower to More of Your Operation

Big jobs don’t always fit a four-track footprint. HHP 8R tractors deliver the power of larger machines in a versatile row-crop frame - making them a total planting solution capable of pulling wider planters, running at higher speeds, and maximizing acres per day. From planting to tillage and grain handling, you can increase productivity without sacrificing maneuverability or field accessibility.

Green tractor pulling a wide planter across a dry, freshly tilled field. Dust rises behind the equipment as it moves under a lightly overcast sky, with multiple yellow seed tanks visible and open farmland stretching into the distance.
Do More Jobs with One Machine

Operations need flexibility, especially when timing is tight. HHP 8R tractors are designed to handle multiple roles - from primary tillage to high-speed planting and grain cart work - without compromise. With the ability to match a wide range of implements and conditions, you can reduce equipment needs and keep your operation moving with fewer tradeoffs.

Front view of a large green tractor pulling tillage equipment across a harvested field covered in crop residue with dust rising from the machine and trees and a cloudy sky visible in the background
Put Power to the Ground Efficiently and Intelligently

Performance is more than horsepower - it’s how efficiently you use it. HHP 8R tractors combine advanced power management like Peak Power IPM, traction solutions, and integrated technologies to maintain speed under load, reduce slip, and optimize fuel use. The result is more consistent output, better field efficiency, and the confidence to push through demanding conditions.

Person operating a tractor inside a cab, hands on controls with multiple screens and steering wheel visible.
Question text goes here

Answer text goes here

Specs & Compare
Select up to 4 models to compare specifications
John Deere
8R 490
Tractor
John Deere
8R 440 (Model year 2027)
John Deere
8R 540 (Model year 2027)
John Deere
8RX 440 (Model year 2027)
John Deere
8RX 490 (Model year 2027)
John Deere
8RX 540 (Model year 2027)
John Deere
9R 490 (Model year 2026)
Fendt
1038 Vario
Fendt
1042 Vario
Fendt
1046 Vario
Fendt
1050 Vario
ADD MODEL

Machine Configuration

Wheel or Track ConfigurationWheelTrack

Engine

Engine ModelJD14JD14
Engine FamilySJDXL13.5334SJDXL13.5334
Displacement827 cu in.13.6
Displacement13.6 L13.6
Number of Cylinders6Six
Rated Engine Speed1900 rpm1,900
Rated Engine Power483 hp533
Rated Engine Power360 kW533
Rated Engine Power490 PS
(hp ISO)
533
Rated Engine Power with IPM390 kW572
Rated Engine Power with IPM530 PS572
Maximum Engine Speed1900 rpm1,900
Maximum Engine Power531 hp
Maximum Engine Power396 kW
Maximum Engine Power539 PS
(hp ISO)
Maximum Engine Power with IPM425 kW625
Maximum Engine Power with IPM579 PS625
Constant Power Range1450-1900 rpm1,450 - 1,900 rpm
Power Bulge10 %10
Bore and Stroke5.2 x 6.5 in.5.2 x 6.5
Bore and Stroke132 x 165 mm5.2 x 6.5
Compression Ratio15:9:115:9:1
Torque Rise35 %35

Transmission

Maximum Speed ForwardeAutoPowr™ Electric Variable Transmission (EVT)40 km/h
26 mph
Minimum Speed Forward60 km/h (37 mph)0.05 km/h
0.03 mph

Rear Power Take-Off (PTO)

Rated PTO Power435 hp482
Rated PTO Power324 kW482
Rated PTO Power440 PS482
Engine rpm at Rated PTO Speeds (1000/1000E/1.300)1,801/1,387/1,803

Front PTO

PTO Speed10001,000 rpm
Maximum PTO Power174 hp
Maximum PTO Power130 kW
Maximum PTO Power176 PS

Front Hitch

Lift Capacity Through Full Lift Range at Coupling Points12475 lb.12,434
Lift Capacity Through Full Lift Range at Coupling Points5660 kg12,434
Maximum Lift Capacity at Coupling Points16950 lb.
Maximum Lift Capacity at Coupling Points7690 kg

Rear Hitch

Lift Capacity Through Full Lift Range at Coupling Points566012,434
Lift Capacity Through Full Lift Range at 610-mm Behind Hitch Point10,886 kg (24,000 lb)10,886 kg
24,000 lb

Hydraulics

Maximum Operating Pressure2958 psi2,958
Maximum Operating Pressure204 bar2,958
Available Flow at Front SCVs31 gpm31
Available Flow at Front SCVs120 L/min31

Electrical System

Battery Voltage12 V12
Electrical System Voltage12 V12
Battery Cold Cranking Amps2850 CCA2,850
Battery Capacity950 CCA950 CCA

Operator Station

Degree of Seat Swivel, Left Hand25 degree (angle)
Degree of Seat Swivel, Right Hand40 degree (angle)
Inner Cab Volume114.42 cu ft115
Inner Cab Volume3.24 m³115
Cab Glass Area70.61 sq ft71.47
Cab Glass Area6.56 m²71.47

Technology Integration

ReceiverIntegrated StarFire™ 7500Intergrated StarFire™ 7500
ConnectivityJDLink™ ModemJDLink™ Modem or JDLink Boost

Capacities

Diesel Exhaust Fluid (DEF) Tank Capacity18.2 gal.18.2
Diesel Exhaust Fluid (DEF) Tank Capacity69 L18.2
Cooling System Capacity18.5 gal.18.5
Cooling System Capacity70 L18.5
Transmission - Hydraulic System54.4 gal.
Transmission - Hydraulic System206 L
Crankcase Oil Volume12.9 gal.12.94
Crankcase Oil Volume49 L12.94

Dimensions & Weights

Wheelbase131.9 in.130.1
Wheelbase3350 mm130.1
Base Machine Weight37377 lb.48,389
Base Machine Weight16954 kg48,389
Overall Height145 in.145.4
Overall Height3683 mm145.4
Transport Height145 in.145.4
Transport Height3683 mm145.4
Overall Width113.6 in.144
Overall Width2886 mm144
Overall Length277.8 in.299.3
Overall Length7057 mm299.3
Ground Clearance15.9 in.
Ground Clearance405 mm
Front Axle Ground Clearance21.9 in.25.24
Front Axle Ground Clearance555 mm25.24
Drawbar Ground Clearance15.9 in.17
Drawbar Ground Clearance405 mm17
Maximum Ballast Level52910 lb.50,706
Maximum Ballast Level24000 kg50,706
Maximum Permissible Weight52910 lb.62,831
Maximum Permissible Weight24000 kg62,831

Additional Information

Country of ManufactureUSAUnited States
