new
John Deere
7R 230
7 Series Tractors

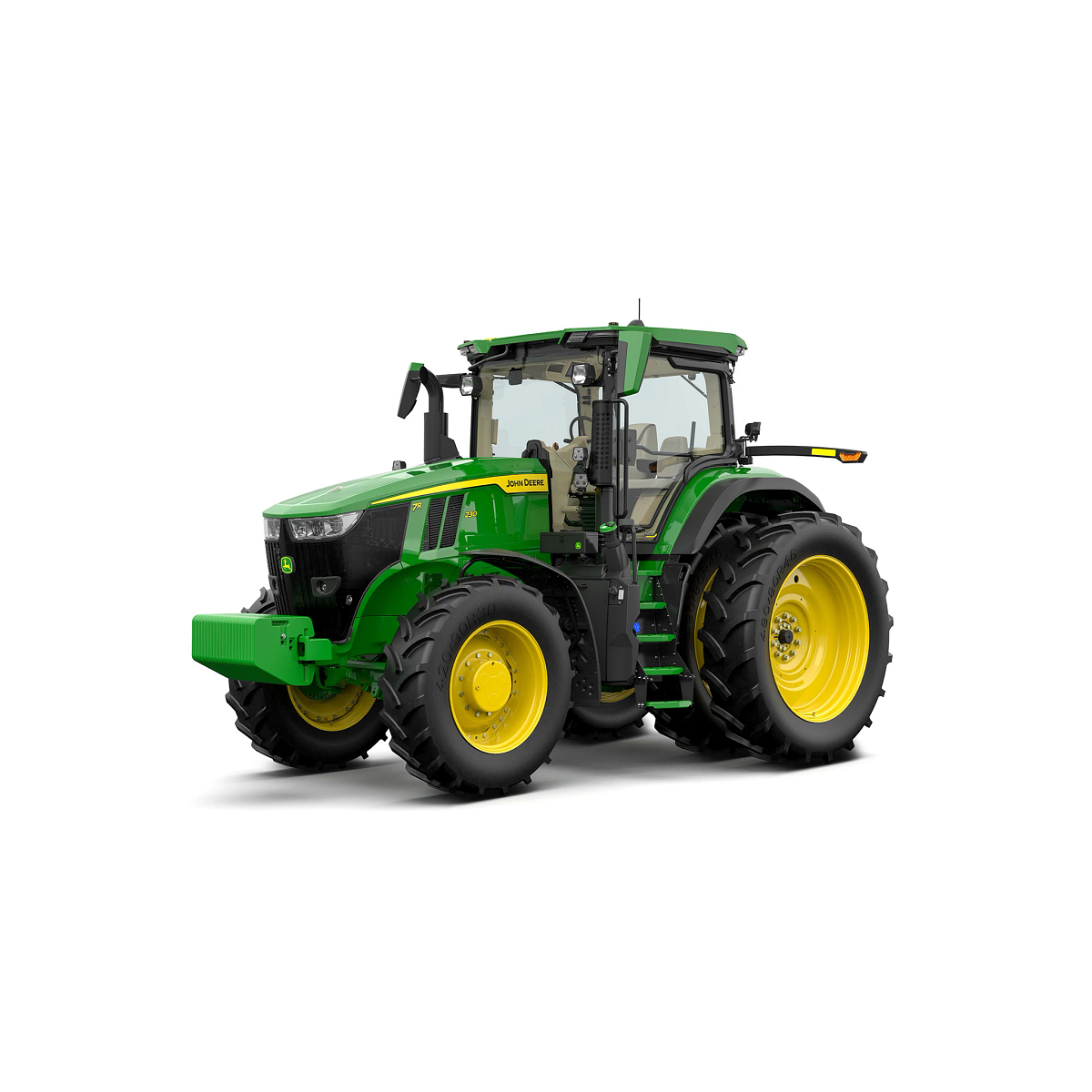

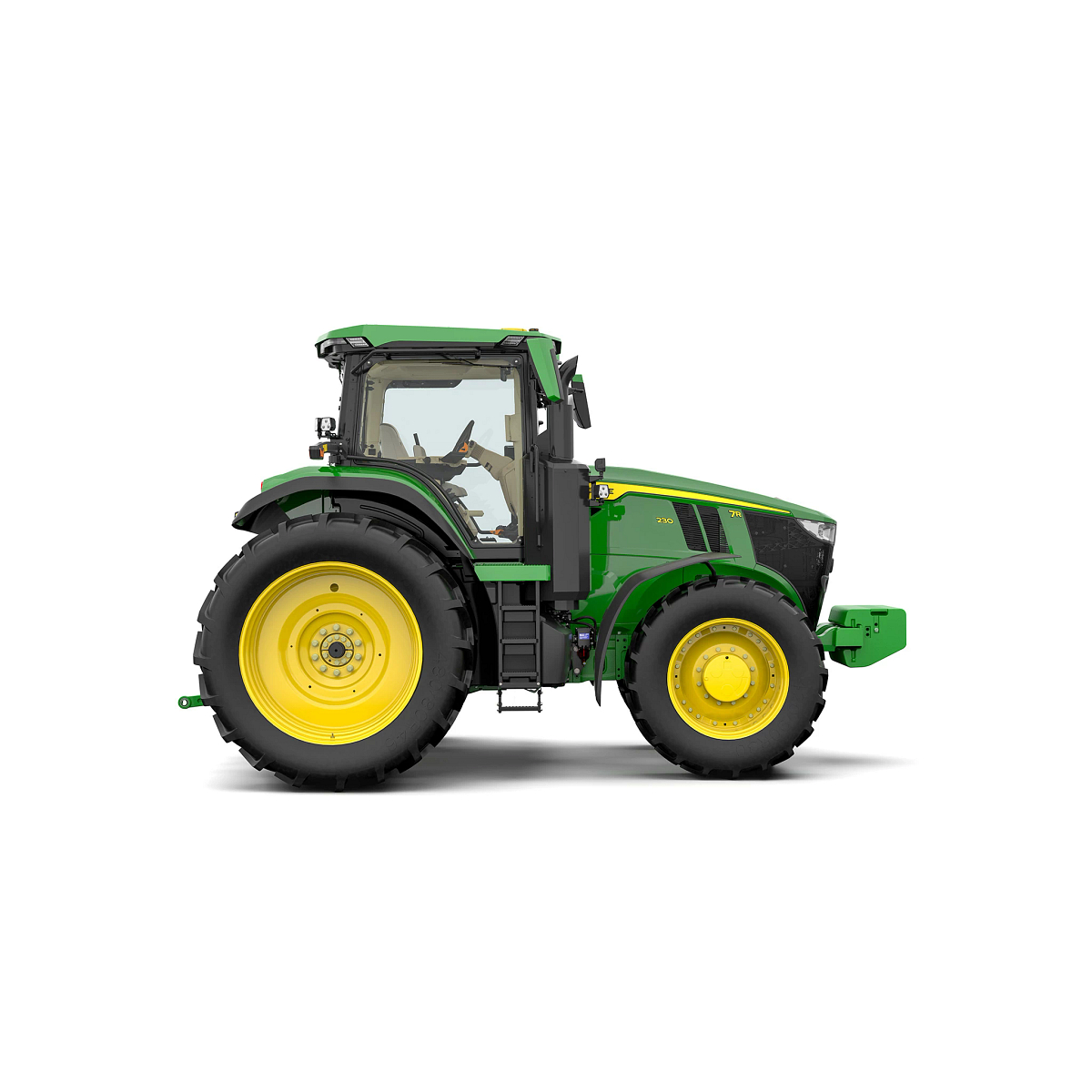

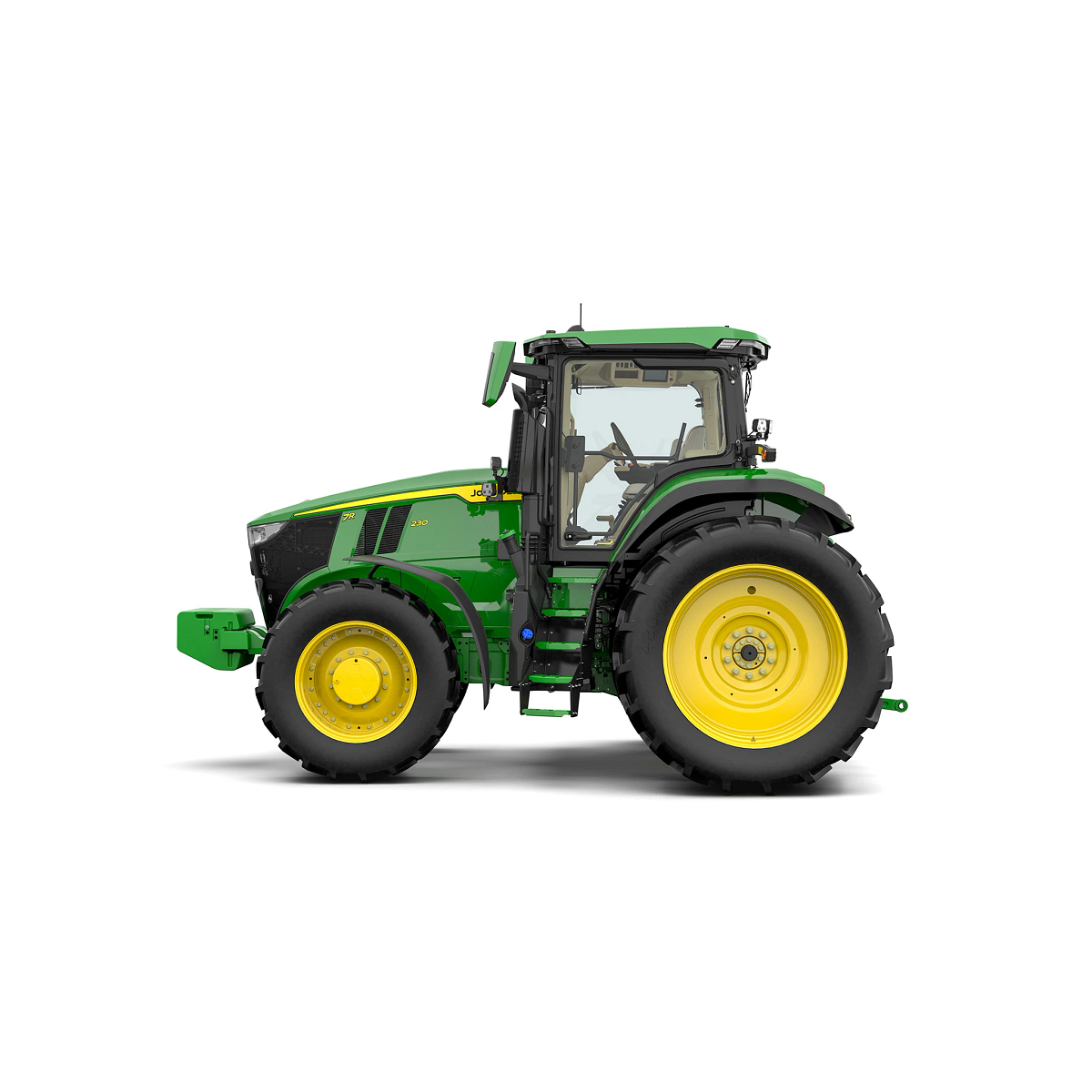

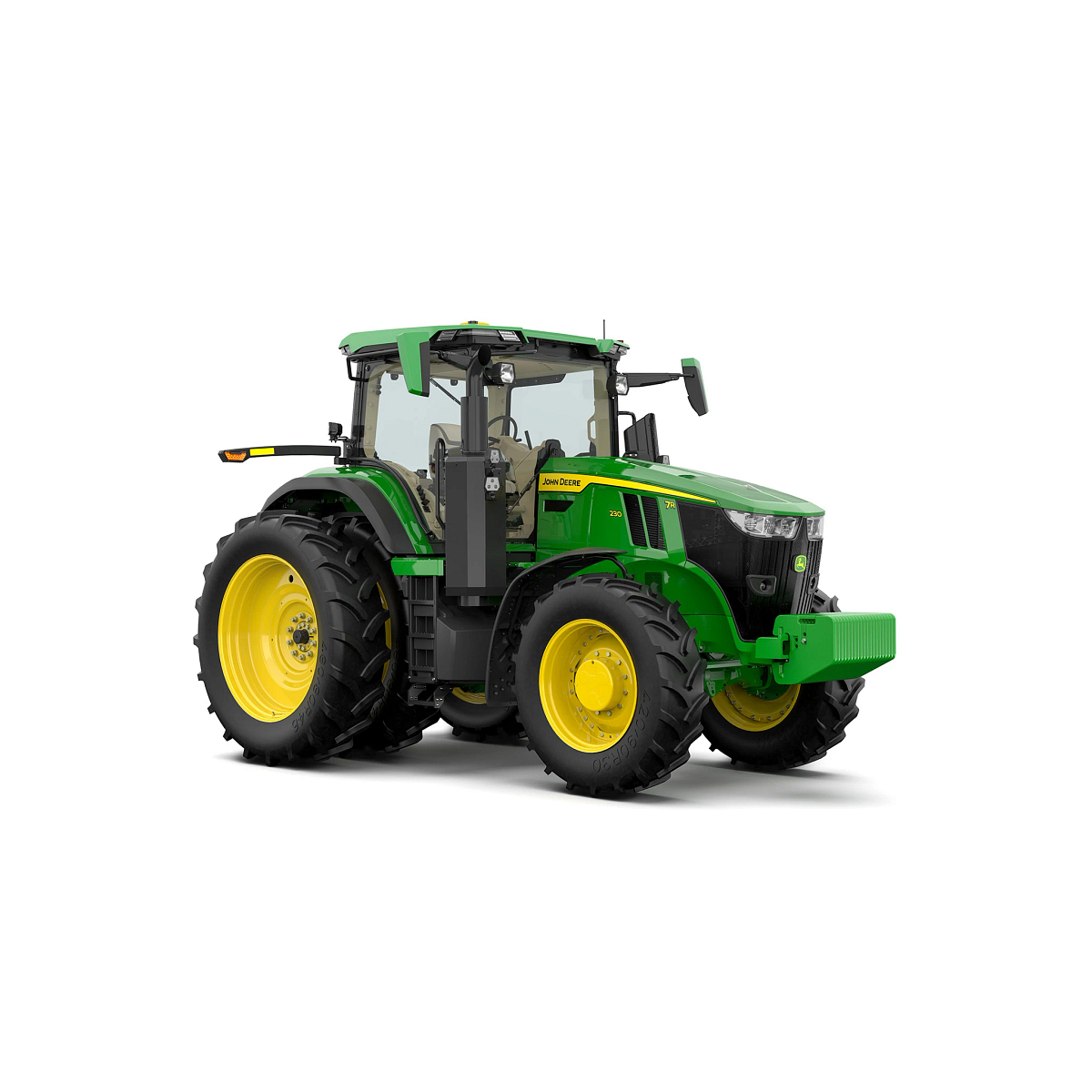

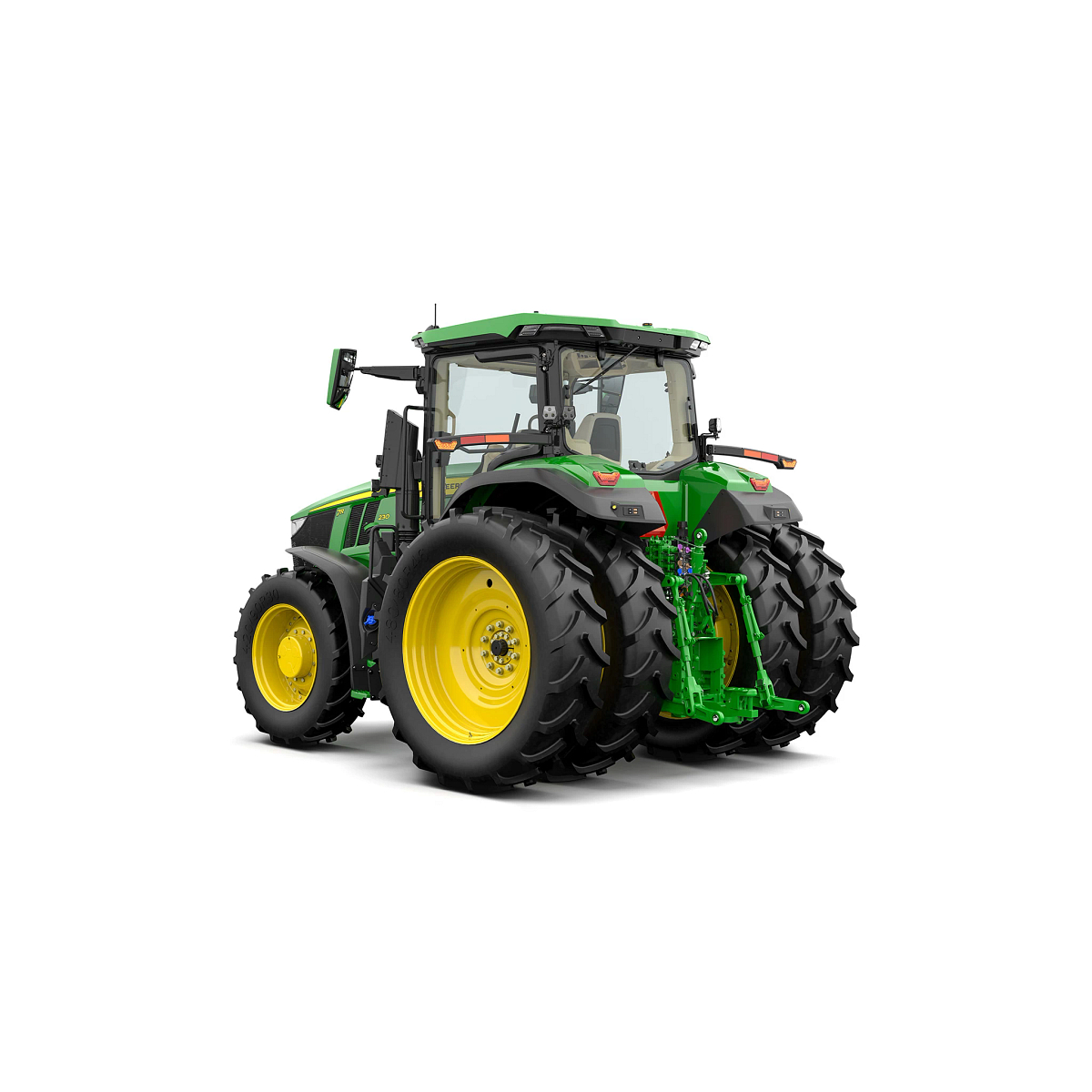

John Deere 7R 230

Starting at

Run Big Acres with Confidence

When the day calls for heavy draft work, PTO power, or road runs between fields, 7 Series tractors deliver the muscle and efficiency to keep you moving. Strong power-to-weight, transmission choices, and smart power management help maintain speed under load - so you cover more acres with fewer compromises.

Green tractor pulling a large baler across a grassy farm field, with wide tires and a glass cab, set against a flat rural landscape with distant hills and a clear blue sky
Turn Every Pass into Better Decisions

Don’t let performance stop at the cab. With connectivity and documentation through John Deere Operations Center, 7 Series tractors help you track work, verify coverage, and stay on schedule - whether you’re in the field or back at the office. Turn trusted machine data into better decisions and smoother seasons ahead.

Person working at a desk using a keyboard and mouse while viewing a large monitor displaying a detailed map interface; a laptop and desk lamp sit nearby in a bright workspace
Stay Comfortable and In Control All Day

Long days get easier when the tractor fits the operator. 7 Series tractors pair an automotive-inspired cab with comfort options and intuitive controls, so steering, shifting, and implement functions stay at your fingertips. The result is less fatigue, better control, and consistent job quality from first pass to last.

Green tractor driving down an empty paved road with a yellow centerline, with large tires and detailed front end shown against a clear blue sky, with dry, rocky hills and sparse vegetation in the background
Question text goes here

Answer text goes here

Machine Configuration
Wheel or Track Configuration

Wheel

Engine
Engine Make

John Deere

Engine Family

MJDXL06.8309

Emissions Certifications

Final Tier 4

Displacement

415 cu in.

Displacement

6.8 L

Aspiration

Dual turbochargers, variable geometry turbo with fixed geometry turbo in series

Number of Cylinders

6

Cylinder Liners

Wet-sleeve cylinder liners with four valves in head

Aftertreatment Type

Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)

Intelligent Power Management (IPM)

22.1 kW, 30 PS (hp ISO)

Rated Engine Power

227 hp

Rated Engine Power

169 kW

Rated Engine Power

230 PS

Maximum Engine Power

250 hp

Maximum Engine Power

186 kW

Maximum Engine Power

253 PS

Maximum Engine Torque

At 1600 rpm: 1077 Nm 794 lb-ft

Fuel Type

Diesel

Rear Power Take-Off (PTO)
Engine rpm at Rated PTO Speeds (540/1.000)

1950

Engine rpm at Rated PTO Speeds (540/540E/1.000)

1950/1750

Engagement Method

Electric switch with adjustable modulation

Front PTO
PTO Speed

1000

Front PTO Rotation

Counter-clockwise rotation (when facing PTO)

Front Number of Splines

21

Front Hitch
Front Hitch Category

Category 3N, ground engaging

Electric Power

Seven-pin connector

Rear Hitch
Maximum Lift Capacity Directly at Coupling Points

Standard (Category 3): 5443 kg 12,000 lb; Optional (Category 3N): 6894 kg 15,200 lb; Standard (Category 3 with hook ends): 5443 kg; Optional (Category 3 with hook ends): 6894 kg 15,000 lb

Drawbar
Drawbar Category

Standard: Category 3; Optional: Category 3 with heavy-duty support Category 4

Maximum Vertical Load

Standard: Category 3: 1837 kg 4050 lb; Optional: Category 3 with heavy-duty support: 4536 kg 10,000 lb

Hydraulics
Hydraulic System Type

Closed-center, pressure/flow compensated system with load sensing

Available Flow at a Single Rear SCV

35 gpm(132 L/min)

Front Axle
Front Axle Type

Standard: 1300 Series MFWD: tread range 1524 to 2235 mm 60 to 88 in.; Optional: TLS: Tread range 1524 to 2235 mm; TLS with front brakes available with 40 km/h 24.9 mph; TLS with front brakes standard with 50 km/h 31 mph

Front Axle Differential Lock

1300 Series MFWD: Limited slip; TLS: Limited slip; TLS with front brakes: Full-locking electrohydraulic (actuated at same time as rear diff lock)

Rear Axle
Rear Axle Type

Inboard planetary three pinion

Electrical System
Battery Voltage

12 V

Battery Cold Cranking Amps

1900 CCA

Alternator Capacity

Standard: 210 amp Optional: 250 amp

Working Lights

Standard: 18 halogen; Available: 18 light-emitting diode (LED) and two halogen or 22 LED and two halogen

Operator Station
Cab Suspension

Optional: Adjustable cab suspension

Instructional Seat

Standard

Technology Integration
Guidance

Integrated AutoTrac™

Connectivity

JDLink™

Remote Diagnostics

ServiceADVISOR™ Remote: available with JDLink™ hardware and activations; Remote Display Access: available with JDLink™ hardware and activations

Additional Information
Country of Manufacture

USA

Date Collected

03 April 2025
