Secondary Tillage

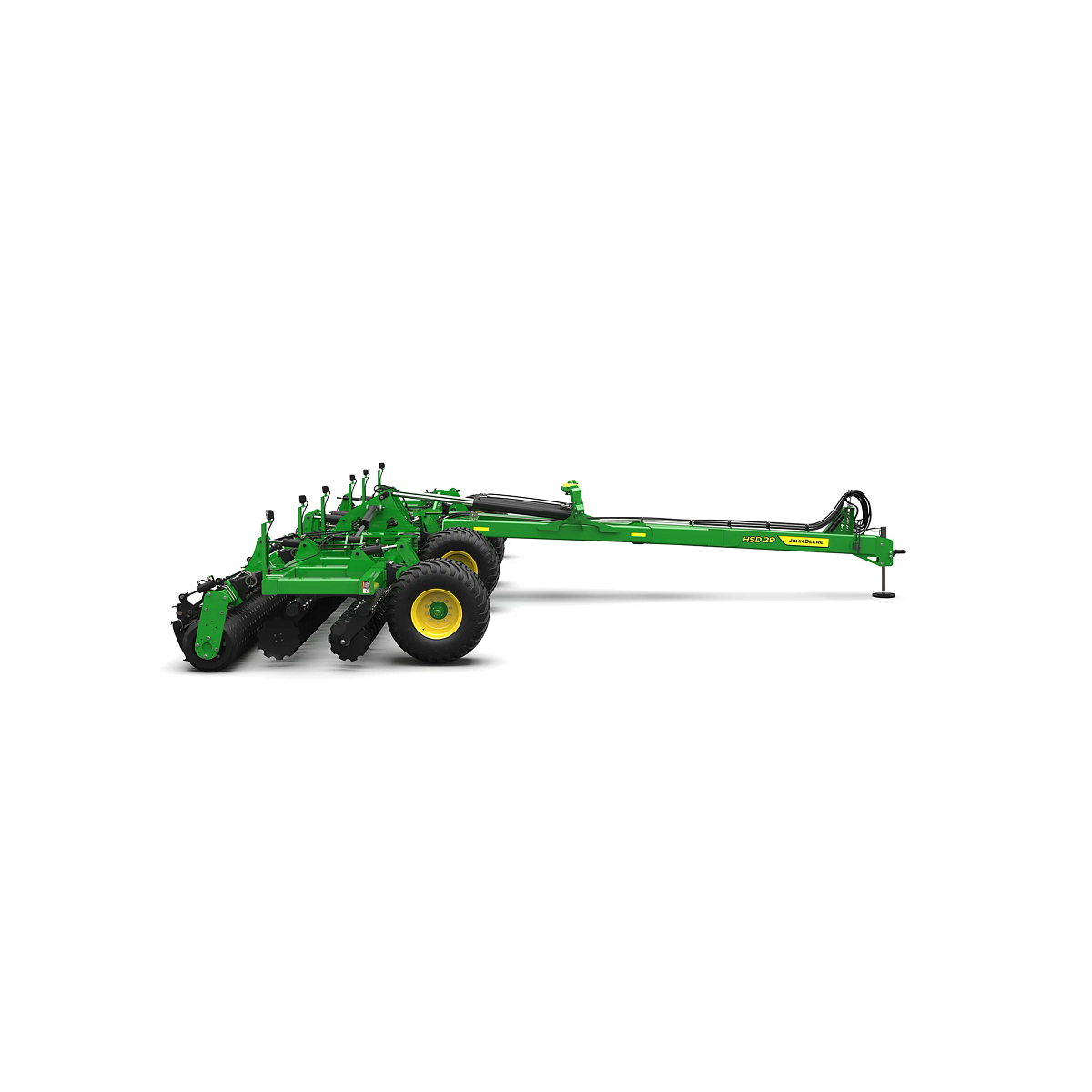

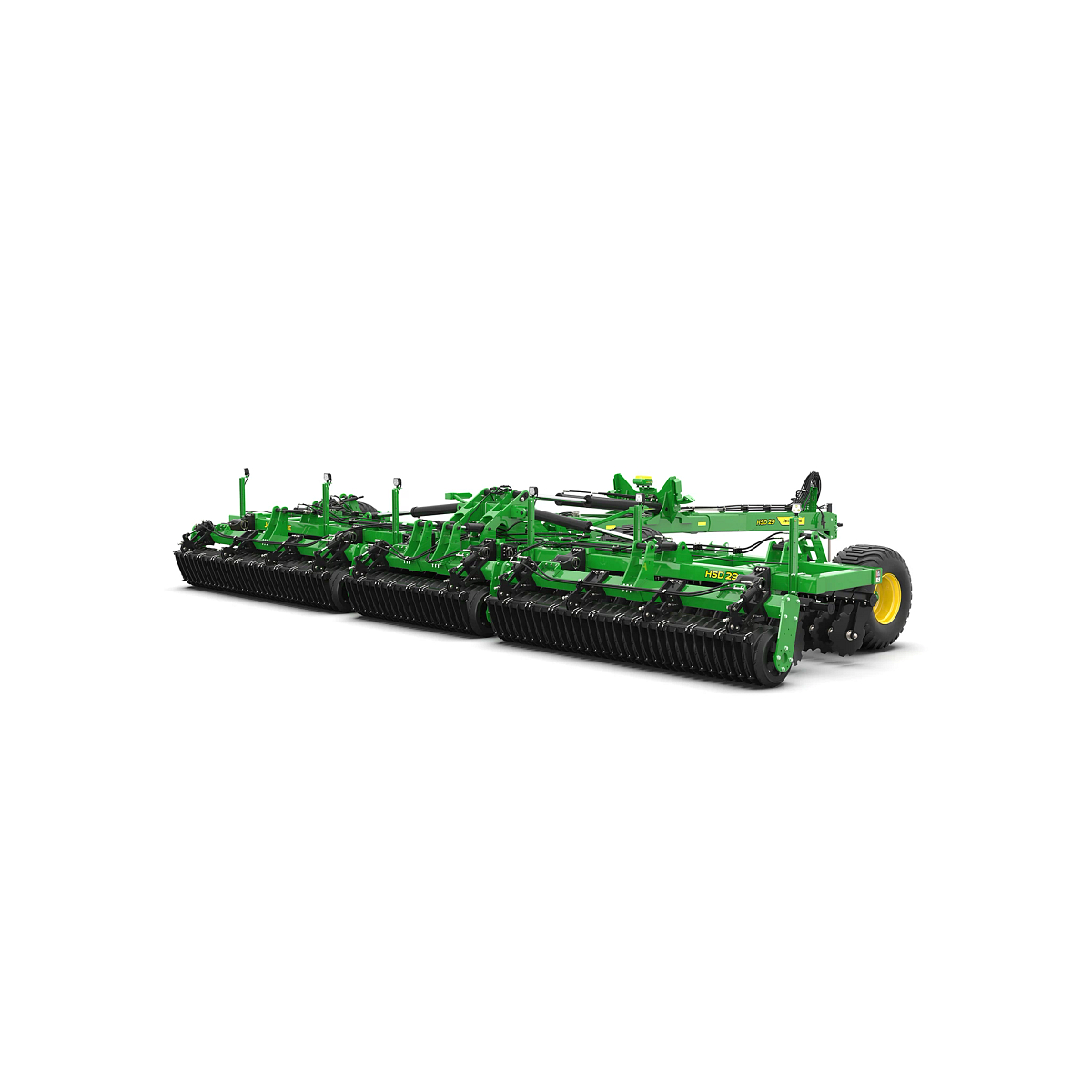

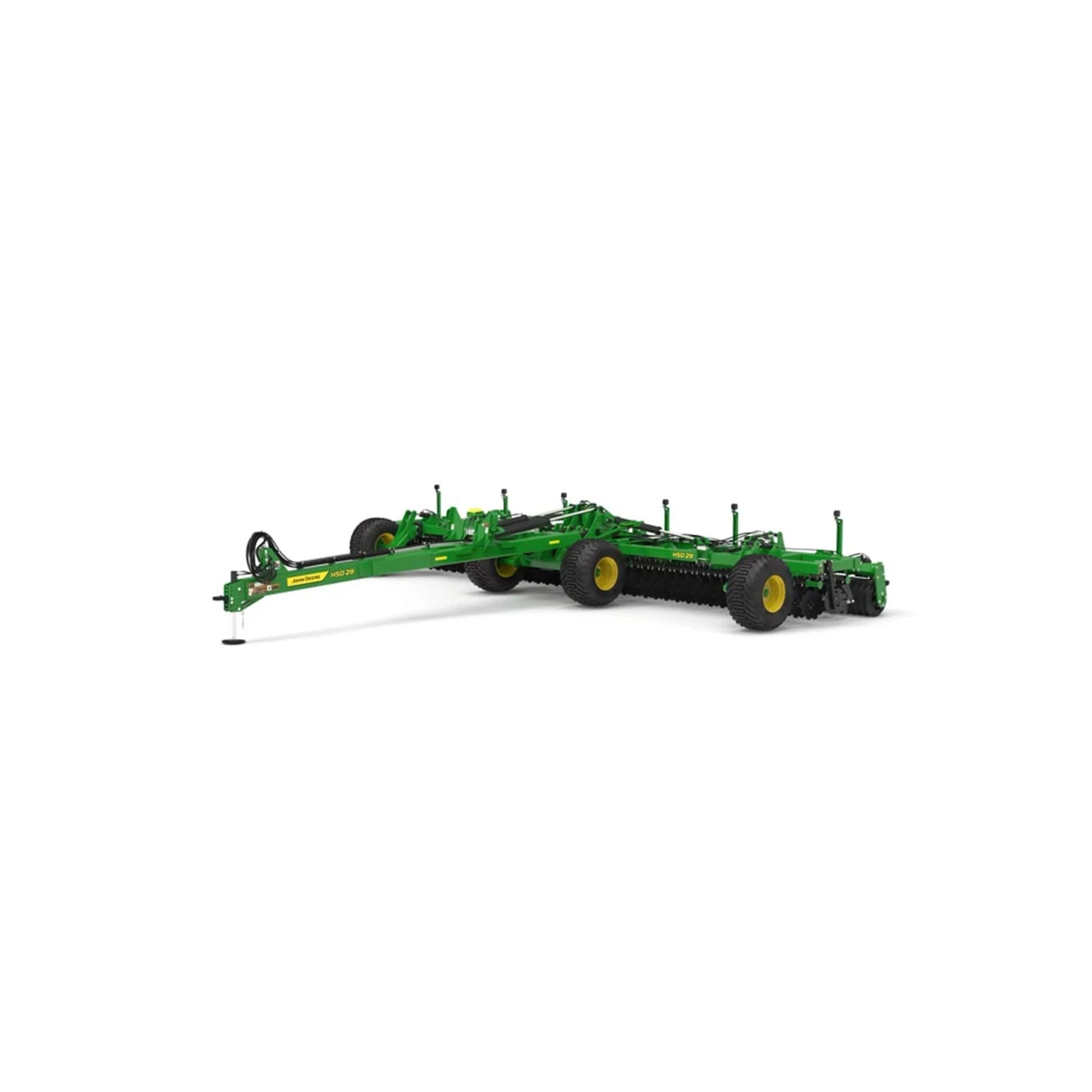

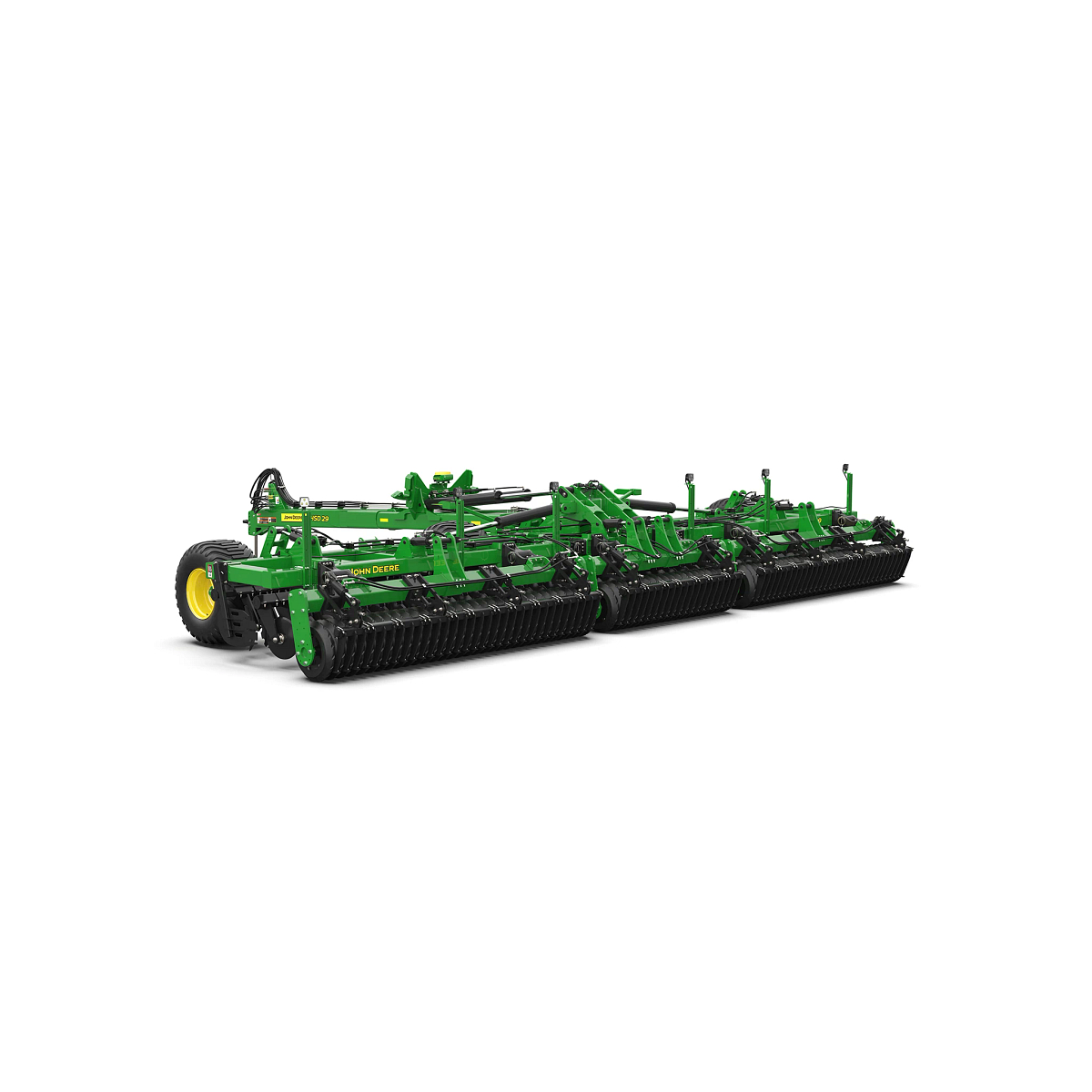

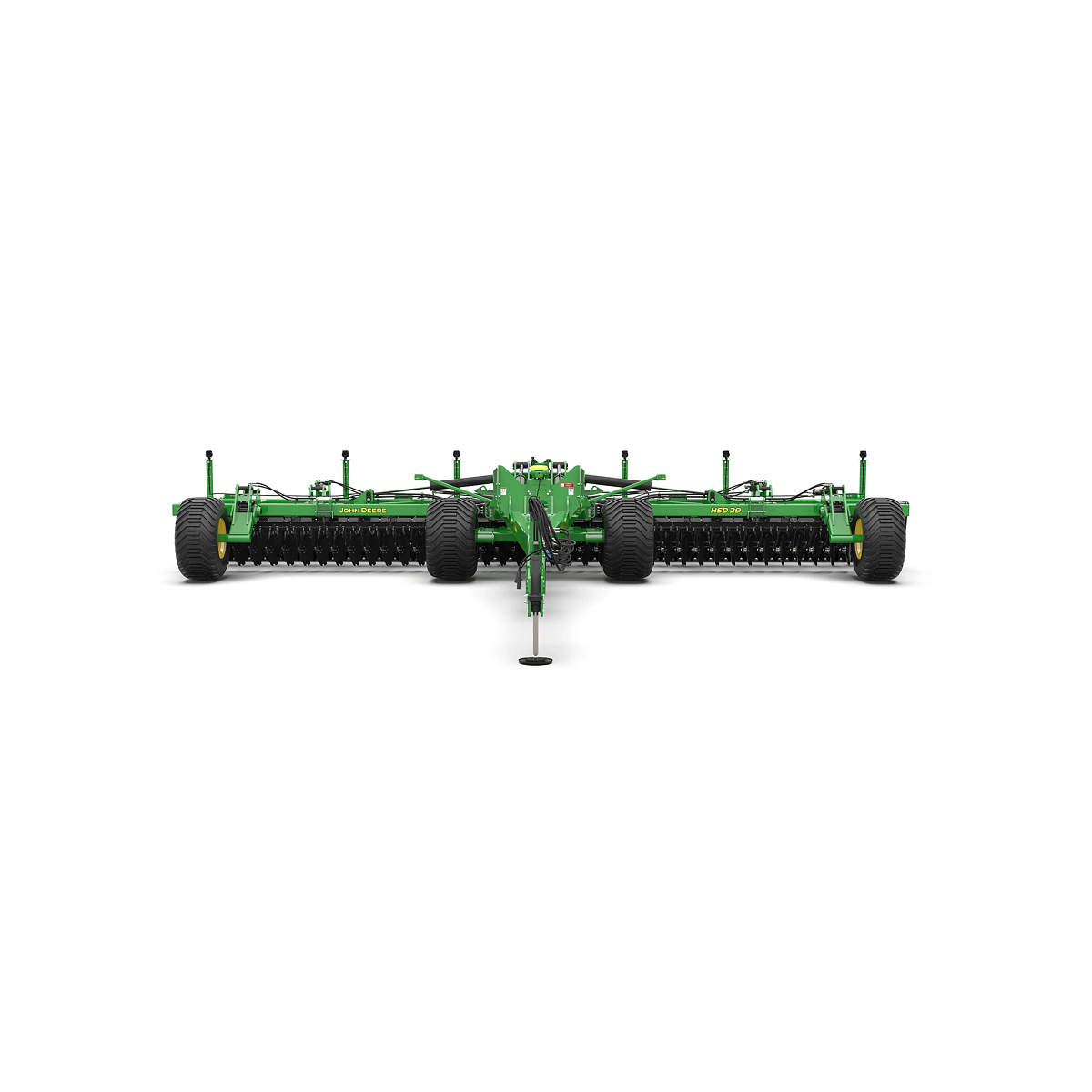

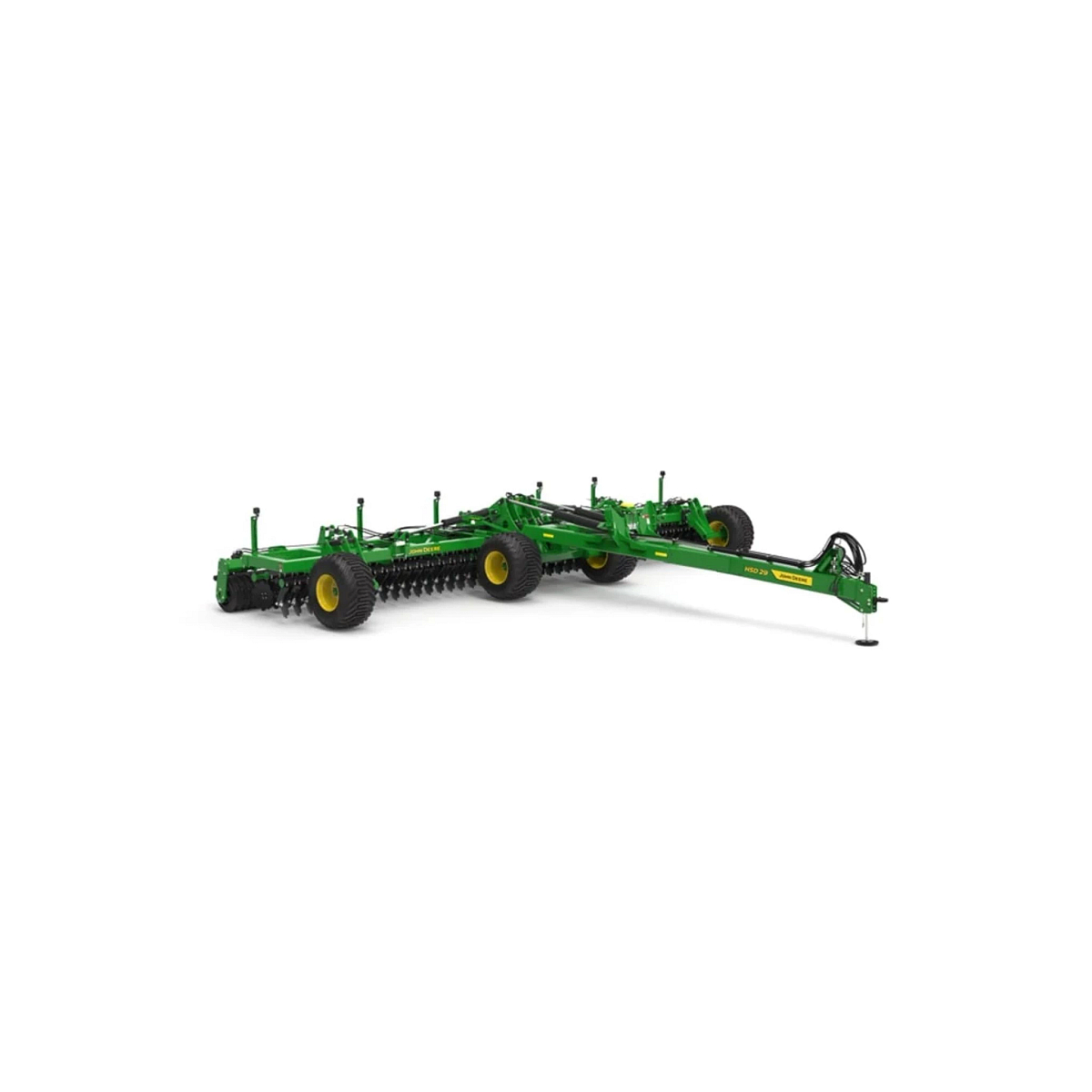

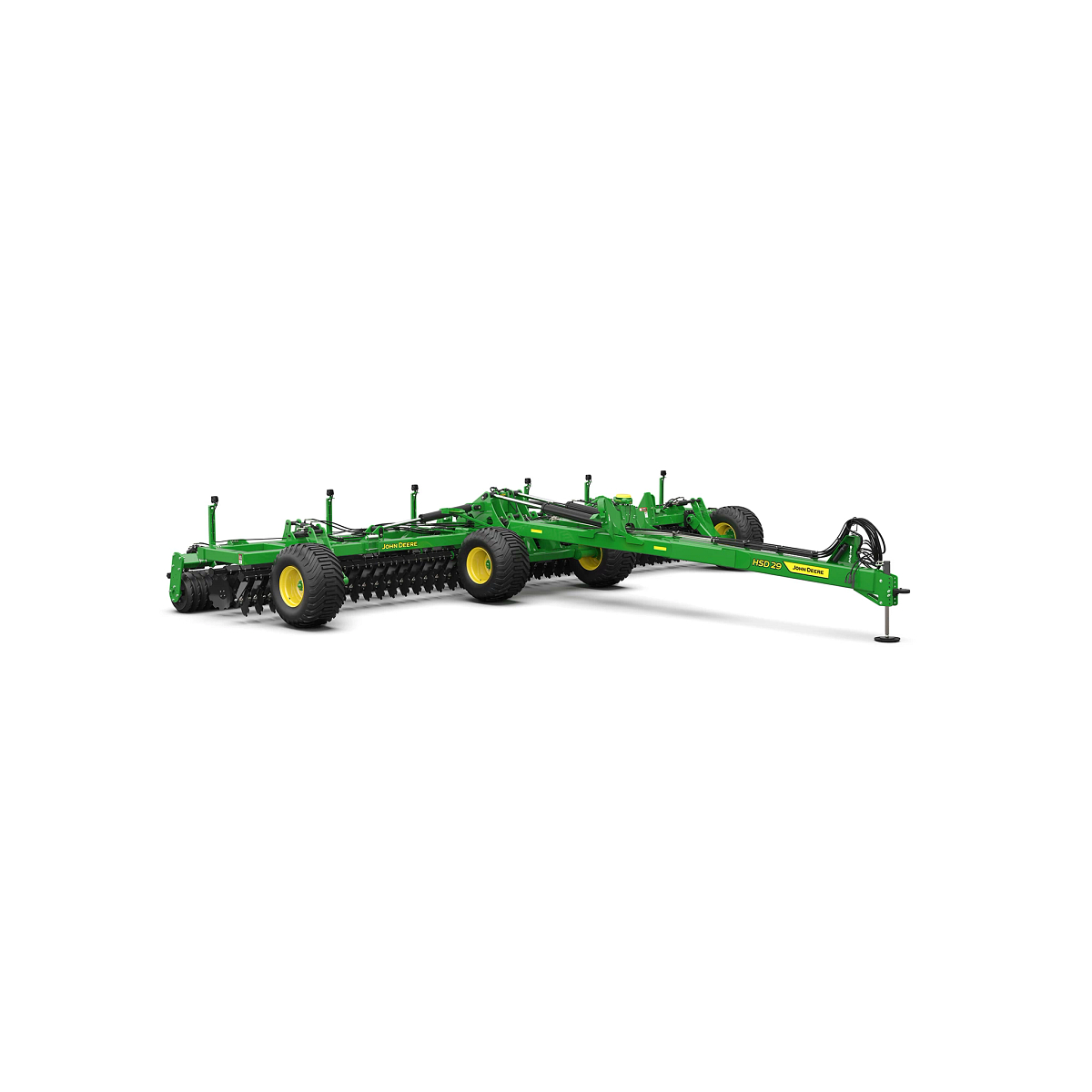

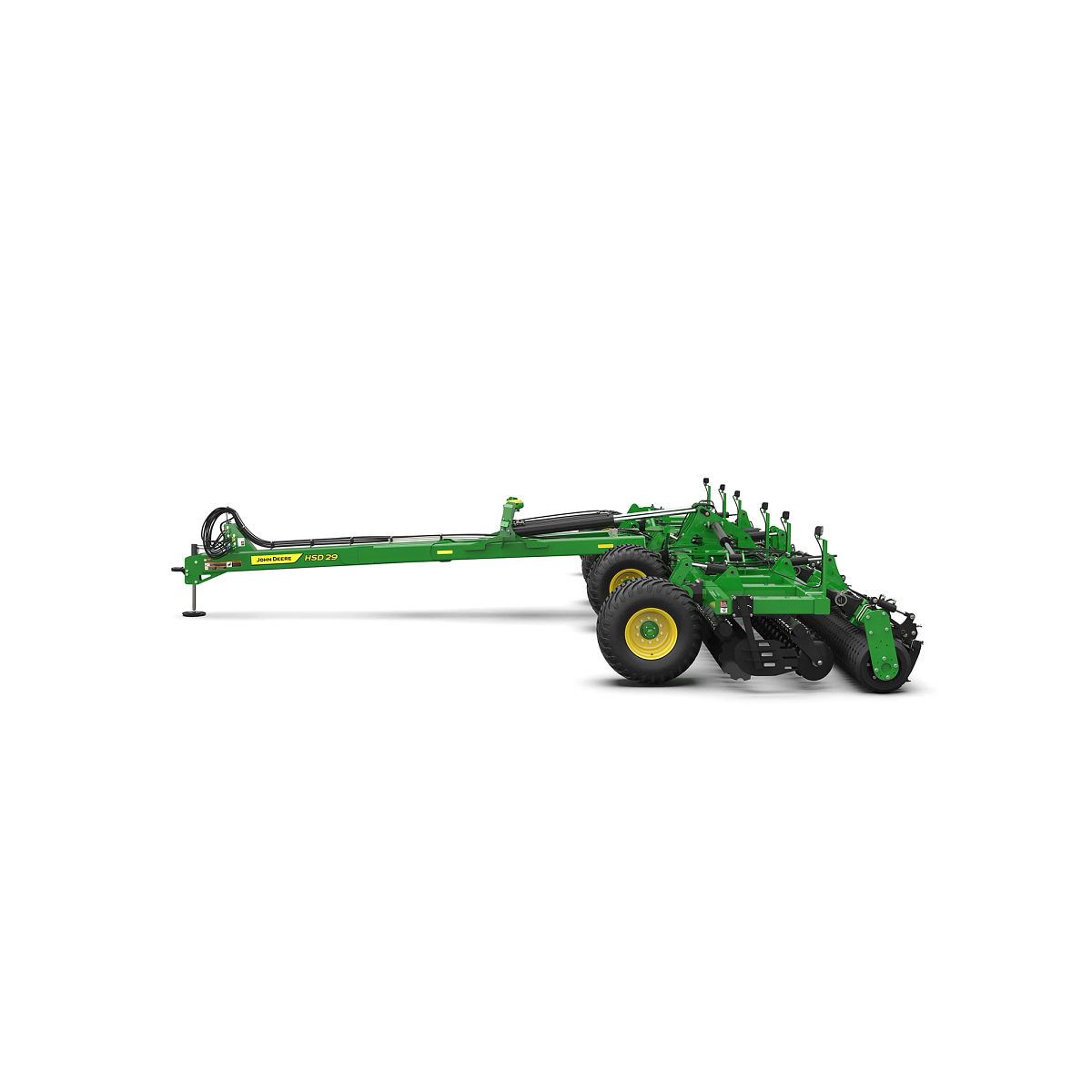

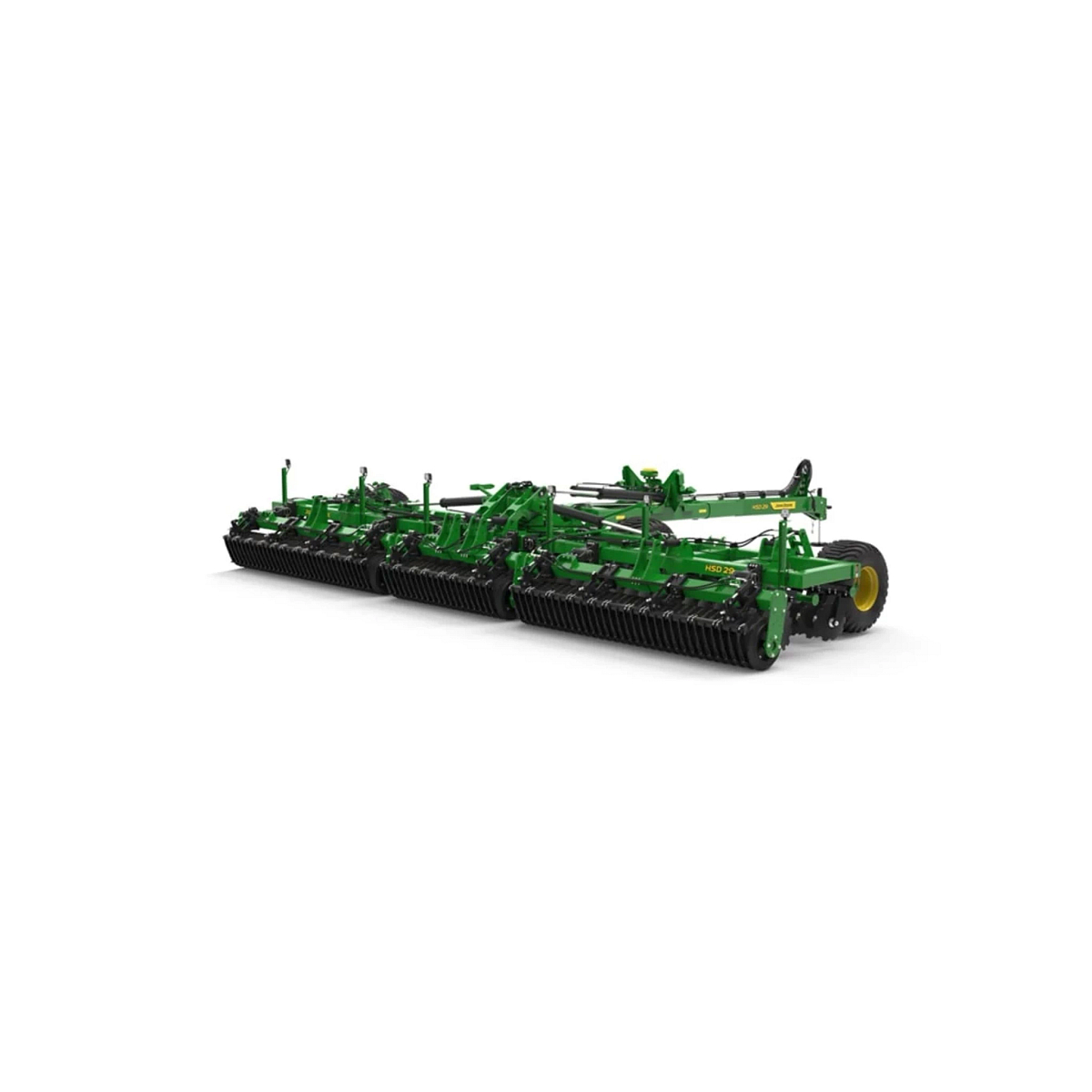

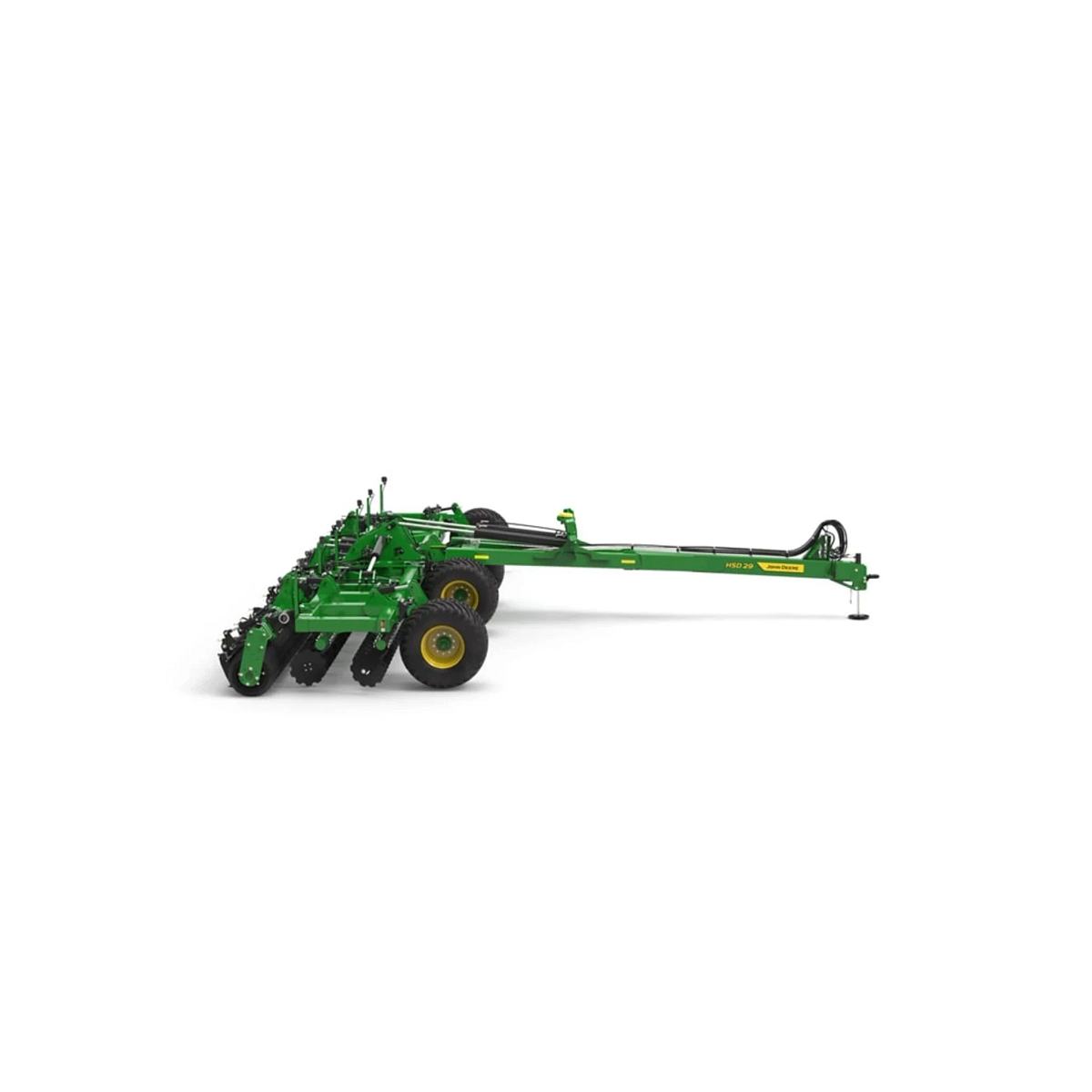

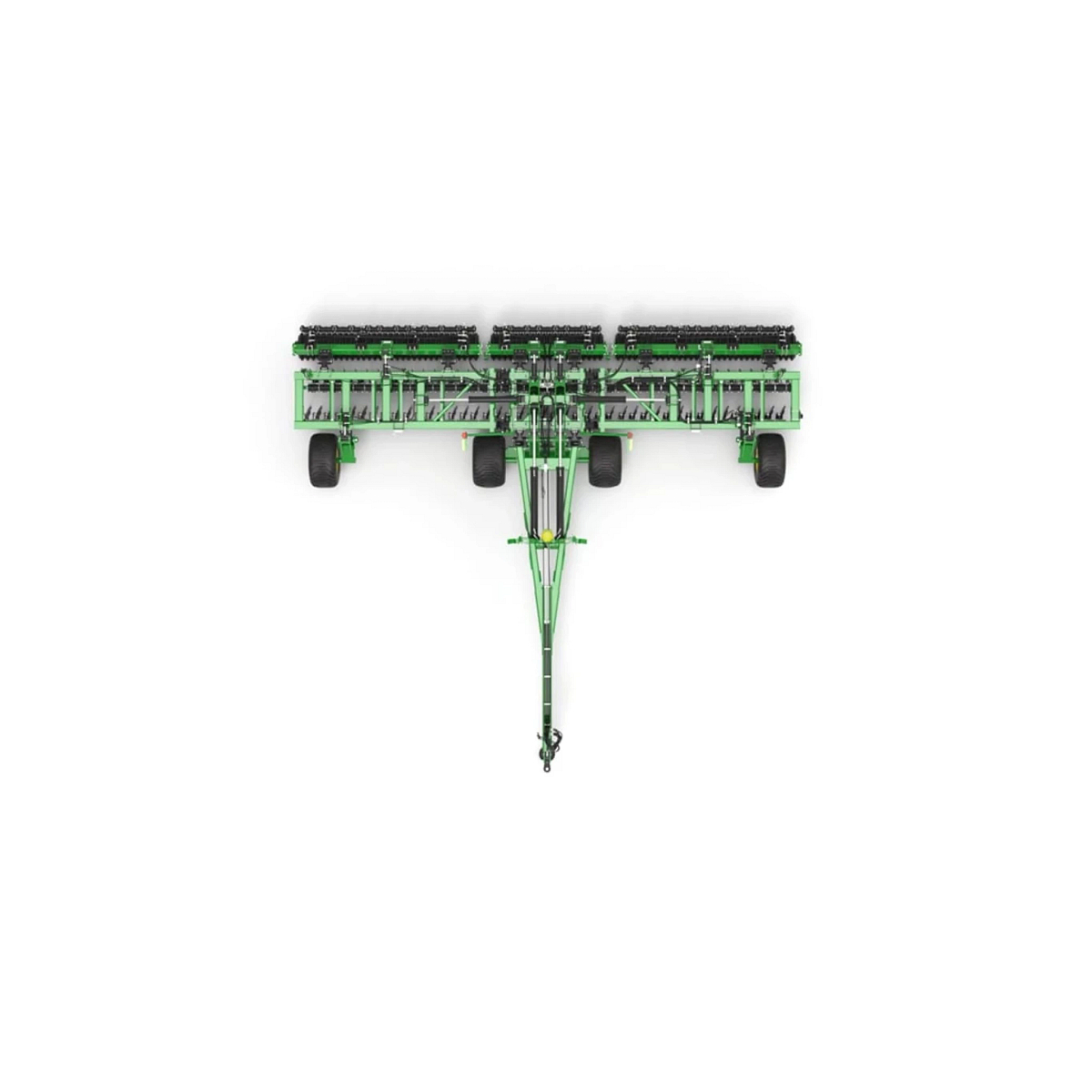

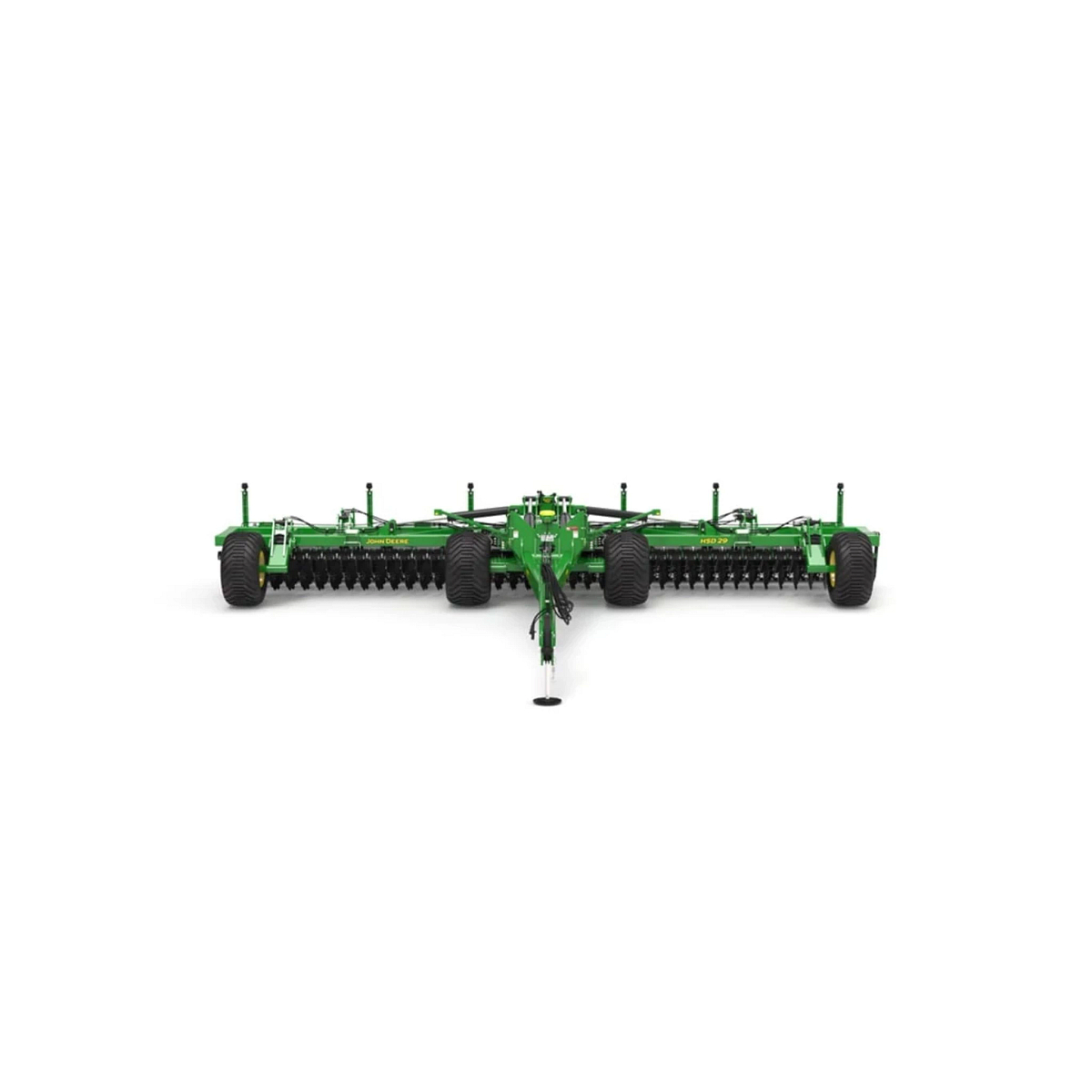

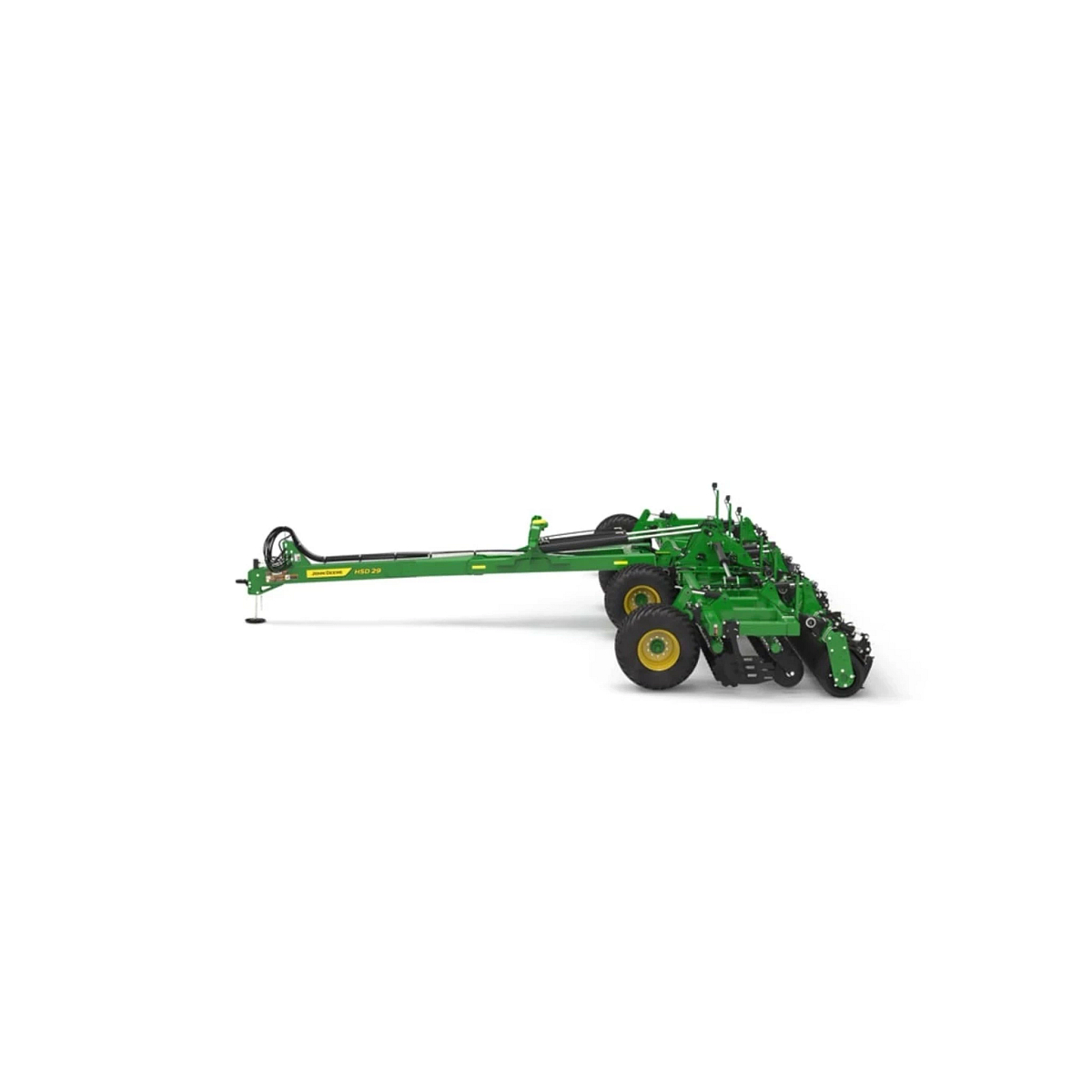

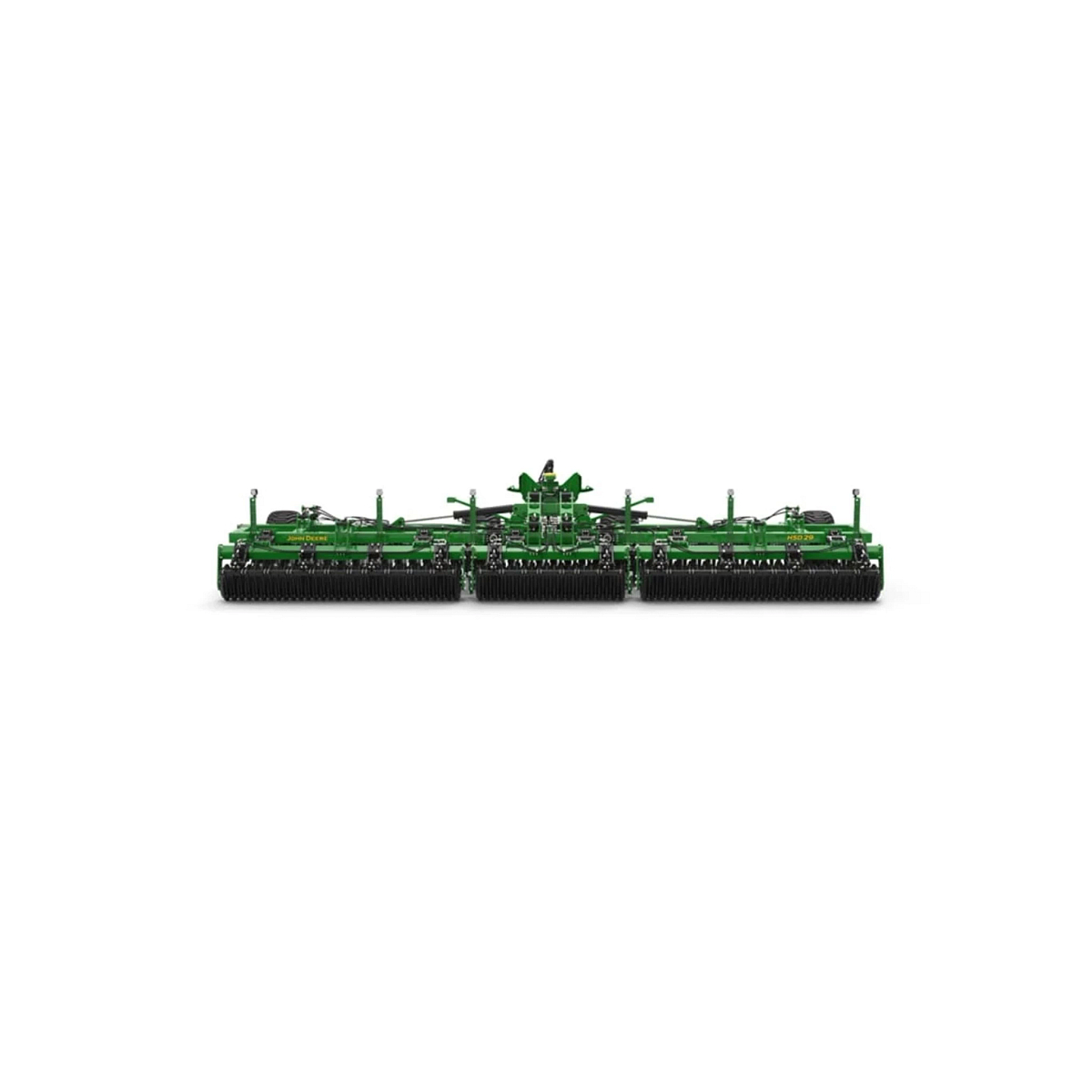

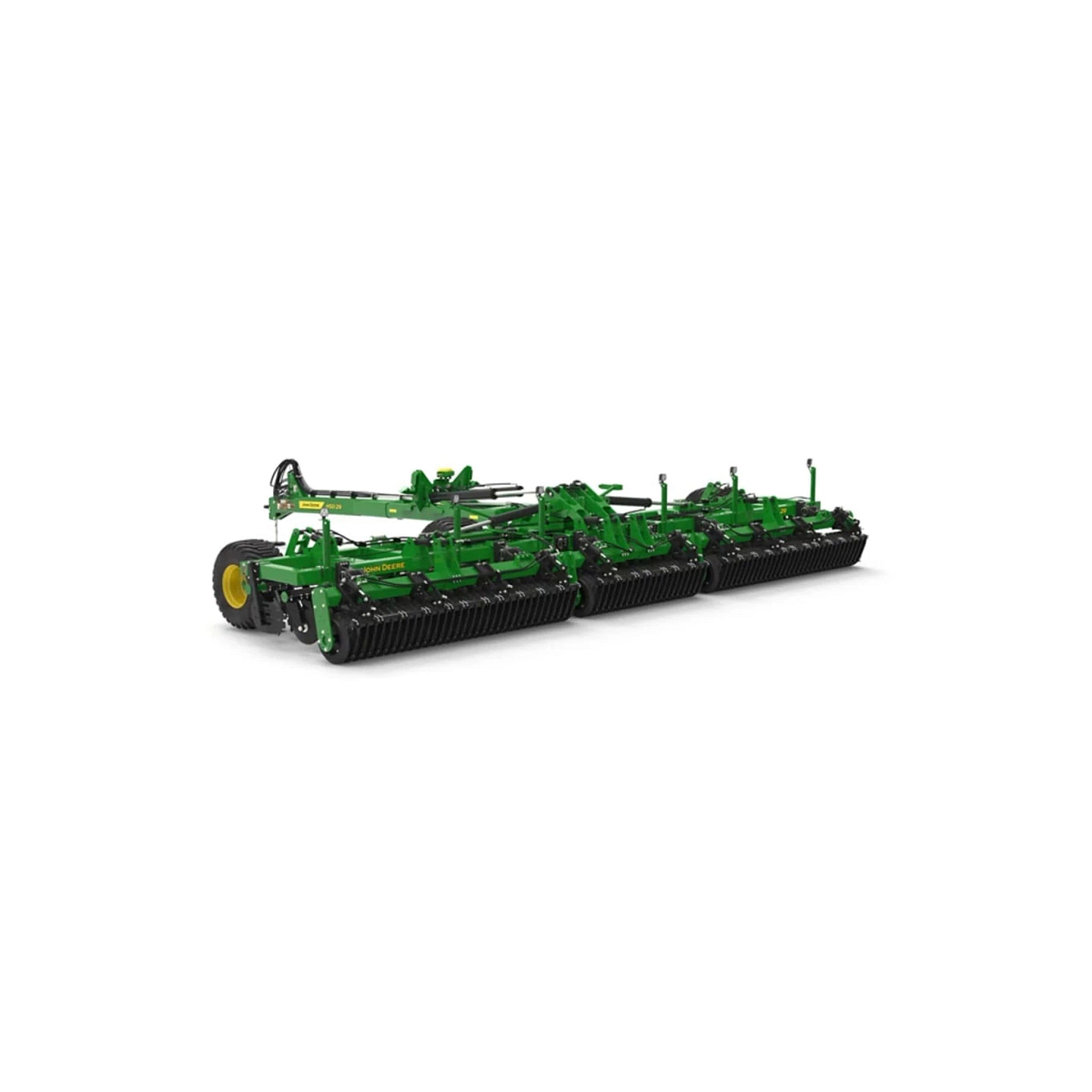

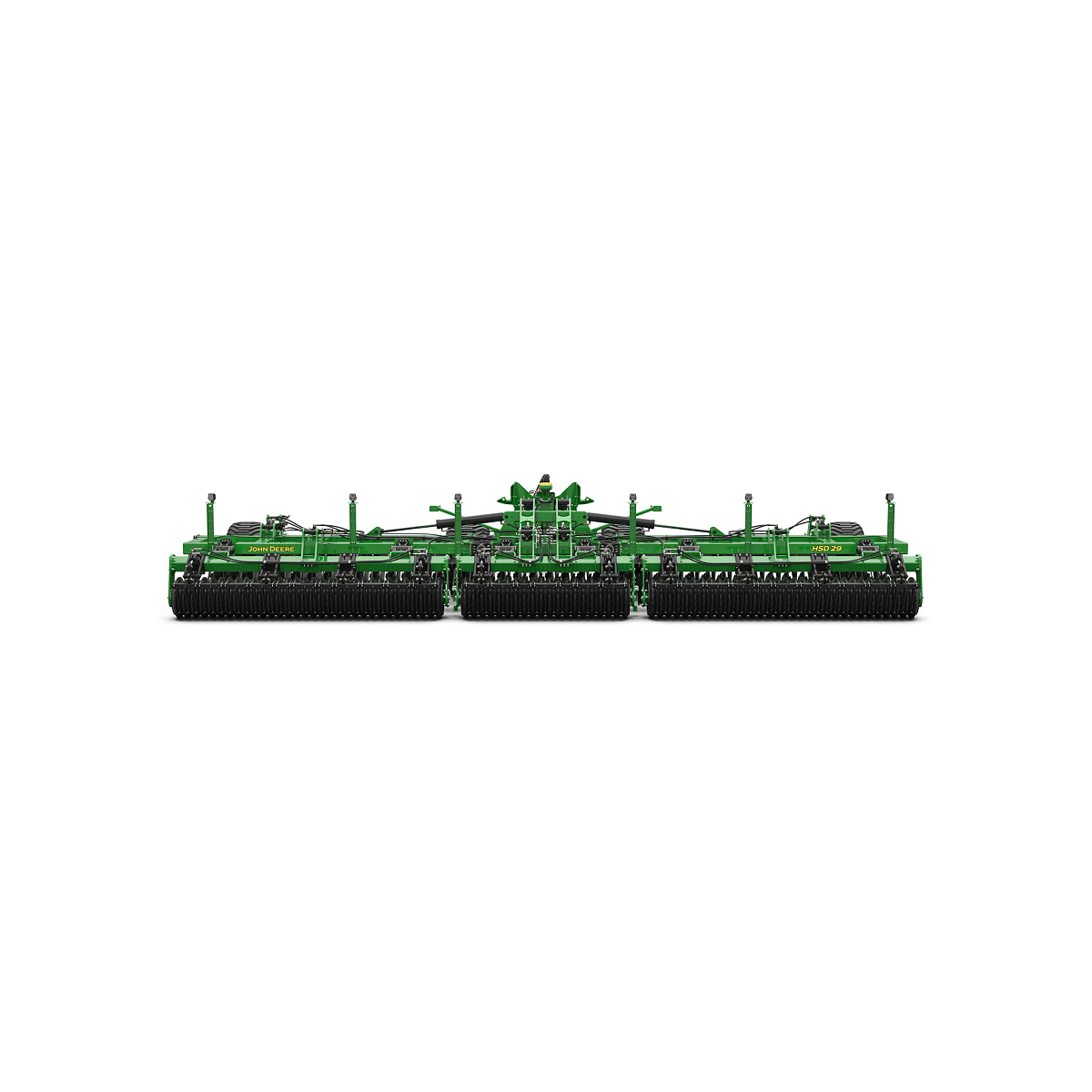

John Deere HSD29

Starting at

Key Features

Autonomy Ready Components In-Base Prepare You for the Future — Now
High Working Speeds of Up to 14 mph (22.5 km/h)
Improved* Residue Flow Helps Reduce Plugging In tough Tillage Conditions
Improved* Reliability and A Three-Year Frame Warranty *Compared to the 2680H

Autonomy-Ready Tillage

Autonomy should be as straightforward as technology. With integrated components like implement lights, a receiver mast, and an implement receiver harness, autonomy-ready tillage equipment helps customers save time and money by ensuring today’s purchases are prepared for future autonomous operation.

Front view of a green tractor driving across a harvested field at sunset, with large rear tires, illuminated headlights, and soil dust rising behind attached tillage equipment.

Expanded narrow transport offerings

The HSD Series provides eleven configurations of narrow transport tools, ideal for navigating narrow roads and bridges. It enhances maneuverability in width-restricted areas, making transport more efficient.

Tracked tractor pulling a folded tillage implement with multiple disc gangs, shown in transport position across a harvested field

Improved Reliability Backed by Warranty

The HSD Series introduces a new large cast pivot hinge and larger frame tubes, enhancing load distribution, durability, and ease of maintenance. It features a three-year frame warranty and individually serviceable pivot joints with integrated seals and composite bushings for improved uptime and reduced contamination.

Close-up of a green high speed disk showing a black pivoting frame connection and ribbed rolling basket used for soil conditioning

Specs & Compare

Select up to 4 models to compare specifications

John Deere

HSD29

High Speed Disk

John Deere

HSD32

John Deere

HSD35

John Deere

HSD39

John Deere

HSD45

John Deere

HSD29

John Deere

HSD25

John Deere

HSD42

ADD MODEL


Dimensions
Working Width	28, 7 ft, in.	9.73 m 31 ft, 11 in.	10.74 m 35 ft, 3 in.	11.76 m 38 ft, 7 in.	13.79 m 45 ft, 3 in.	8.71 m 28 ft, 7 in.	7.7 m 25 ft, 3 in.	12.78 m 41 ft, 11 in.
Working Width	8.71 m	9.73 m 31 ft, 11 in.	10.74 m 35 ft, 3 in.	11.76 m 38 ft, 7 in.	13.79 m 45 ft, 3 in.	8.71 m 28 ft, 7 in.	7.7 m 25 ft, 3 in.	12.78 m 41 ft, 11 in.
Unfolded Width	30, 5 ft, in.	10.29 m 33 ft, 9 in.	11.3 m 37 ft, 1 in.	12.32 m 40 ft, 5 in.	14.35 m 47 ft, 1 in.	9.27 m 30 ft, 5 in.	8.25 m 27 ft, 1 in.	13.34 m 43 ft, 9 in.
Unfolded Width	9.27 m	10.29 m 33 ft, 9 in.	11.3 m 37 ft, 1 in.	12.32 m 40 ft, 5 in.	14.35 m 47 ft, 1 in.	9.27 m 30 ft, 5 in.	8.25 m 27 ft, 1 in.	13.34 m 43 ft, 9 in.
Transport Width	13 ft, in.	3.96 m 13 ft, 0 in.	3.96 m 13 ft, 0 in.	4.85 m 15 ft, 11 in.	4.85 m 15 ft, 11 in.	3.96 m 13 ft, 0 in.	3.96 m 13 ft, 0 in.	4.85 m 15 ft, 11 in.
Transport Width	3.96 m	3.96 m 13 ft, 0 in.	3.96 m 13 ft, 0 in.	4.85 m 15 ft, 11 in.	4.85 m 15 ft, 11 in.	3.96 m 13 ft, 0 in.	3.96 m 13 ft, 0 in.	4.85 m 15 ft, 11 in.
Track Width	102 in.	259.1 cm 102 in.	259.1 cm 102 in.	314.96 cm 124 in.	314.96 cm 124 in.	259.1 cm 102 in.	259.1 cm 102 in.	314.96 cm 124 in.
Track Width	259.1 cm	259.1 cm 102 in.	259.1 cm 102 in.	314.96 cm 124 in.	314.96 cm 124 in.	259.1 cm 102 in.	259.1 cm 102 in.	314.96 cm 124 in.
Unfolded Length	29 ft, in.	9.86 m 32 ft, 4 in.	9.86 m 32 ft, 4 in.	9.86 m 32 fy, 4 in.	10.85 m 35 ft, 7 in.	8.84 m 29 ft, 0 in.	8.84 m 29 ft, 0 in.	10.85 m 35 ft, 7 in.
Unfolded Length	8.84 m	9.86 m 32 ft, 4 in.	9.86 m 32 ft, 4 in.	9.86 m 32 fy, 4 in.	10.85 m 35 ft, 7 in.	8.84 m 29 ft, 0 in.	8.84 m 29 ft, 0 in.	10.85 m 35 ft, 7 in.
Transport Length	25, 11 ft, in.	8.38 m 27 ft, 6 in.	8.86 m 29 ft, 1 in.	8.86 m 29 ft, 1 in.	9.83 m 32 ft, 3 in.	7.9 m 25 ft, 11 in.	7.44 m 24 ft, 5 in.	9.35 m 30 ft, 8 in.
Transport Length	7.9 m	8.38 m 27 ft, 6 in.	8.86 m 29 ft, 1 in.	8.86 m 29 ft, 1 in.	9.83 m 32 ft, 3 in.	7.9 m 25 ft, 11 in.	7.44 m 24 ft, 5 in.	9.35 m 30 ft, 8 in.
Transport Height	13, 6 ft, in.	4.11 m 13 ft, 6 in.	4.11 m 13 ft, 6 in.	4.11 m 13 ft, 6 in.	4.11 m 13 ft, 6 in.	4.11 m 13 ft, 6 in.	4.11 m 13 ft, 6 in.	4.11 m 13 ft, 6 in.
Transport Height	4.11 m	4.11 m 13 ft, 6 in.	4.11 m 13 ft, 6 in.	4.11 m 13 ft, 6 in.	4.11 m 13 ft, 6 in.	4.11 m 13 ft, 6 in.	4.11 m 13 ft, 6 in.	4.11 m 13 ft, 6 in.
Compatibility
Hitch Type	Pintle style drawn hitch	Pintle style drawn hitch	Pintle style drawn hitch	Pintle style drawn hitch	Pintle style drawn hitch	Pintle style drawn hitch	Pintle style drawn hitch	Pintle style drawn hitch
Hitch Connection	Cat. IV	Cat. IV	Cat. IV	Cat. V	Cat. V	Cat. IV	Cat. IV	Cat. V
Recommended Engine Power	430 hp	357.94 kW 480 hp	395.2 kW 530 hp	432.5 kW 580 hp	510.8 kW 685 hp	320.7 kW 430 hp	283.4 kW 380 hp	469.8 kW 630 hp
Recommended Engine Power	320.7 kW	357.94 kW 480 hp	395.2 kW 530 hp	432.5 kW 580 hp	510.8 kW 685 hp	320.7 kW 430 hp	283.4 kW 380 hp	469.8 kW 630 hp
Frame
Degrees Of Wing Flex - Down	7.5 degree (angle)
Degrees Of Wing Flex - Up	not limited
Frame Clearance	22 in.	55.9 cm 22 in.	55.9 cm 22 in.	55.9 cm 22 in.	55.9 cm 22 in.	55.9 cm 22 in.	55.9 cm 22 in.	55.9 cm 22 in.
Frame Clearance	55.9 cm	55.9 cm 22 in.	55.9 cm 22 in.	55.9 cm 22 in.	55.9 cm 22 in.	55.9 cm 22 in.	55.9 cm 22 in.	55.9 cm 22 in.
Ground Engaging
Disk Spacing	10 in.	25.4 cm 10 in.	25.4 cm 10 in.	25.4 cm 10 in.	25.4 cm 10 in.	25.4 cm 10 in.	25.4 cm 10 in.	25.4 cm 10 in.
Disk Spacing	25.4 cm	25.4 cm 10 in.	25.4 cm 10 in.	25.4 cm 10 in.	25.4 cm 10 in.	25.4 cm 10 in.	25.4 cm 10 in.	25.4 cm 10 in.
Number Of Disks	70	78	86	94	110	70	62	102
Working Depth	2 - 6 in.	5.08 to 15.24 cm 2 to 6 in.	5.08 to 15.24 cm 2 to 6 in.	5.08 to 15.24 cm 2 to 6 in.	5.08 to 15.24 cm 2 to 6 in.	5.08 to 15.24 cm 2 to 6 in.	5.08 to 15.24 cm 2 to 6 in.	5.08 to 15.24 cm 2 to 6 in.
Working Depth	5.1 - 15.24 cm	5.08 to 15.24 cm 2 to 6 in.	5.08 to 15.24 cm 2 to 6 in.	5.08 to 15.24 cm 2 to 6 in.	5.08 to 15.24 cm 2 to 6 in.	5.08 to 15.24 cm 2 to 6 in.	5.08 to 15.24 cm 2 to 6 in.	5.08 to 15.24 cm 2 to 6 in.
Weight Per Blade	371 lb.	159 kg 350 lb	152 g 336 lb	148 kg 327 lb	140 kg 309 lb	168 kg 371 lb	179 kg 394 lb	144 kg 317 lb
Weight Per Blade	168 kg	159 kg 350 lb	152 g 336 lb	148 kg 327 lb	140 kg 309 lb	168 kg 371 lb	179 kg 394 lb	144 kg 317 lb
Standards	Independent disk arms	Independent disk arms	Independent disk arms	Independent disk arms	Independent disk arms	Independent disk arms	Independent disk arms	Independent disk arms
Arm Suspension	Compressed rubber elements	Compressed rubber elements	Compressed rubber elements	Compressed rubber elements	Compressed rubber elements	Compressed rubber elements	Compressed rubber elements	Compressed rubber elements
Arm Travel	9 in.	22.9 cm 9 in.	22.9 cm 9 in.	22.9 cm 9 in.	22.9 cm 9 in.	22.9 cm 9 in.	22.9 cm 9 in.	22.9 cm 9 in.
Arm Travel	22.9 cm	22.9 cm 9 in.	22.9 cm 9 in.	22.9 cm 9 in.	22.9 cm 9 in.	22.9 cm 9 in.	22.9 cm 9 in.	22.9 cm 9 in.
Front Rank Angle	17 degree (angle)	17 degree (angle)	17 degree (angle)	17 degree (angle)	17 degree (angle)	17 degree (angle)	17 degree (angle)	17 degree (angle)
Rear Rank Angle	14 degree (angle)	14 degree (angle)	14 degree (angle)	14 degree (angle)	14 degree (angle)	14 degree (angle)	14 degree (angle)	14 degree (angle)
Wheels And Tires
Center Frame Tires	600/50R22.5	600/50R22.5	710/40R22.5	710/40R22.5	800/40R22.5	600/50R22.5	600/50R22.5	800/40R22.5
Wing Frame Tires	600/50R22.5	600/50R22.5	600/50R22.5	600/50R22.5	600/50R22.5	600/50R22.5	600/50R22.5	600/50R22.5
