new
John Deere
MT11
Primary Tillage

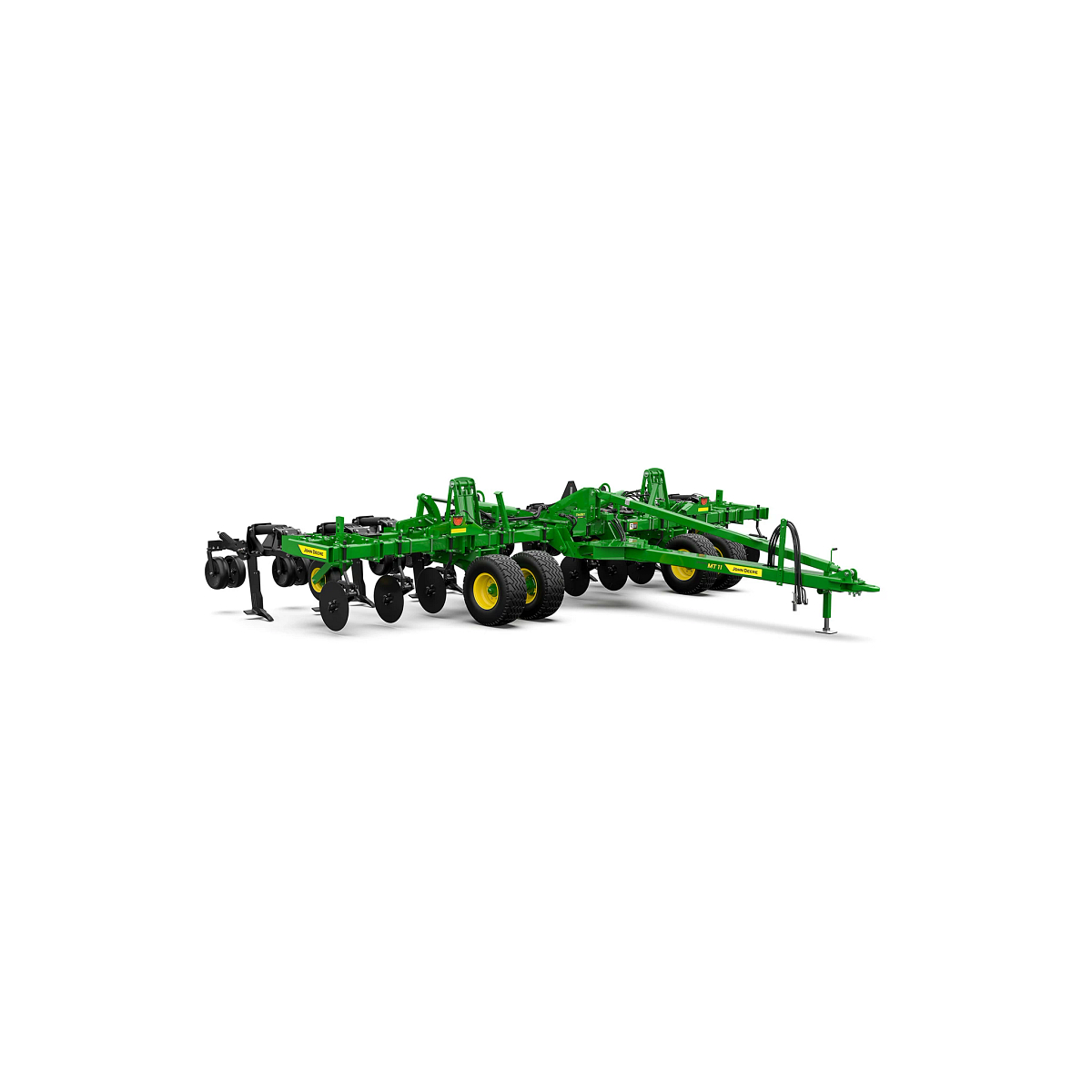

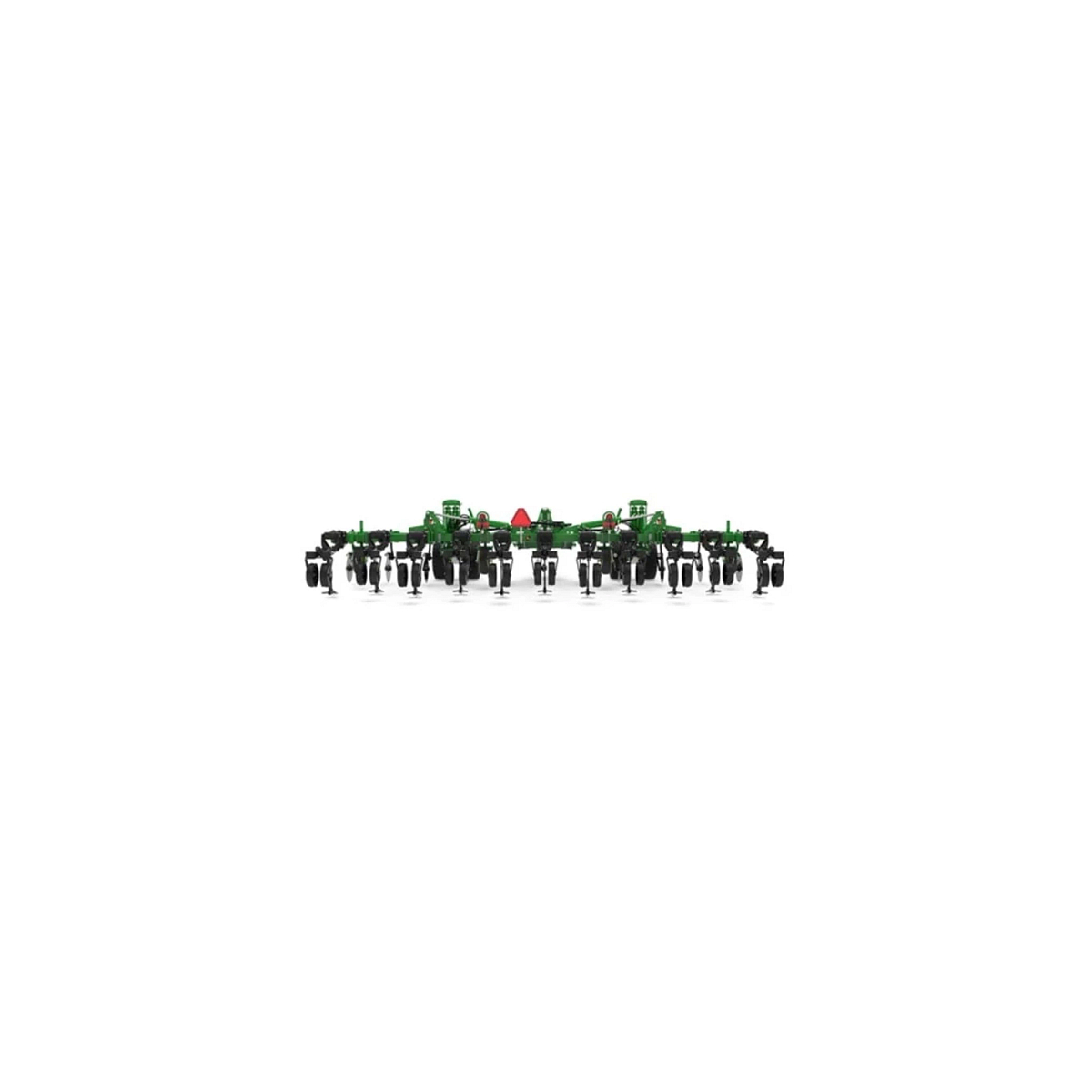

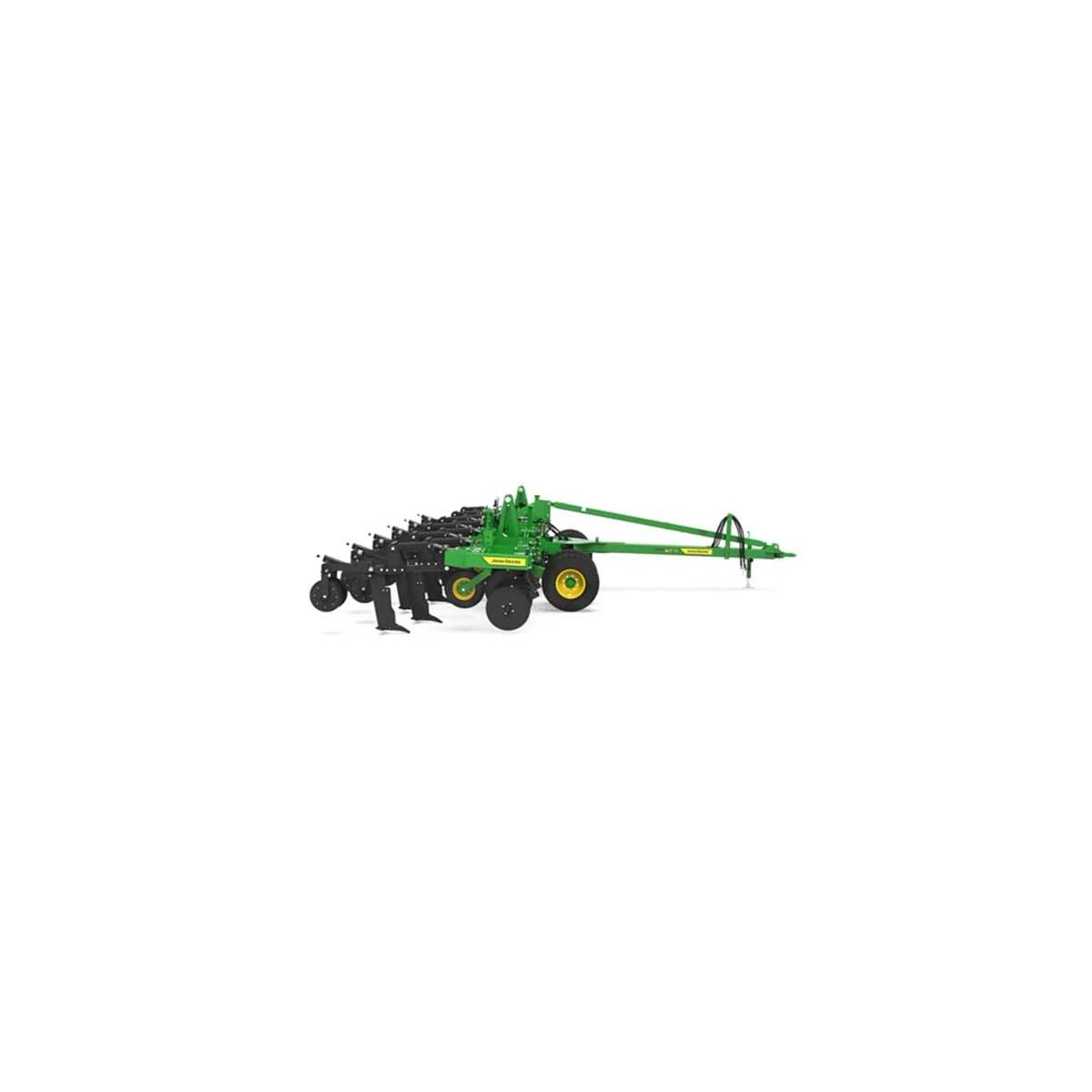

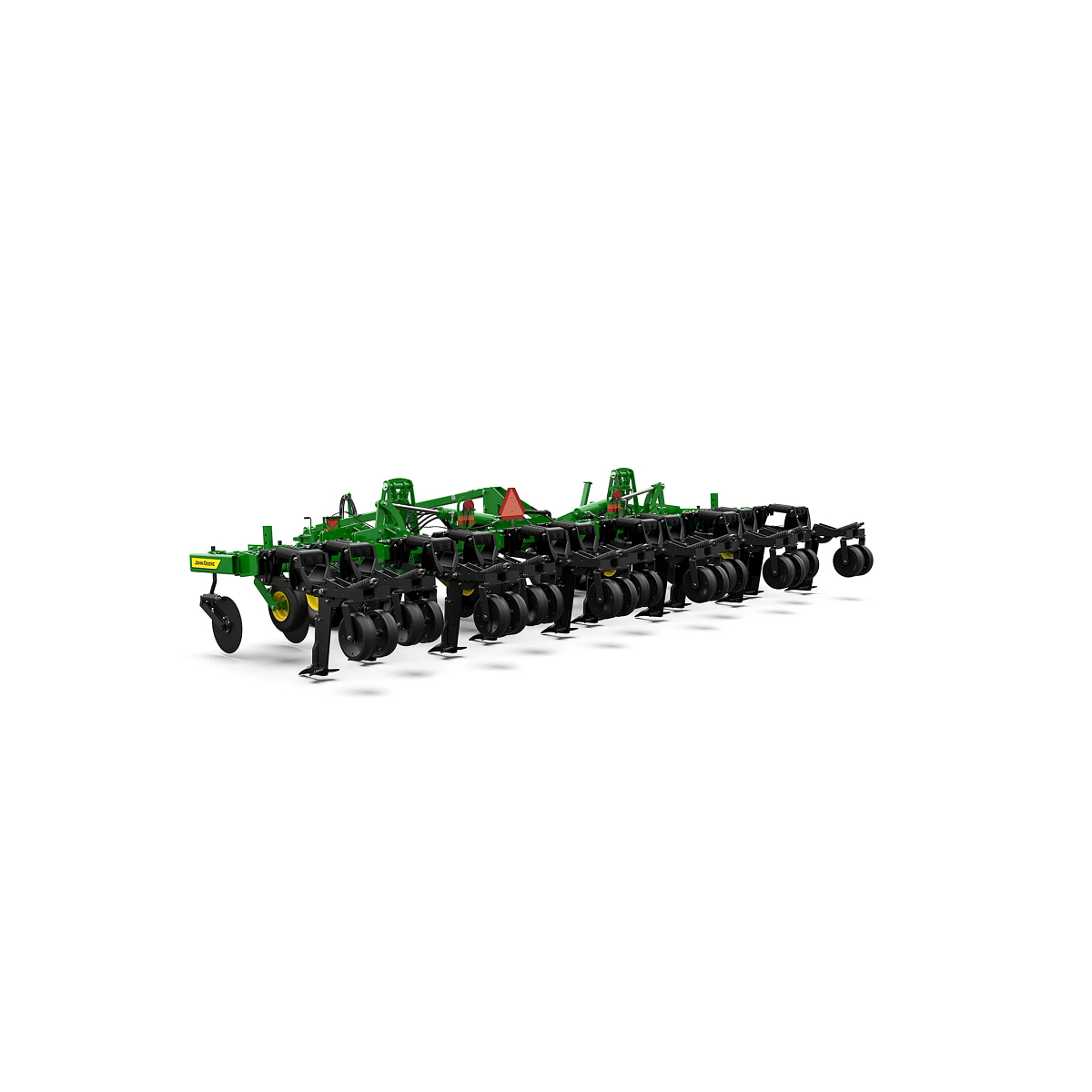

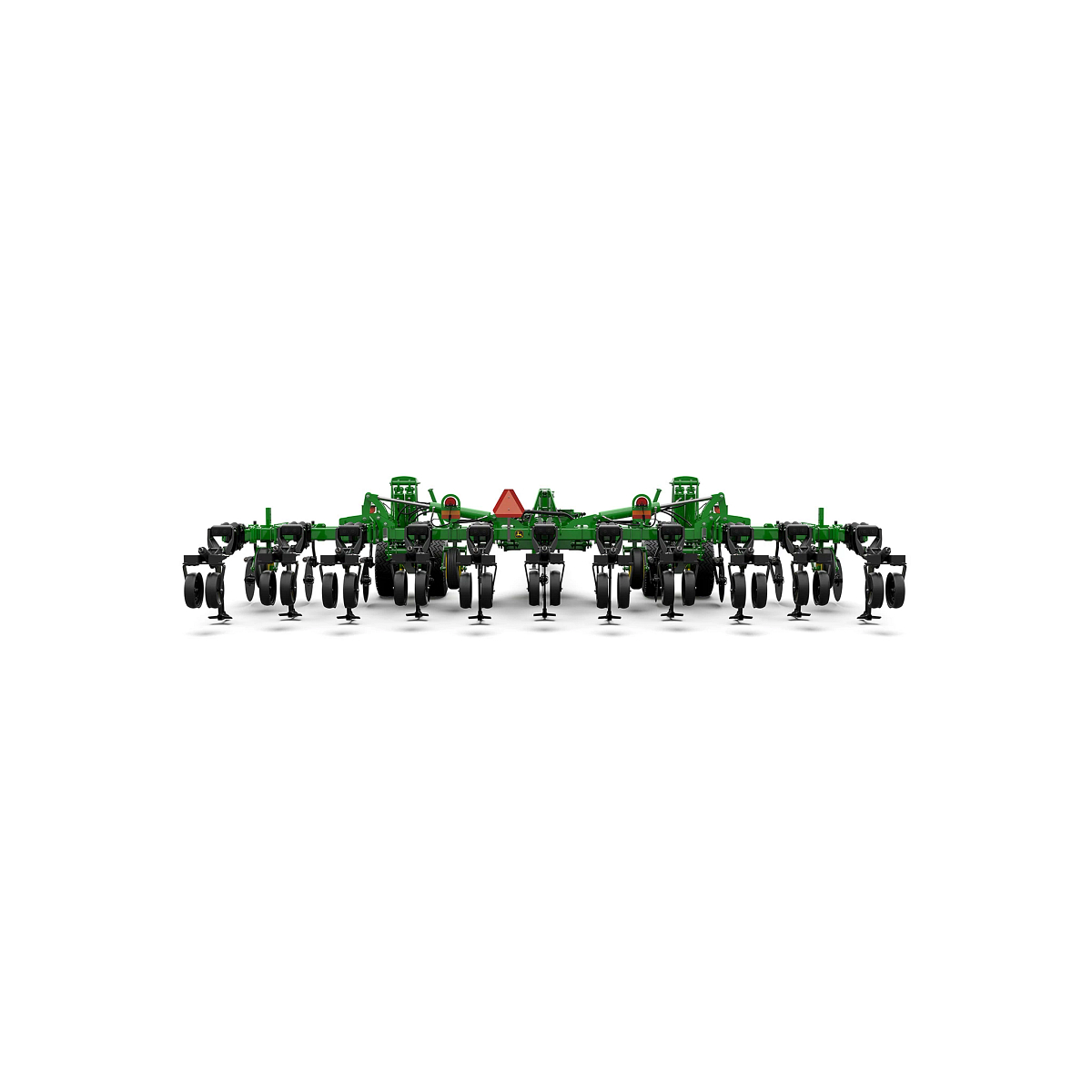

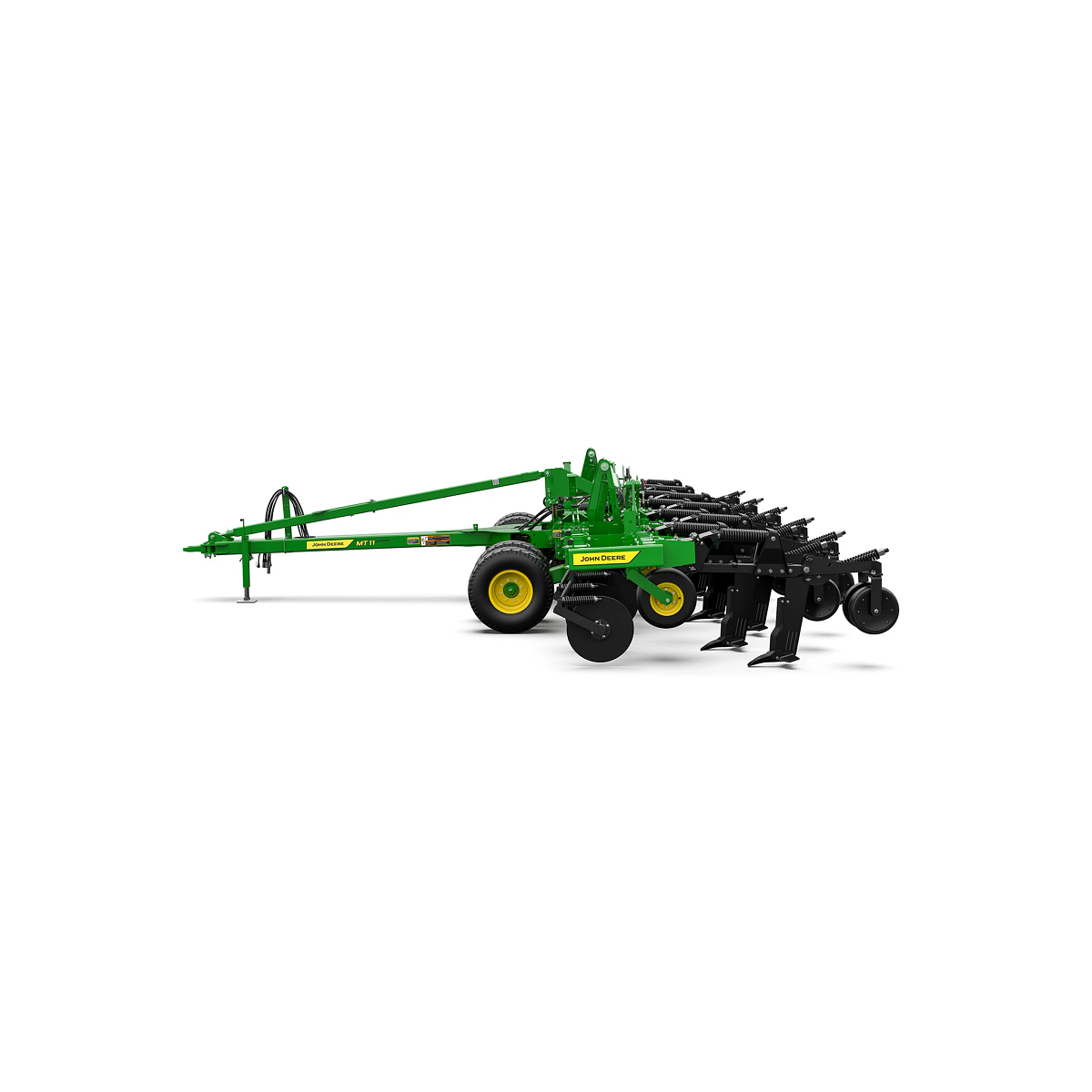

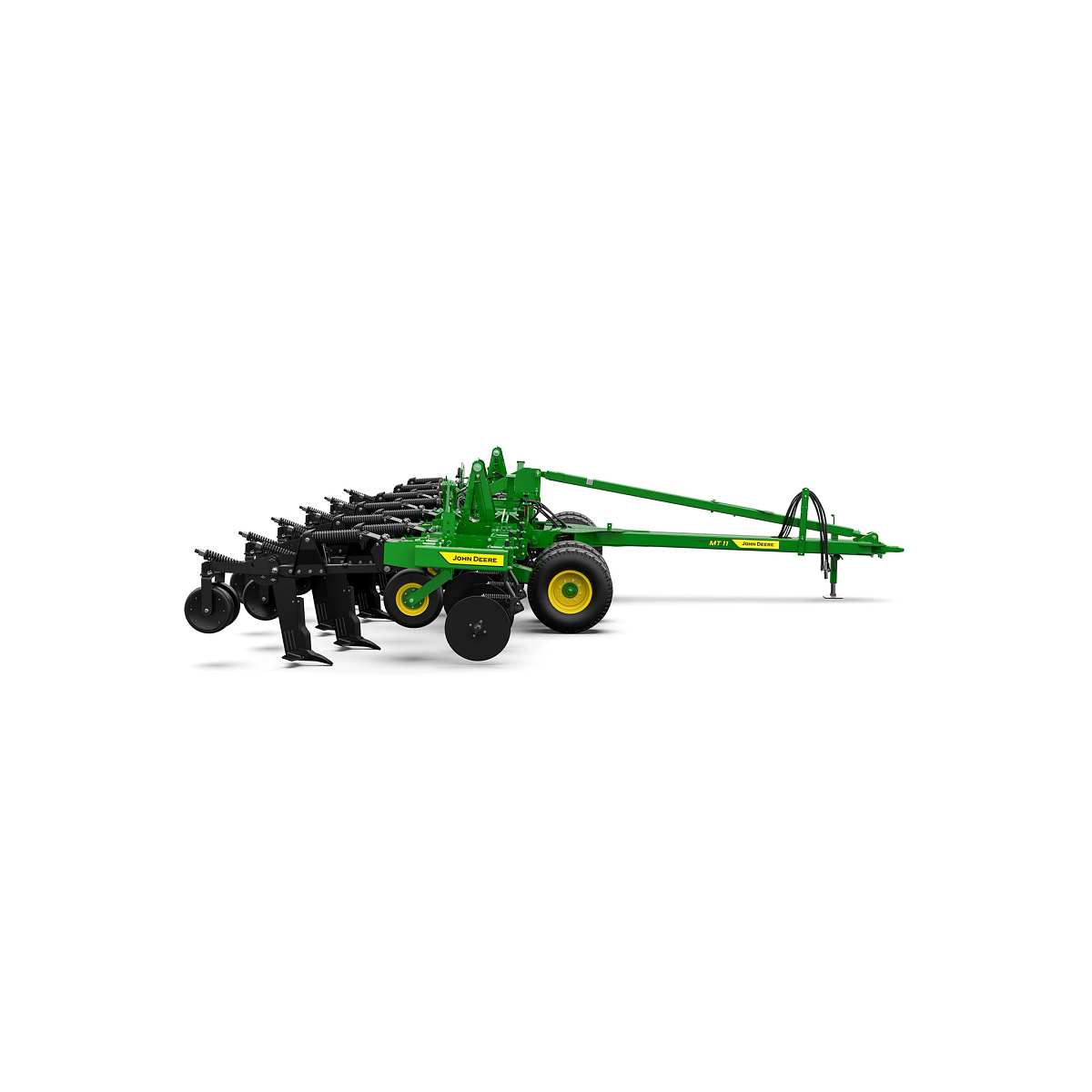

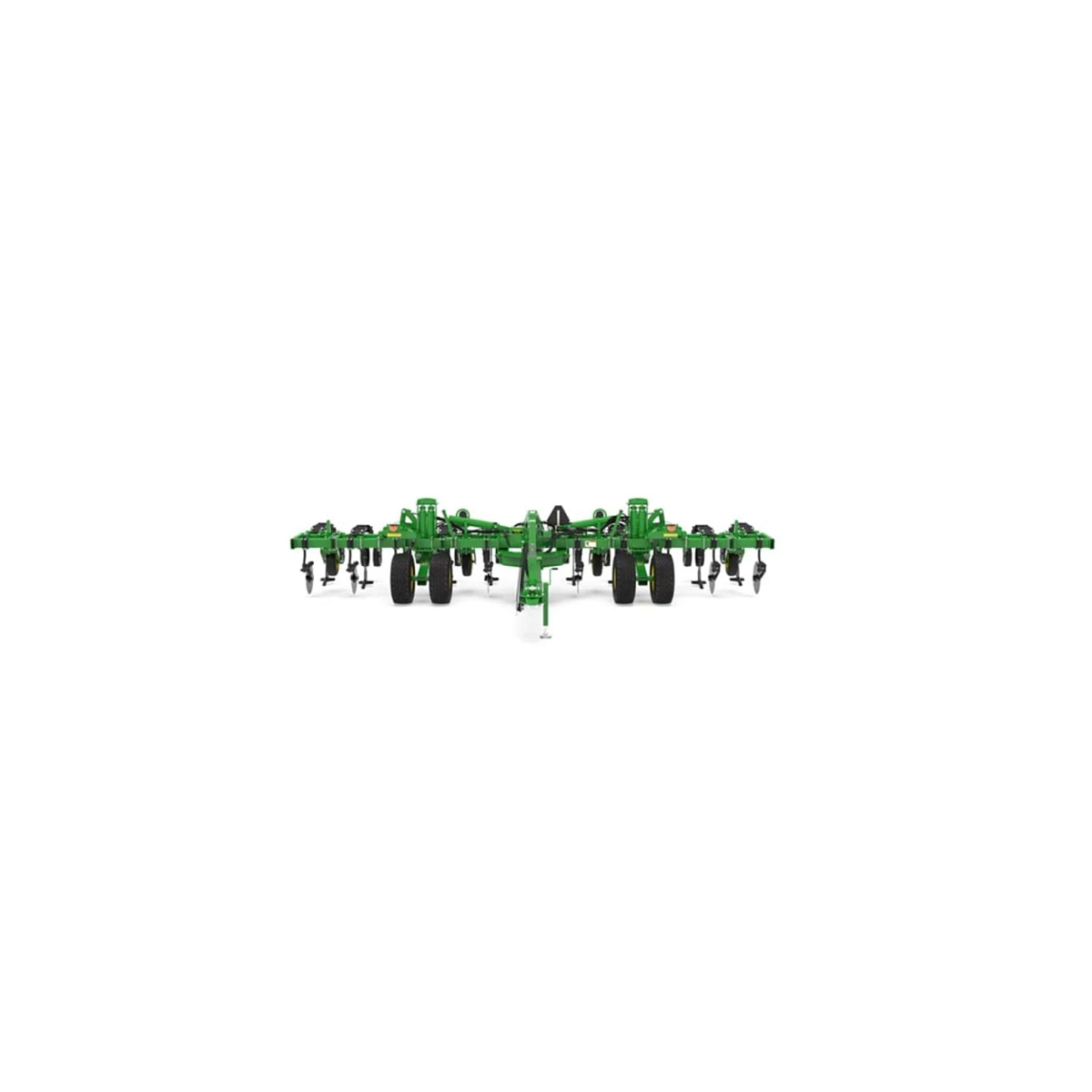

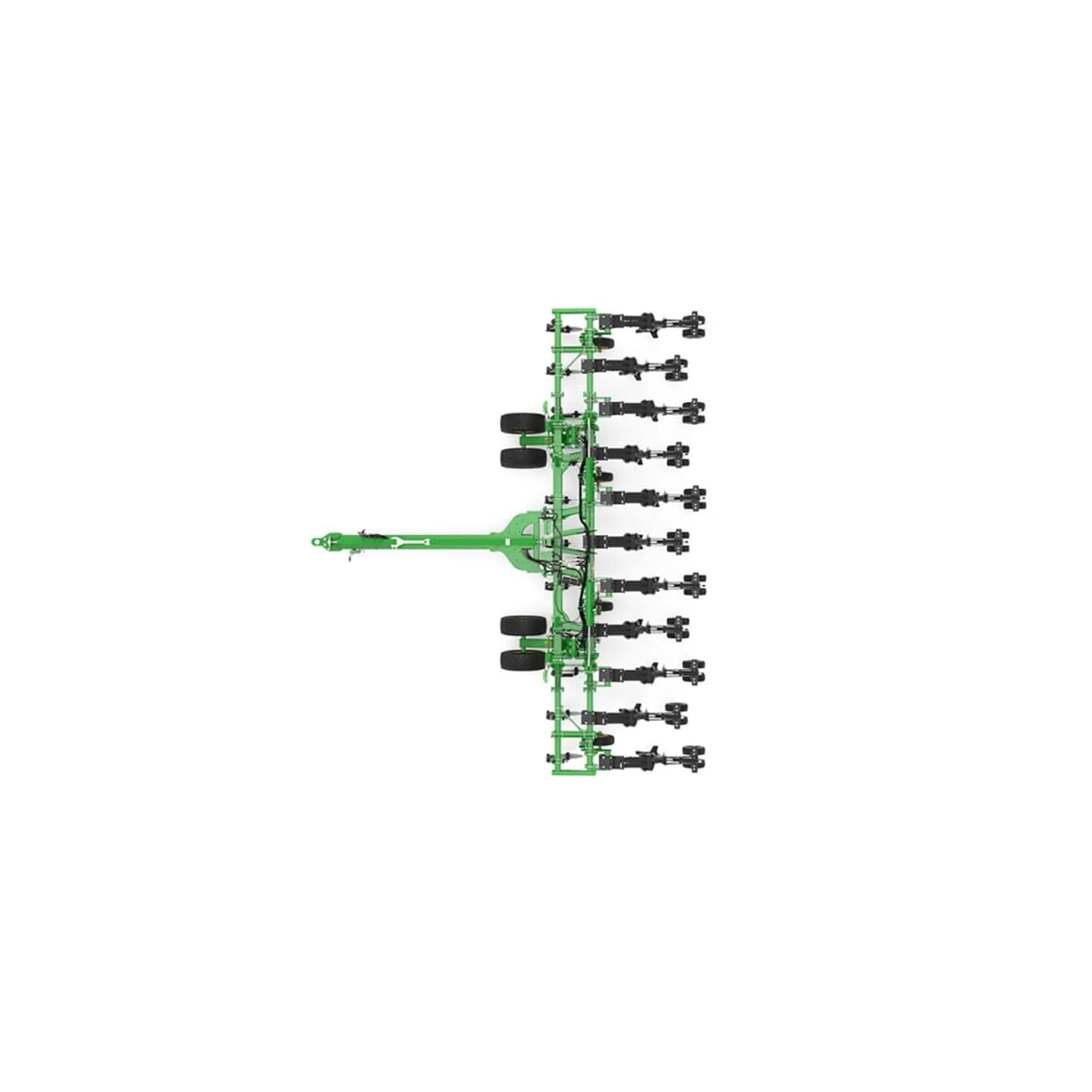

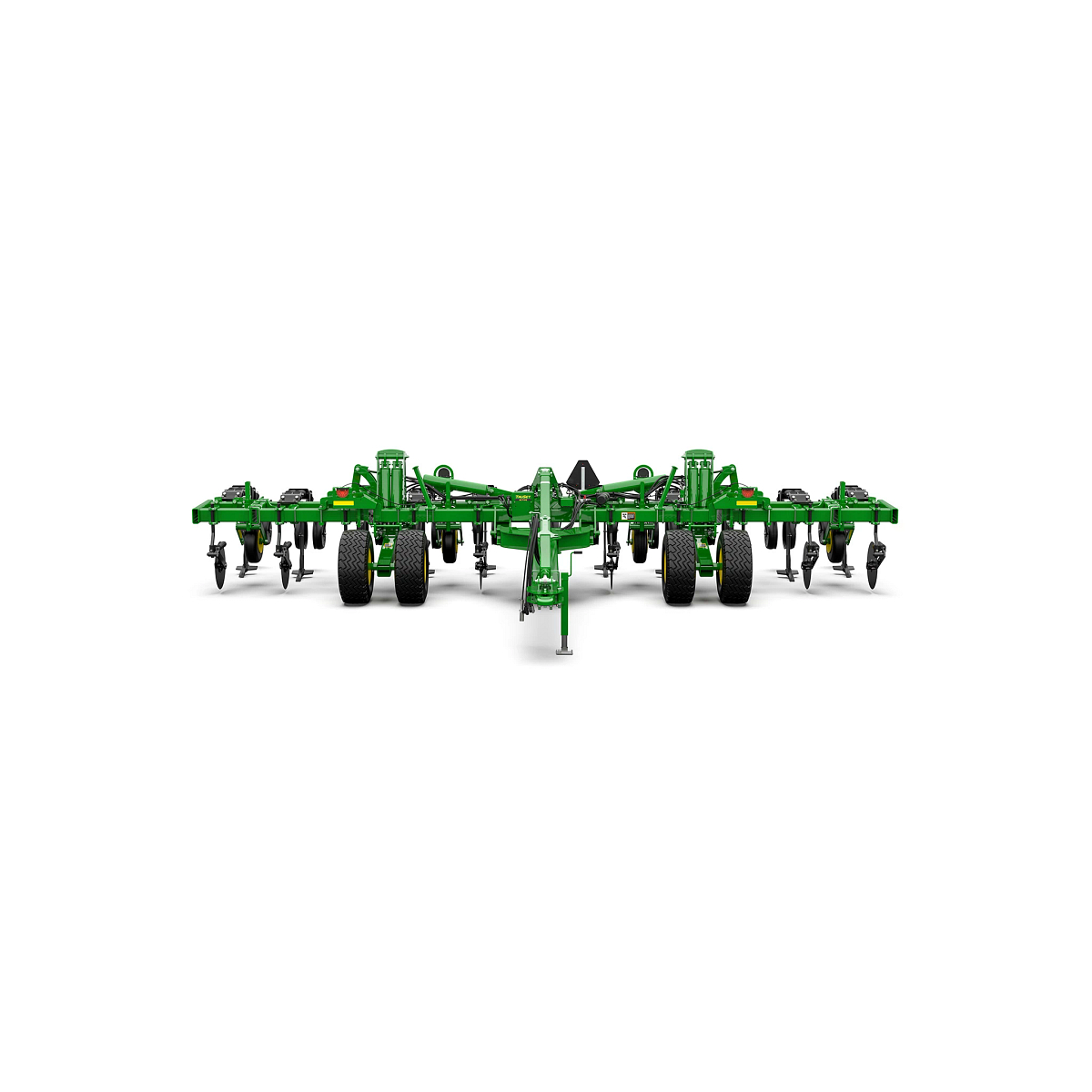

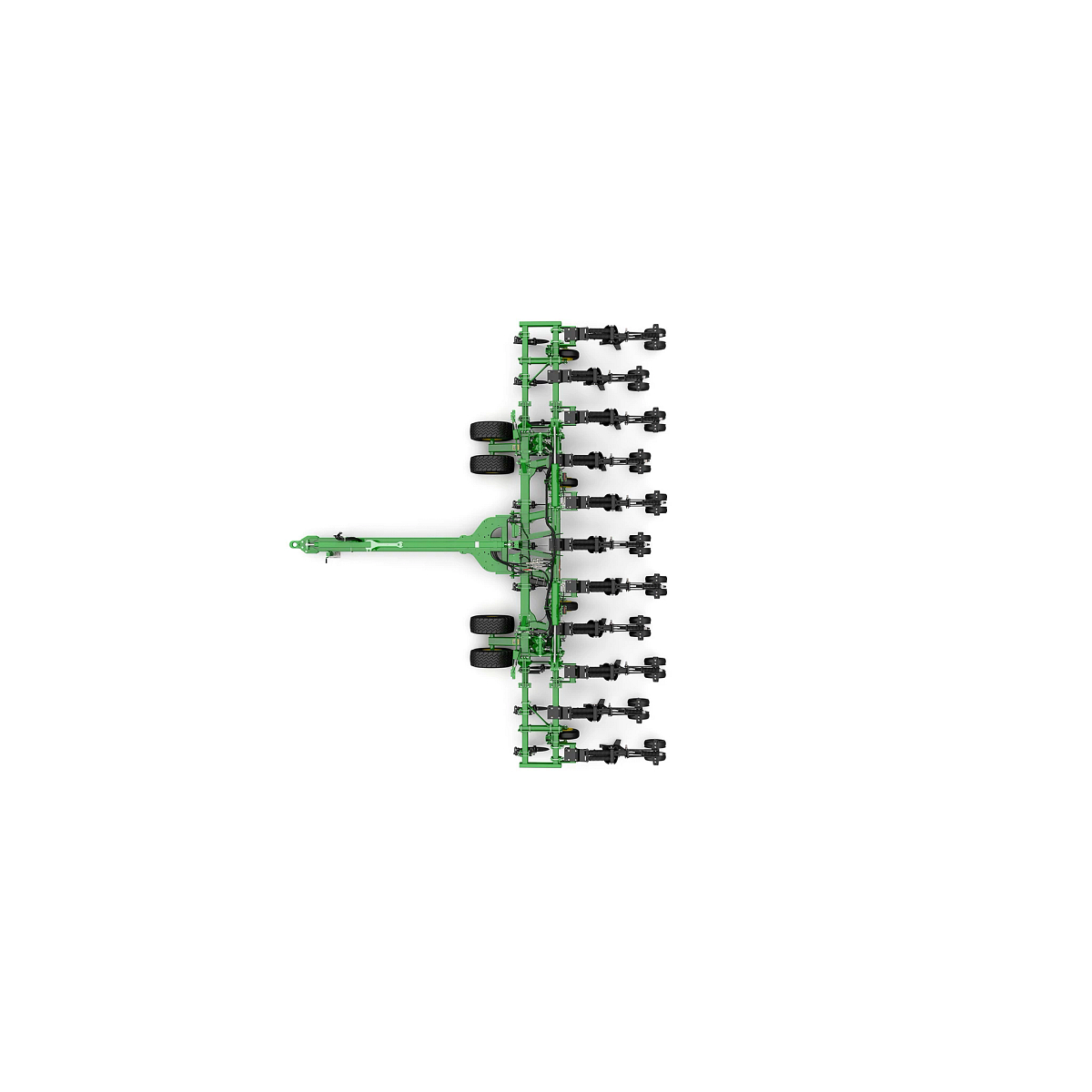

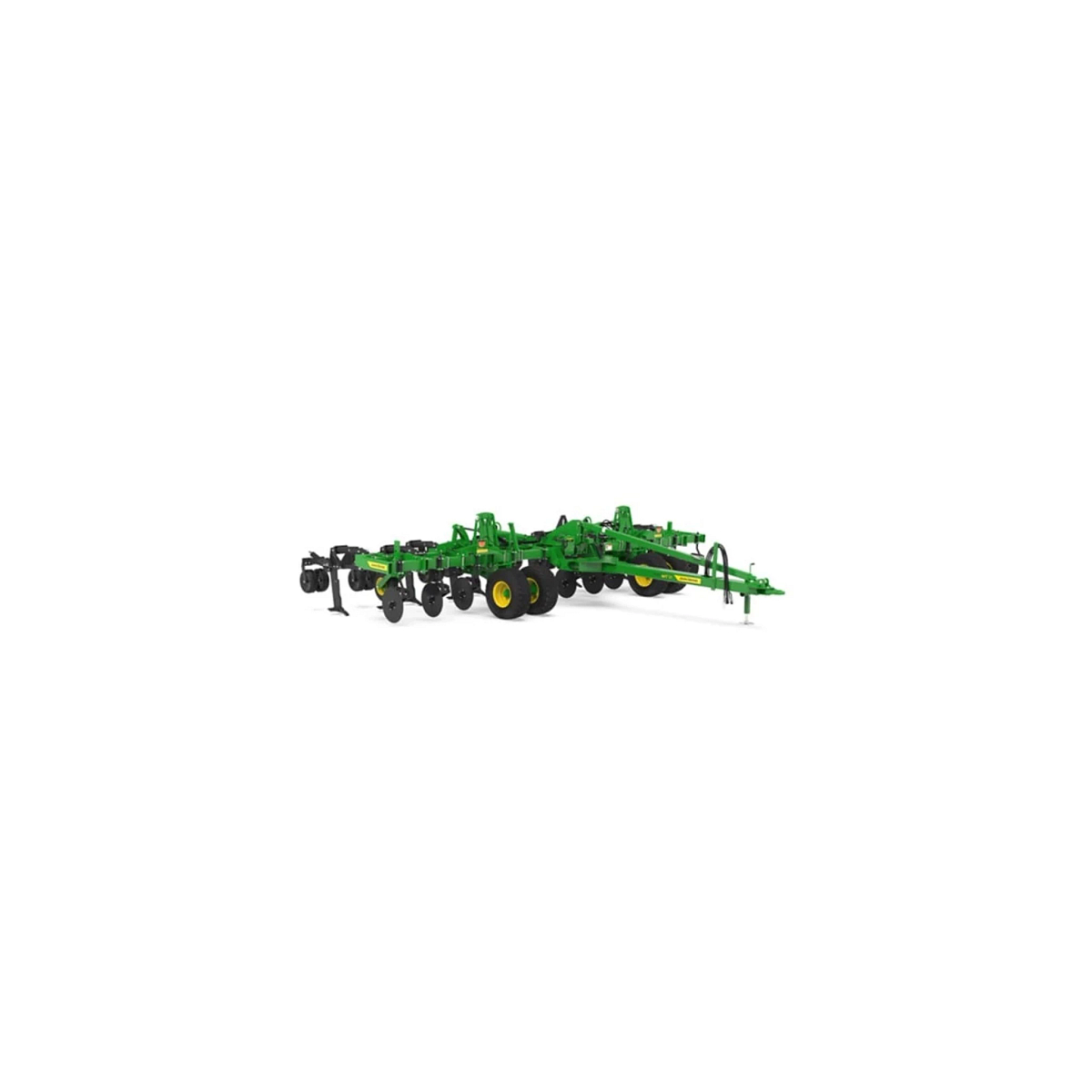

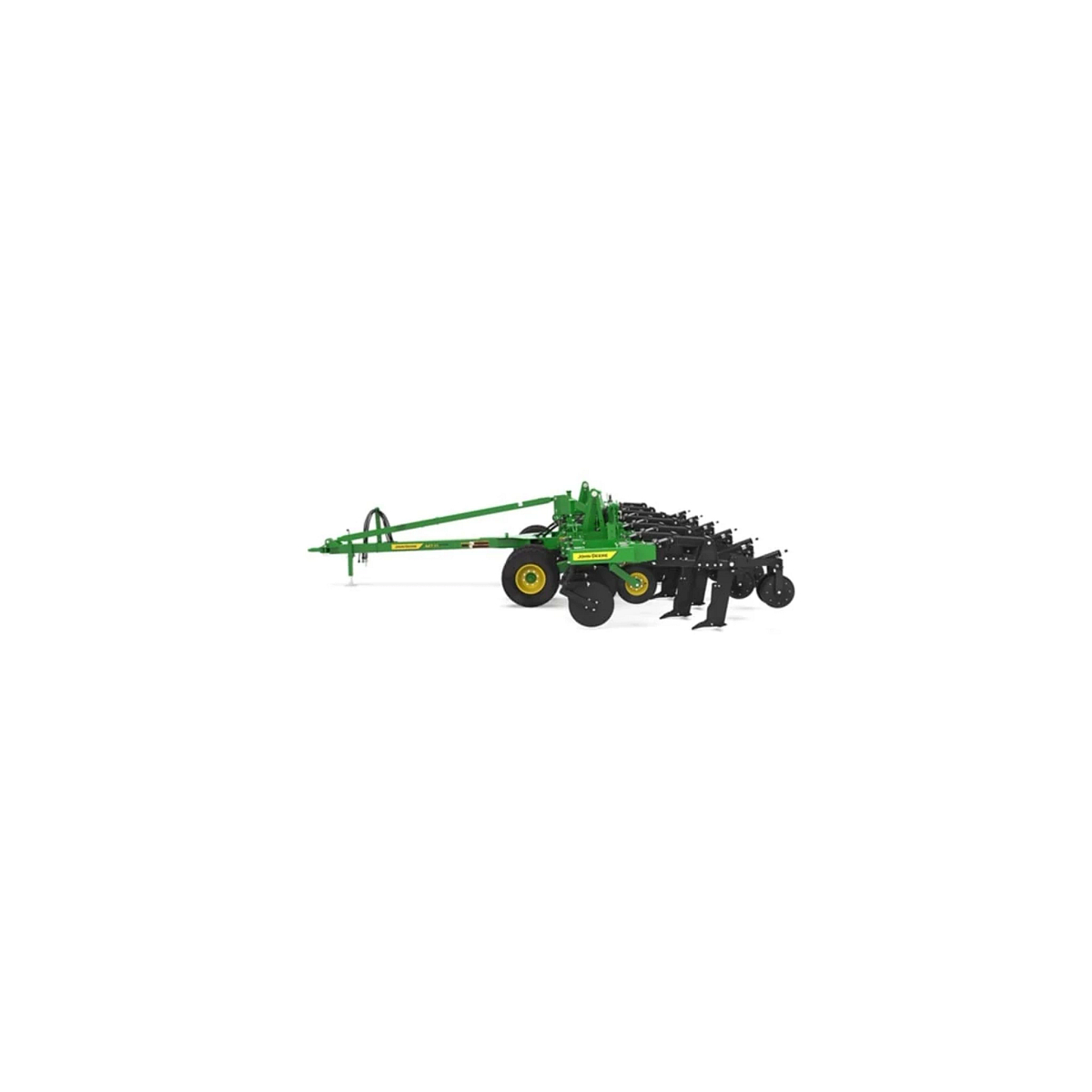

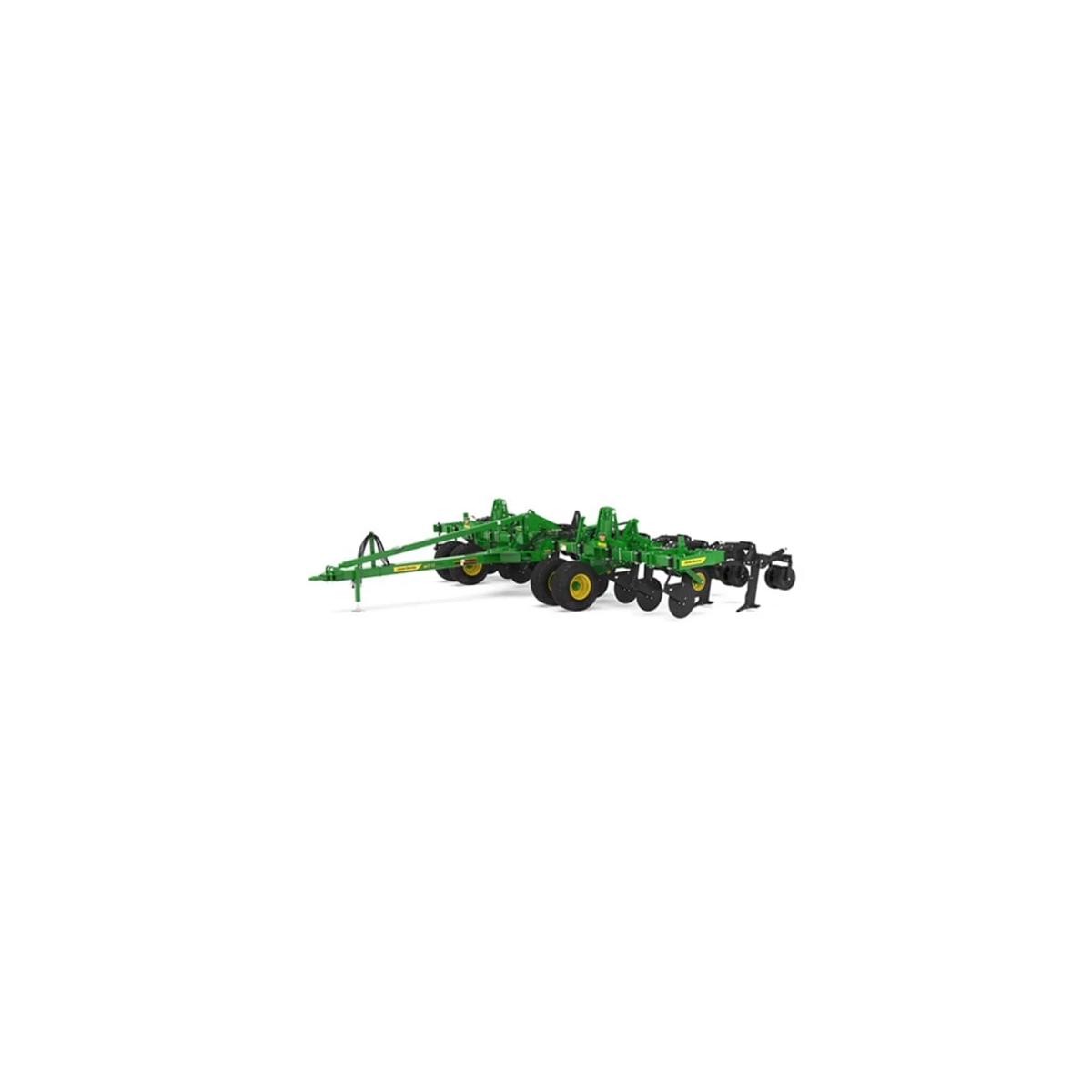

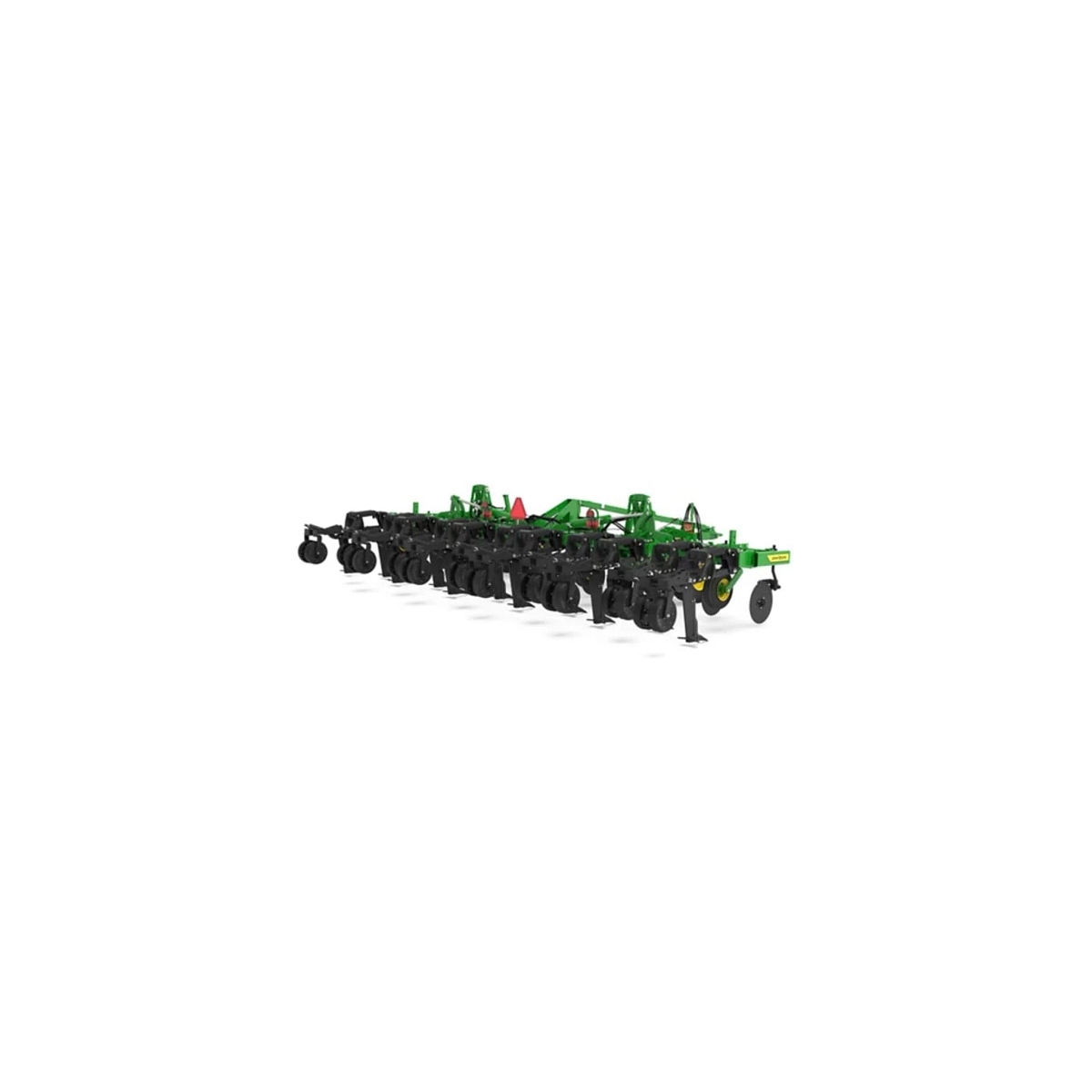

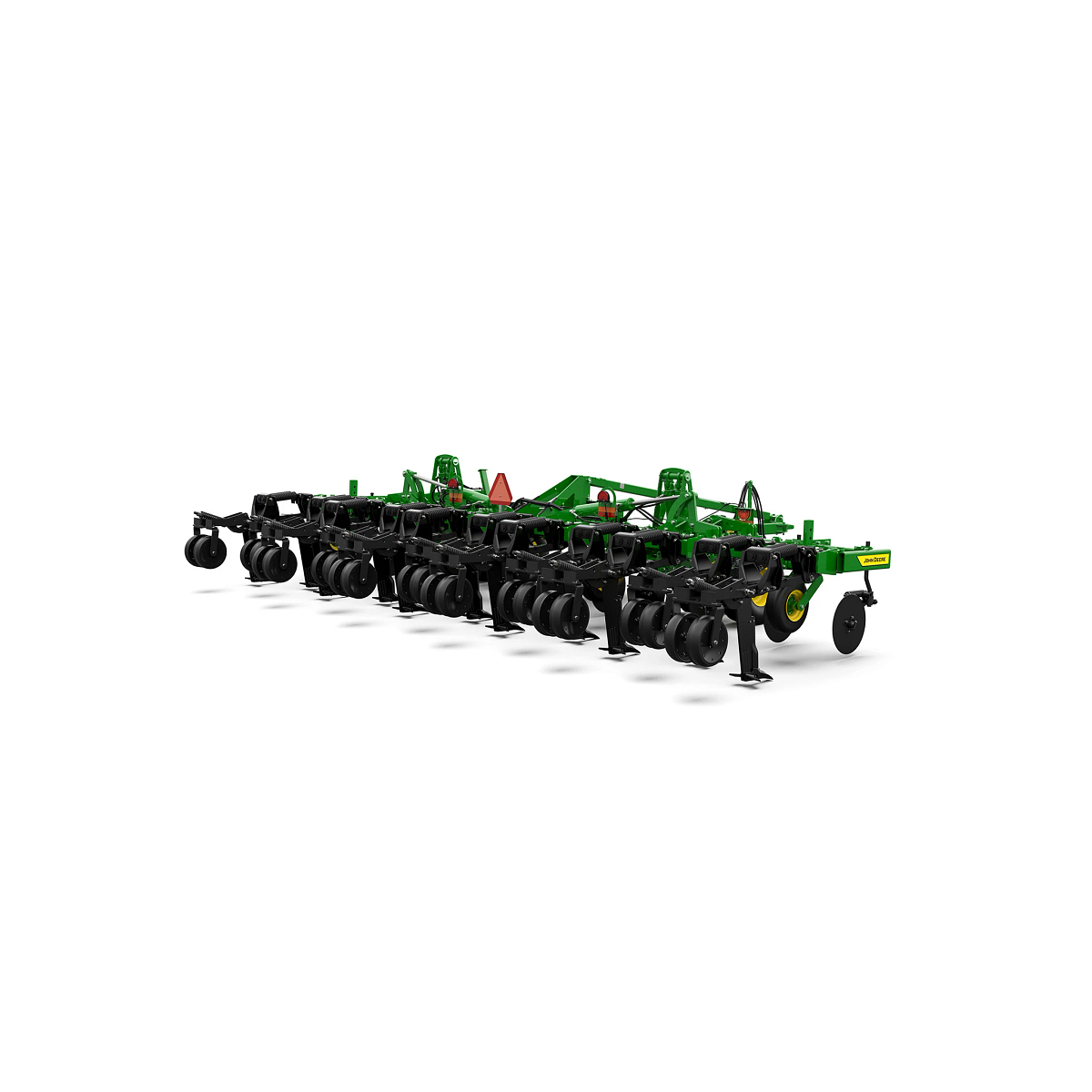

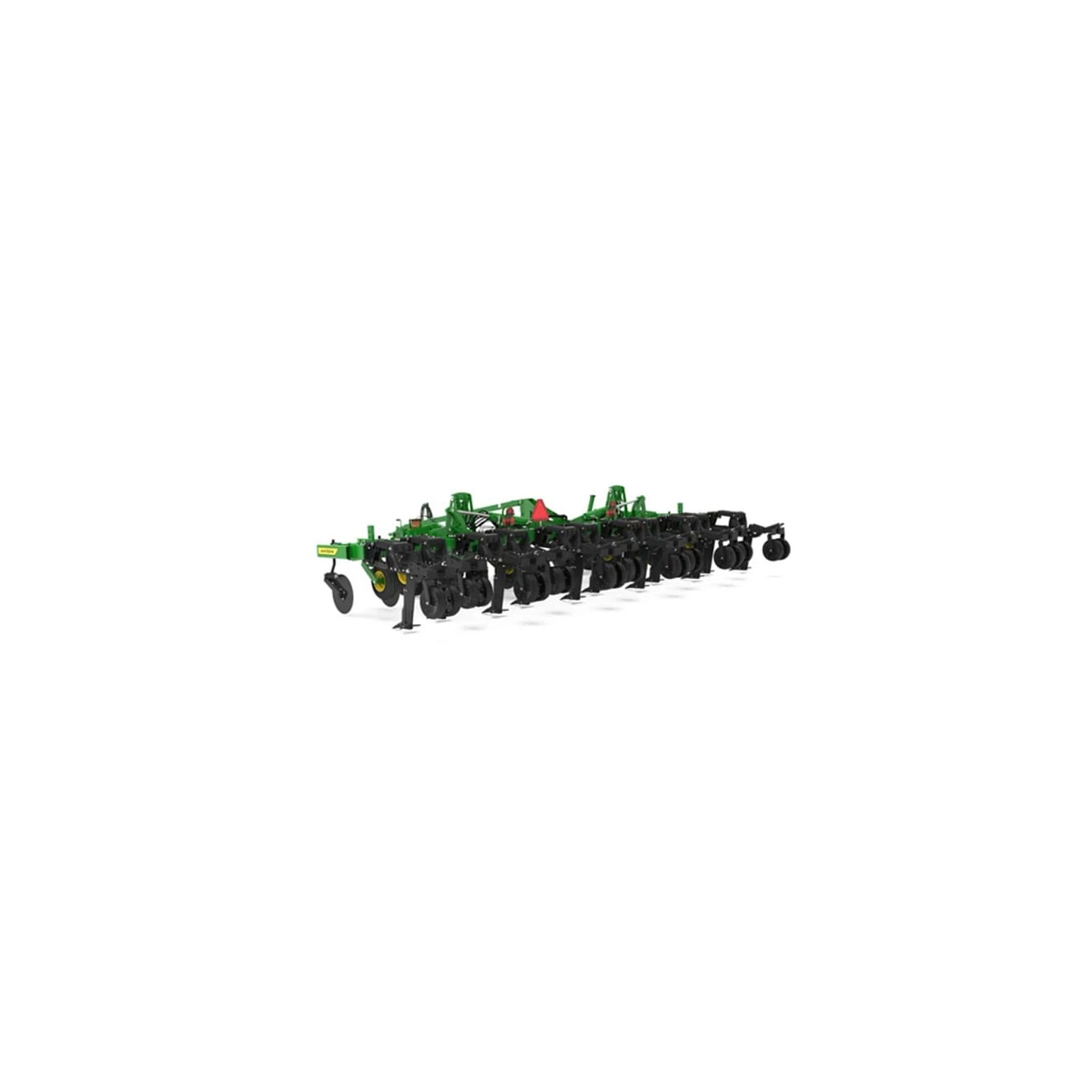

John Deere MT11

Starting at

Build the Right Foundation for Every Acre

The crop’s potential is shaped long before planting begins. John Deere tillage tools help manage residue, reduce compaction, and create a consistent seedbed—so you can trust what’s happening below the surface. With the right foundation in place, every pass sets up stronger emergence, more uniform stands, and greater confidence heading into planting.

Green tractor pulling a wide tillage implement across a harvested field, churning soil and crop residue under a partly cloudy sky in a rural farmland setting with corn residue
Make the Most of Every Prep Window

Field prep doesn’t wait for ideal conditions, and neither can you. With a full lineup of tillage tools designed for different soil types and residue levels, John Deere helps you match the tool to the job, reduce extra passes, and cover ground efficiently—so when conditions finally line up, you’re ready to move fast and get it done right.

Green tractor pulling a large tillage implement across a dry, harvested field at sunset, kicking up dust and crop residue under a hazy sky with work lights on both the tractor and implement
Adapt in Real Time and Build for What’s Next

No two fields—or passes—are the same. John Deere tillage tools with in-cab adjustment and connected technology help you respond as conditions change, maintaining consistent depth and finish across every acre. Captured data in Operations Center turns each pass into insight—so you can refine decisions, improve outcomes, and start next season ahead.

Person working at a desk using a keyboard and mouse while viewing a large monitor displaying a detailed map interface; a laptop and desk lamp sit nearby in a bright workspace
Question text goes here

Answer text goes here

Tool Configuration
Type

In-line ripper

Working Width
Working Width

27.5 ft

Working Width

8.4 m

Transport Width
Transport Width

16 ft

Transport Width

4.9 m

Operating Depth
Maximum Operating Depth

16 in.

Maximum Operating Depth

40.6 cm

Frame
Maximum Underframe Clearance

35 in.

Maximum Underframe Clearance

89 cm

Operating Speed
Operating Speed

4-7 mph

Operating Speed

6.4-11.2 km/h

Horsepower Required
Horsepower Required Per Standard

29.8-44.7 kW / 40-60 hp

Depth Control
Option 1

TruSet™ Active

Hydraulic Requirements
Option 1

Drawn: 1 SCV (lift) at 17,237 kPa / 2500 psi

Option 2

1 SCV (fold) at 17,237 kPa / 2,500 psi

Hitch
Options

Drawn

Pull-Type Description

Category 5 Hitch

Standard Options
Spacing Between Standards

30 in.

Spacing Between Standards

76.2 cm

Option 1

Shear-bolt

Option 1 - Trip Force, Shear Bolt

7200 lb.

Option 1 - Trip Force, Shear Bolt

3265 kg

Option 1 - Standard Type

Straight with wear shin: 19 or 31.75 mm / 0.75 or 1.25 in.

Option 2

Cushion trip

Option 2 - Trip Force

3200 lb.

Option 2 - Trip Force

1451.5 kg

Option 2 - Trip Height

12 in.

Option 2 - Trip Height

30.5 cm

Option 2 - Standard Type

19 mm / 0.75 in.

Ground-Engaging Components
Options

Standard: 19 mm (0.75 in.) Min-till point: 178 mm (7 in.) Low-disturbance: 178 mm (7 in.), 254 mm (10 in.) Ultra-low-disturbance: 63 mm (2.5 in.) Standard: 31.75 mm (1.25 in.) Regular: 57 mm (2.25 in.) Capped: 57 mm (2.25 in.) Double-capped: 57 mm (2.25 in.) LaserRip points: 70 mm (2.75 in.), 127 mm (5 in.), and 178 mm (7 in.)

Coulters
Type

Spring cushion coulters

Pounds Of Force

Normal working load: 272.2 kg 600 lb Deflection of: 10.2 cm 4 in. Maximum trip load: 362.9 kg 800 lb Deflection of: 20.3 cm 8 in.

Blades

Straight or rippled: 559x4.5 mm / 22x0.1777 in.

Closing Wheel Attachment
Down Force

250 lb.

Down Force

113.4 kg

Size

4x16 in.

Size

10.2x40.6 cm

Spacing

7.5 - 14 in.

Spacing

19.05 - 35.6 cm

Angle Adjustments

1 - 15 degree (angle)

Stabilizer/Gauge Wheels
Type

Four Stabilizer wheels

Wheels

20.5x8 in.

Wheels

52.1x20.3 cm

Tires

10 PR

Pull-Type Wheels
Description

VF320/70R15 Radial tire (with drawn hitch)
